1N4099-1 thru 1N4135-1 &
1N4614-1 thru 1N4627-1
Low Noise Zener Diode Series
Rev. V4
Electrical Specifications: T
A
= +25°C (unless otherwise specified)
JEDEC TYPE
No.
(Note1)
1N4121-1
1N4122-1
1N4123-1
1N4124-1
1N4125-1
1N4126-1
1N4127-1
1N4128-1
1N4129-1
1N4130-1
1N4131-1
1N4132-1
1N4133-1
1N4134-1
1N4135-1
1N4614-1
1N4615-1
1N4616-1
1N4617-1
1N4618-1
1N4619-1
1N4620-1
1N4621-1
1N4622-1
1N4623-1
1N4624-1
1N4625-1
1N4626-1
1N4627-1
Normal
Zener Voltage
VZ @ IZT
Volts
33
36
39
43
47
51
56
60
62
68
75
82
87
91
100
1.8
2
2.2
2.4
2.7
3
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
Zener Test
Current
IZT
µA
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
Maximum
Zener Impedance
ZZT
Ohms
200
200
200
250
250
300
300
400
500
700
700
800
1000
1200
1500
1200
1250
1300
1400
1500
1600
1650
1700
1650
1600
1550
1500
1400
1200
Maximum
Reverse Current
IR @ VR
µA
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
3.5
2.5
2.0
1.0
0.5
0.4
3.5
3.5
2.5
2.0
5.0
5.0
5.0
5.0
Volts
25.1
27.4
29.7
32.7
35.8
38.8
42.6
45.6
47.1
51.7
57.0
62.4
66.2
69.2
76.0
1
1
1
1
1
1
1.5
2
2
2
3
3
4
5
Maximum
Noise Density
ND @ IZT
µV/Sqrt (Hz)
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
1
1
1
1
1
1
1
1
1
1
1
2
4
5
Maximum
Zener Current
IZM
mA
12
11
9.8
8.9
8.1
7.5
6.7
6.4
6.1
5.6
5.1
4.6
4.4
4.2
3.8
120
110
100
95
90
87
85
83
80
77
75
70
65
61
1. The JEDEC type numbers shown with no suffix have a standard tolerance of +5% on the nominal Zener voltage; suffix C is used to identify
+2%: and suffix D is used identify +1% tolerance. Vz is measured with the diode in thermal equilibrium in 25°C still air.
Absolute Maximum Ratings
Parameter
Steady State Power Dissipation
Forward Voltage
Thermal Resistance
Operating & Storage Temperature
2
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0011409
Absolute Maximum
0.5 W
1.1 V @ 200 mA
250°C/W
-65°C to +175°C
1N4099-1 thru 1N4135-1 &
1N4614-1 thru 1N4627-1
Low Noise Zener Diode Series
Rev. V4
Circuit
(-)
Battery
Power
Supply
(low noise
source)
(+)
Shielded
Test
Circuit
Noise Density (N
D
), is specified in microvolt-rms per
square-root-hertz. Actual measurement is performed
using a 1 KHz to 3 KHz frequency bandpass filter at
a constant Zener test current (I
ZT
) at +25°C T
A
. N
D
is
calculated from the formula.
R
LOAD
DC
Blocking
Capacitor
A
Amplifier
Filter
F
O
- 2 KHz
B
P
- 1 to 3 KHz
True
RMS
Volt
Meter
V
NOISE
Graphs
Power Derating vs. Lead Temperature
500
Capacitance vs. Zener Voltage
200
180
160
@0V
@ -2 V
Rated Power Dissipation (mW)
400
*TA on FR4 PC Board
Lead Temperature
300
Capacitance (pF)
0
25
50
75
100
125
150
175
200
140
120
100
80
60
40
20
200
100
0
0
Lead Temperature (°C)
0
20
40
60
80
100
Zener Voltage (VZ)
3
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0011409
1N4099-1 thru 1N4135-1 &
1N4614-1 thru 1N4627-1
Low Noise Zener Diode Series
Rev. V4

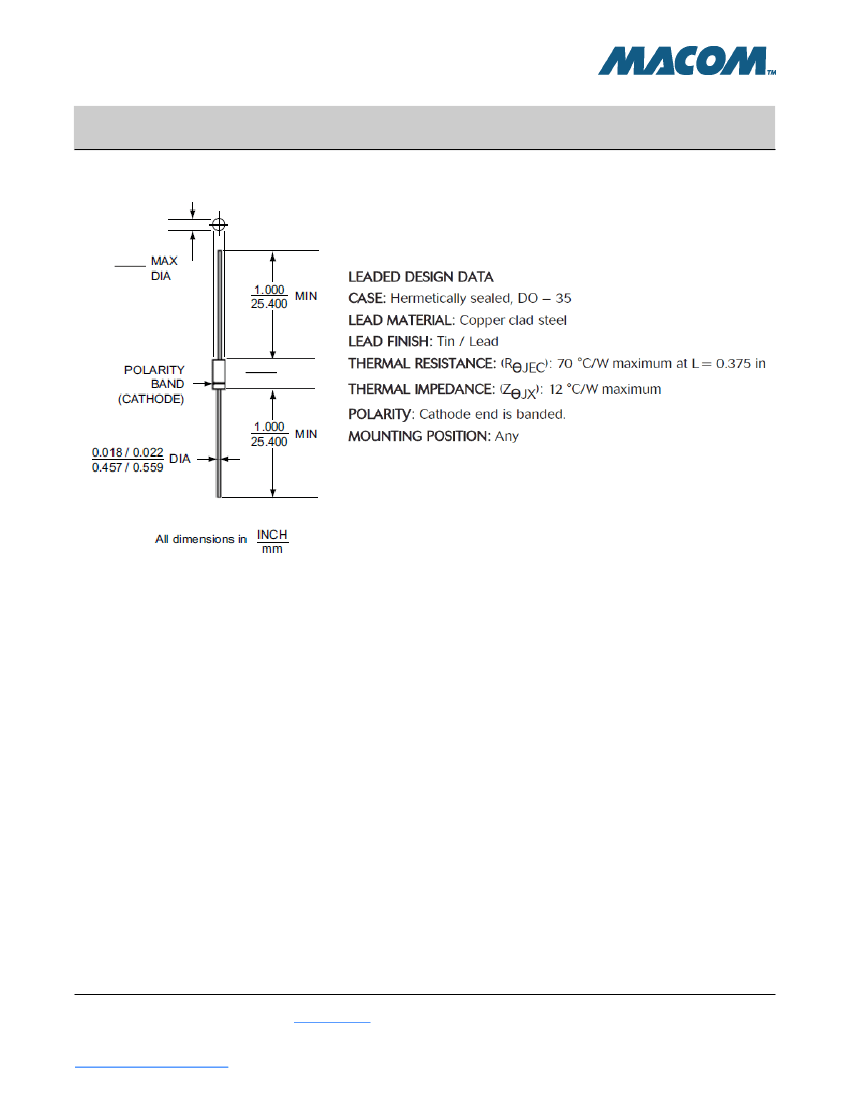

Outline Drawing
0.090
2.28
0.200
MAX
5.08
4
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0011409
1N4099-1 thru 1N4135-1 &
1N4614-1 thru 1N4627-1
Low Noise Zener Diode Series
Rev. V4
M/A-COM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with M/A-COM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
specifications and product descriptions at any time, without notice. MACOM makes no commitment to update
the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future
changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise,
to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
5
