FW262-HB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> FW262-HB

FW262-HB: DescriptionTerminal and Terminal Block,; CategoryThe connector terminals; File Size104KB，1 Pages; ManufacturerEtco Inc

Download Datasheet Parametric Compare View All

FW262-HB Overview

Terminal and Terminal Block,

FW262-HB Parametric

Parameter Name	Attribute value
Maker	Etco Inc
Reach Compliance Code	unknown

Preview

Download Datasheet

View All

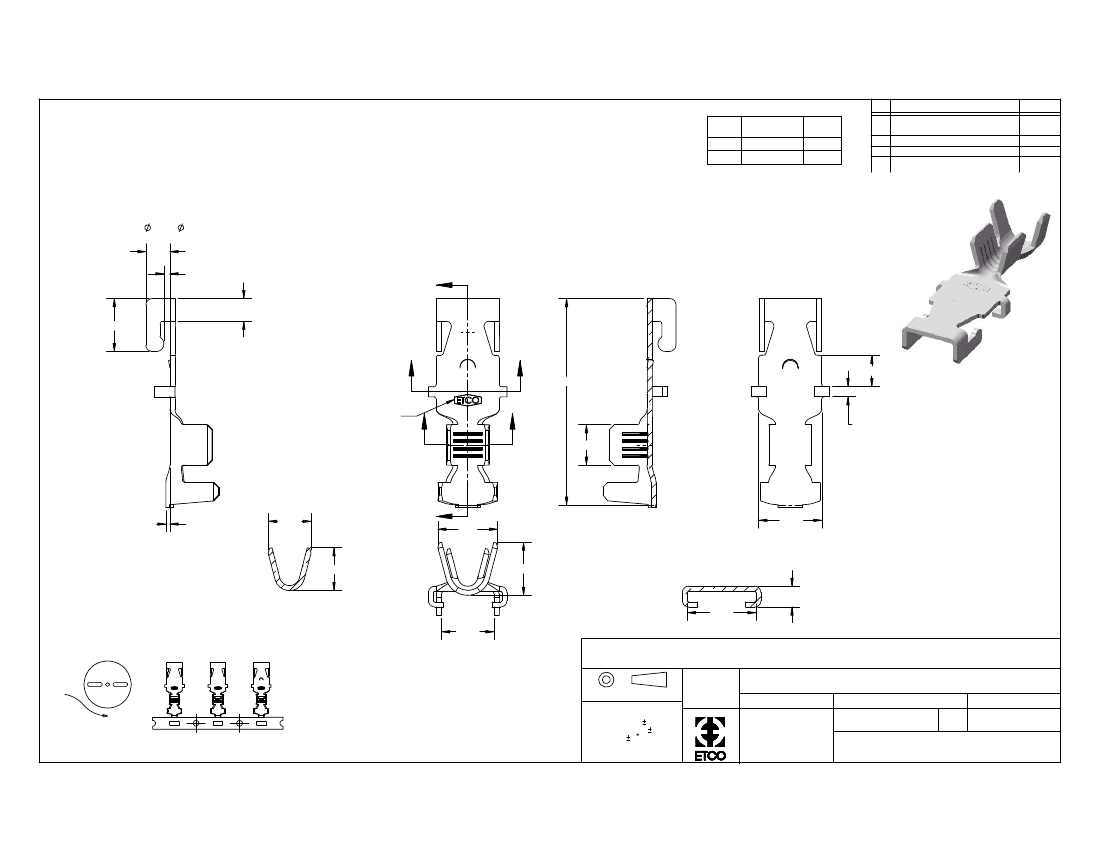

NOTES:

1. MATERIAL: .020 THICK BRASS

#4 TEMPER (FULL HARD)

PER ETCO METAL CODE 00498.

2. MATERIAL: .020 THICK PRETINNED BRASS

#4 TEMPER (FULL HARD)

PER ETCO METAL CODE 01536.

3. INSERTION/WITHDRAWAL FORCES ARE INDICATED ON THE

QUALITY INSPECTION PLAN.

4. PARTS MAY BE COATED WITH A LIGHT FILM OF

LUBRICATION USED IN THE MANUFACTURING PROCESS.

5. ALL CORNERS SHOWN SHARP MAY HAVE A .010 RADIUS.

6. ALL UNSPECIFIED RADII TO BE .010.

7. WIRE RANGE: 14 - 16 AWG

8. INSULATION RANGE: .125 - .140

2X .095

2X .024

Rev.

Description of Change/ SCN#

Date

P/Cs

12006

12007

DESCRIPTION

FW262-HB

FW262-THB

MAT'L

NOTE 1

NOTE 2

INITIAL CUST. DRAWING

RELEASE

JMR

4/25/08

B CHANGE HC MATERIAL TO NPS 5/19/08

C Removed NPS

SCJ

9/12/12

2X .090 REF

.210

2X .125

.82

PART TO BE DIE STAMPED

APPROXIMATELY AS SHOWN

.160

2X .040

.016

.170

.24

SECTION A-A

.250

.170

.21

2X .082 MAX

.272

.208

SECTION B-B

SECTION C-C

UNCONTROLLED COPY

ETCO

THIRD ANGLE PROJECTION

TOLERANCES UNLESS

OTHERWISE SPECIFIED

TOOL NO.

Title:

0934

FLATSNAP WING 260 SERIES TERM. AWG 14-16

Drawn By:

DO NOT SCALE DWG.

J. RAMALHO

Scale:

Date:

4/25/08

DIRECTION TOWARDS APPLICATOR

EARS UP, TO THE FRONT

THIS PRINT IS THE PROPERTY OF ETCO INCORPORATED. NO PART OF THIS DESIGN MAY BE USED IN ANY WAY WITHOUT WRITTEN CONSENT FROM ETCO INCORPORATED.

INCHES: .XX - .030

.XXX - .015

ANGLES: 5

ETCO Incorporated

Engineered Products

25 Bellows Street

Warwick, RI 02888

Phone: (401) 467-2400

Fax: (401) 467-9230

www.ETCO.com

Chk'd/App'd By:

Dwg. No.:

Size

FW262 cust

FW262-HB Related Products

	FW262-HB	FW262-THB
Description	Terminal and Terminal Block,	Terminal and Terminal Block,
Maker	Etco Inc	Etco Inc
Reach Compliance Code	unknown	unknown
