BR93LC46RF-E2 datasheet, PDF - EEWORLD Datasheet

BR93LC46RF-E2: DescriptionEEPROM, 64X16, Serial, CMOS, PDSO8, SOP-8; Categorystorage storage; File Size487KB，12 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

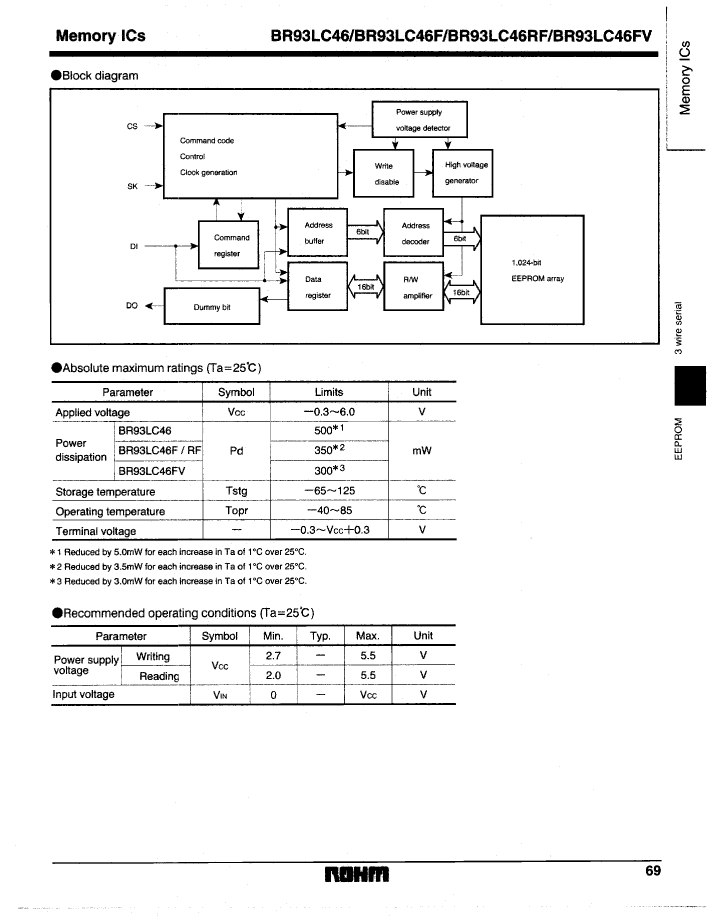

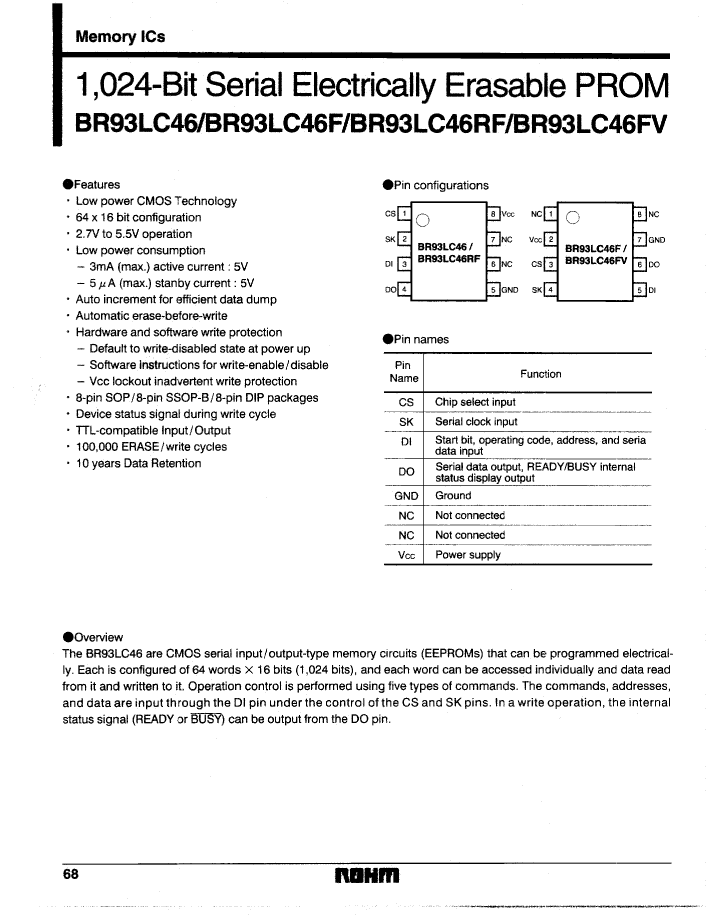

BR93LC46RF-E2 Overview

EEPROM, 64X16, Serial, CMOS, PDSO8, SOP-8

Parameter Name	Attribute value
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	LSOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99

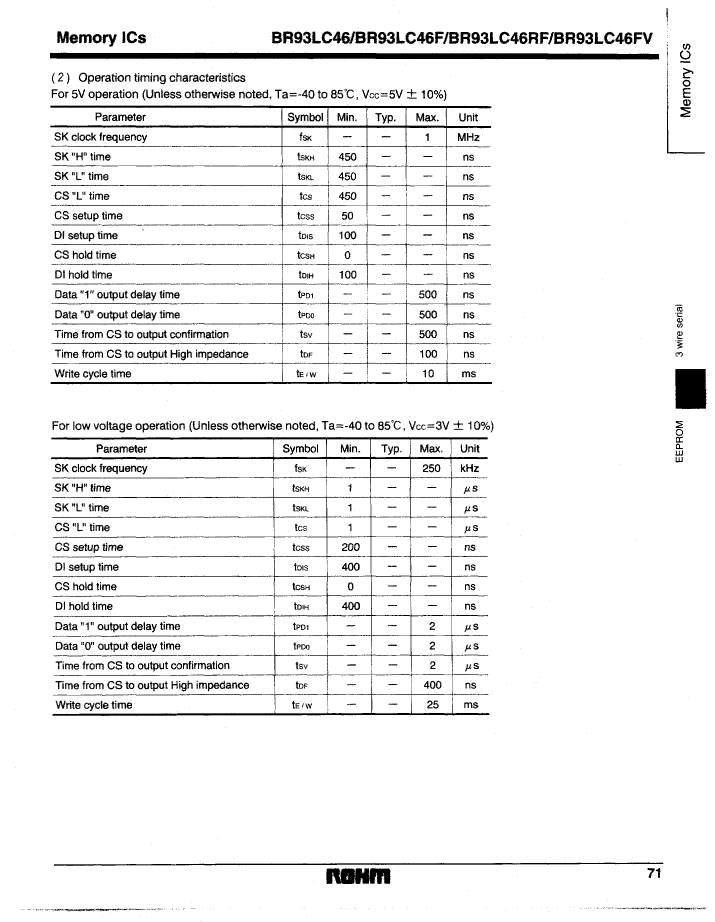

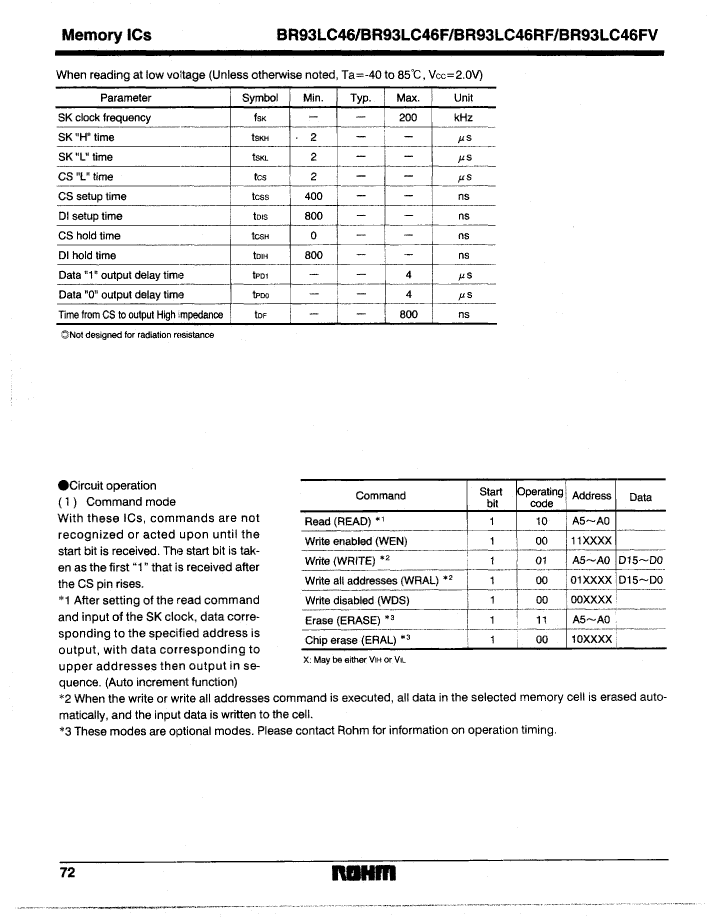

Maximum clock frequency (fCLK)	0.2 MHz
JESD-30 code	R-PDSO-G8
length	5 mm
memory density	1024 bit
Memory IC Type	EEPROM
memory width	16
Number of functions	1
Number of terminals	8
word count	64 words
character code	64
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	64X16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum seat height	1.6 mm
Serial bus type	MICROWIRE

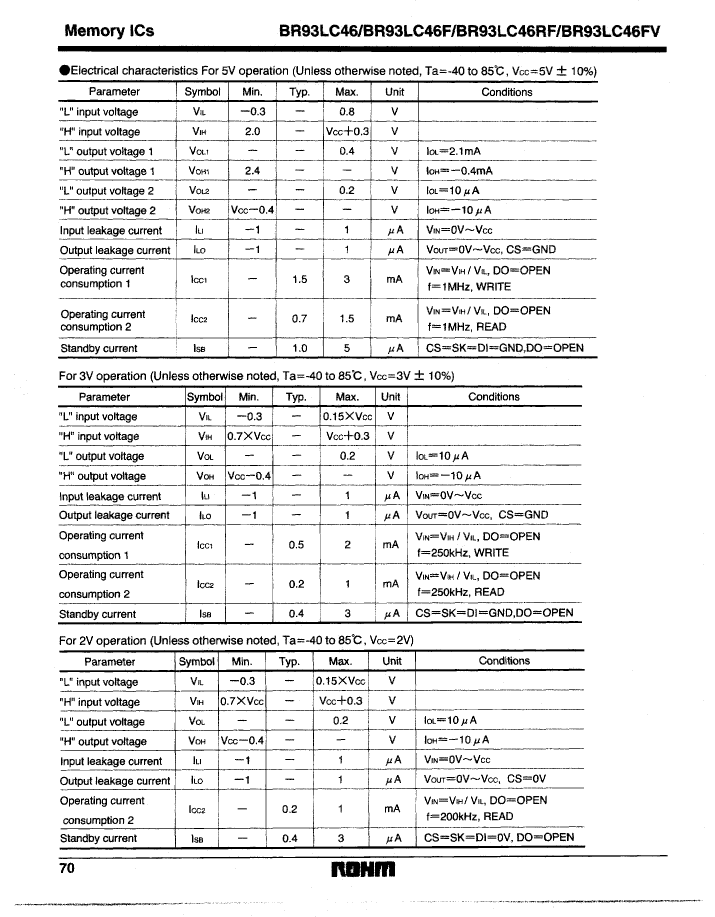

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	4.4 mm
Maximum write cycle time (tWC)	25 ms

	BR93LC46RF-E2	BR93LC46RF-T1
Description	EEPROM, 64X16, Serial, CMOS, PDSO8, SOP-8	EEPROM, 64X16, Serial, CMOS, PDSO8, SOP-8
Maker	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SOIC	SOIC
package instruction	LSOP,	LSOP,
Contacts	8	8
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Maximum clock frequency (fCLK)	0.2 MHz	0.2 MHz
JESD-30 code	R-PDSO-G8	R-PDSO-G8
length	5 mm	5 mm
memory density	1024 bit	1024 bit
Memory IC Type	EEPROM	EEPROM
memory width	16	16
Number of functions	1	1
Number of terminals	8	8
word count	64 words	64 words
character code	64	64
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
organize	64X16	64X16
Output characteristics	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	LSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE
Parallel/Serial	SERIAL	SERIAL
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm
Serial bus type	MICROWIRE	MICROWIRE
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.7 V	2 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	4.4 mm	4.4 mm
