BQ4010MA-200

Description
Non-Volatile SRAM Module, 8KX8, 200ns, CMOS, PDIP28,
Categorystorage    storage
File Size374KB，10 Pages
ManufacturerBenchmarq Microelectronics Inc
Download Datasheet Parametric Compare View All

BQ4010MA-200 Online Shopping

Suppliers Part Number Price MOQ In stock
BQ4010MA-200 - - View Buy Now

BQ4010MA-200 Overview

Non-Volatile SRAM Module, 8KX8, 200ns, CMOS, PDIP28,

BQ4010MA-200 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerBenchmarq Microelectronics Inc
Reach Compliance Codeunknown
Maximum access time200 ns
Other features10 YEARS DATA RETENTION
JESD-30 codeR-PDIP-P28
JESD-609 codee0
memory density65536 bit
Memory IC TypeNON-VOLATILE SRAM MODULE
memory width8
Number of functions1
Number of ports1
Number of terminals28
word count8192 words
character code8000
Operating modeASYNCHRONOUS
Maximum operating temperature70 °C
Minimum operating temperature
organize8KX8
Output characteristics3-STATE
ExportableYES
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP28,.6
Package shapeRECTANGULAR
Package formIN-LINE
Parallel/SerialPARALLEL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Certification statusNot Qualified
Maximum standby current0.004 A
Maximum slew rate0.075 mA
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.75 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formPIN/PEG
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED

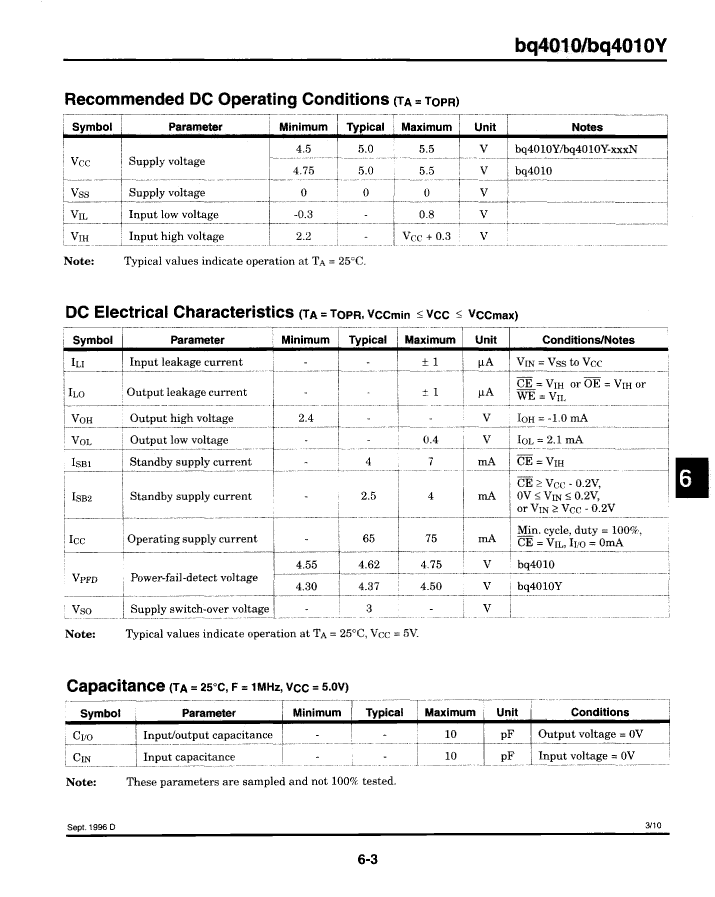

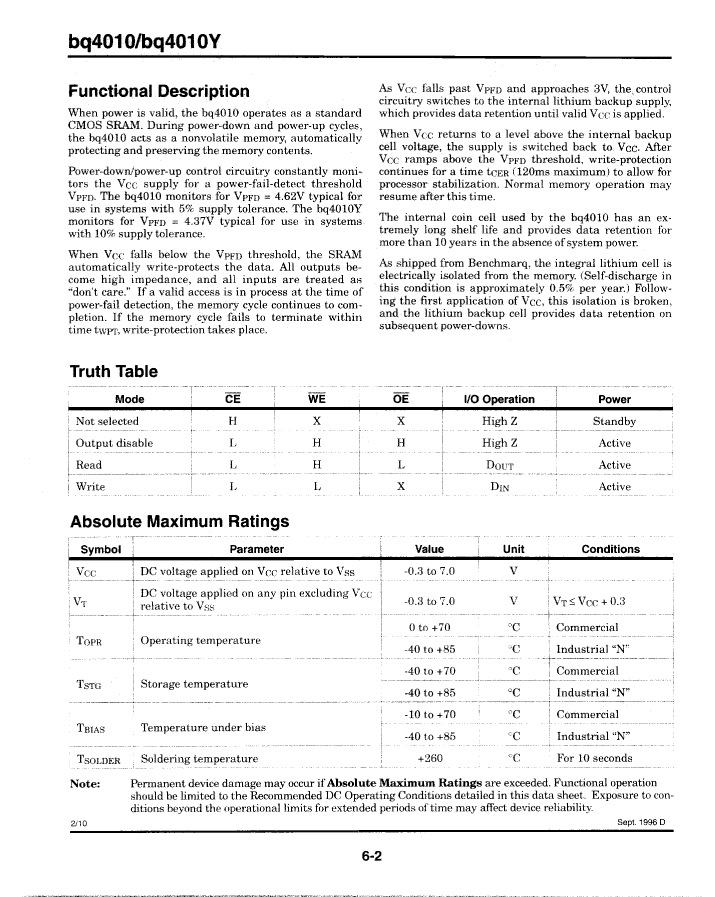

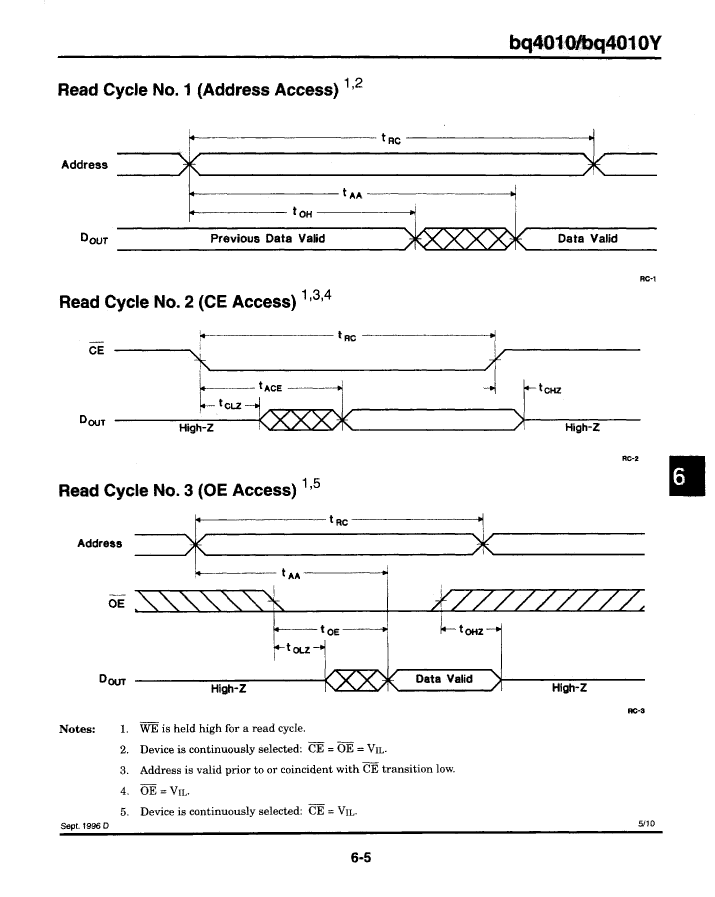

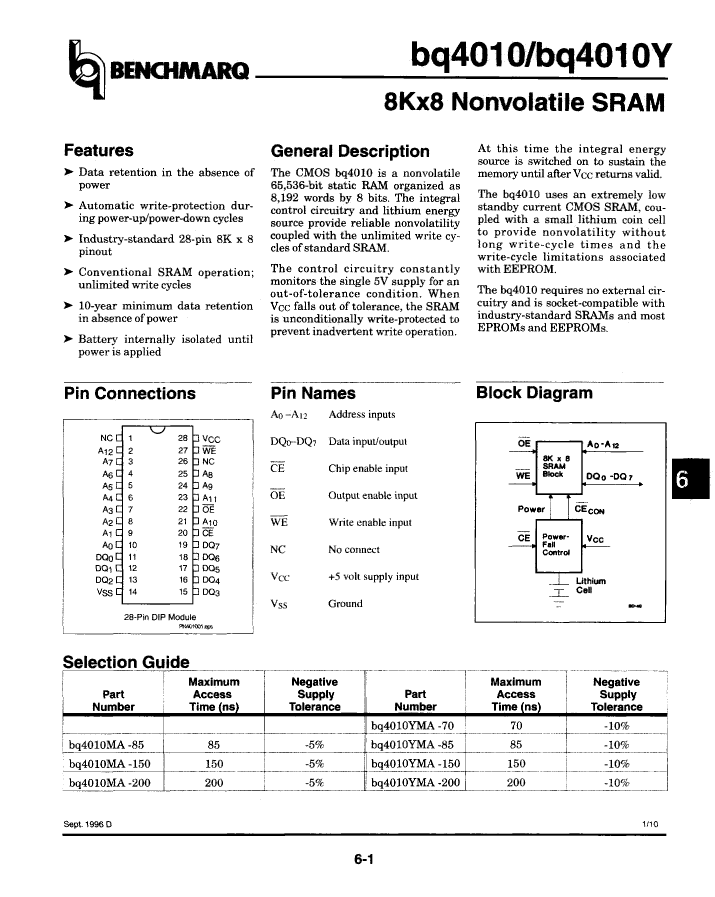

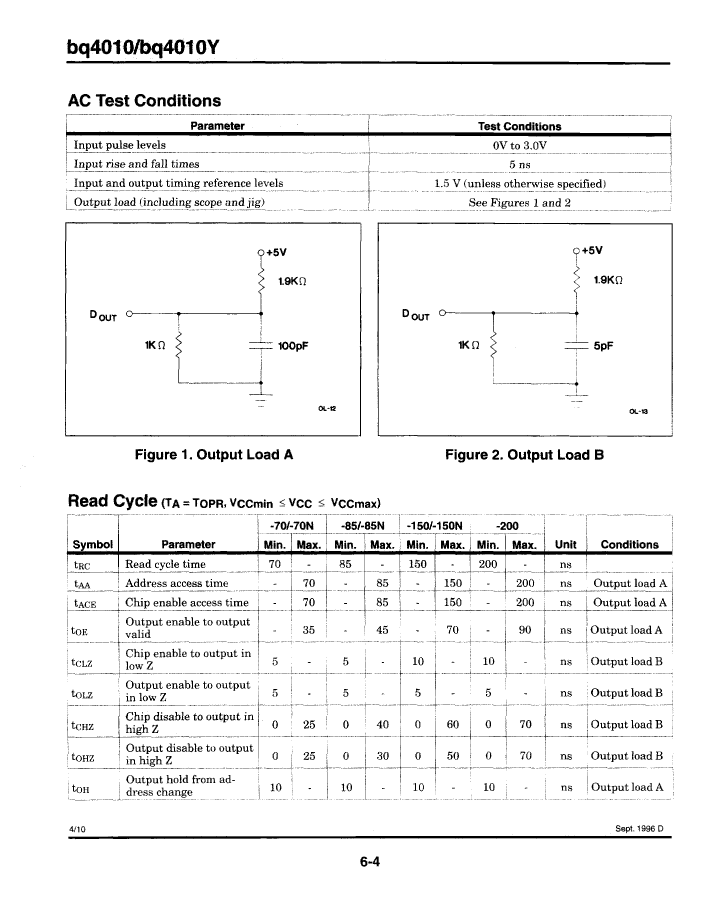

Preview

Download Datasheet

BQ4010MA-200 Related Products

BQ4010MA-200 BQ4010MA-85 BQ4010YMA-85 BQ4010YMA-85N BQ4010MA-150 BQ4010YMA-150 BQ4010YMA-150N BQ4010YMA-200 BQ4010YMA-70 BQ4010YMA-70N
Description Non-Volatile SRAM Module, 8KX8, 200ns, CMOS, PDIP28, Non-Volatile SRAM Module, 8KX8, 85ns, CMOS, PDIP28, Non-Volatile SRAM Module, 8KX8, 85ns, CMOS, PDIP28, Non-Volatile SRAM Module, 8KX8, 85ns, CMOS, PDIP28, Non-Volatile SRAM Module, 8KX8, 150ns, CMOS, PDIP28, Non-Volatile SRAM Module, 8KX8, 150ns, CMOS, PDIP28, Non-Volatile SRAM Module, 8KX8, 150ns, CMOS, PDIP28, Non-Volatile SRAM Module, 8KX8, 200ns, CMOS, PDIP28, Non-Volatile SRAM Module, 8KX8, 70ns, CMOS, PDIP28, Non-Volatile SRAM Module, 8KX8, 70ns, CMOS, PDIP28,
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown
Maximum access time 200 ns 85 ns 85 ns 85 ns 150 ns 150 ns 150 ns 200 ns 70 ns 70 ns
Other features 10 YEARS DATA RETENTION 10 YEARS DATA RETENTION 10 YEARS DATA RETENTION 10 YEARS DATA RETENTION 10 YEARS DATA RETENTION 10 YEARS DATA RETENTION 10 YEARS DATA RETENTION 10 YEARS DATA RETENTION 10 YEARS DATA RETENTION 10 YEARS DATA RETENTION
JESD-30 code R-PDIP-P28 R-PDIP-P28 R-PDIP-P28 R-PDIP-P28 R-PDIP-P28 R-PDIP-P28 R-PDIP-P28 R-PDIP-P28 R-PDIP-P28 R-PDIP-P28
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0 e0 e0
memory density 65536 bit 65536 bit 65536 bit 65536 bit 65536 bit 65536 bit 65536 bit 65536 bit 65536 bit 65536 bit
Memory IC Type NON-VOLATILE SRAM MODULE NON-VOLATILE SRAM MODULE NON-VOLATILE SRAM MODULE NON-VOLATILE SRAM MODULE NON-VOLATILE SRAM MODULE NON-VOLATILE SRAM MODULE NON-VOLATILE SRAM MODULE NON-VOLATILE SRAM MODULE NON-VOLATILE SRAM MODULE NON-VOLATILE SRAM MODULE
memory width 8 8 8 8 8 8 8 8 8 8
Number of functions 1 1 1 1 1 1 1 1 1 1
Number of ports 1 1 1 1 1 1 1 1 1 1
Number of terminals 28 28 28 28 28 28 28 28 28 28
word count 8192 words 8192 words 8192 words 8192 words 8192 words 8192 words 8192 words 8192 words 8192 words 8192 words
character code 8000 8000 8000 8000 8000 8000 8000 8000 8000 8000
Operating mode ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS
Maximum operating temperature 70 °C 70 °C 70 °C 85 °C 70 °C 70 °C 85 °C 70 °C 70 °C 85 °C
organize 8KX8 8KX8 8KX8 8KX8 8KX8 8KX8 8KX8 8KX8 8KX8 8KX8
Output characteristics 3-STATE 3-STATE 3-STATE 3-STATE 3-STATE 3-STATE 3-STATE 3-STATE 3-STATE 3-STATE
Exportable YES YES YES YES YES YES YES YES YES YES
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code DIP DIP DIP DIP DIP DIP DIP DIP DIP DIP
Encapsulate equivalent code DIP28,.6 DIP28,.6 DIP28,.6 DIP28,.6 DIP28,.6 DIP28,.6 DIP28,.6 DIP28,.6 DIP28,.6 DIP28,.6
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE
Parallel/Serial PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
power supply 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum standby current 0.004 A 0.004 A 0.004 A 0.004 A 0.004 A 0.004 A 0.004 A 0.004 A 0.004 A 0.004 A
Maximum slew rate 0.075 mA 0.075 mA 0.075 mA 0.075 mA 0.075 mA 0.075 mA 0.075 mA 0.075 mA 0.075 mA 0.075 mA
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.75 V 4.75 V 4.5 V 4.5 V 4.75 V 4.5 V 4.5 V 4.5 V 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V
surface mount NO NO NO NO NO NO NO NO NO NO
technology CMOS CMOS CMOS CMOS CMOS CMOS CMOS CMOS CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL INDUSTRIAL COMMERCIAL COMMERCIAL INDUSTRIAL COMMERCIAL COMMERCIAL INDUSTRIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Base Number Matches - 1 1 1 1 1 1 1 - -
