M51946AFP: DescriptionPower Supply Support Circuit, Fixed, 1 Channel, +1.25VV, PDSO8, 8P2S-A; CategoryPower/power management The power supply circuit; File Size216KB，7 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

M51946AFP Overview

Power Supply Support Circuit, Fixed, 1 Channel, +1.25VV, PDSO8, 8P2S-A

M51946AFP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mitsubishi
Parts packaging code	SOIC
package instruction	SOP, SOP8,.25
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	5 mm
Number of channels	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	2/17 V
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply current (Isup)	0.47 mA
Maximum supply voltage (Vsup)	17 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Threshold voltage nominal	+1.25V
width	4.4 mm

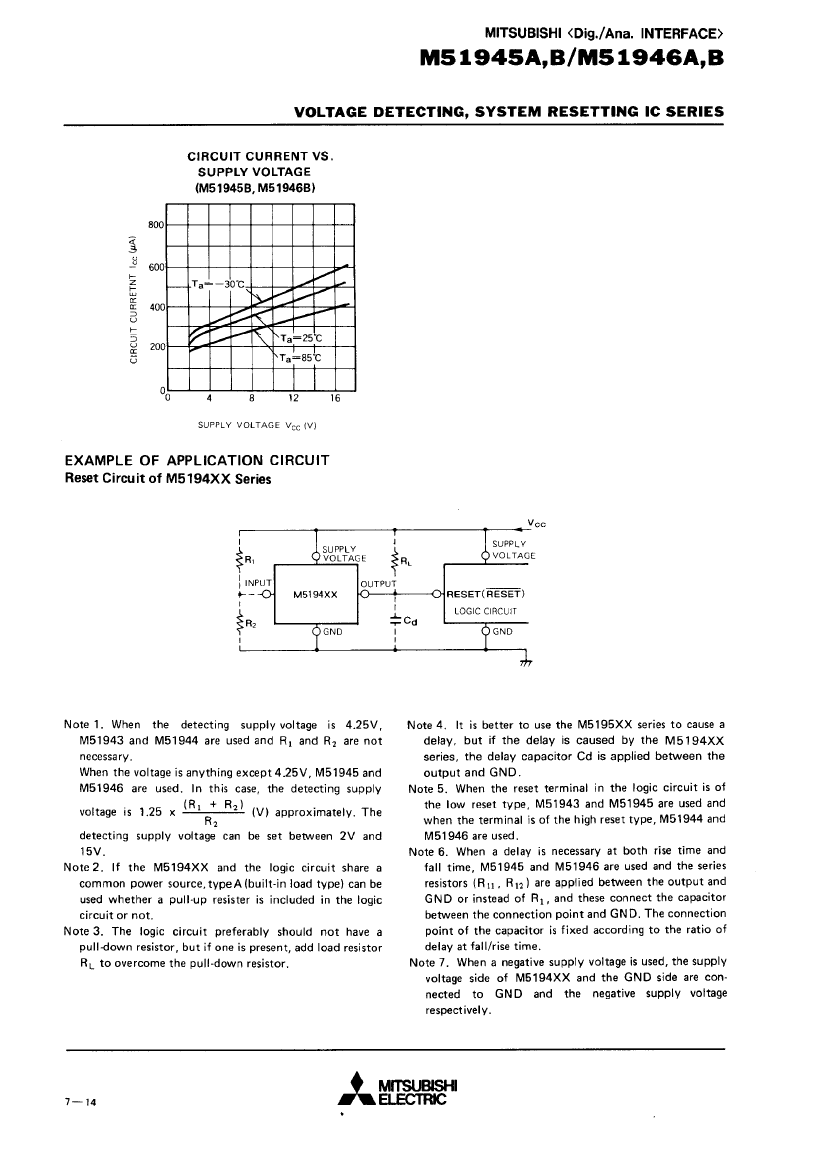

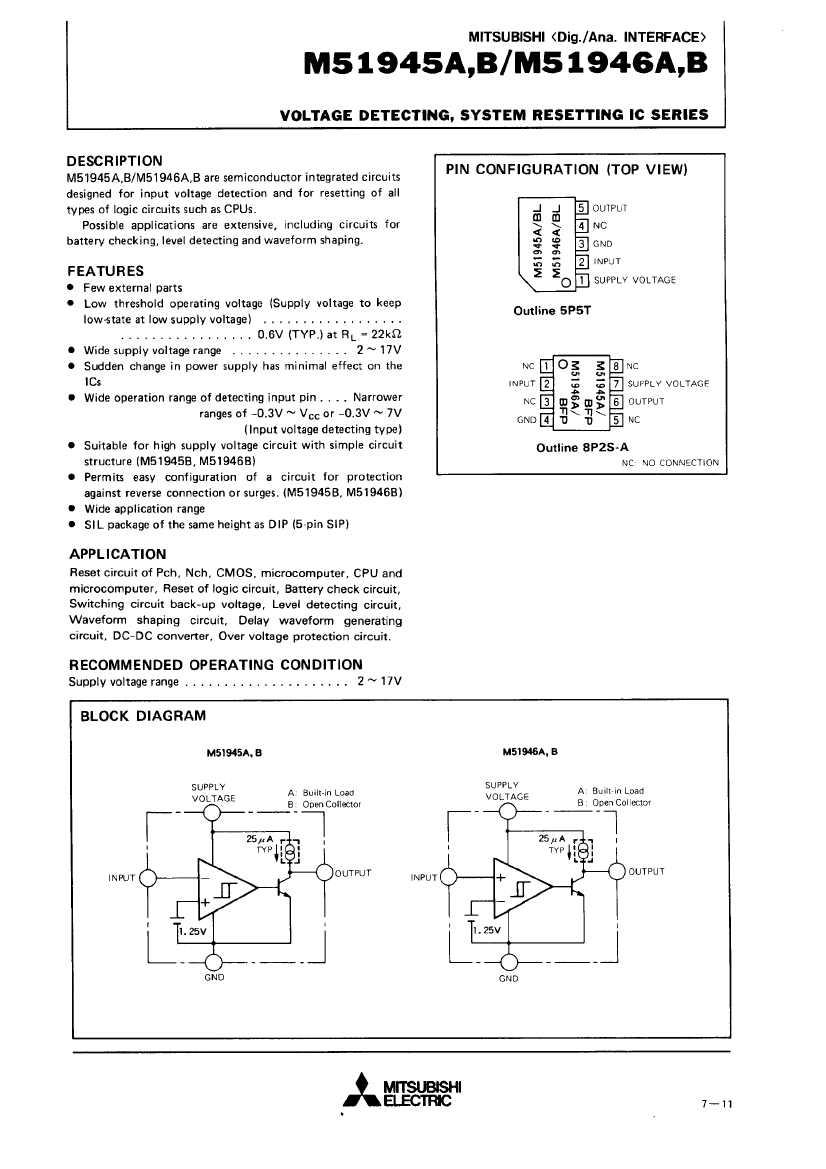

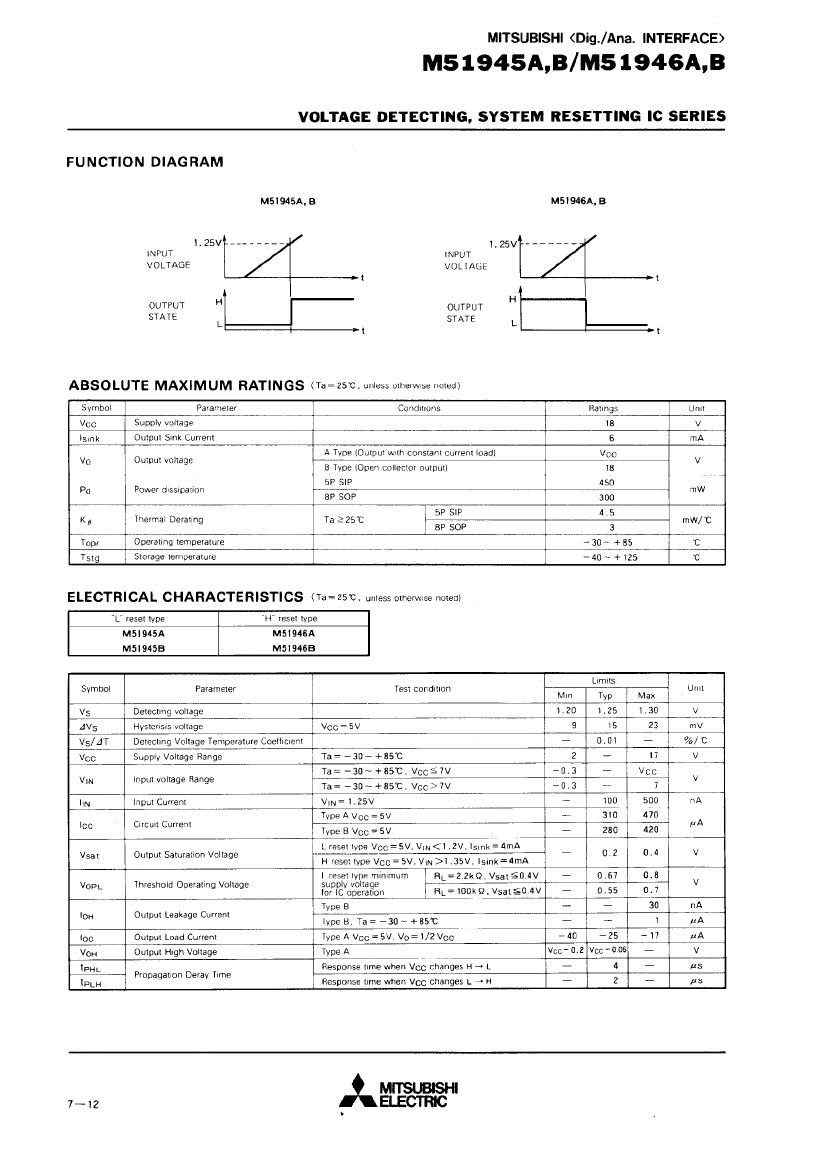

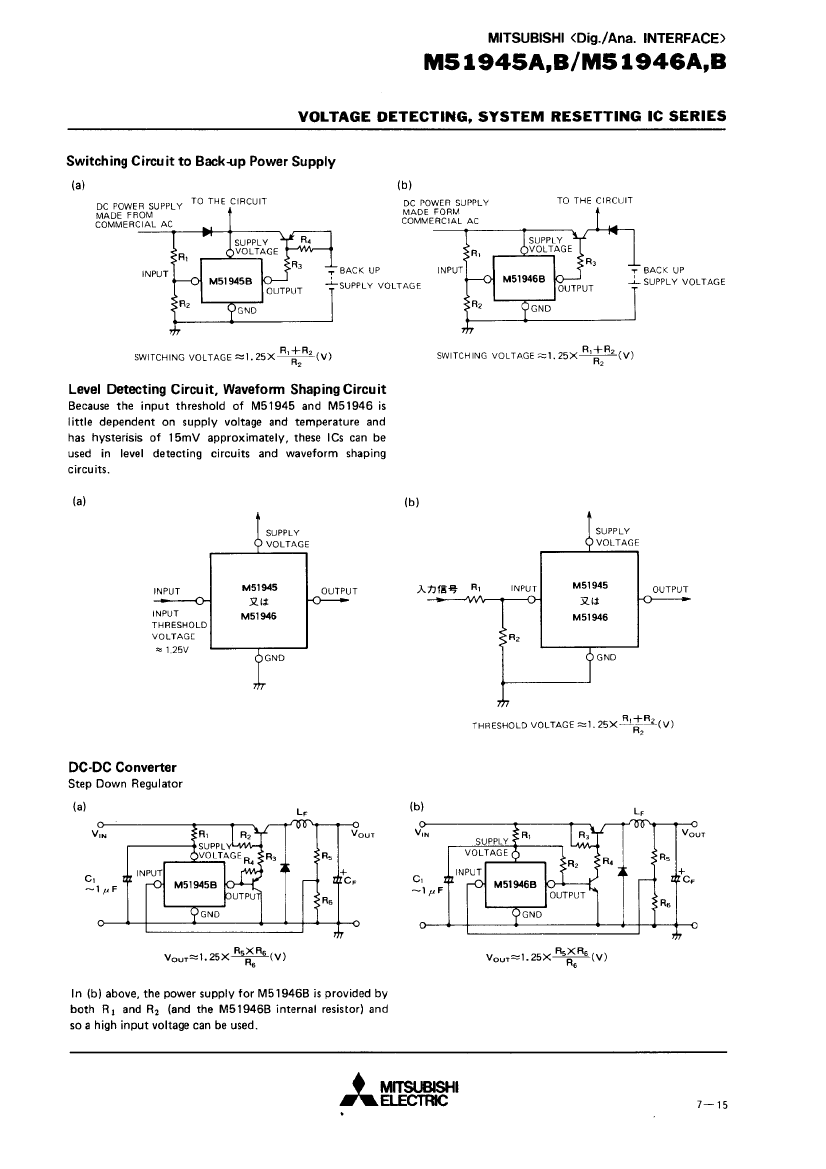

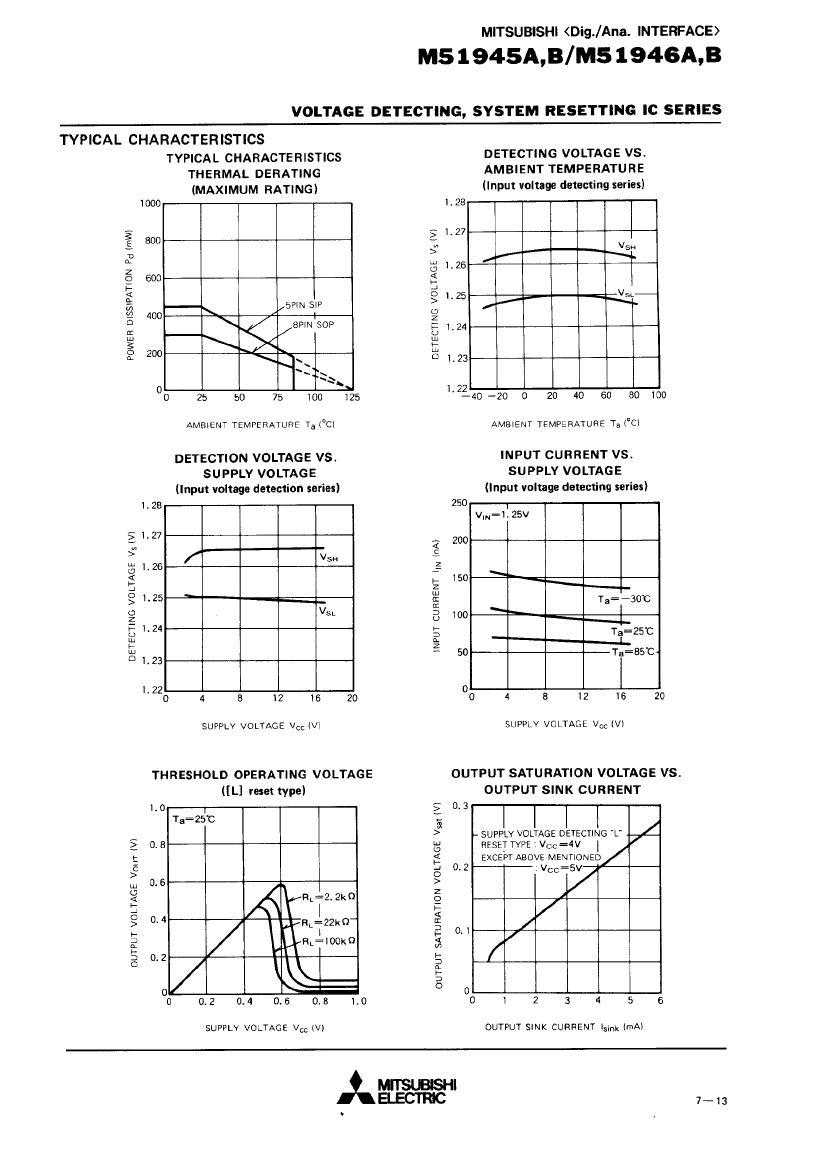

Preview

Download Datasheet

View All

M51946AFP Related Products

	M51946AFP	M51945AFP	M51945BFP	M51945BL	M51945AL	M51946AL	M51946BFP	M51946BL
Description	Power Supply Support Circuit, Fixed, 1 Channel, +1.25VV, PDSO8, 8P2S-A	Power Supply Support Circuit, Fixed, 1 Channel, +1.25VV, PDSO8, 8P2S-A	Power Supply Support Circuit, Fixed, 1 Channel, +1.25VV, PDSO8, 8P2S-A	Power Supply Support Circuit, Fixed, 1 Channel, +1.25VV, PSIP5, SIP-5	Power Supply Support Circuit, Fixed, 1 Channel, +1.25VV, PSIP5, SIP-5	Power Supply Support Circuit, Fixed, 1 Channel, +1.25VV, PSIP5, SIP-5	Power Supply Support Circuit, Fixed, 1 Channel, +1.25VV, PDSO8, 8P2S-A	Power Supply Support Circuit, Fixed, 1 Channel, +1.25VV, PSIP5, SIP-5
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Parts packaging code	SOIC	SOIC	SOIC	SIP	SIP	SIP	SOIC	SIP
package instruction	SOP, SOP8,.25	SOP, SOP8,.25	SOP, SOP8,.25	SIP, SIP5,.03	SIP, SIP5,.03	SIP, SIP5,.03	SOP, SOP8,.25	SIP, SIP5,.03
Contacts	8	8	8	5	5	5	8	5
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Adjustable threshold	NO	NO	NO	NO	NO	NO	NO	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PSIP-T5	R-PSIP-T5	R-PSIP-T5	R-PDSO-G8	R-PSIP-T5
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	5 mm	5 mm	5 mm	11.7 mm	11.7 mm	11.7 mm	5 mm	11.7 mm
Number of channels	1	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	8	8	8	5	5	5	8	5
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SIP	SIP	SIP	SOP	SIP
Encapsulate equivalent code	SOP8,.25	SOP8,.25	SOP8,.25	SIP5,.03	SIP5,.03	SIP5,.03	SOP8,.25	SIP5,.03
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
power supply	2/17 V	2/17 V	2/17 V	2/17 V	2/17 V	2/17 V	2/17 V	2/17 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	1.9 mm	1.9 mm	6.1 mm	6.1 mm	6.1 mm	1.9 mm	6.1 mm
Maximum supply current (Isup)	0.47 mA	0.47 mA	0.42 mA	0.42 mA	0.47 mA	0.47 mA	0.42 mA	0.42 mA
Maximum supply voltage (Vsup)	17 V	17 V	17 V	17 V	17 V	17 V	17 V	17 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	NO	NO	YES	NO
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	SINGLE	SINGLE	SINGLE	DUAL	SINGLE
Threshold voltage nominal	+1.25V	+1.25V	+1.25V	+1.25V	+1.25V	+1.25V	+1.25V	+1.25V
width	4.4 mm	4.4 mm	4.4 mm	1.97 mm	1.97 mm	1.97 mm	4.4 mm	1.97 mm
