ROS-ED6856/1: DescriptionVoltage Controlled Oscillator, 856MHz Min, 862MHz Max, CASE CH513, 14 PIN; CategoryPassive components oscillator; File Size107KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ROS-ED6856/1 Overview

Voltage Controlled Oscillator, 856MHz Min, 862MHz Max, CASE CH513, 14 PIN

ROS-ED6856/1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
JESD-609 code	e0
Manufacturer's serial number	ROS-ED6856/1
Modulation sensitivity	29 MHz/V
Installation features	SURFACE MOUNT
offset frequency	1 kHz
Maximum operating frequency	862 MHz
Minimum operating frequency	856 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	3 dBm
phase noise	-82 dBc/Hz
physical size	12.7mm x 12.7mm x 5.08mm
Maximum slew rate	15 mA
Nominal supply voltage	5 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

Engineering Development Model

Voltage Controlled Oscillator

Important Note

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

Please click "Back", and then click "Contact Us" for Applications support.

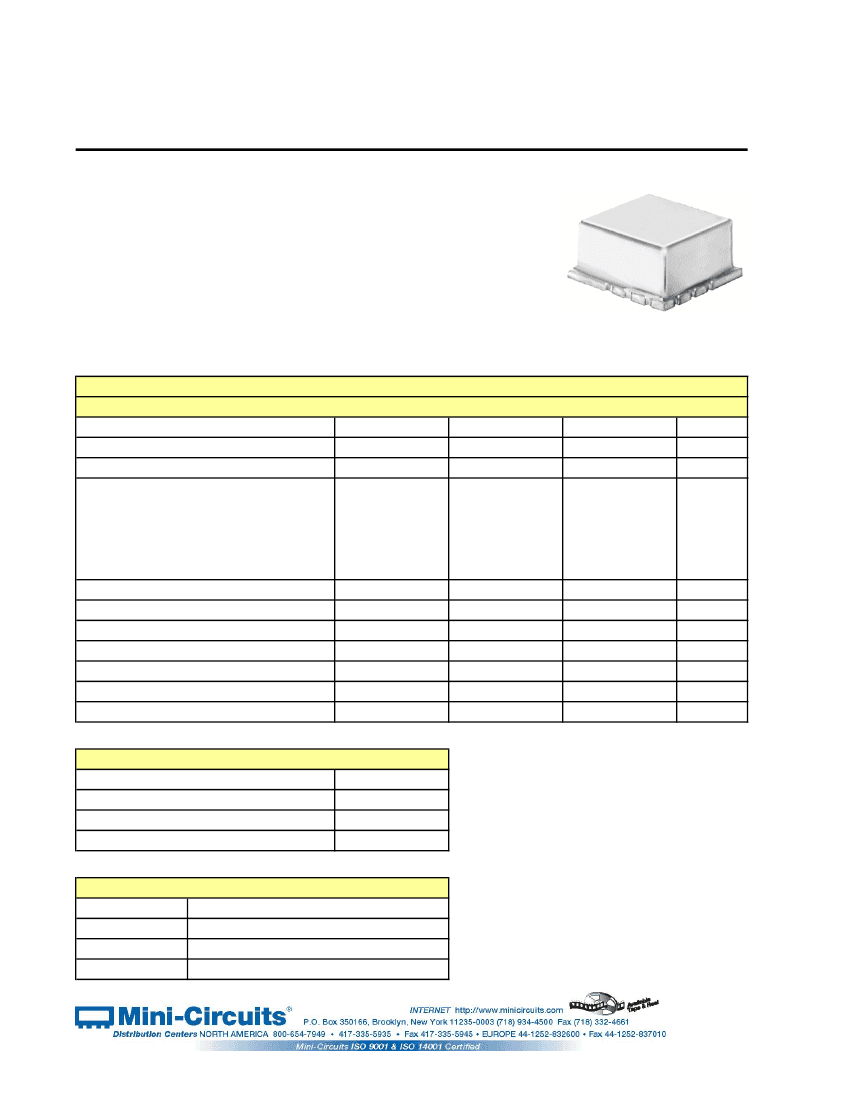

CASE STYLE : CH513

ROS-ED6856/1

ELECTRICAL SPECIFICATIONS 50Ω

Parameter

Frequency

Tuning

Voltage

Power Output

Min.

856

0.5

Typ.

Max.

862

4.5

+3

-82

-103

-124

-144

7

1

22 - 29

-20

2000

5

15

Units

MHz

V

dBm

dBc/Hz

MHz

MHz/V

dBc

kHz

V

mA

Phase Noise

at 1 kHz offset

at 10 KHz offset

at 100 KHz offset

at 1000 kHz offset

Pulling at 12 dBr PK-PK all phases

Pushing at Vcc=5V±0.25V

Tuning Sensitivity

Harmonic Suppression

3 dB Modulation Bandwidth

Supply Voltage

Supply Current

MAXIMUM RATINGS

Operating Temperature

Storage Temperature

Absolute Supply Voltage (Vcc)

Absolute Tuning Voltage (Vtune)

-55°C to 85°C

-55°C to 100°C

+7V

+6.5V

RF OUT

VCC

V-TUNE

GROUND

PIN CONNECTIONS

10

14

8

2,3,4,6,7,9,10,11,12

REV. X1

ROS-ED6856/1

60522

ROS-ED6856/1 Related Products

	ROS-ED6856/1	ROS-ED6856/1+
Description	Voltage Controlled Oscillator, 856MHz Min, 862MHz Max, CASE CH513, 14 PIN	Voltage Controlled Oscillator, 856MHz Min, 862MHz Max, CASE CH513, 14 PIN
Is it lead-free?	Contains lead	Lead free
Is it Rohs certified?	incompatible	conform to
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	unknown
Other features	TAPE AND REEL	TAPE AND REEL
Maximum control voltage	4.5 V	4.5 V
Minimum control voltage	0.5 V	0.5 V
JESD-609 code	e0	e3
Modulation sensitivity	29 MHz/V	29 MHz/V
Installation features	SURFACE MOUNT	SURFACE MOUNT
offset frequency	1 kHz	1 kHz
Maximum operating frequency	862 MHz	862 MHz
Minimum operating frequency	856 MHz	856 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR	VOLTAGE CONTROLLED OSCILLATOR
Output Power	3 dBm	3 dBm
phase noise	-82 dBc/Hz	-82 dBc/Hz
physical size	12.7mm x 12.7mm x 5.08mm	12.7mm x 12.7mm x 5.08mm
Maximum slew rate	15 mA	15 mA
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin (Sn) - with Nickel (Ni) barrier

Recommended Resources

Amplifier circuit diagram

Highly sensitive optical fiber receiving amplifier

Thermocouple Temperature Measurement Circuit with High Stability Amplifier

Light Detection 4 to 20mA Current Transmitter Circuit

Blood pressure detection circuit

Transistor switching regulated power supply application circuit example
