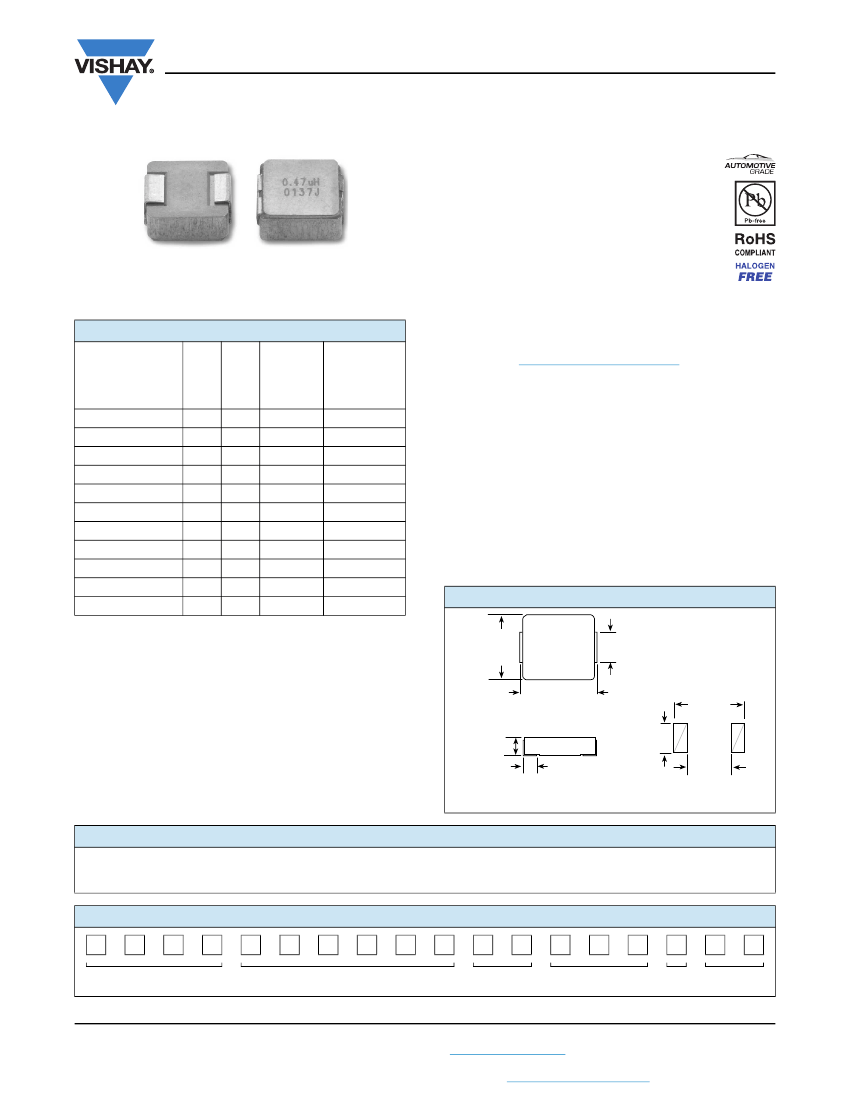

IHLP-2020CZ-1A
www.vishay.com
Vishay Dale
Low Profile, High Current IHLP
®
Inductor
FEATURES
•
•
•
•
Manufactured under one or more of the following:
US Patents; 6,198,375/6,204,744/6,449,829/6,460,244.
Several foreign patents, and other patents pending.
•
•
•
•
Shielded construction
Frequency range up to 1.0 MHz
Lowest DCR/μH, in this package size
Handles high transient current spikes without
saturation
Ultra low buzz noise, due to composite
construction
Excellent temperature stability for inductance
and saturation
AEC-Q200 qualified
Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912

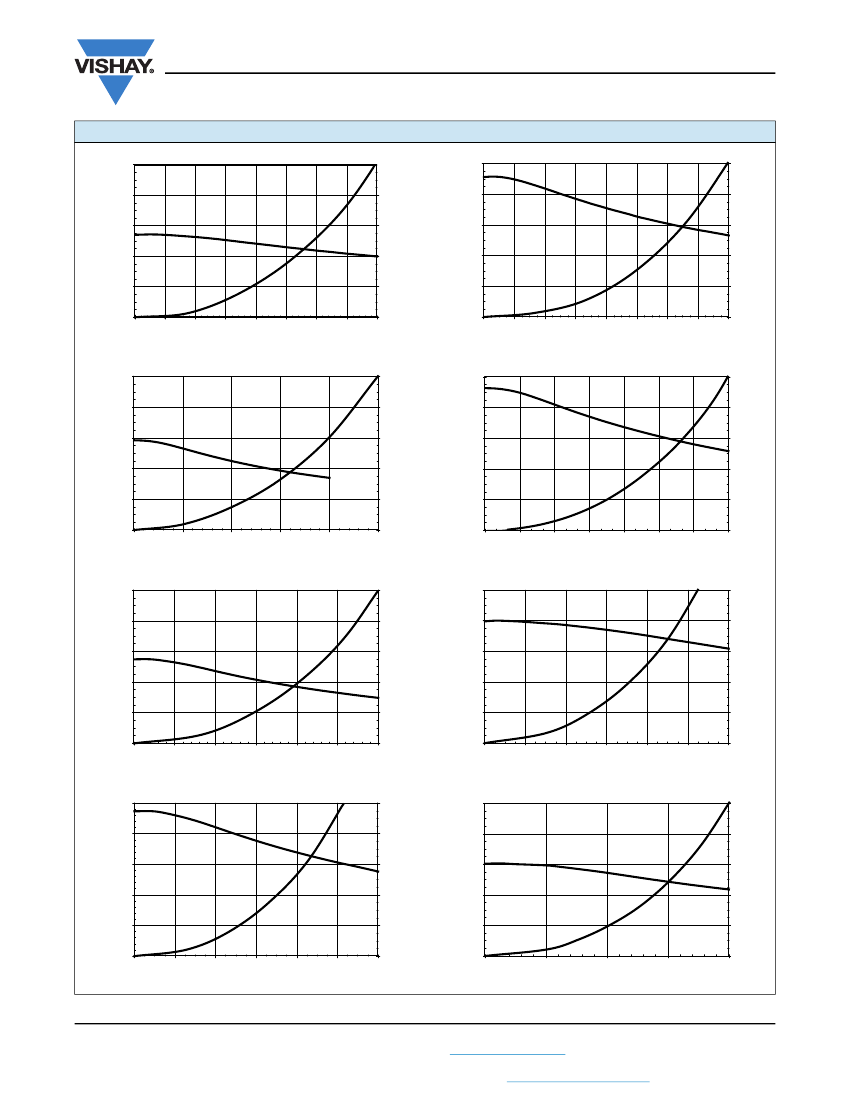

STANDARD ELECTRICAL SPECIFICATIONS
HEAT
L
0
DCR DCR
SATURATION
RATING
INDUCTANCE
TYP. MAX.
CURRENT
CURRENT
± 20 % AT 100 kHz,
25 °C 25 °C
DC TYP.
DC TYP.
0.25 V, 0 A
(m) (m)
(A)
(4)
(A)
(3)
(μH)
0.10
0.22
0.33
0.47
1.0
1.5
2.2
3.3
4.7
5.6
10.0
2.6
3.5
4.5
5.4
10.0
17.1
22.5
36.4
54.0
63.0
2.9
3.9
5.0
6.0
11.0
18.5
25.0
40.4
60.0
70.6
21.00
21.00
16.50
14.00
10.00
7.50
6.75
5.50
4.50
4.25
2.75
25.00
14.50
9.00
9.00
6.50
7.00
5.50
7.00
5.20
3.50
2.25
APPLICATIONS
Engine and transmission control units
Diesel injection drivers
DC/DC converters for entertainment/navigation systems
Noise suppression for motors
- Windshield wipers
- Power seats
- Power mirrors
- Heating and ventilation blowers
- HID lighting
• LED drivers
•
•
•
•
122.1 131.9
DIMENSIONS
in inches [millimeters]
0.204 ± 0.010
[5.18 ± 0.254]
0.216 ± 0.010
[5.49 ± 0.250]
0.100 ± 0.010
[2.54 ± 0.254]
Typical Pad Layout (Min.)
0.236
[5.99]
0.110
[2.79]
0.085
[2.16]
Notes
(1)
All test data is referenced to 25 °C ambient
(2)
Operating temperature range - 55 °C to + 125 °C
(3)
DC current (A) that will cause an approximate
T
of 40 °C
(4)
DC current (A) that will cause L to drop approximately 20 %
0
(5)
The part temperature (ambient + temp. rise) should not exceed
125 °C under worst case operating conditions. Circuit design,
component placement, PWB trace size and thickness, airflow
and other cooling provisions all affect the part temperature. Part
temperature should be verified in the end application.
0.118
[3.0]
Max.
0.040 ± 0.012
[1.02 ± 0.300]
DESCRIPTION
IHLP-2020CZ-1A
MODEL
4.7 μH
INDUCTANCE VALUE
± 20 %
INDUCTANCE TOLERANCE
ER
PACKAGE CODE
e3
JEDEC LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
H
L
P
2
0
2
SIZE
0
C
Z
E
R
4
R
INDUCTANCE
VALUE
7
M
TOL.
1
A
PRODUCT FAMILY
PACKAGE
CODE
SERIES
Revision: 17-May-11
Document Number: 34305
1
For technical questions, contact:
magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
