B40DL20S05 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B40DL20S05

B40DL20S05: DescriptionRectifier Diode, 1 Phase, 2 Element, 40A, 200V V(RRM), Silicon, POWER MODULE-3; CategoryDiscrete semiconductor diode; File Size514KB，7 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

B40DL20S05 Overview

Rectifier Diode, 1 Phase, 2 Element, 40A, 200V V(RRM), Silicon, POWER MODULE-3

B40DL20S05 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Infineon
package instruction	POWER MODULE-3
Reach Compliance Code	unknown
Other features	UL RECOGNIZED
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.6 V
JESD-30 code	R-PUFM-X3
Maximum non-repetitive peak forward current	500 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	125 °C
Maximum output current	40 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.5 µs
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	40

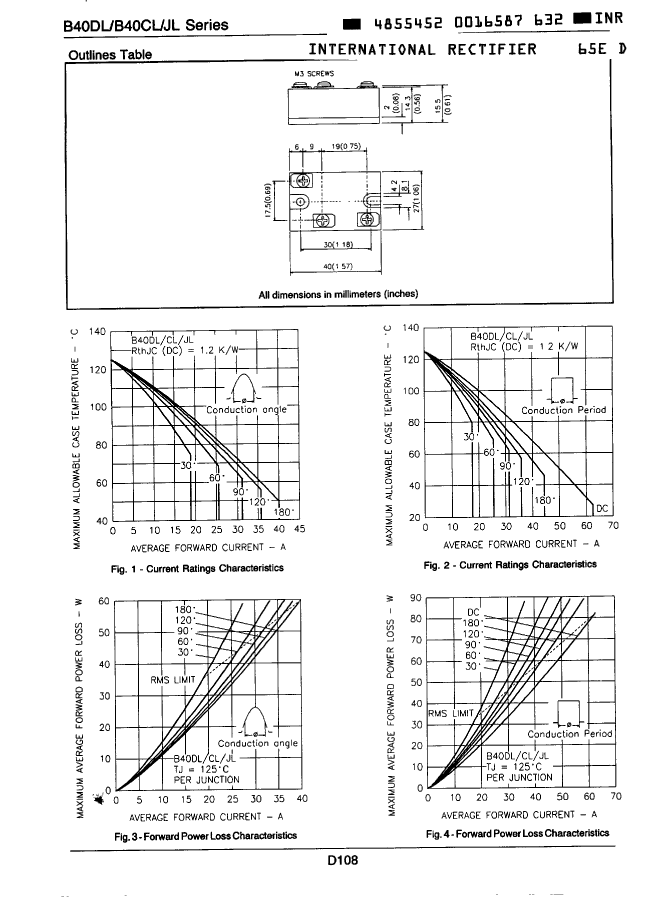

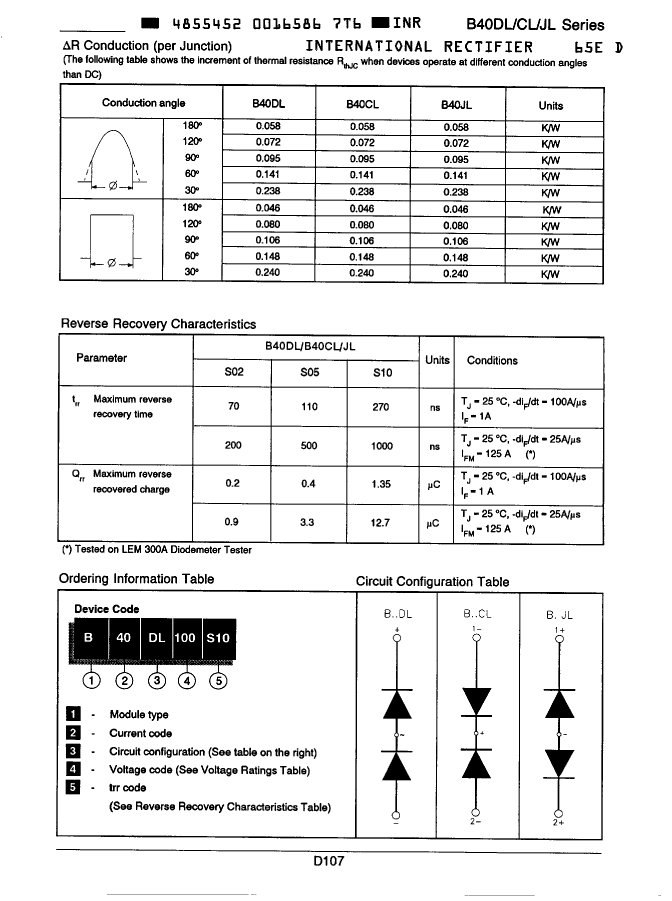

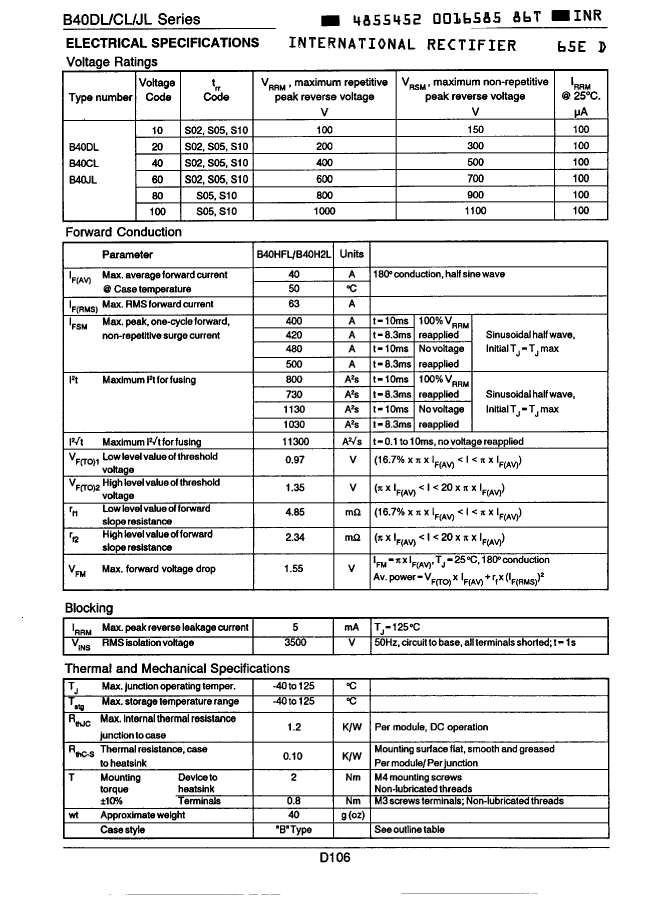

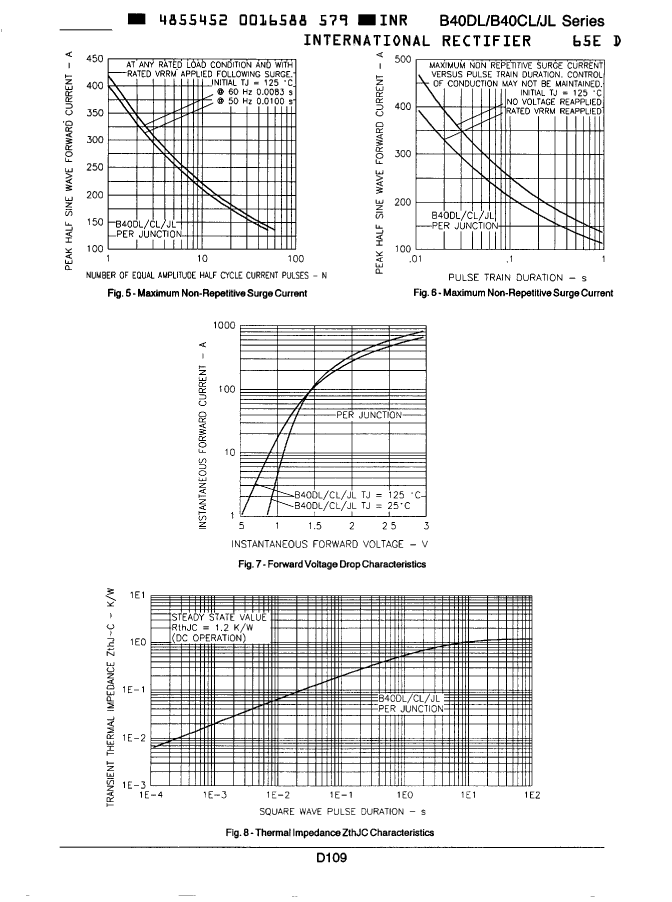

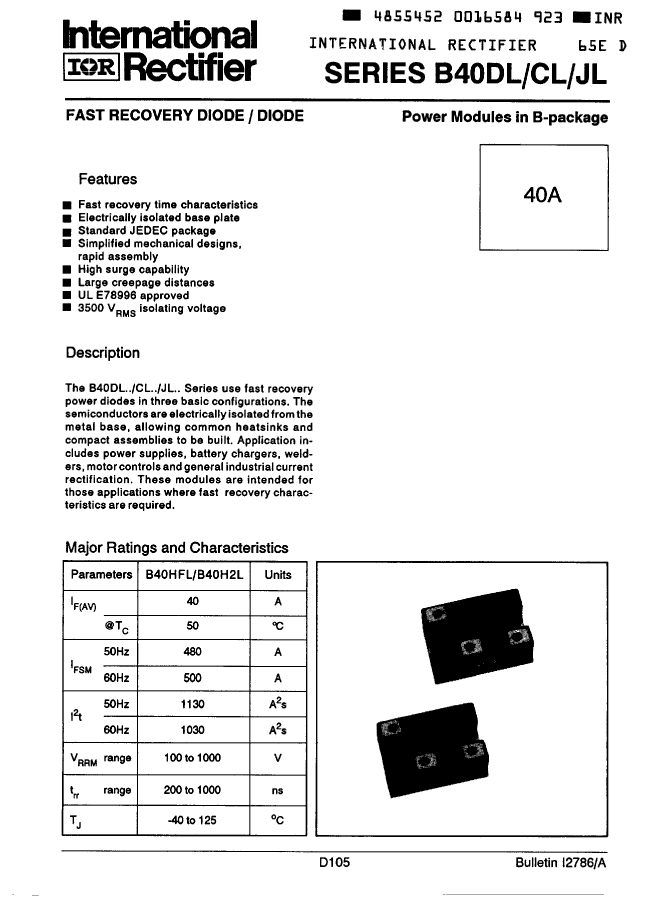

Preview

Download Datasheet

View All

B40DL20S05 Related Products

	B40DL20S05	B40JL20S10	B40CL80S05	B40DL40S10	B40JL10S02	B40CL100S05	B40JL100S05	B40CL20S02	B40JL40S02
Description	Rectifier Diode, 1 Phase, 2 Element, 40A, 200V V(RRM), Silicon, POWER MODULE-3	Rectifier Diode, 1 Phase, 2 Element, 40A, 200V V(RRM), Silicon, POWER MODULE-3	Rectifier Diode, 1 Phase, 2 Element, 40A, 800V V(RRM), Silicon, POWER MODULE-3	Rectifier Diode, 1 Phase, 2 Element, 40A, 400V V(RRM), Silicon, POWER MODULE-3	Rectifier Diode, 1 Phase, 2 Element, 40A, 100V V(RRM), Silicon, POWER MODULE-3	Rectifier Diode, 1 Phase, 2 Element, 40A, 1000V V(RRM), Silicon, POWER MODULE-3	Rectifier Diode, 1 Phase, 2 Element, 40A, 1000V V(RRM), Silicon, POWER MODULE-3	Rectifier Diode, 1 Phase, 2 Element, 40A, 200V V(RRM), Silicon, POWER MODULE-3	Rectifier Diode, 1 Phase, 2 Element, 40A, 400V V(RRM), Silicon, POWER MODULE-3
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	POWER MODULE-3	POWER MODULE-3	POWER MODULE-3	POWER MODULE-3	POWER MODULE-3	POWER MODULE-3	POWER MODULE-3	POWER MODULE-3	POWER MODULE-3
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	unknown	unknown	unknown	unknown
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
application	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V
JESD-30 code	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3	R-PUFM-X3
Maximum non-repetitive peak forward current	500 A	500 A	500 A	500 A	500 A	500 A	500 A	500 A	500 A
Number of components	2	2	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current	40 A	40 A	40 A	40 A	40 A	40 A	40 A	40 A	40 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	200 V	800 V	400 V	100 V	1000 V	1000 V	200 V	400 V
Maximum reverse recovery time	0.5 µs	1 µs	0.5 µs	1 µs	0.2 µs	0.5 µs	0.5 µs	0.2 µs	0.2 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	40	40	40	40	40	40	40	40	40
Maker	Infineon	-	-	-	-	Infineon	Infineon	Infineon	Infineon
