BAS40-05T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS40-05T

BAS40-05T: DescriptionRectifier Diode, Schottky, 2 Element, 0.2A, Silicon, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor diode; File Size391KB，3 Pages; ManufacturerMicro Commercial Components (MCC)

Download Datasheet Parametric Compare View All

BAS40-05T Overview

Rectifier Diode, Schottky, 2 Element, 0.2A, Silicon, PLASTIC PACKAGE-3

BAS40-05T Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Micro Commercial Components (MCC)
package instruction	PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Humidity sensitivity level	1
Number of components	2
Number of terminals	3
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Maximum power dissipation	0.15 W
Certification status	Not Qualified
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla

Street Chatsworth

!"#

$ % !"#

BAS40-04T

BAS40-05T

BAS40-06T

150mW 40Volt

Plastic-Encapsulate

Diode

SOT-523

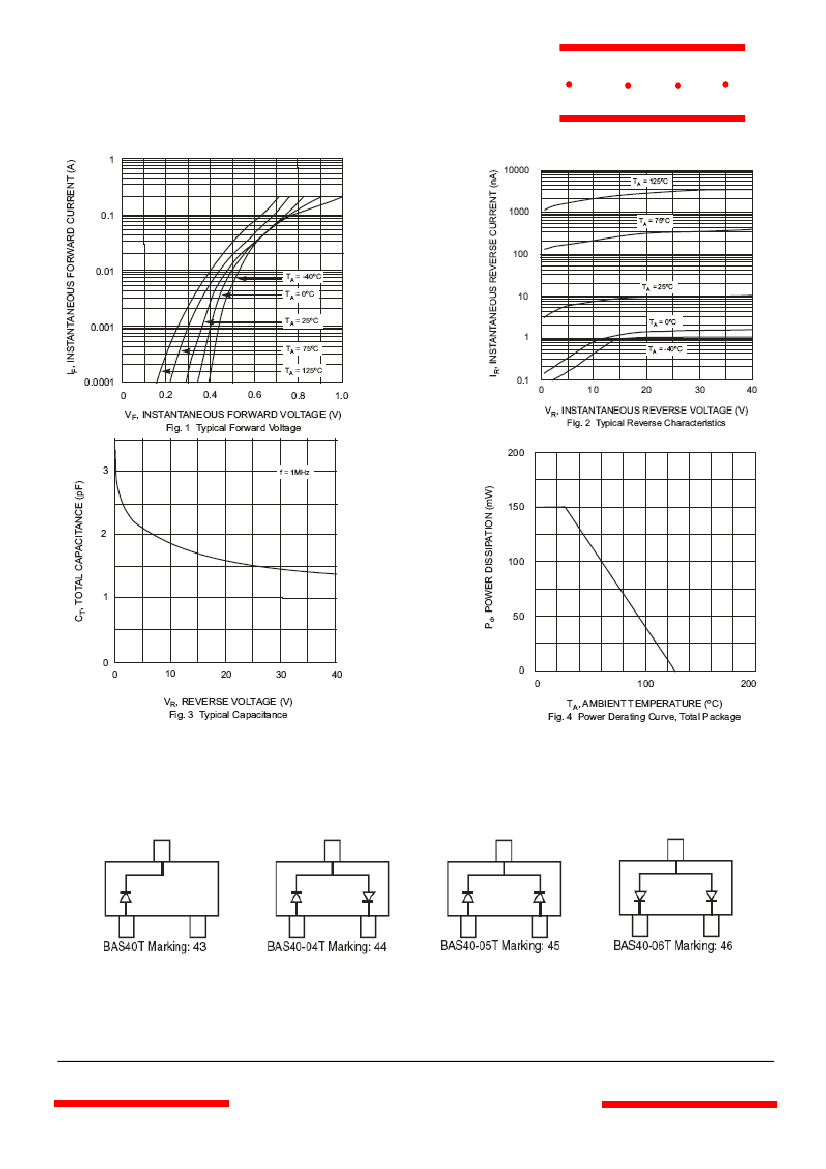

Features

•

Pow Dissipation PD=150mW Tamb=25℃

Forward Current I

=200mA

Reverse Voltage V

=40V

Case Material: Molded Plastic.

Classification Rating 94V-0

UL Flammability

Maximum Ratings

•

Operating Temperature: -65℃ to +150℃

Storage Temperature: -65℃ to +150℃

Electrical Characteristics @ 25°C Unless Otherwise Specified

Reverse Breakdown

Voltage

Maximum

Instantaneous

Forward Voltage

Maximum DC

Reverse Current At

Rated DC Blocking

Voltage

Total Capacitance

(BR)R

40V

=10µA

380mV

1000mV

= 1mA;

= 40mA;

DIMENSIONS

200nA

=30Volts

DIM

5pF

Measured at

1.0MHz, V

=0V

=10mA,

=1mA,R

=100Ω

Reverse Recovery

Time

INCHES

MIN

MAX

.059

.067

.030

.033

.057

.069

.020 Nominal

.035

.043

.000

.004

.028

.031

.004

.008

.010

.014

MIN

MAX

1.50

1.70

0.75

0.85

1.45

1.75

0.50Nominal

0.90

1.10

.000

.100

.70

0.80

.100

.200

.25

.35

NOTE

5nS

Revision: 2

www.mccsemi.com

1 of 3

2006/05/13
