351-085-00413H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 351-085-00413H

351-085-00413H: DescriptionRF SMA Connector, 1 Contact(s), Board Mount, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric View All

351-085-00413H Overview

RF SMA Connector, 1 Contact(s), Board Mount, Surface Mount Terminal, Locking

351-085-00413H Parametric

Parameter Name	Attribute value
Maker	Winchester Electronics
Reach Compliance Code	unknown
Is Samacsys	N
body width	0.25 inch
subject depth	0.685 inch
body length	0.25 inch
Connector type	RF SMA CONNECTOR
Contact style	COAX
insulator material	POLYTETRAFLUOROETHYLENE
Manufacturer's serial number	351-085-00413H
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
reliability	COMMERCIAL
Shell surface	GOLD OVER NICKEL
Shell material	BRASS
Termination type	SURFACE MOUNT
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

NOTES: UNLESS OTHERWISE SPECIFIED

1. FOR GENERAL SERIES SPECIFICATIONS, SEE SD35-0000.

2. MATERIAL SPECIFICATIONS:

BODY: BRASS PER ASTM B16

CONTACT: COPPER ALLOY

INSULATOR: PTFE

3. FINISH SPECIFICATIONS:

BODY: .000015 MIN GOLD PER ASTM B488 OVER

.000080 MIN MICKEL PER AMS-QQN-290

CONTACT: .000030 MIN GOLD PER ASTM B488 OVER

.000080 MIN NICKEL PER AMS-QQN-290

REV

DESCRIPTION

BY APPD

DATE

PSM

08/31/05

DCam

EWR05-128

2X .045 1.14

.032 .81

4X .040 1.02

June 2006 - This drawing became the property of Winchester Electronics Corporation, Wallingford, CT.

3X .148 3.75

1/4-36 UNS-2A THREAD

.685 17.40

.105 2.67

RECOMMENDED PCB DESIGN VIEW

PCB THICKNESS: .063

N.T.S.

(.185 4.70 )

.500 12.70

.063 1.60

.030 .76

2X .150 3.81

2X .068 1.73

2x .042 1.07

.250 6.35 SQ.

PER ASME Y14.5M-1994

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES [MM]

TOLERANCES:

DECIMAL: .XX ± .01 [0.3]

.XXX ± ..005 [0.13]

.XXXX ± .XXXX

ANGLES: ± 2°

SCALE: 6:1

NORTHROP GRUMMAN

Winchester Electronics

62 Barnes Industrial Road North

Wallingford, CT 06492

CATALOG P/N: 351-085-00413H

CUSTOMER

DRAWING

DRAWN

PSM

APPROVED

DATE APPROVED

08/31/05 DCam

DATE APPROVED

9/6/05

DATE

09/02/05

DATE

9/6/05

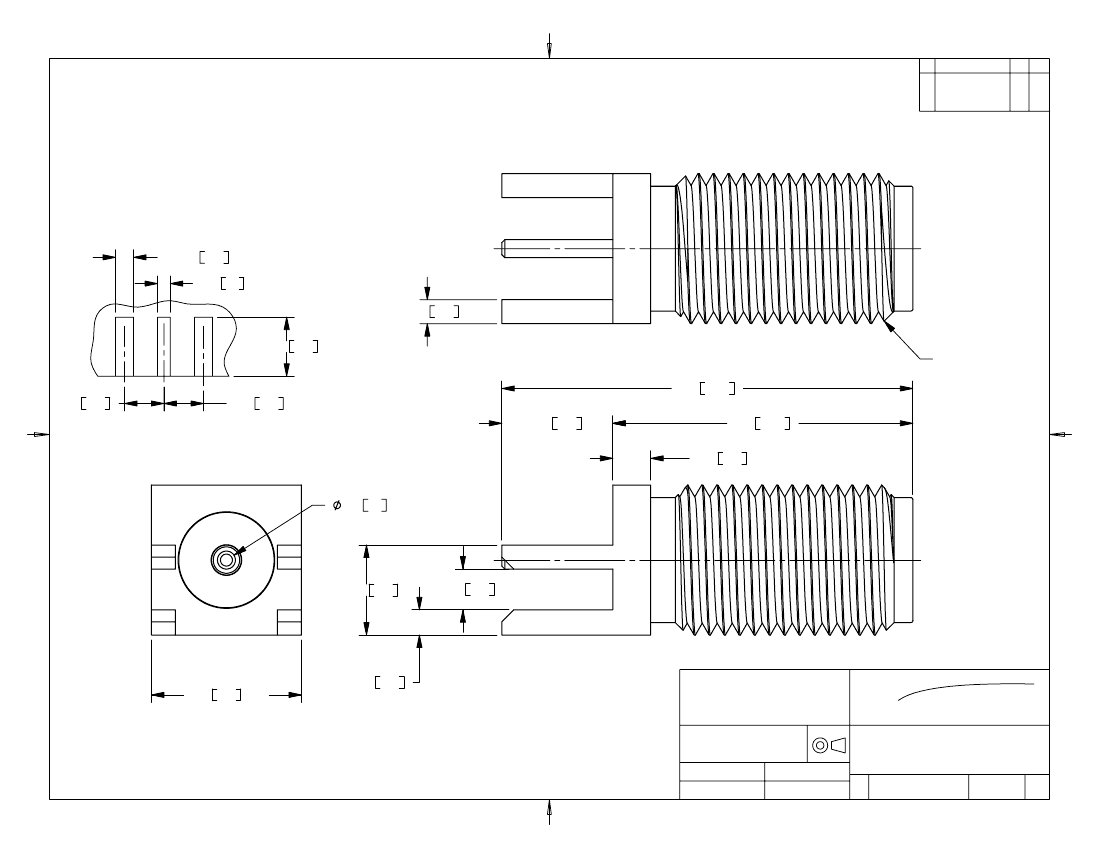

SMA END LAUNCH

FOR .063 PCB

SD351-085-00413H

SHT

1 01

REV
