QP8255A-5 datasheet, PDF - EEWORLD Datasheet

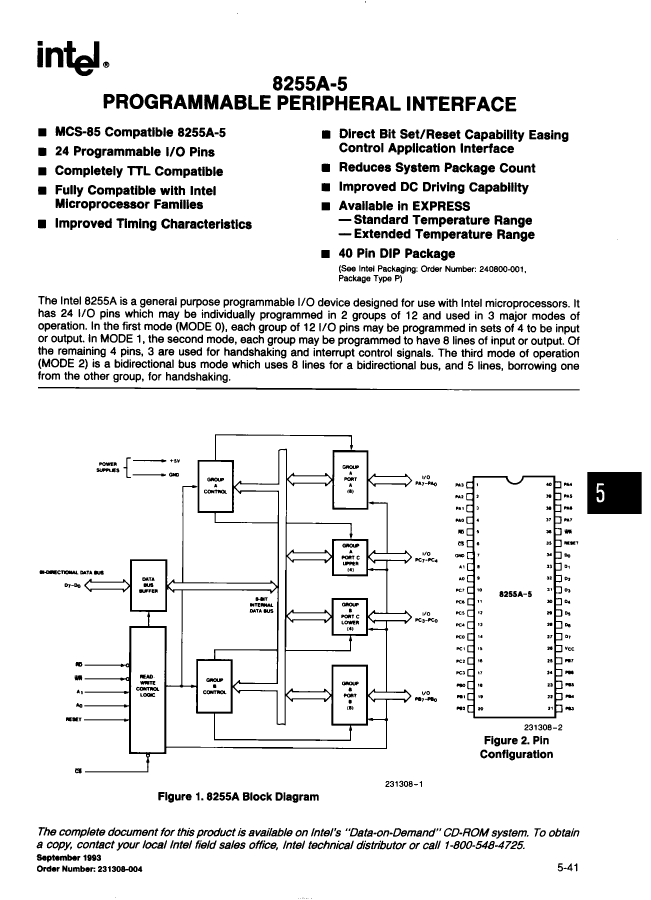

QP8255A-5: DescriptionParallel I/O Port, 24 I/O, NMOS, PDIP40, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size34KB，1 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

QP8255A-5 Overview

Parallel I/O Port, 24 I/O, NMOS, PDIP40, DIP-40

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	compliant
ECCN code	EAR99
External data bus width	8
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	52.26 mm
Number of I/O lines	24
Number of ports	3
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum slew rate	120 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE

	QP8255A-5	TP8255A-5	LP8255A-5
Description	Parallel I/O Port, 24 I/O, NMOS, PDIP40, DIP-40	Parallel I/O Port, 24 I/O, NMOS, PDIP40, DIP-40	Parallel I/O Port, 24 I/O, NMOS, PDIP40, DIP-40
Maker	Intel	Intel	Intel
Parts packaging code	DIP	DIP	DIP
package instruction	DIP, DIP40,.6	DIP,	DIP,
Contacts	40	40	40
Reach Compliance Code	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
External data bus width	8	8	8
JESD-30 code	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40
length	52.26 mm	52.26 mm	52.26 mm
Number of I/O lines	24	24	24
Number of ports	3	3	3
Number of terminals	40	40	40
Maximum operating temperature	70 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	NMOS	NMOS	NMOS
Temperature level	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE
