5309ALN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 5309ALN

5309ALN: DescriptionRF/Microwave Termination, 0MHz Min, 4000MHz Max, 50ohm; CategoryWireless rf/communication Radio frequency and microwave; File Size133KB，2 Pages; ManufacturerEMC Technology RF Labs

Download Datasheet Parametric Compare View All

5309ALN Overview

RF/Microwave Termination, 0MHz Min, 4000MHz Max, 50ohm

5309ALN Parametric

Parameter Name	Attribute value
Maker	EMC Technology RF Labs
Reach Compliance Code	unknown
Other features	I/P POWER-MAX(PEAK)=250W
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	43.98 dBm
Maximum operating frequency	4000 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

TITLE:

SPECIFICATION CONTROL DRAWING

PART IDENTIFIER:

5309ALN

DESCRIPTION:

HIGH POWER LOAD, ALUMINA NITRIDE

ASSEMBLY DWG:

1700424

1.0

SPECIFICATIONS:

1.1

ELECTRICAL:

1.1.1

RESISTANCE VALUE: 50Ω NOMINAL.

1.1.2

INPUT POWER: (@ 100°C HEAT SINK, DERATED LINEARLY TO ZERO POWER AT 150°C):

1.1.2.1 AVERAGE: 25 WATTS.

1.1.2.2 PEAK: 250 WATTS (BASED ON 100US PULSE WIDTH AND 1% DUTY CYCLE).

1.1.3

FREQUENCY RANGE: DC - 4.0 GHZ.

1.1.4

VSWR: DC - 2.0 GHZ - 1.25 MAX.

2.0 - 4.0 GHZ - 1.30 MAX.

MECHANICAL:

1.2.1

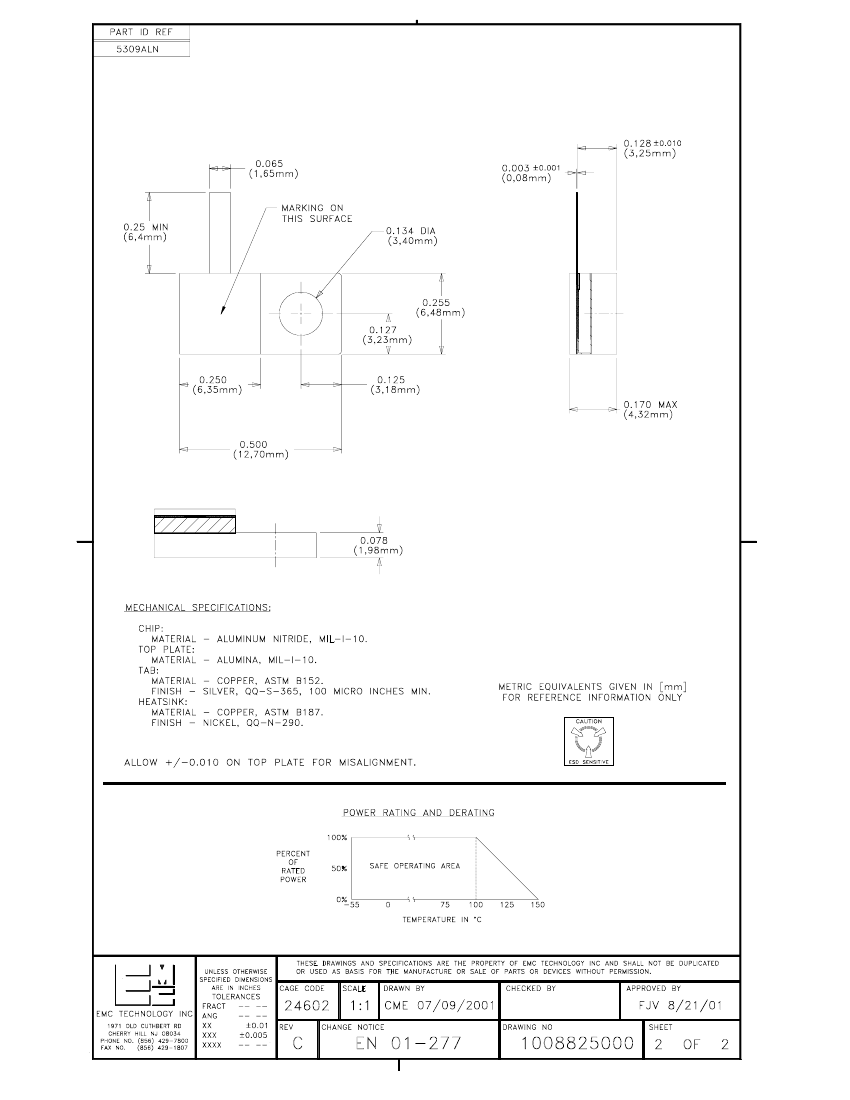

OUTLINE DWG: SEE SHEET 2.

ENVIRONMENTAL:

1.3.1

TEMPERATURE RANGE:

1.3.1.1 STORAGE: -65°C TO +150°C.

1.3.1.2 OPERATING: -55°C TO +150°C.

"EMCT 5309ALN"

LEGIBILITY AND PERMANENCY PER MIL-STD-130.

1.2

1.3

2.0

UNIT MARKING:

3.0

QUALITY ASSURANCE:

3.1

SAMPLE INSPECT PER ANSI/ASQC Z1.4 GENERAL INSPECTION, LEVEL II, AQL = 1.0.

3.1.1

VISUAL AND MECHANICAL EXAMINATION FOR CONFORMANCE TO OUTLINE DWG REQUIREMENTS.

PERFORM INSPECTION IN ACCORDANCE WITH QA0006 AND FORM0357 FOR COMMERCIAL GRADE PRODUCT.

TEST DATA REQUIREMENTS:

3.3.1

NO TEST DATA REQUIRED FOR CUSTOMER.

3.3.2

DATA RETENTION – 24 MONTHS.

STANDARD PACKING PER MC0023.

3.2

3.3

4.0

PACKAGING:

ENG

PUR

MFG

PLAN

EMC TECHNOLOGY, INC

1971 OLD CUTHBERT ROAD

CHERRY HILL, NJ 08034

CAGE CODE # 24602

CHANGE NOTICE

EN 01-277

DWG #

REV LVL

SHEET

1008825000

5309ALN Related Products

	5309ALN
Description	RF/Microwave Termination, 0MHz Min, 4000MHz Max, 50ohm
Maker	EMC Technology RF Labs
Reach Compliance Code	unknown
Other features	I/P POWER-MAX(PEAK)=250W
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	43.98 dBm
Maximum operating frequency	4000 MHz
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.3
