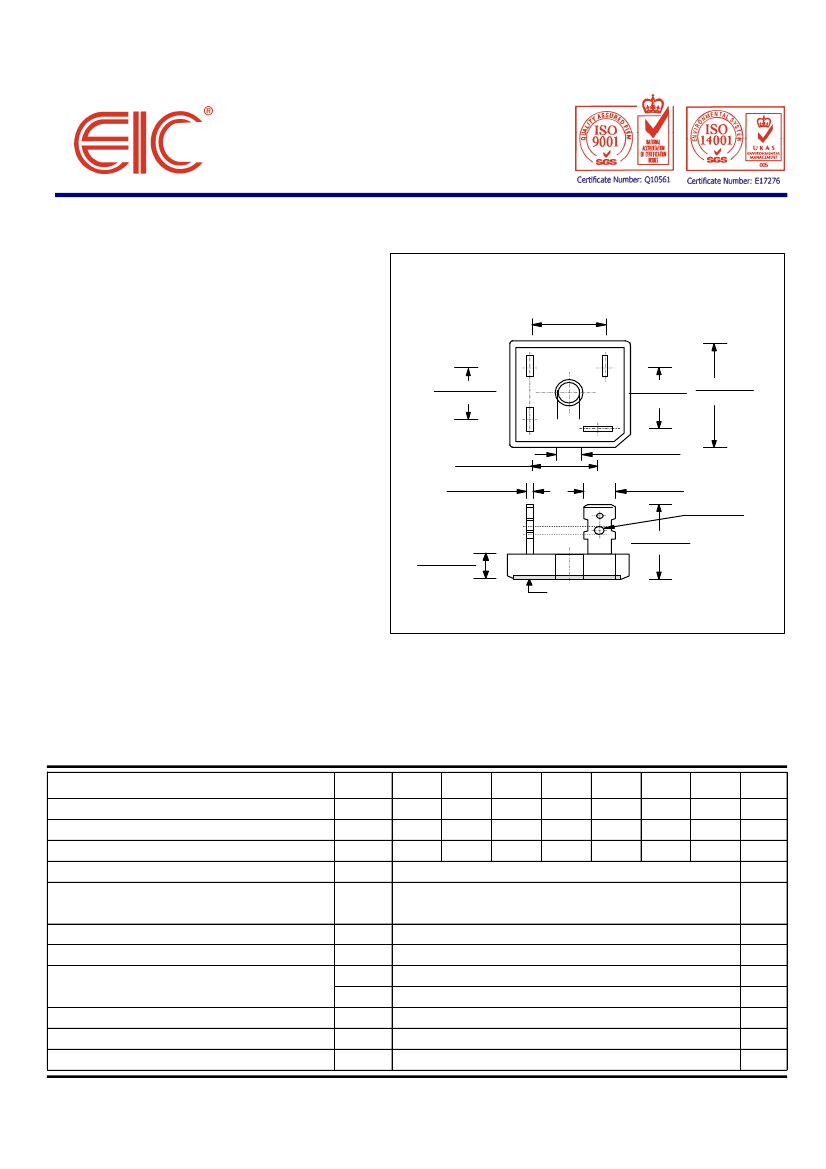

BR5000 - BR5010
PRV : 50 - 1000 Volts
Io : 50 Amperes
FEATURES :
*
*
*
*
*
*
High case dielectric strength
High surge current capability
High reliability
High efficiency
Low reverse current
Low forward voltage drop
SILICON BRIDGE RECTIFIERS
BR50
0.728(18.50)
0.688(17.40)
0.570(14.50)
0.530(13.40)
0.685(16.70) 1.130(28.70)
0.618(15.70) 1.120(28.40)
* Pb / RoHS Free
MECHANICAL DATA :
* Case : Molded plastic with heatsink integrally
mounted in the bridge encapsulation
* Epoxy : UL94V-O rate flame retardant
* Terminals : plated .25" (6.35 mm). Faston
* Polarity : Polarity symbols marked on case
* Mounting position : Bolt down on heat-sink with
silicone thermal compound between bridge
and mounting surface for maximum heat
transfer efficiency.
* Weight : 17.1 grams
Rating at 25
°
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
0.658(16.70)
0.618(15.70)
0.032(0.81)
0.028(0.71)
0.210(5.30)
0.200(5.10)
0.252(6.40)
0.248(6.30)
φ
0.100(2.50)
0.090(2.30)
0.905(23.0)
0.826(21.0)
0.310(7.87)
0.280(7.11)
Metal Heatsink
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
RATING
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current Tc = 55
°
C
Peak Forward Surge Current Single half sine wave
Superimposed on rated load (JEDEC Method)
Current Squared Time at t < 8.3 ms.
Maximum Forward Voltage per Diode at I
F
=25 A
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Typical Thermal Resistance (Note 1)
Operating Junction Temperature Range
Storage Temperature Range
Ta = 25
°
C
Ta = 100
°
C
SYMBOL BR5000 BR5001 BR5002 BR5004 BR5006 BR5008 BR5010
UNIT
V
V
V
A
A
A S
V
µA
µA
°C/W
°C
°C
2
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I t
V
F
I
R
I
R(H)
R
θ
JC
T
J
T
STG
2
50
35
50
100
70
100
200
140
200
400
280
400
50
500
660
1.1
10
200
1
- 40 to + 150
- 40 to + 150
600
420
600
800
560
800
1000
700
1000
Notes :
1 ) Thermal resistance from Junction to Case with units mounted on a 9"x5"x4.6" (22.9x12.7x11.7 cm) Al-Finned Heatsink.
Page 1 of 2
Rev. 02 : March 24, 2005

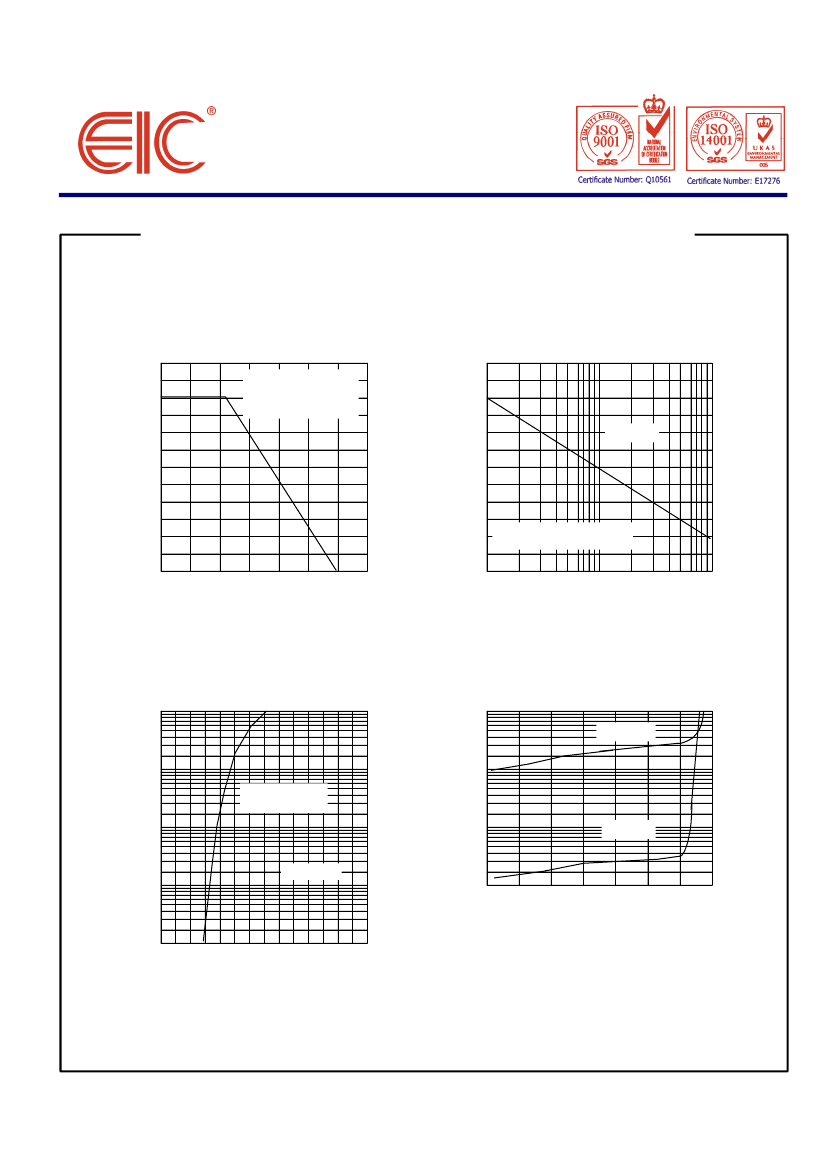

RATING AND CHARACTERISTIC CURVES (BR5000 - BR5010 )
FIG.1 - DERATING CURVE FOR OUTPUT
RECTIFIED CURRENT
HEAT-SINK MOUNTING, Tc
9" x 5" x 4.6" THK.
5
5
5
(22.9 x 12.7 x 11.7cm)
0
0
0
Al.-Finned .
FIG.2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
PEAK FORWARD SURGE CURRENT,
AMPERES
600
60
AVERAGE FORWARD OUTPUT
CURRENT AMPERES
50
500
40
400
T
J
= 50
°C
30
300
20
200
10
100
8.3 ms SINGLE HALF SINE WAVE
JEDEC METHOD
0
0
25
50
75
100
125
150
175
0
1
2
4
6
10
20
40
60 100
CASE TEMPERATURE, (
°
C)
NUMBER OF CYCLES AT 60Hz
FIG.3 - TYPICAL FORWARD CHARACTERISTICS
PER DIODE
100
FIG.4 - TYPICAL REVERSE CHARACTERISTICS
PER DIODE
10
T
J
= 100
°C
FORWARD CURRENT, AMPERES
REVERSE CURRENT,
MICROAMPERES
10
Pulse Width = 300
µs
1 % Duty Cycle
1.0
1.0
0.1
T
J
= 25
°C
T
J
= 25
°C
0.1
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED REVERSE
VOLTAGE, (%)
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
FORWARD VOLTAGE, VOLTS
Page 2 of 2
Rev. 02 : March 24, 2005
