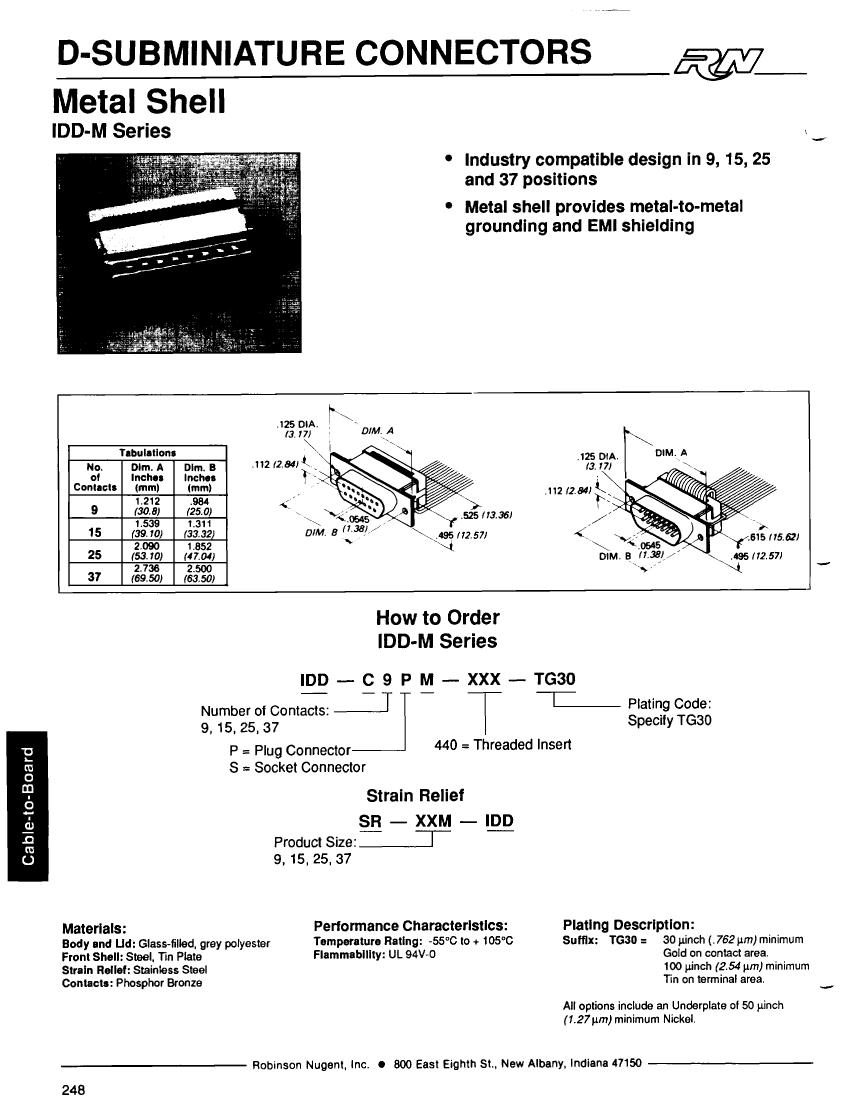

IDD-C37S: DescriptionFEMALE, D SUBMINIATURE CONNECTOR, IDC, SOCKET; CategoryThe connector The connector; File Size52KB，1 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric Compare View All

IDD-C37S Overview

FEMALE, D SUBMINIATURE CONNECTOR, IDC, SOCKET

IDD-C37S Parametric

Parameter Name	Attribute value
Maker	3M
Reach Compliance Code	unknown
Other features	EMI SHIELDED, MAX CONTACTS (SERIES)=37
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Termination type	IDC
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

IDD-C37S Related Products

	IDD-C37S	IDD-C37P	IDD-C9P	IDD-C9S	IDD-C15P	IDD-C15S	IDD-C25P	IDD-C25S
Description	FEMALE, D SUBMINIATURE CONNECTOR, IDC, SOCKET	MALE, D SUBMINIATURE CONNECTOR, IDC, PLUG	MALE, D SUBMINIATURE CONNECTOR, IDC, PLUG	FEMALE, D SUBMINIATURE CONNECTOR, IDC, SOCKET	MALE, D SUBMINIATURE CONNECTOR, IDC, PLUG	FEMALE, D SUBMINIATURE CONNECTOR, IDC, SOCKET	MALE, D SUBMINIATURE CONNECTOR, IDC, PLUG	FEMALE, D SUBMINIATURE CONNECTOR, IDC, SOCKET
Maker	3M	3M	3M	3M	3M	3M	3M	3M
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	EMI SHIELDED, MAX CONTACTS (SERIES)=37	EMI SHIELDED, MAX CONTACTS (SERIES)=37	EMI SHIELDED, MAX CONTACTS (SERIES)=9	EMI SHIELDED, MAX CONTACTS (SERIES)=9	EMI SHIELDED, MAX CONTACTS (SERIES)=15	EMI SHIELDED, MAX CONTACTS (SERIES)=15	EMI SHIELDED, MAX CONTACTS (SERIES)=25	EMI SHIELDED, MAX CONTACTS (SERIES)=25
Body/casing type	SOCKET	PLUG	PLUG	SOCKET	PLUG	SOCKET	PLUG	SOCKET
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	MALE	MALE	FEMALE	MALE	FEMALE	MALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	4/C	4/C	1/E	1/E	2/A	2/A	3/B	3/B
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
