BAS40-02L

Description
0.12 A, 40 V, SILICON, SIGNAL DIODE
CategoryDiscrete semiconductor    diode
File Size169KB,15 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Environmental Compliance
Download Datasheet Parametric View All

BAS40-02L Overview

0.12 A, 40 V, SILICON, SIGNAL DIODE

BAS40-02L Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerInfineon
Parts packaging codeDFN
package instructionLEADLESS, TSLP-2-1, 2 PIN
Contacts2
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresHIGH SPEED SWITCHING
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.38 V
JESD-30 codeR-XDSO-N2
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Maximum output current0.12 A
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum power dissipation0.25 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage40 V
surface mountYES
technologySCHOTTKY
Terminal surfaceMatte Tin (Sn)
Terminal formNO LEAD
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

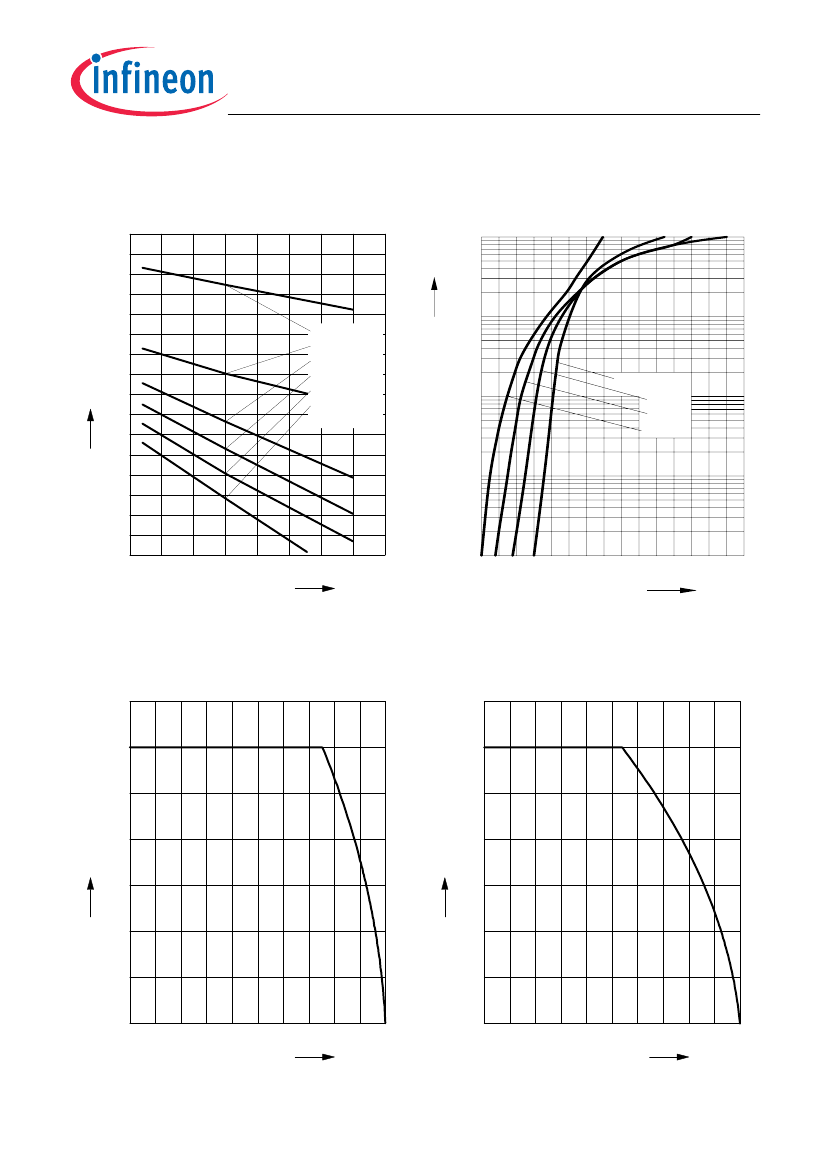

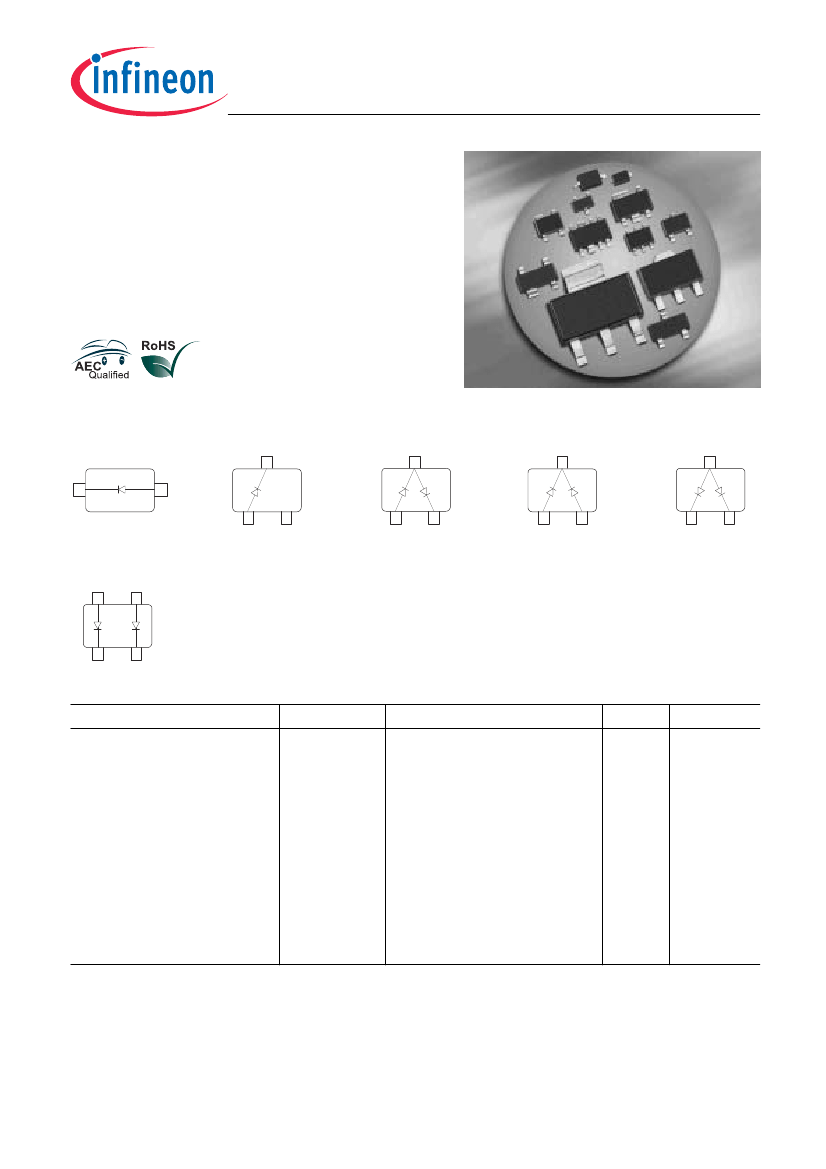

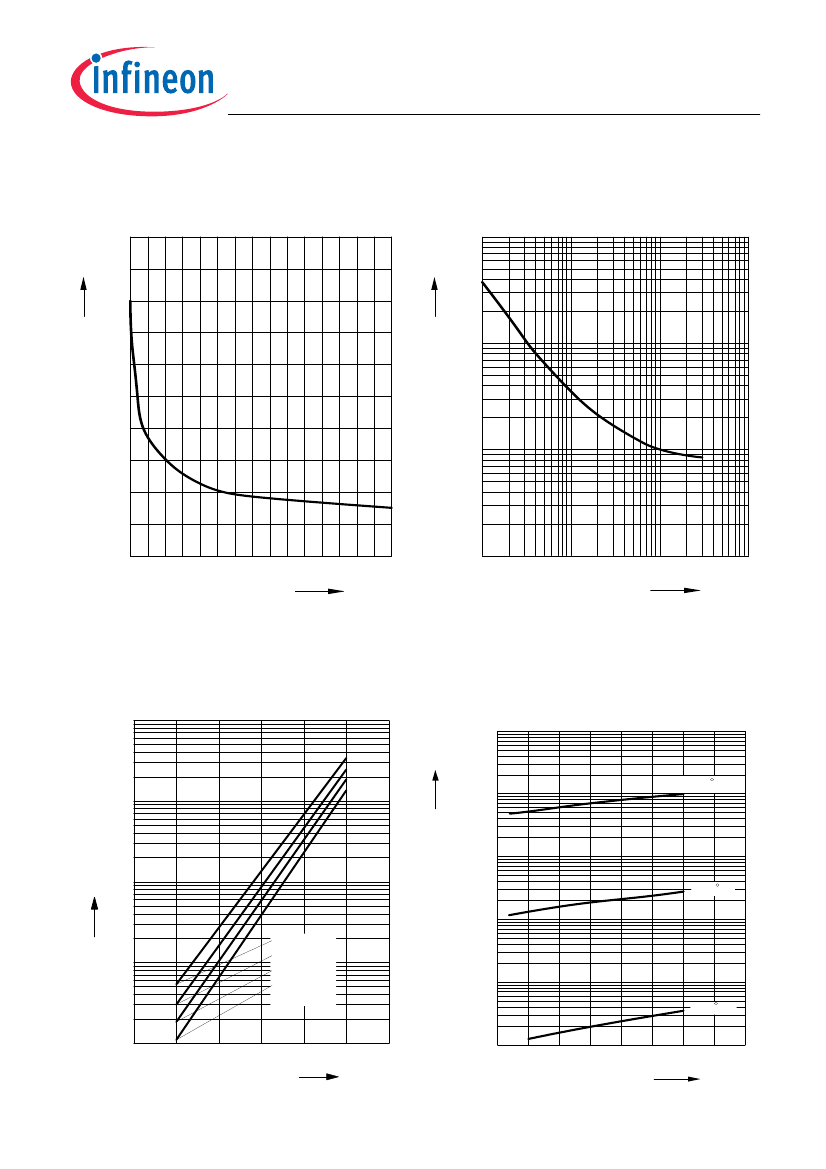

BAS40.../BAS140W
Silicon Schottky Diode
General-purpose diode for high-speed switching
Circuit protection
Voltage clamping
High-level detecting and mixing
Pb-free (RoHS compliant) package
1)
Qualified according AEC Q101
BAS140W
BAS40-02L
BAS40
!
BAS40-04
!
BAS40-05
BAS40-05W
!
BAS40-06
BAS40-06W
!

,
,
,
,
,
,




BAS40-07
BAS40-07W
"
!
,
,

ESD
(Electrostatic
discharge)
sensitive device, observe handling precaution!
Type
BAS140W
BAS40
BAS40-02L
BAS40-04
BAS40-05
BAS40-05W
BAS40-06
BAS40-06W
BAS40-07
BAS40-07W
1
Pb-containing
Package
SOD323
SOT23
TSLP-2-1
SOT23
SOT23
SOT323
SOT23
SOT323
SOT143
SOT343
Configuration
single
single
single, leadless
series
common cathode
common cathode
common anode
common anode
parallel pair
parallel pair
L
S
(nH)
1.8
1.8
0.4
1.8
1.8
1.4
1.8
1.4
2
1.6
Marking
white 4
43s
FF
44s
45s
45s
46s
46s
47s
47s
package may be available upon special request
1
2007-04-19
