BAT17-07 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAT17-07

BAT17-07: DescriptionSILICON, VHF-UHF BAND, MIXER DIODE; CategoryDiscrete semiconductor diode; File Size852KB，9 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BAT17-07 Overview

SILICON, VHF-UHF BAND, MIXER DIODE

BAT17-07 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Infineon
package instruction	R-PDSO-G4
Contacts	4
Reach Compliance Code	compli
ECCN code	EAR99
Shell connection	CATHODE
Configuration	SEPARATE, 2 ELEMENTS
Maximum diode capacitance	0.75 pF
Diode component materials	SILICON
Diode type	MIXER DIODE
frequency band	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY
JESD-30 code	R-PDSO-G4
Humidity sensitivity level	1
maximum noise index	7 dB
Number of components	2
Number of terminals	4
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.15 W
Certification status	Not Qualified
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

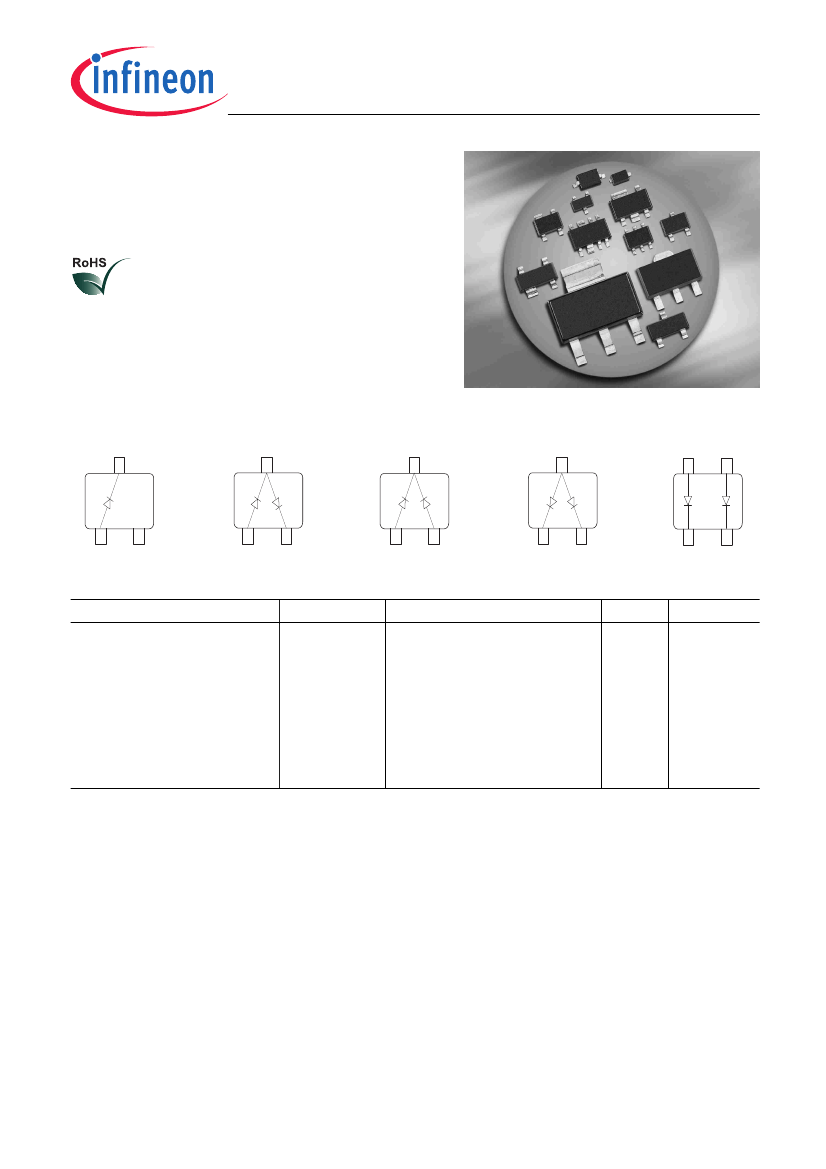

BAT17...

Silicon Schottky Diode

•

For mixer applications in VHF/UHF range

•

For high-speed switching application

•

Pb-free (RoHS compliant) package

BAT17

BAT17-04

BAT17-04W

BAT17-05

BAT17-05W

BAT17-06W

BAT17-07

ESD

(

lectro

tatic

ischarge) sensitive device, observe handling precaution!

Type

BAT17

BAT17-04

BAT17-04W

BAT17-05

BAT17-05W

BAT17-06W

BAT17-07

Package

SOT23

SOT323

SOT23

SOT323

SOT143

Configuration

single

series

common cathode

common anode

parallel pair

(nH)

1.8

1.4

1.8

1.4

Marking

53s

54s

55s

56s

57s

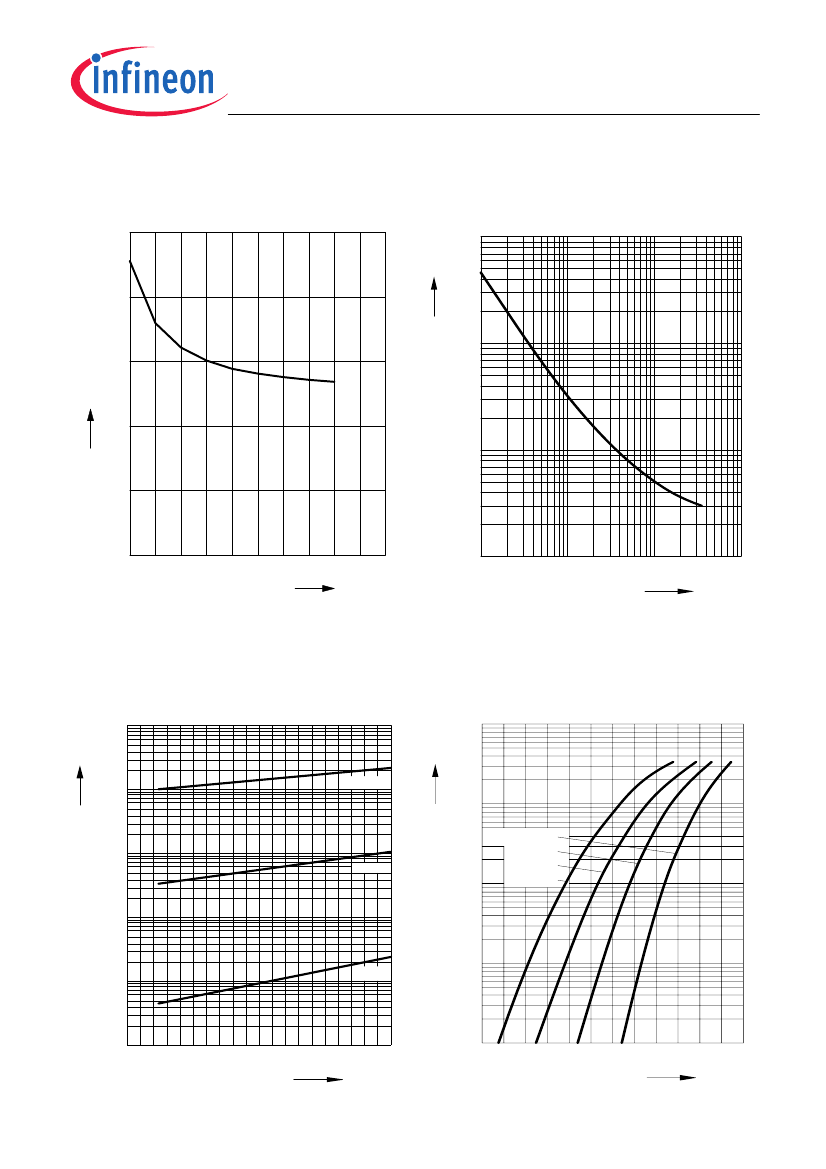

2011-06-15

BAT17-07 Related Products

	BAT17-07	BAT17	BAT17-04	BAT17-04W	BAT17-05W	BAT 17-06W E6327	BAT 17-05W E6327	BAT1705WH6327XTSA1
Description	SILICON, VHF-UHF BAND, MIXER DIODE	SILICON, UHF BAND, MIXER DIODE	SILICON, VHF-UHF BAND, MIXER DIODE	SILICON, VHF-UHF BAND, MIXER DIODE	SILICON, VHF-UHF BAND, MIXER DIODE	diode schottky RF CA sot-323	diode schottky RF CC sot-323	DC reverse withstand voltage (Vr): 4V Average rectified current (Io): 130mA Forward voltage drop (Vf): 600mA @ 10mA DIODESCHOTTKY4V130MASOT323
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	-	-	-
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-	-	conform to
Maker	Infineon	Infineon	Infineon	Infineon	Infineon	-	-	Infineon
package instruction	R-PDSO-G4	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	-	-	R-PDSO-G3
Contacts	4	3	3	3	3	-	-	3
Reach Compliance Code	compli	compliant	compliant	compliant	compli	-	-	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	-	EAR99
Configuration	SEPARATE, 2 ELEMENTS	SINGLE	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	-	-	COMMON CATHODE, 2 ELEMENTS
Maximum diode capacitance	0.75 pF	0.75 pF	0.75 pF	0.75 pF	0.75 pF	-	-	0.75 pF
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	-	-	SILICON
Diode type	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE	-	-	MIXER DIODE
frequency band	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY	-	-	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY
JESD-30 code	R-PDSO-G4	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	-	-	R-PDSO-G3
Humidity sensitivity level	1	1	1	1	1	-	-	1
Number of components	2	1	2	2	2	-	-	2
Number of terminals	4	3	3	3	3	-	-	3
Maximum operating temperature	150 °C	125 °C	125 °C	150 °C	150 °C	-	-	125 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	-	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
Maximum power dissipation	0.15 W	0.15 W	0.15 W	0.15 W	0.15 W	-	-	0.15 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-	-
surface mount	YES	YES	YES	YES	YES	-	-	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	-	-	SCHOTTKY
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	-	-	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	-	-	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
Base Number Matches	-	1	1	1	1	-	-	1
