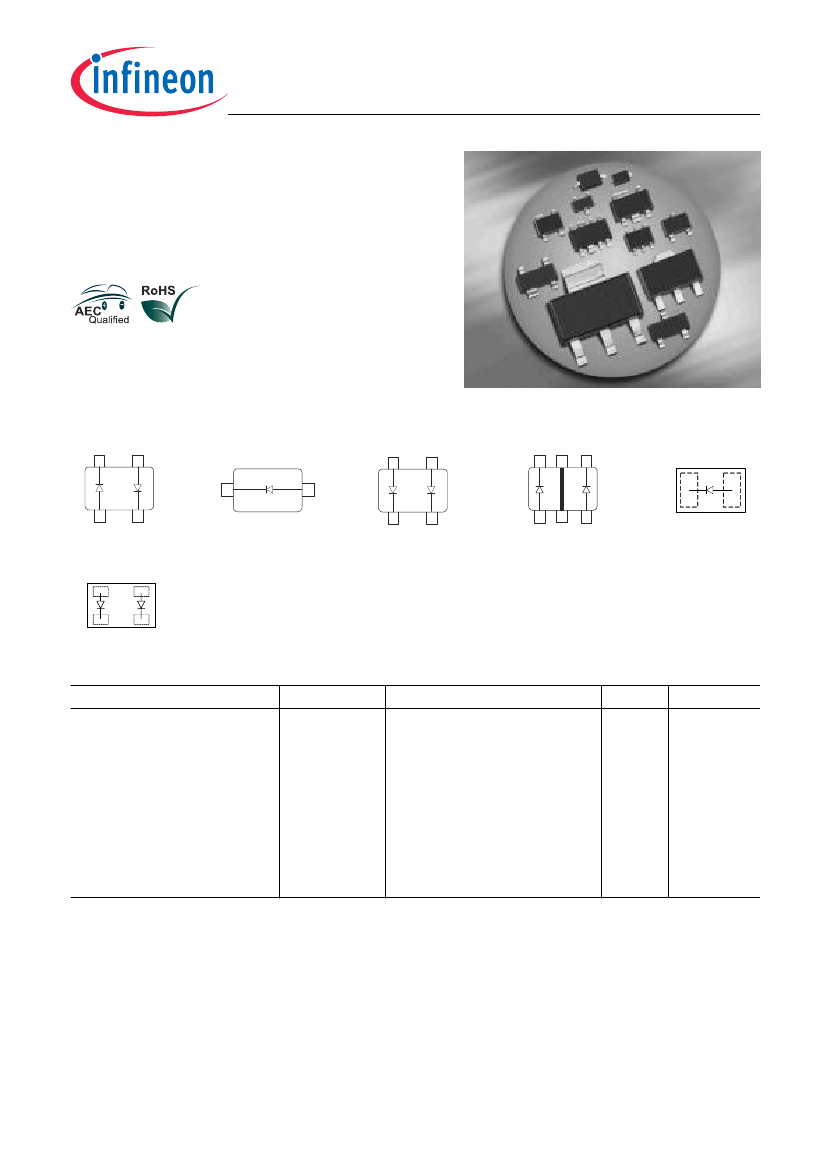

SILICON, LOW BARRIER SCHOTTKY, MIXER DIODE

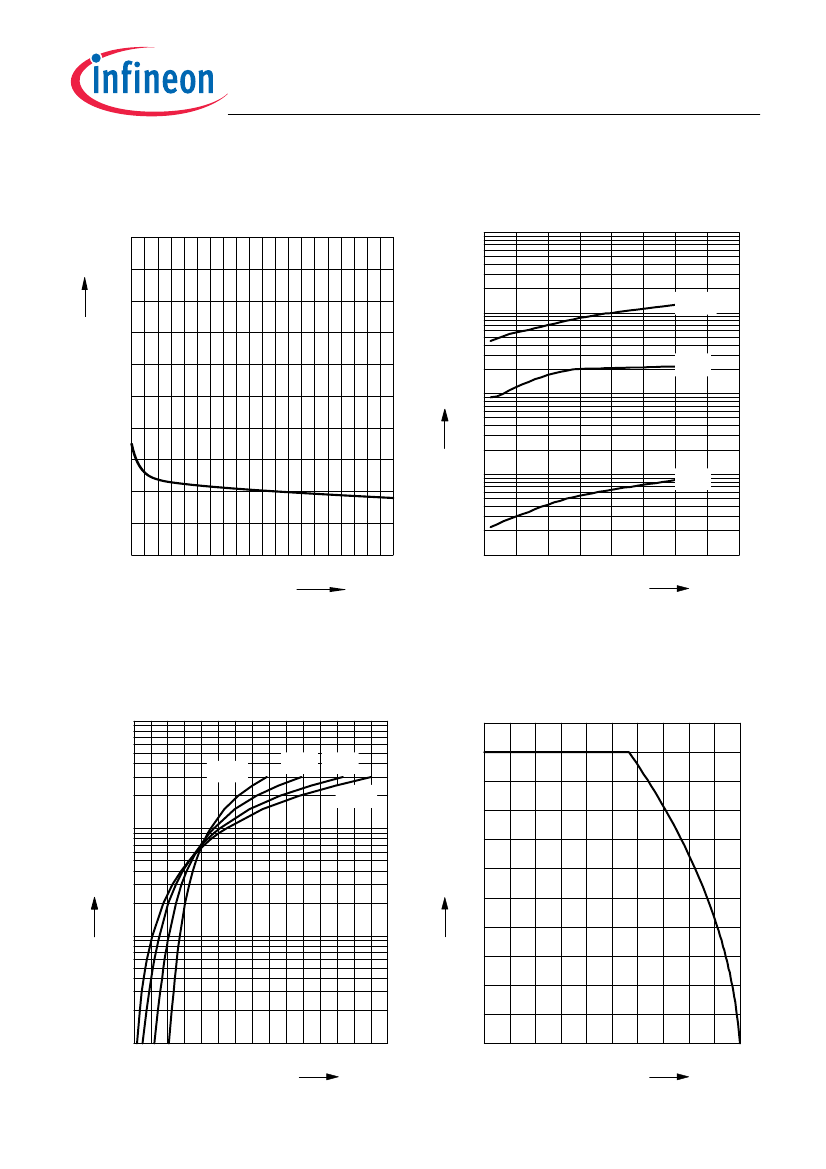

| BAT62_07 | BAT62-02L | BAT62-09S | BAT62-02LS | BAT62-03W | BAT62-02W | BAT62-07W | BAT62-07L4 | |
|---|---|---|---|---|---|---|---|---|
| Description | SILICON, LOW BARRIER SCHOTTKY, MIXER DIODE | SILICON, LOW BARRIER SCHOTTKY, MIXER DIODE | SILICON, LOW BARRIER SCHOTTKY, MIXER DIODE | SILICON, LOW BARRIER SCHOTTKY, MIXER DIODE | SILICON, LOW BARRIER SCHOTTKY, MIXER DIODE | SILICON, LOW BARRIER SCHOTTKY, MIXER DIODE | SILICON, LOW BARRIER SCHOTTKY, MIXER DIODE | SILICON, LOW BARRIER SCHOTTKY, MIXER DIODE |
| Is it lead-free? | - | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | - | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Maker | - | Infineon | Infineon | Infineon | Infineon | Infineon | - | Infineon |
| package instruction | - | R-XBCC-N2 | R-PDSO-G6 | R-XBCC-N2 | R-PDSO-G2 | R-PDSO-F2 | R-PDSO-G4 | R-XBCC-N4 |
| Contacts | - | 2 | 6 | 2 | 2 | 2 | 4 | 4 |
| Reach Compliance Code | - | compli | compliant | compli | compliant | compli | compli | compliant |
| ECCN code | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Configuration | - | SINGLE | SEPARATE, 2 ELEMENTS | SINGLE | SINGLE | SINGLE | SEPARATE, 2 ELEMENTS | SEPARATE, 2 ELEMENTS |
| Maximum diode capacitance | - | 0.6 pF | 0.6 pF | 0.6 pF | 0.6 pF | 0.6 pF | 0.6 pF | 0.6 pF |
| Diode component materials | - | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | - | MIXER DIODE | MIXER DIODE | MIXER DIODE | MIXER DIODE | MIXER DIODE | MIXER DIODE | MIXER DIODE |
| Maximum forward voltage (VF) | - | 1 V | 1 V | 1 V | - | 1 V | 1 V | 1 V |
| frequency band | - | ULTRA HIGH FREQUENCY | ULTRA HIGH FREQUENCY | ULTRA HIGH FREQUENCY | ULTRA HIGH FREQUENCY | ULTRA HIGH FREQUENCY | ULTRA HIGH FREQUENCY | ULTRA HIGH FREQUENCY |
| JESD-30 code | - | R-XBCC-N2 | R-PDSO-G6 | R-XBCC-N2 | R-PDSO-G2 | R-PDSO-F2 | R-PDSO-G4 | R-XBCC-N4 |
| JESD-609 code | - | e3 | e3 | e3 | e3 | - | - | e3 |
| Number of components | - | 1 | 2 | 1 | 1 | 1 | 2 | 2 |
| Number of terminals | - | 2 | 6 | 2 | 2 | 2 | 4 | 4 |
| Maximum operating temperature | - | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Package body material | - | UNSPECIFIED | PLASTIC/EPOXY | UNSPECIFIED | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | UNSPECIFIED |
| Package shape | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | - | CHIP CARRIER | SMALL OUTLINE | CHIP CARRIER | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | 260 | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maximum power dissipation | - | 0.1 W | 0.1 W | 0.1 W | 0.1 W | 0.1 W | 0.1 W | 0.1 W |
| Certification status | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | - | 40 V | 40 V | 40 V | - | 40 V | 40 V | 40 V |
| surface mount | - | YES | YES | YES | YES | YES | YES | YES |
| technology | - | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY |
| Terminal surface | - | Matte Tin (Sn) | Matte Tin (Sn) | Matte Tin (Sn) | MATTE TIN | - | - | Matte Tin (Sn) |
| Terminal form | - | NO LEAD | GULL WING | NO LEAD | GULL WING | FLAT | GULL WING | NO LEAD |
| Terminal location | - | BOTTOM | DUAL | BOTTOM | DUAL | DUAL | DUAL | BOTTOM |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Schottky barrier type | - | LOW BARRIER | LOW BARRIER | LOW BARRIER | LOW BARRIER | LOW BARRIER | LOW BARRIER | LOW BARRIER |
