BBY52_07 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> BBY52_07

Preview

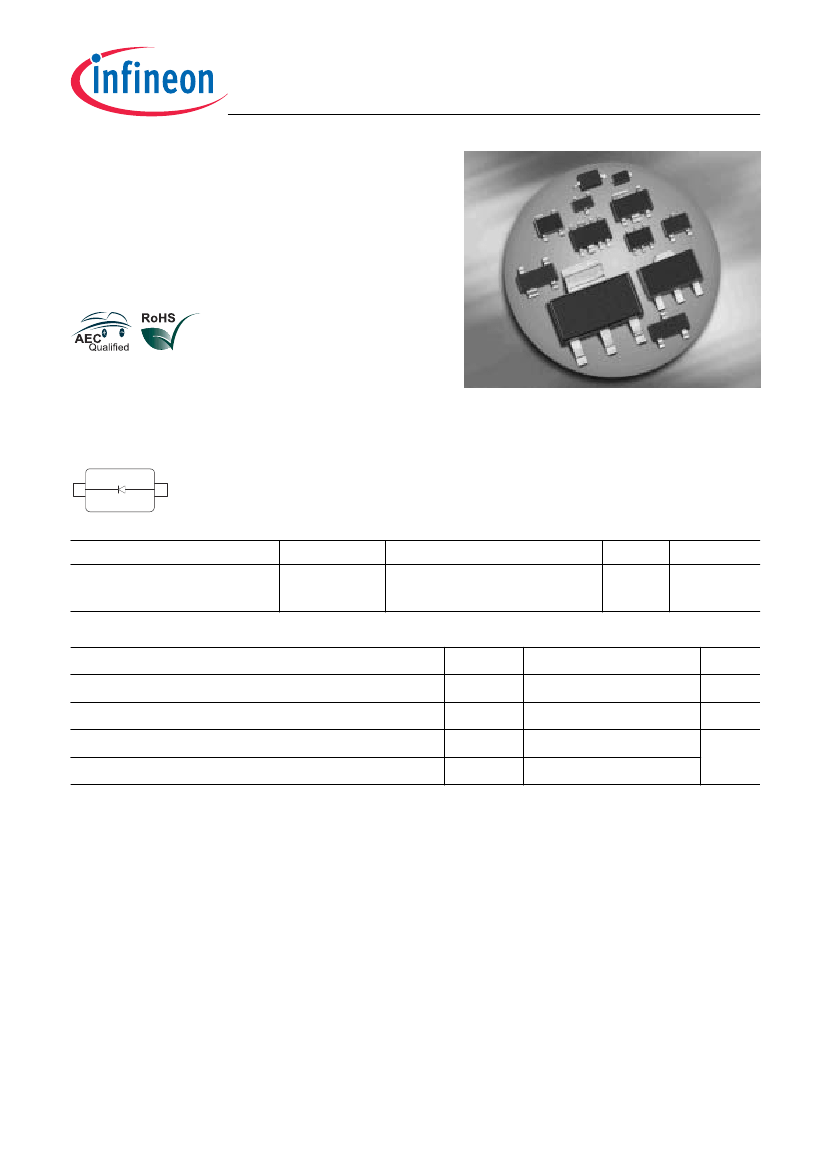

BBY52_07: Description1.85 pF, 7 V, SILICON, HYPERABRUPT VARIABLE CAPACITANCE DIODE; Categorysemiconductor Discrete semiconductor; File Size66KB，7 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Compare View All

BBY52_07 Overview

1.85 pF, 7 V, SILICON, HYPERABRUPT VARIABLE CAPACITANCE DIODE

Preview

Download Datasheet

View All

BBY52...

Silicon Tuning Diodes

•

High Q hyperabrupt tuning diode

•

Designed for low tuning voltage operation

•

For VCO's in mobile communications equipment

•

Pb-free (RoHS compliant) package

•

Qualified according AEC Q101

BBY52-02L

BBY52-02W

Type

BBY52-02L

BBY52-02W

Package

TSLP-2-1

SCD80

Configuration

single, leadless

single

(nH)

0.4

0.6

Marking

Maximum Ratings

= 25°C, unless otherwise specified

Parameter

Diode reverse voltage

Forward current

Operating temperature range

Storage temperature

Pb-containing

Symbol

stg

Value

-55 ... 150

Unit

°C

package may be available upon special request

2007-04-20

BBY52_07 Related Products

	BBY52_07	BBY52	BBY52-02W	BBY52-02L
Description	1.85 pF, 7 V, SILICON, HYPERABRUPT VARIABLE CAPACITANCE DIODE	1.85 pF, 7 V, SILICON, HYPERABRUPT VARIABLE CAPACITANCE DIODE	1.85 pF, 7 V, SILICON, HYPERABRUPT VARIABLE CAPACITANCE DIODE	1.85 pF, 7 V, SILICON, HYPERABRUPT VARIABLE CAPACITANCE DIODE
Maker	-	Infineon	Infineon	Infineon
package instruction	-	SOT-23, 3 PIN	R-PDSO-F2	R-XBCC-N2
Contacts	-	3	2	2
Reach Compliance Code	-	compli	compliant	compli
ECCN code	-	EAR99	EAR99	EAR99
Minimum breakdown voltage	-	7 V	7 V	7 V
Configuration	-	COMMON CATHODE, 2 ELEMENTS	SINGLE	SINGLE
Diode Capacitance Tolerance	-	22.22%	22.22%	22.22%
Minimum diode capacitance ratio	-	1.1	1.1	1.1
Nominal diode capacitance	-	1.85 pF	1.85 pF	1.85 pF
Diode component materials	-	SILICON	SILICON	SILICON
Diode type	-	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE
JESD-30 code	-	R-PDSO-G3	R-PDSO-F2	R-XBCC-N2
Number of components	-	2	1	1
Number of terminals	-	3	2	2
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE	SMALL OUTLINE	CHIP CARRIER
Certification status	-	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	-	6 V	7 V	7 V
surface mount	-	YES	YES	YES
Terminal form	-	GULL WING	FLAT	NO LEAD
Terminal location	-	DUAL	DUAL	BOTTOM
Varactor Diode Classification	-	HYPERABRUPT	HYPERABRUPT	HYPERABRUPT
