ILBB-0805
www.vishay.com
Vishay Dale
Multilayer Ferrite Beads
FEATURES
High reliability
Surface mountable
Magnetically self shielded
Nickel barrier plating virtually eliminates silver
migration
• Compliant to RoHS Directive 2002/95/EC
• Halogen-free according to IEC 61249-2-21 definition
•
•
•
•
MECHANICAL SPECIFICATIONS
Solderability:
90 % coverage after 5 s dip in 235 °C solder
following 60 s preheat at 120 °C to 150 °C and type R flux dip
Resistance to Solder Heat:
10 s in 260 °C solder, after
preheat and flux per above
Terminal Strength:
0.6 kg (1.32 lbs) minimum for 30 s
Beam Strength:
1 kg (2.2 lbs) minimum
Flex:
0.079" [2 mm] min. mounted on 0.063" [1.6 mm] thick
PC board
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature:
- 55 °C to + 125 °C
Thermal Shock:
100 cycles, - 40 °C to + 125 °C
Biased Humidity:
85 % RH at 85 °C, 1000 h at full rated
current
DIMENSIONS
in inches [millimeters]
Dimensional Outline
0.049 ± 0.008
[1.25 ± 0.2]
0.079 ± 0.008
[2.0 ± 0.2]
Ferrite Body
0.035 ± 0.008
[0.9 ± 0.2]
0.020 ± 0.012
[0.5 ± 0.3]
STANDARD ELECTRICAL SPECIFICATIONS
Z
± 25 % AT 100 MHz
)
7
11
17
26
32
40
50
60
75
80
90
100
120
150
180
220
300
400
600
1000
1500
2000
2200
DCR
MAX.
()
0.06
0.06
0.06
0.06
0.06
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.20
0.20
0.20
0.30
0.30
0.35
0.40
0.50
0.60
RATED
DC CURRENT
(mA)
600
600
600
600
600
300
300
300
300
300
300
300
300
300
200
200
200
200
200
100
100
80
80
Recommended Pad Layout
0.039
[1.0]
0.039
[1.0]
0.039
[1.0]
0.120
[3.0]
PACKAGING OPTIONS
• Tape and Reel: Embossed plastic carrier tape per EIA481-1,
4000 pieces on a 7" [178 mm] reel
DESCRIPTION
ILBB-0805
MODEL
11
IMPEDANCE VALUE
± 25 %
IMPEDANCE TOLERANCE
ER
PACKAGE CODE
e3
JEDEC LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
L
B
B
0
8
SIZE
0
5
E
R
1
1
IMPEDANCE
VALUE
0
V
IMPEDANCE
TOLERANCE
PRODUCT FAMILY
PACKAGE
CODE
Revision: 21-Jun-11
1
For technical questions, contact:
magnetics@vishay.com
Document Number: 34025
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
ILBB-0805
www.vishay.com
Vishay Dale

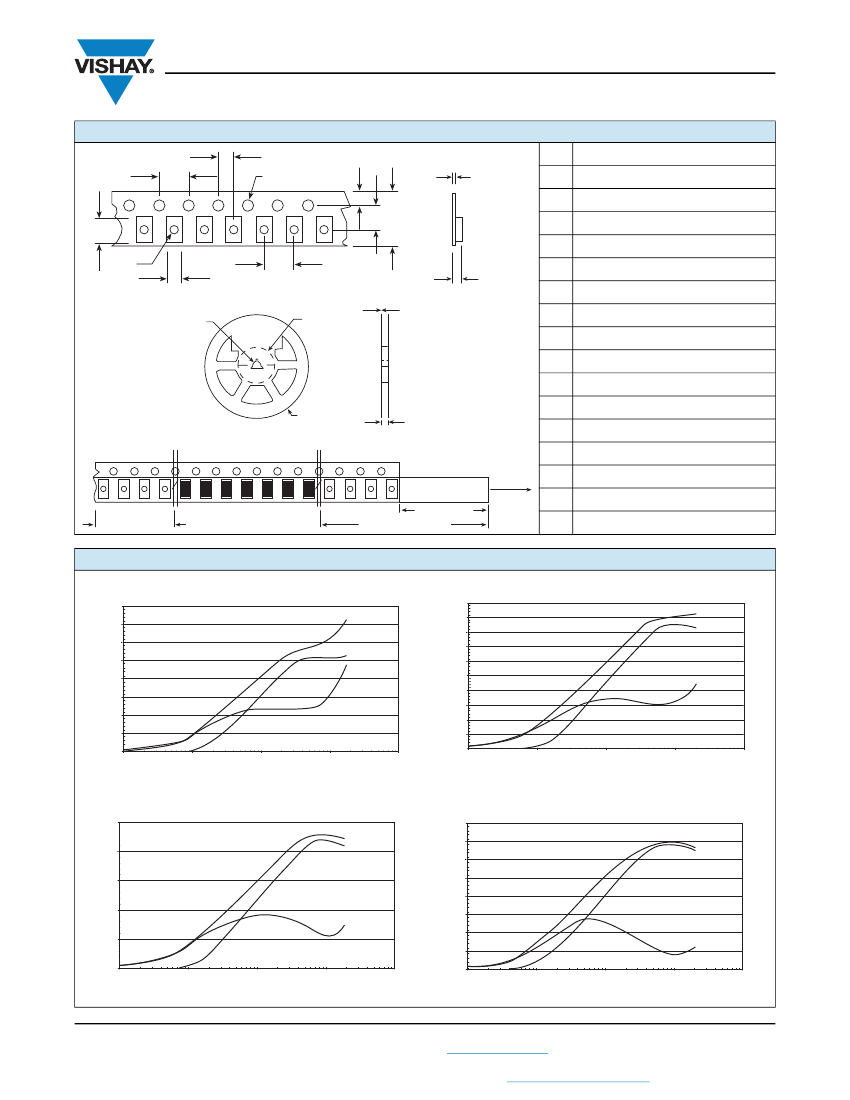

TAPE AND REEL SPECIFICATIONS 0805 SIZE PER EIA-481-1
in inches [millimeters]
P
2
P
0
ØD
0
E
1
F
T
W
A
0
B
0
D
0
0.059 ± 0.004 [1.50 ± 0.1]
0.093 ± 0.006 [2.35 ± 0.15]
0.059 + 0.004/- 0.000 [1.5 + 0.1/- 0.0]
0.039 min. [1.0 min.]
0.069 ± 0.004 [1.75 ± 0.1]
0.138 ± 0.002 [3.50 ± 0.05]
0.049 ± 0.002 [1.24 ± 0.05]
0.157 ± 0.004 [4.00 ± 0.1]
0.157 ± 0.004 [4.00 ± 0.1]
0.079 ± 0.002 [2.00 ± 0.05]
0.327 max. [8.3 max.]
0.008 ± 0.002 [0.2 ± 0.05]
7.000 ± 0.079 [178 ± 2.0]
2.500 [63.5]
0.512 ± 0.020/- 0.008 [13.00 ± 0.5/- 0.2]
0.315 + 0.059/- 0.000 [8.00 + 1.5]
0.079 ± 0.002 [2.00 ± 0.05]
B
0
D
1
E
1
ØD
1
A
0
P
1
K
0
F
K
0
T
1
ØC
ØN
P
0
P
1
P
2
W
ØA
T
W
1
A
Cover Tape Leader
Unreel
Direction
Empty Trailer
Components
Empty Tape
N
C
W
1
160 mm min.
160 mm Minimum
390 mm Minimum
T
1

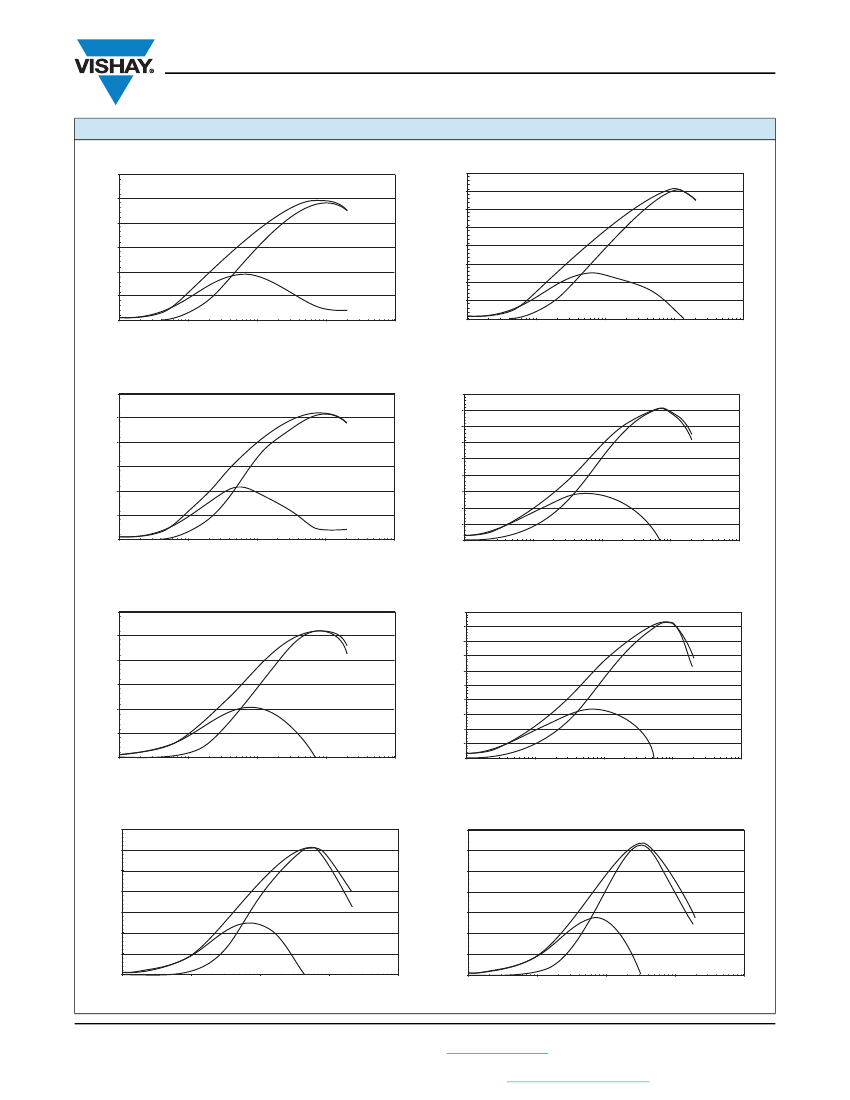

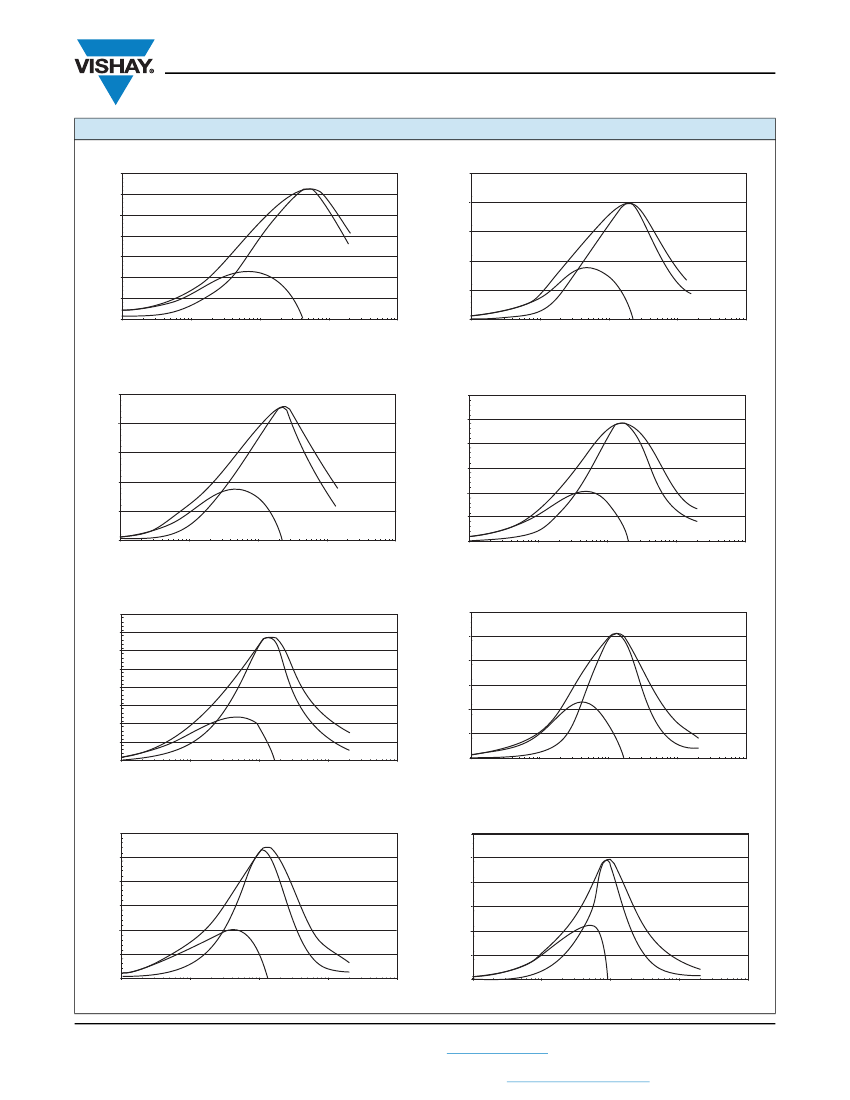

TYPICAL CURVES
- Frequency Characteristics of R, X, and Z
ILBB-0805 7
Ω
16
14
Z
20
18
16
ILBB-0805 11
Ω
Z
R
IMPEDANCE (Ω)
IMPEDANCE (Ω)
12
10
R
8
6
4
2
0
1
10
100
1000
10 000
X
14
12
10
8
6
4
2
0
1
10
100
1000
10 000
X
FREQUENCY (MHz)
ILBB-0805 17
Ω
25
20
Z
R
40
35
FREQUENCY (MHz)
ILBB-0805 26
Ω
Z
IMPEDANCE (Ω)
IMPEDANCE (Ω)
30
R
25
20
15
10
5
X
15
10
X
5
0
1
10
100
1000
10 000
0
1
10
100
1000
10 000
FREQUENCY (MHz)
FREQUENCY (MHz)
Revision: 21-Jun-11
2
For technical questions, contact:
magnetics@vishay.com
Document Number: 34025
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
ILBB-0805
www.vishay.com
Vishay Dale
TYPICAL CURVES
- Frequency Characteristics of R, X, and Z
ILBB-0805 32
Ω
60
50
Z
R
80
70
Z
ILBB-0805 40
Ω
IMPEDANCE (Ω)
IMPEDANCE (Ω)
60
50
40
30
20
10
X
40
30
20
10
0
1
R
X
10
100
1000
10 000
0
1
10
100
1000
10 000
FREQUENCY (MHz)
ILBB-0805 50
Ω
60
50
90
80
Z
FREQUENCY (MHz)
ILBB-0805 60
Ω
Z
R
IMPEDANCE (Ω)
R
40
30
20
10
0
IMPEDANCE (Ω)
X
70
60
50
40
30
20
10
X
1
10
100
1
10
100
1000
10 000
0
1000
10 000
FREQUENCY (MHz)
FREQUENCY (MHz)
ILBB-0805 80
Ω
100
90
Z
R
ILBB-0805 75
Ω
120
100
Z
IMPEDANCE (Ω)
IMPEDANCE (Ω)
R
80
70
60
50
40
30
20
X
10
10 000
0
1
10
100
1000
10 000
80
60
40
20
X
0
1
10
100
1000
FREQUENCY (MHz)
FREQUENCY (MHz)
ILBB-0805 100
Ω
140
120
ILBB-0805 90
Ω
140
120
IMPEDANCE (Ω)
100
R
80
60
40
20
0
1
10
100
1000
10 000
X
IMPEDANCE (Ω)
Z
Z
100
80
R
60
40
20
0
1
10
100
1000
10 000
X
FREQUENCY (MHz)
FREQUENCY (MHz)
Revision: 21-Jun-11
3
For technical questions, contact:
magnetics@vishay.com
Document Number: 34025
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
ILBB-0805
www.vishay.com
Vishay Dale
TYPICAL CURVES
- Frequency Characteristics of R, X, and Z
ILBB-0805 120
Ω
140
120
250
200
ILBB-0805 150
Ω
IMPEDANCE (Ω)
IMPEDANCE (Ω)
Z
100
R
80
60
40
X
20
0
1
10
100
1000
10 000
Z
150
100
X
50
0
R
1
10
100
1000
10 000
FREQUENCY (MHz)
FREQUENCY (MHz)
ILBB-0805 180
Ω
250
200
Z
R
150
100
X
50
0
300
250
ILBB-0805 220
Ω
IMPEDANCE (Ω)
Z
IMPEDANCE (Ω)
200
150
100
R
X
50
0
1
10
100
1000
10 000
1
10
100
1000
10 000
FREQUENCY (MHz)
FREQUENCY (MHz)
ILBB-0805 300
Ω
400
350
Z
R
600
500
ILBB-0805 400
Ω
IMPEDANCE (Ω)
IMPEDANCE (Ω)
300
250
200
150
100
Z
400
300
200
100
0
R
X
X
50
0
1
10
100
1000
10 000
1
10
100
1000
10 000
FREQUENCY (MHz)
FREQUENCY (MHz)
ILBB-0805 600
Ω
600
500
ILBB-0805 1000
Ω
1200
1000
IMPEDANCE (Ω)
400
R
300
200
100
0
IMPEDANCE (Ω)
Z
Z
800
600
400
200
0
R
X
X
1
10
100
1000
10 000
1
10
100
1000
10 000
FREQUENCY (MHz)
FREQUENCY (MHz)
Revision: 21-Jun-11
4
For technical questions, contact:
magnetics@vishay.com
Document Number: 34025
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
ILBB-0805
www.vishay.com
Vishay Dale
TYPICAL CURVES
- Frequency Characteristics of R, X, and Z
ILBB-0805 1500
Ω
1600
1400
Z
3000
2500
ILBB-0805 2000
Ω
IMPEDANCE (Ω)
IMPEDANCE (Ω)
1200
1000
800
600
400
200
0
1
10
100
X
R
Z
2000
R
1500
1000
X
500
0
1
1000
10 000
10
100
1000
10 000
FREQUENCY (MHz)
FREQUENCY (MHz)
ILBB-0805 2200
Ω
3000
2500
IMPEDANCE (Ω)
Z
R
2000
1500
1000
500
0
X
1
10
100
1000
10 000
FREQUENCY (MHz)
Revision: 21-Jun-11
5
For technical questions, contact:
magnetics@vishay.com
Document Number: 34025
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
