BSZ100N03LSG

Description
The best? Power-MOSFET
CategoryDiscrete semiconductor    The transistor
File Size332KB,9 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Environmental Compliance
Download Datasheet Parametric View All

BSZ100N03LSG Overview

The best? Power-MOSFET

BSZ100N03LSG Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerInfineon
package instructionSMALL OUTLINE, S-PDSO-N5
Contacts8
Reach Compliance Code_compli
ECCN codeEAR99
Other featuresAVALANCHE RATED, LOGIC LEVEL COMPATIBLE
Avalanche Energy Efficiency Rating (Eas)15 mJ
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage30 V
Maximum drain current (Abs) (ID)40 A
Maximum drain current (ID)12 A
Maximum drain-source on-resistance0.015 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeS-PDSO-N5
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals5
Operating modeENHANCEMENT MODE
Maximum operating temperature175 °C
Package body materialPLASTIC/EPOXY
Package shapeSQUARE
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)225
Polarity/channel typeN-CHANNEL
Maximum power dissipation(Abs)30 W
Maximum pulsed drain current (IDM)160 A
Certification statusNot Qualified
surface mountYES
Terminal surfaceMatte Tin (Sn)
Terminal formNO LEAD
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON

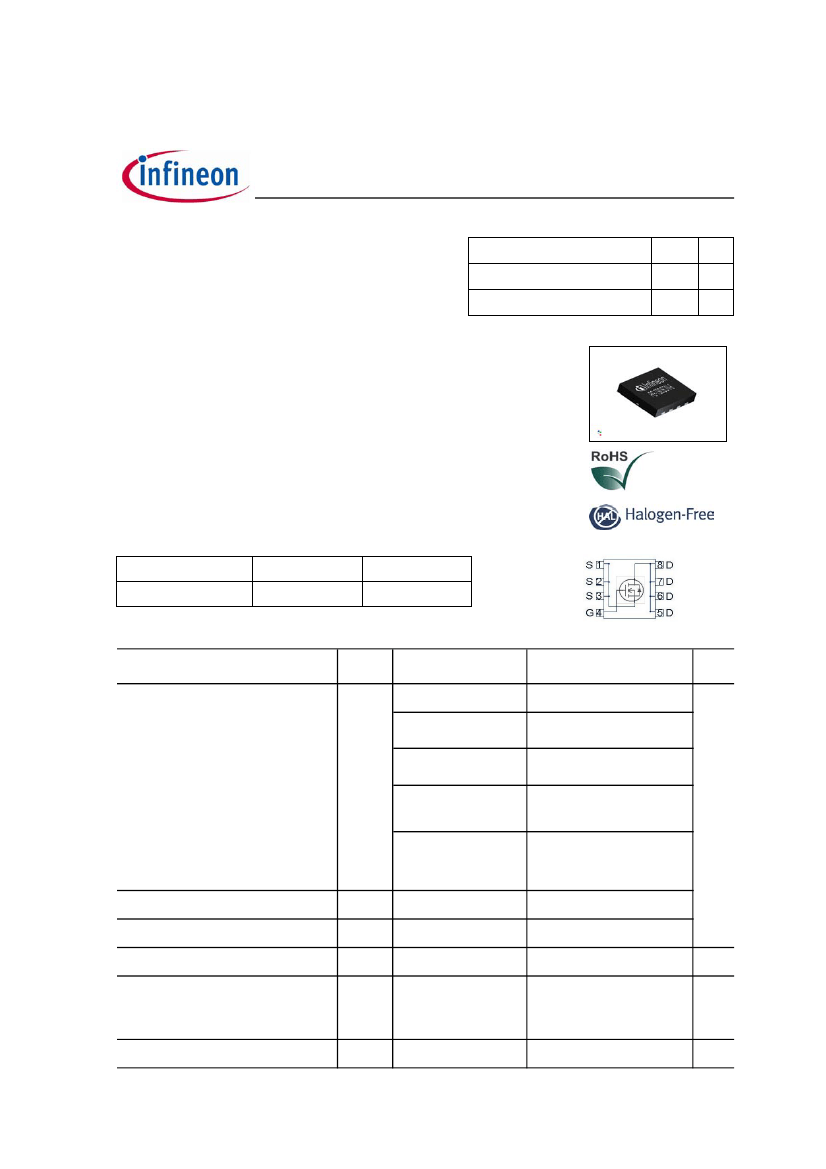

BSZ100N03LS G
OptiMOS™3
Power-MOSFET
Features
• Fast switching MOSFET for SMPS
• Optimized technology for DC/DC converters
• Qualified according to JEDEC
1)
for target applications
• N-channel; Logic level
• Excellent gate charge x
R
DS(on)
product (FOM)
Product Summary
V
DS
R
DS(on),max
I
D
30
10
40
PG-TSDSON-8
V
mΩ
A
• Superior thermal resistance
• Avalanche rated
• Pb-free plating; RoHS compliant
• Halogen-free according to IEC61249-2-21
Type
BSZ100N03LS G
Package
PG-TSDSON-8
Marking
100N03L
Maximum ratings,
at
T
j
=25 °C, unless otherwise specified
Parameter
Continuous drain current
Symbol Conditions
I
D
V
GS
=10 V,
T
C
=25 °C
V
GS
=10 V,
T
C
=100 °C
V
GS
=4.5 V,
T
C
=25 °C
V
GS
=4.5 V,
T
C
=100 °C
V
GS
=10 V,
T
A
=25 °C,
R
thJA
=60 K/W
2)
Pulsed drain current
3)
Avalanche current, single pulse
4)
Avalanche energy, single pulse
Reverse diode dv /dt
Gate source voltage
1)
Value
40
28
36
23
Unit
A
12
160
20
15
6
±20
mJ
kV/µs
V
I
D,pulse
I
AS
E
AS
dv /dt
V
GS
T
C
=25 °C
T
C
=25 °C
I
D
=20 A,
R
GS
=25
I
D
=40 A,
V
DS
=24 V,
di /dt =200 A/µs,
T
j,max
=150 °C
J-STD20 and JESD22
Rev. 2.0
page 1
2010-03-19
