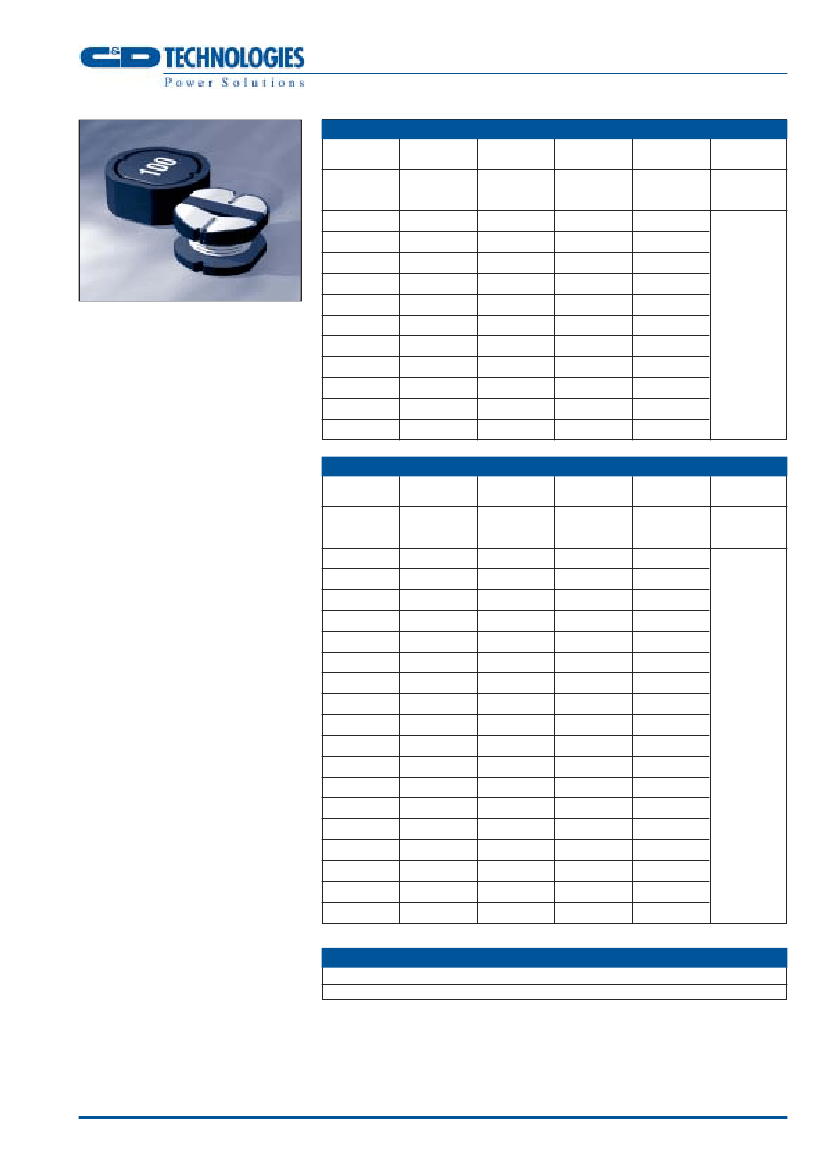

2300 SERIES
Bobbin Wound Surface Mount Inductors
SELECTION GUIDE
(UNSHIELDED TYPES)
1
Inductance
Range
DC
Resistance
DC Current
Continuous
2
Package
Style
Nominal
Inductance
µH
Order Code
232R2
233R3
234R7
236R8
23100
1kHz
100mV AC
µH
1kHz
100mV AC
Ω
MAX
A
MAX
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
1.7 - 2.8
2.3 - 3.9
3.6 - 6.0
5.1 - 8.6
7.6 - 12.7
11.3 - 18.9
16.8 - 28.1
24.6 - 41.0
34.6 - 57.6
51.0 - 85.0
74.2 - 124
0.029
0.044
0.068
0.102
0.138
0.210
0.285
0.497
0.683
0.838
1.281
2.10
1.80
1.48
1.22
1.02
0.86
0.74
0.64
0.55
0.49
0.43
1
FEATURES
■
Bobbin Format
■
Up to 2.1A IDC
■
2.2µH to 220µH
■
Low DC Resistance
■
Surface Mounting
■
Compact Size
■
Tape and Reel Packaging
■
Optional Integral EMI Shield
DESCRIPTION
The 2300 series is a range of bobbin wound
surface mount inductors designed for use in
switching power supply and power line filter
circuits. The parts are suitable for any
application requiring a high saturation
current in a miniature surface mount footprint.
Where EMI is a critical factor the devices are
available with an integral ferrite EMI shield.
23150
23220
23330
23470
23680
23101
SELECTION GUIDE
(EMI SHIELDED TYPES)
1
Inductance
Range
DC
Resistance
DC Current
Continuous
2
Package
Style
Nominal
Inductance
µH
Order Code
23S2R2
23S3R3
23S4R7
23S6R8
23S100
23S120
23S150
23S180
23S220
23S270
23S330
23S390
23S470
23S560
23S680
23S101
23S151
23S221
1kHz
100mV AC
µH
1kHz
100mV AC
Ω
MAX
A
MAX
2.2
3.3
4.7
6.8
10
12
15
18
22
27
33
39
47
56
68
100
150
220
1.8 - 3.0
2.7 - 4.5
3.8 - 6.4
5.2 - 8.6
7.5 - 12.6
9.4 - 15.6
11.4 - 19.0
13.6 - 22.6
16.0 - 26.7
20.0 - 33.3
24.4 - 40.7
29.3 - 48.8
34.6 - 57.7
42.4 - 70.6
50.9 - 84.9
75.8 - 126
112 - 187
167 - 279
0.025
0.031
0.044
0.064
0.087
0.107
0.131
0.143
0.175
0.218
0.241
0.370
0.460
0.509
0.641
0.782
1.190
2.280
2.10
1.80
1.60
1.40
1.18
1.08
0.96
0.88
0.80
0.72
0.65
0.60
0.54
0.50
0.45
0.37
0.30
0.25
2
ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range
Storage temperature range
–40°C to 85°C
–40°C to 125°C
www.cdpoweronline.com
1 Specifications typical at T
A
=25°C
2 The maximum DC current is the value at which the inductance falls to 75% of its nominal value or until its tempera-
ture rise reaches 40°C, whichever is sooner.
3 For tape and reel packaging details refer to datasheet NDC AN002.
2300 SERIES
Bobbin Wound Surface Mount Inductors

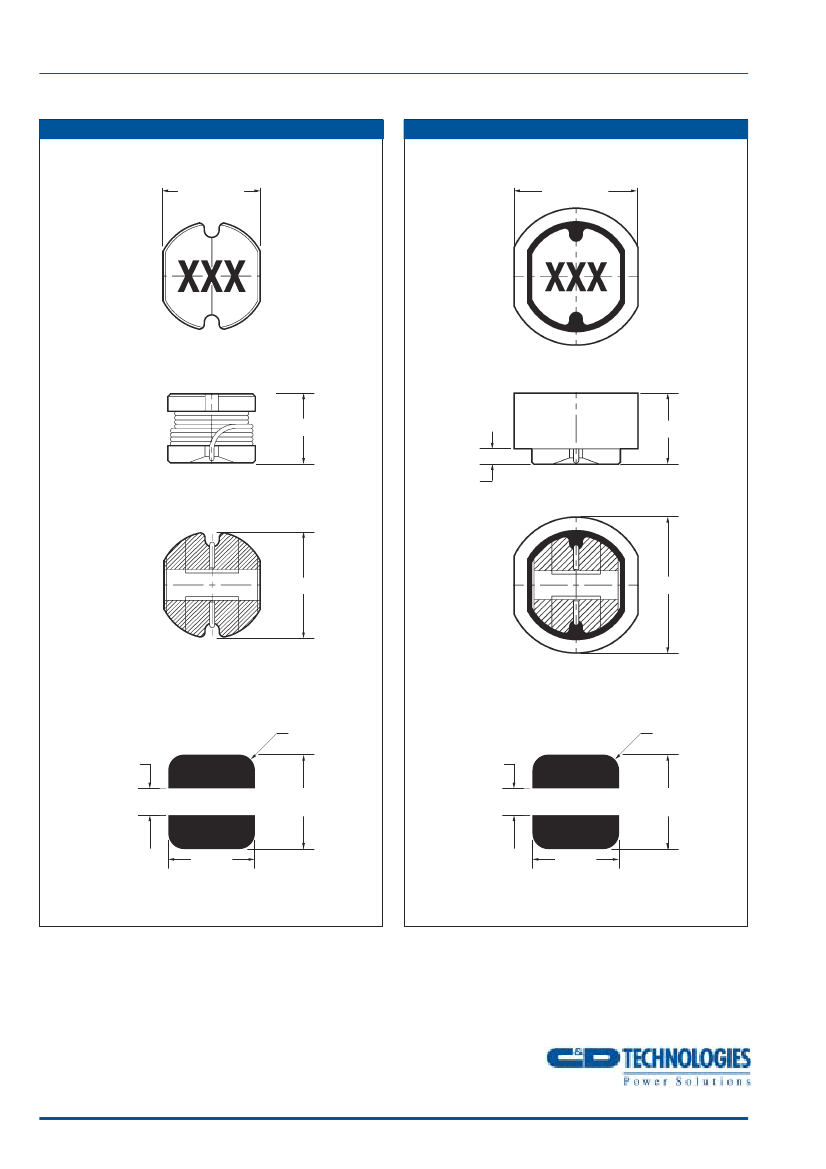

1 – MECHANICAL DIMENSIONS
(UNSHIELDED TYPES)
2 – MECHANICAL DIMENSIONS
(EMI SHIELDED TYPES)
0.157 (4.0)
0.220 (5.6)
0.126 (3.2)
0.126 (3.2)
0.028 (0.7)
0.177 (4.5)
0.244 (6.2)
Recommended Footprint Details
R0.039 (R1.0)
0.067 (1.7)
0.197
(5.0)
Recommended Footprint Details
R0.039 (R1.0)
0.067 (1.7)
0.197
(5.0)
0.177
(4.5)
Weight: 0.20g
Unless otherwise stated all dimensions in inches (mm) ±0.1(0.25).
Hatching represents solder pads.
0.177
(4.5)
Weight: 0.34g
Unless otherwise stated all dimensions in inches (mm) ±0.1(0.25).
Hatching represents solder pads.
C&D Technologies (NCL) Limited reserve the right to alter or improve the
specification, internal design or manufacturing process at any time, without
notice. Please check with your supplier or visit our web site to ensure that
you have the current and complete specification for your product before use.
© C&D Technologies (NCL) Limited 2003
NMP 2300.3
No part of this publication may be copied, transmitted or stored in a
retrieval system or reproduced in any way including, but not limited to,
photography, photocopy, magnetic or other recording means, without prior
written permission from C&D Technologies (NCL) Limited.
Instructions for use are available from www.cdpoweronline.com
C&D Technologies (NCL) Ltd
Tanners Drive, Blakelands North
Milton Keynes MK14 5BU, England
Tel: +44 (0)1908 615232
Fax: +44 (0)1908 617545
email: info@cdtechno-ncl.com
www.cdpoweronline.com
C&D Technologies Inc.
3400 E Britannia Drive, Tucson,
Arizona 85706, USA
Tel: +1 (800) 547-2537
Fax: +1 (520) 741-4598
email: sales@cdtechno.com
