BAR64-04W Overview

150 V, SILICON, PIN DIODE

BAR64-04W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Infineon
package instruction	ROHS COMPLIANT PACKAGE-3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW DISTORTION
application	ATTENUATOR; SWITCHING
Minimum breakdown voltage	150 V
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum diode capacitance	0.35 pF
Nominal diode capacitance	0.23 pF
Diode component materials	SILICON
Maximum diode forward resistance	1.35 Ω
Diode type	PIN DIODE
frequency band	MEDIUM FREQUENCY TO C BAND
JESD-30 code	R-PDSO-G3
Minority carrier nominal lifetime	1.55 µs
Humidity sensitivity level	1
Number of components	2
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.25 W
Certification status	Not Qualified
Guideline	AEC-Q101
Reverse test voltage	20 V
surface mount	YES
technology	POSITIVE-INTRINSIC-NEGATIVE
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

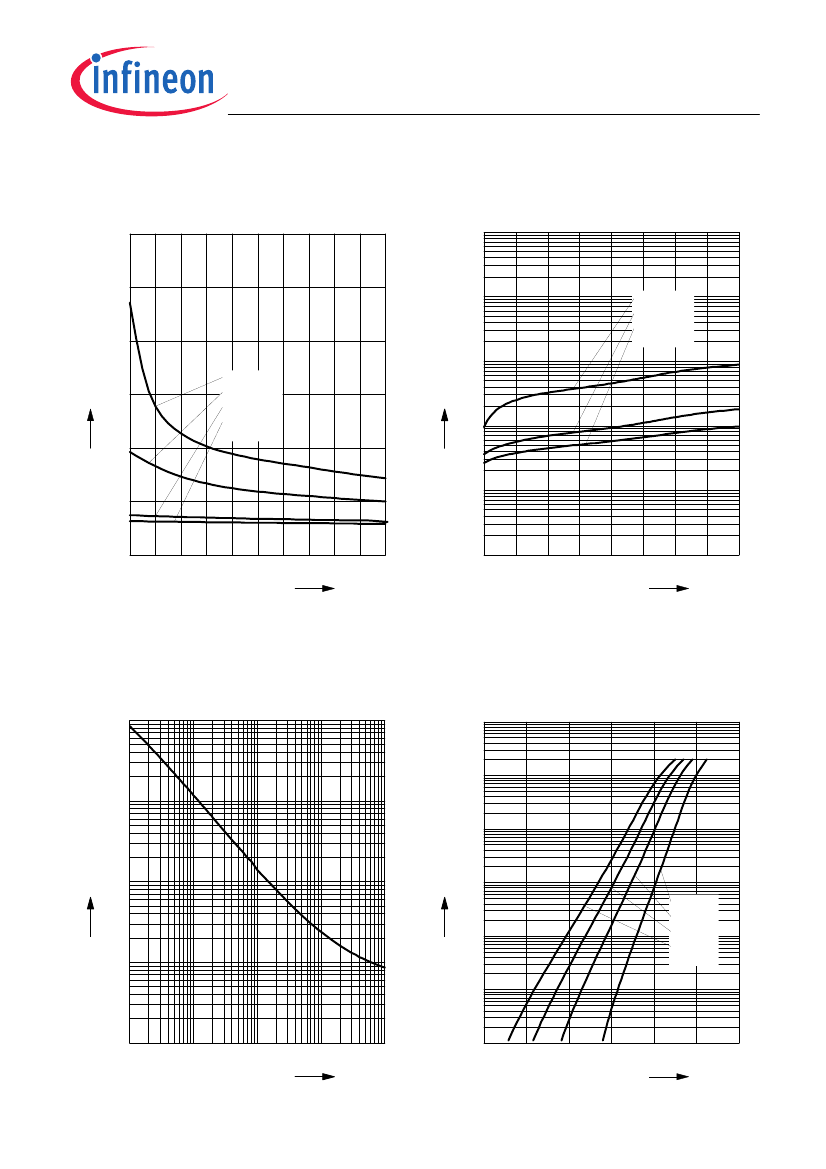

Preview

Download Datasheet

View All

BAR64...

Silicon PIN Diode

•

High voltage current controlled RF resistor

for RF attenuator and switches

•

Frequency range above 1 MHz up to 6 GHz

•

Very low capacitance at zero volt reverse bias

at frequencies above 1 GHz (typ. 0.17 pF)

•

Low forward resistance (typ. 2.1

Ω

@ 10 mA)

•

Very low signal distortion

•

Pb-free (RoHS compliant) package

•

Qualified according AEC Q101

BAR64-02EL

BAR64-02V

BAR64-03W

BAR64-04

BAR64-04W

BAR64-05

BAR64-05W

BAR64-06

BAR64-06W

Type

BAR64-02EL*

BAR64-02V

BAR64-03W

BAR64-04

BAR64-04W

BAR64-05

BAR64-05W

BAR64-06

BAR64-06W

*BAR64-02EL

Package

TSLP-2-19

SC79

SOD323

SOT23

SOT323

SOT23

SOT323

SOT23

SOT323

Configuration

single, leadless

single

series

common cathode

common anode

(nH)

0.4

0.6

1.8

1.4

1.8

1.4

1.8

1.4

Marking

blue 2

PPs

PRs

PSs

is not qualified according AEC Q101

2013-06-10
