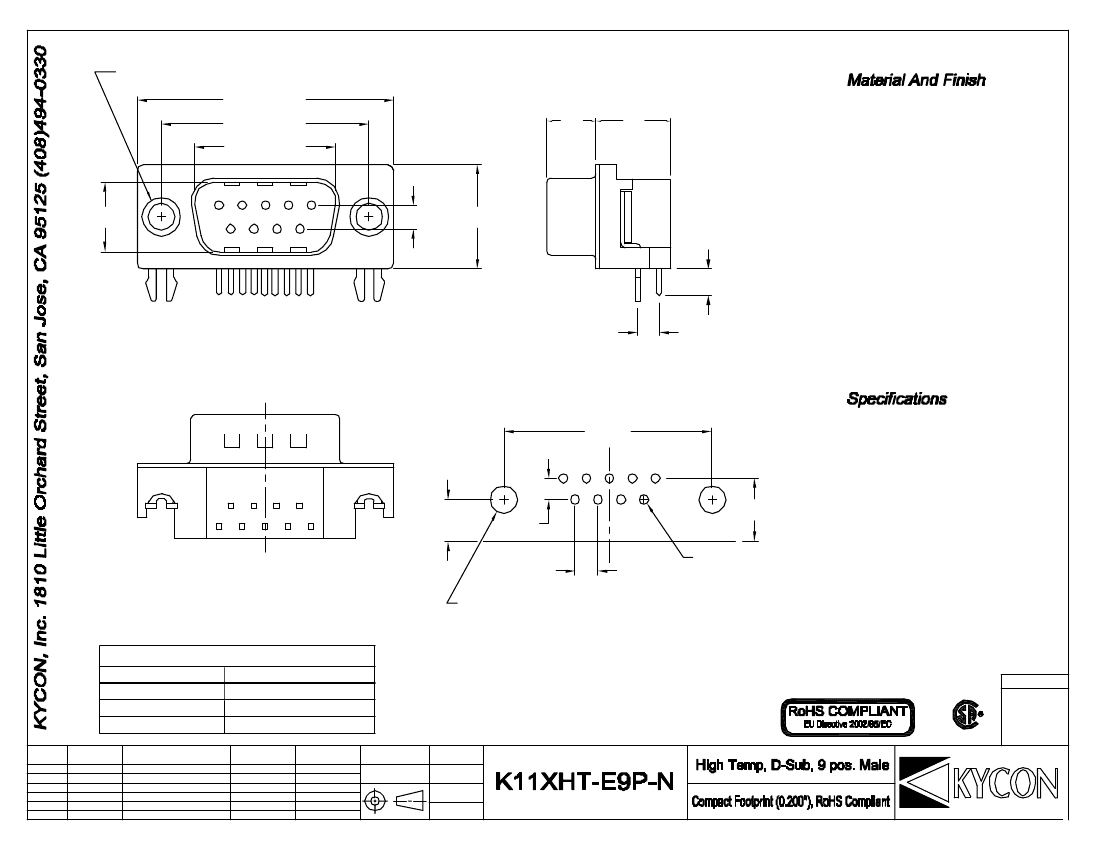

D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug,
| Parameter Name | Attribute value |
| Maker | Kycon |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | ROHS COMPLIANT |
| body width | 0.494 inch |
| subject depth | 0.354 inch |
| body length | 1.213 inch |
| Body/casing type | PLUG |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | STAGGERED |
| Contact resistance | 13 mΩ |
| Contact style | RND PIN-SKT |
| Dielectric withstand voltage | 500VAC V |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | THERMOPLASTIC |
| Manufacturer's serial number | K11XHT |
| Plug contact pitch | 0.109 inch |
| Match contact row spacing | 0.112 inch |
| Installation option 1 | #4-40 |
| Installation option 2 | THREADED INSERT |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 30u inch |
| Rated current (signal) | 5 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Shell surface | NICKEL |
| Shell material | STEEL |
| Terminal length | 0.125 inch |
| Terminal pitch | 2.7686 mm |
| Termination type | SOLDER |
| Total number of contacts | 9 |
| K11XHT-E9P-N30 | K11XHT-E9P-N15 | |
|---|---|---|
| Description | D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug, | D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug, |
| Maker | Kycon | Kycon |
| Reach Compliance Code | compliant | compliant |
| ECCN code | EAR99 | EAR99 |
| Other features | ROHS COMPLIANT | ROHS COMPLIANT |
| body width | 0.494 inch | 0.494 inch |
| subject depth | 0.354 inch | 0.354 inch |
| body length | 1.213 inch | 1.213 inch |
| Body/casing type | PLUG | PLUG |
| Contact to complete cooperation | AU ON NI | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL | TIN OVER NICKEL |
| Contact point gender | MALE | MALE |
| Contact material | BRASS | BRASS |
| contact mode | STAGGERED | STAGGERED |
| Contact resistance | 13 mΩ | 13 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT |
| Dielectric withstand voltage | 500VAC V | 500VAC V |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω |
| Insulator color | BLACK | BLACK |
| insulator material | THERMOPLASTIC | THERMOPLASTIC |
| Manufacturer's serial number | K11XHT | K11XHT |
| Plug contact pitch | 0.109 inch | 0.109 inch |
| Match contact row spacing | 0.112 inch | 0.112 inch |
| Installation option 1 | #4-40 | #4-40 |
| Installation option 2 | THREADED INSERT | THREADED INSERT |
| Installation method | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD |
| PCB row number | 2 | 2 |
| Number of rows loaded | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C |
| PCB contact pattern | STAGGERED | STAGGERED |
| PCB contact row spacing | 2.54 mm | 2.54 mm |
| Plating thickness | 30u inch | 15u inch |
| Rated current (signal) | 5 A | 5 A |
| Guideline | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL |
| Shell surface | NICKEL | NICKEL |
| Shell material | STEEL | STEEL |
| Terminal length | 0.125 inch | 0.125 inch |
| Terminal pitch | 2.7686 mm | 2.7686 mm |
| Termination type | SOLDER | SOLDER |
| Total number of contacts | 9 | 9 |
