2N5911H datasheet, PDF - EEWORLD Datasheet

2N5911H: DescriptionSmall Signal Field-Effect Transistor, 2-Element, N-Channel, Silicon, Junction FET, TO-78; CategoryDiscrete semiconductor The transistor; File Size64KB，2 Pages; ManufacturerCalogic; Websitehttp://www.calogic.net/

Download Datasheet Parametric Compare View All

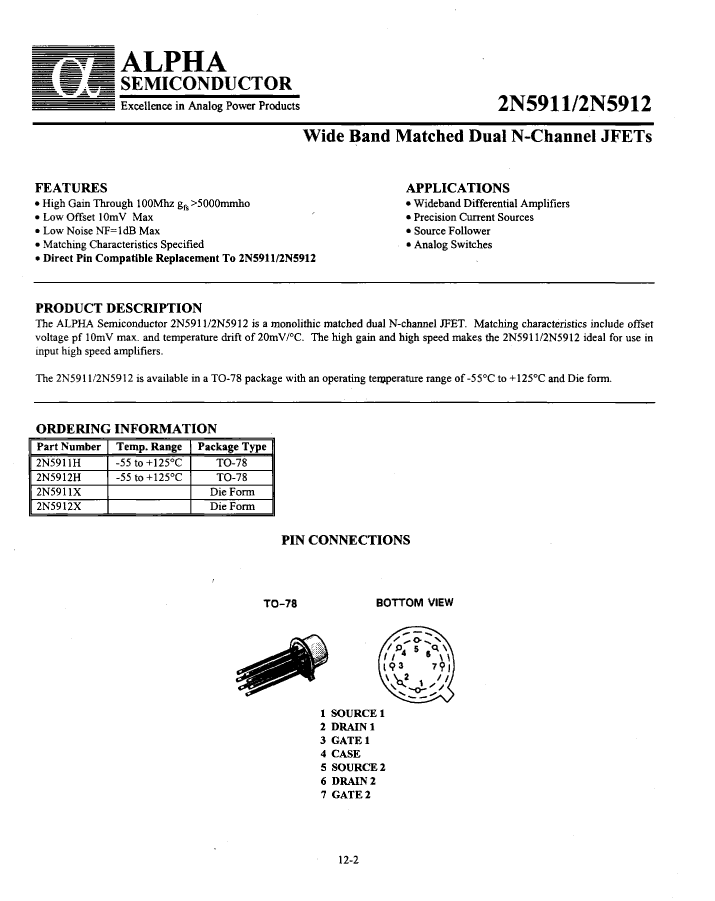

2N5911H Overview

Small Signal Field-Effect Transistor, 2-Element, N-Channel, Silicon, Junction FET, TO-78

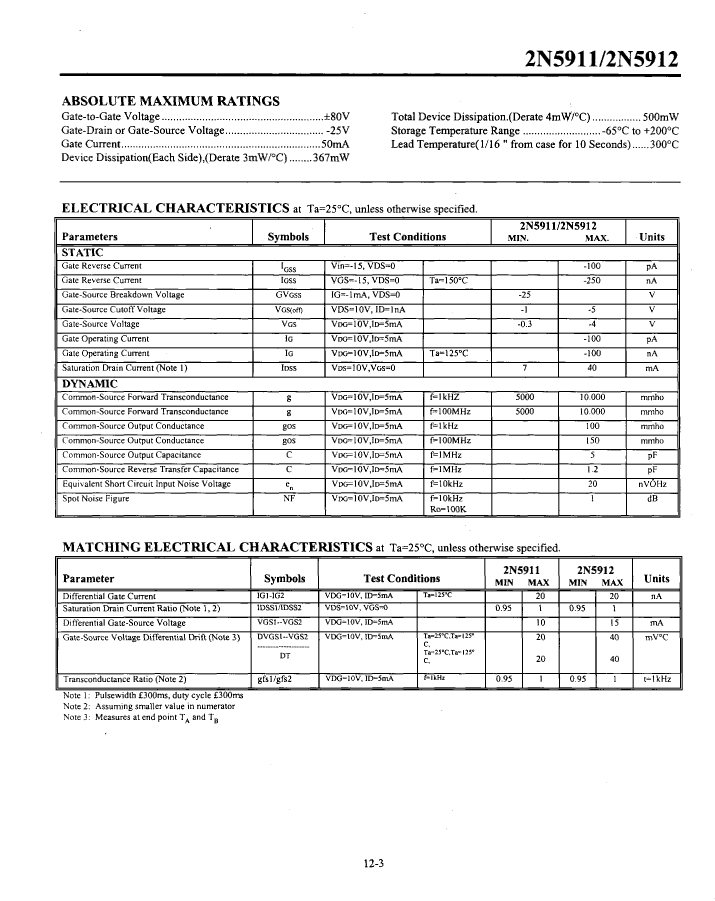

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	LOW NOISE
Configuration	SEPARATE, 2 ELEMENTS
FET technology	JUNCTION
Maximum feedback capacitance (Crss)	1.2 pF
JEDEC-95 code	TO-78
JESD-30 code	O-MBCY-W8
Number of components	2
Number of terminals	8
Operating mode	DEPLETION MODE
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

	2N5911H	2N5911X	2N5912X	2N5912H
Description	Small Signal Field-Effect Transistor, 2-Element, N-Channel, Silicon, Junction FET, TO-78	Small Signal Field-Effect Transistor, 2-Element, N-Channel, Silicon, Junction FET, DIE	Small Signal Field-Effect Transistor, 2-Element, N-Channel, Silicon, Junction FET, DIE	Small Signal Field-Effect Transistor, 2-Element, N-Channel, Silicon, Junction FET, TO-78
Reach Compliance Code	unknow	unknow	unknow	unknow
Other features	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
FET technology	JUNCTION	JUNCTION	JUNCTION	JUNCTION
Maximum feedback capacitance (Crss)	1.2 pF	1.2 pF	1.2 pF	1.2 pF
JESD-30 code	O-MBCY-W8	R-XUUC-N7	R-XUUC-N7	O-MBCY-W8
Number of components	2	2	2	2
Number of terminals	8	7	7	8
Operating mode	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE
Package body material	METAL	UNSPECIFIED	UNSPECIFIED	METAL
Package shape	ROUND	RECTANGULAR	RECTANGULAR	ROUND
Package form	CYLINDRICAL	UNCASED CHIP	UNCASED CHIP	CYLINDRICAL
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	YES	NO
Terminal form	WIRE	NO LEAD	NO LEAD	WIRE
Terminal location	BOTTOM	UPPER	UPPER	BOTTOM
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Base Number Matches	1	1	1	1
package instruction	-	UNCASED CHIP, R-XUUC-N7	UNCASED CHIP, R-XUUC-N7	CYLINDRICAL, O-MBCY-W8
