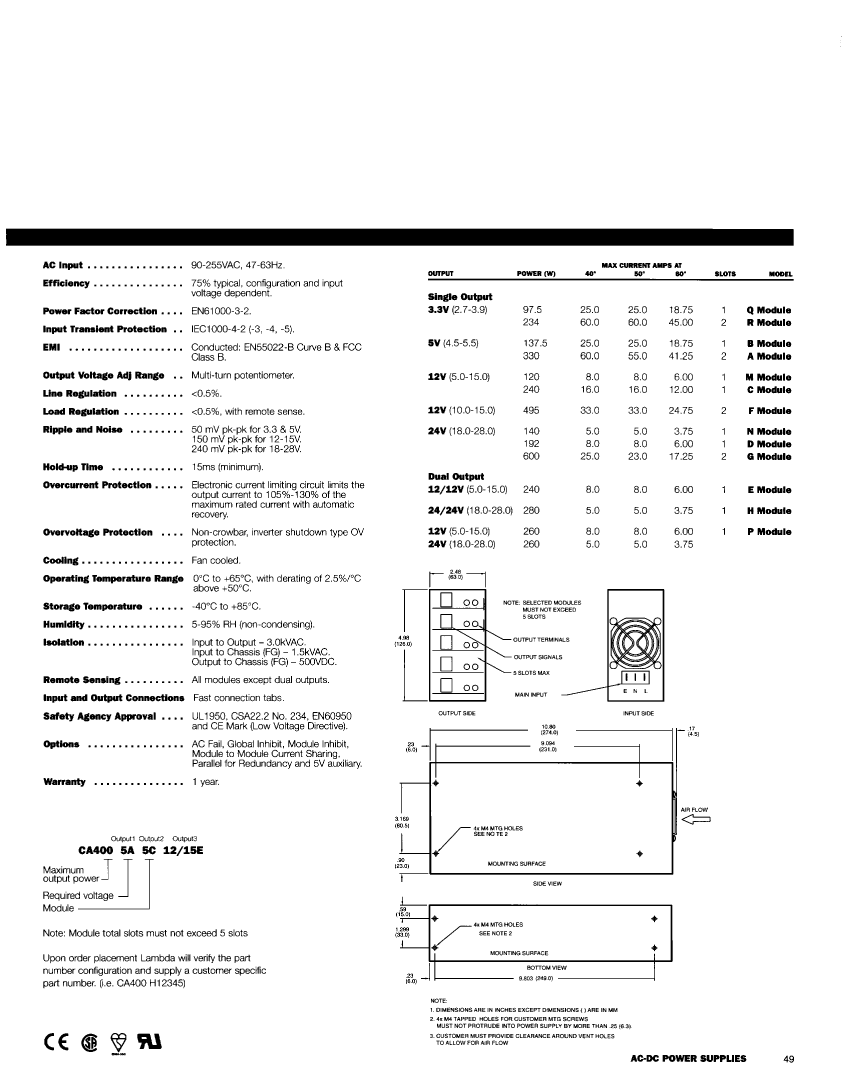

Preview

CA4005A5C12/15E

Description
AC-DC Power Factor Correction Module, 4 Output, 330W
CategoryPower/power management    The power supply circuit
File Size71KB，2 Pages
ManufacturerInternational Rectifier （ Infineon ）
Websitehttp://www.irf.com/
Download Datasheet Parametric Compare View All

CA4005A5C12/15E Overview

AC-DC Power Factor Correction Module, 4 Output, 330W

CA4005A5C12/15E Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
MakerInternational Rectifier （ Infineon ）
package instruction,
Reach Compliance Codeunknown
ECCN codeEAR99
Analog Integrated Circuits - Other TypesAC-DC POWER FACTOR CORRECTION MODULE
Maximum input voltage255 V
Minimum input voltage90 V
JESD-30 codeR-XXMA-X
Maximum load regulation0.5%
Number of functions1
Output times4
Maximum operating temperature50 °C
Minimum operating temperature
Maximum output voltage5.5 V
Minimum output voltage4.5 V
Nominal output voltage5 V
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Certification statusNot Qualified
surface mountNO
Temperature levelCOMMERCIAL
Terminal formUNSPECIFIED
Terminal locationUNSPECIFIED
Maximum total power output330 W
Fine-tuning/adjustable outputYES

Preview

Download Datasheet

CA4005A5C12/15E Related Products

CA4005A5C12/15E CA4005A12C12C24D CA4005A12C12C5B CA4005A12C12C CA4005A12C12C12C CA40024G CA40012F CA4005A12/12E24N CA4005A CA4005A5B
Description AC-DC Power Factor Correction Module, 4 Output, 330W AC-DC Power Factor Correction Module, 4 Output, 330W AC-DC Power Factor Correction Module, 4 Output, 330W AC-DC Power Factor Correction Module, 3 Output, 330W AC-DC Power Factor Correction Module, 4 Output, 330W AC-DC Power Factor Correction Module, 1 Output, 600W AC-DC Power Factor Correction Module, 1 Output, 495W AC-DC Power Factor Correction Module, 4 Output, 330W AC-DC Power Factor Correction Module, 1 Output, 330W AC-DC Power Factor Correction Module, 2 Output, 330W
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Reach Compliance Code unknown unknown compliant unknown unknown unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Analog Integrated Circuits - Other Types AC-DC POWER FACTOR CORRECTION MODULE AC-DC POWER FACTOR CORRECTION MODULE AC-DC POWER FACTOR CORRECTION MODULE AC-DC POWER FACTOR CORRECTION MODULE AC-DC POWER FACTOR CORRECTION MODULE AC-DC POWER FACTOR CORRECTION MODULE AC-DC POWER FACTOR CORRECTION MODULE AC-DC POWER FACTOR CORRECTION MODULE AC-DC POWER FACTOR CORRECTION MODULE AC-DC POWER FACTOR CORRECTION MODULE
Maximum input voltage 255 V 255 V 255 V 255 V 255 V 255 V 255 V 255 V 255 V 255 V
Minimum input voltage 90 V 90 V 90 V 90 V 90 V 90 V 90 V 90 V 90 V 90 V
JESD-30 code R-XXMA-X R-XXMA-X R-XXMA-X R-XXMA-X R-XXMA-X R-XXMA-X R-XXMA-X R-XXMA-X R-XXMA-X R-XXMA-X
Maximum load regulation 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5%
Number of functions 1 1 1 1 1 1 1 1 1 1
Output times 4 4 4 3 4 1 1 4 1 2
Maximum operating temperature 50 °C 50 °C 50 °C 50 °C 50 °C 50 °C 50 °C 50 °C 50 °C 50 °C
Maximum output voltage 5.5 V 5.5 V 5.5 V 5.5 V 5.5 V 28 V 15 V 5.5 V 5.5 V 5.5 V
Minimum output voltage 4.5 V 4.5 V 4.5 V 4.5 V 4.5 V 18 V 10 V 4.5 V 4.5 V 4.5 V
Nominal output voltage 5 V 5 V 5 V 5 V 5 V 24 V 12 V 5 V 5 V 5 V
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
surface mount NO NO NO NO NO NO NO NO NO NO
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal form UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Terminal location UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Maximum total power output 330 W 330 W 330 W 330 W 330 W 600 W 495 W 330 W 330 W 330 W
Fine-tuning/adjustable output YES YES YES YES YES YES YES YES YES YES
Maker International Rectifier （ Infineon ） International Rectifier （ Infineon ） International Rectifier （ Infineon ） International Rectifier （ Infineon ） International Rectifier （ Infineon ） - International Rectifier （ Infineon ） International Rectifier （ Infineon ） International Rectifier （ Infineon ） International Rectifier （ Infineon ）
