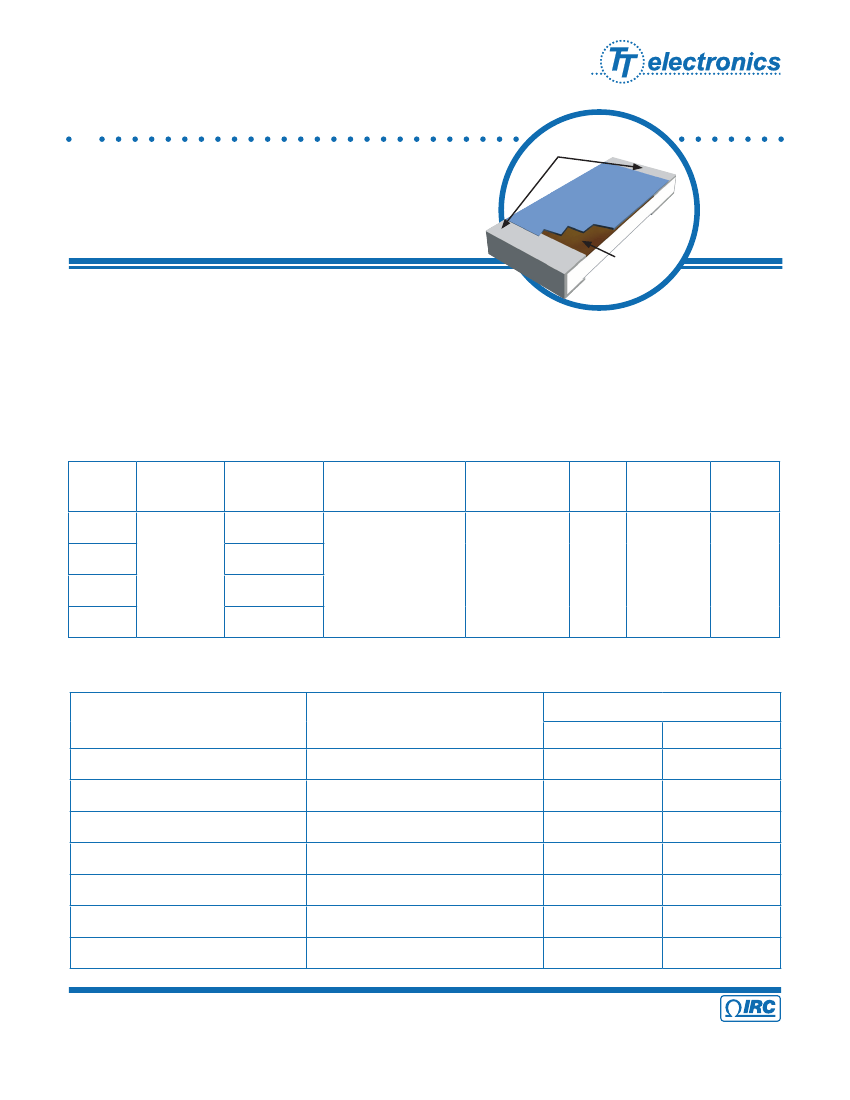

High Frequency Chip
Resistor Terminators
PFC HF Series
•
Long life self-passivating TaNFilm
®
element
•
Frequency performance characterized to 6GHz
•
Available in 0402, 0603, 0805 and 1206 chip sizes
•
Standard Sn/Pb and Pb-free terminations available
IRC Advanced Film Division
Wraparound termination with
non-leaching Nickel barrier
Ultra stable
Tantalum Nitride
resistor film
system
The PFC-HF series of high frequency chip terminators are
available in standard chip resistor sizes. Available in 0402, 0603,
0805 and 1206 chip sizes, the PFC-HF is a drop-in replacement for poorer performing standard size chips.
With operation characterized to 6GHz, the PFC-HF series is suitable for RF and microwave transmission line
termination as well as high speed digital line termination. Applications include SCSI bus termination, DDR
memory termination, RF and microwave transmit and receive line terminations and general high speed trans-
mission line termination.
Electrical Data
Model
W0402HF
W0603HF
50Ω and 75Ω
W0805HF
W1206HF
250mW
333mW
Impedance
Power Rating
@ 70C
50mW
100mW
±10%, ±5%, ±2%, ±1%
-55°C to ±125°C
<-25dB
60/40 Sn/Pb
Plate or
Matte Tin
Finish
99.5%
Alumina
Available Tolerances
Operating
Temperature
Range
Noise
Termination Substrate
Environmental Data
Environmental Test MIL-PRF-55342
Thermal Shock
Low Temperature Operation
Short Time Overload
High Temperature Exposure
Effects of Solder
Moisture Resistance
Life
Maximum
∆R
per Characteristic E
±0.10%
±0.10%
±0.10%
±0.10%
±0.20%
±0.20%
±0.50%
Performance
Typical
±0.02%
±0.01%
±0.01%
±0.03%
±0.01%
±0.03%
±0.03%
Maximum
±0.10%
±0.05%
±0.05%
±0.10%
±0.10%
±0.10%
±0.10%
General Note
IRC reserves the right to make changes in product specification without notice or liability.
All information is subject to IRC’s own data and is considered accurate at time of going to print.
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
A subsidiary of
TT electronics plc
PFC HF Series Issue June 2008 Sheet 1 of 4
High Frequency Chip
Resistor Terminators

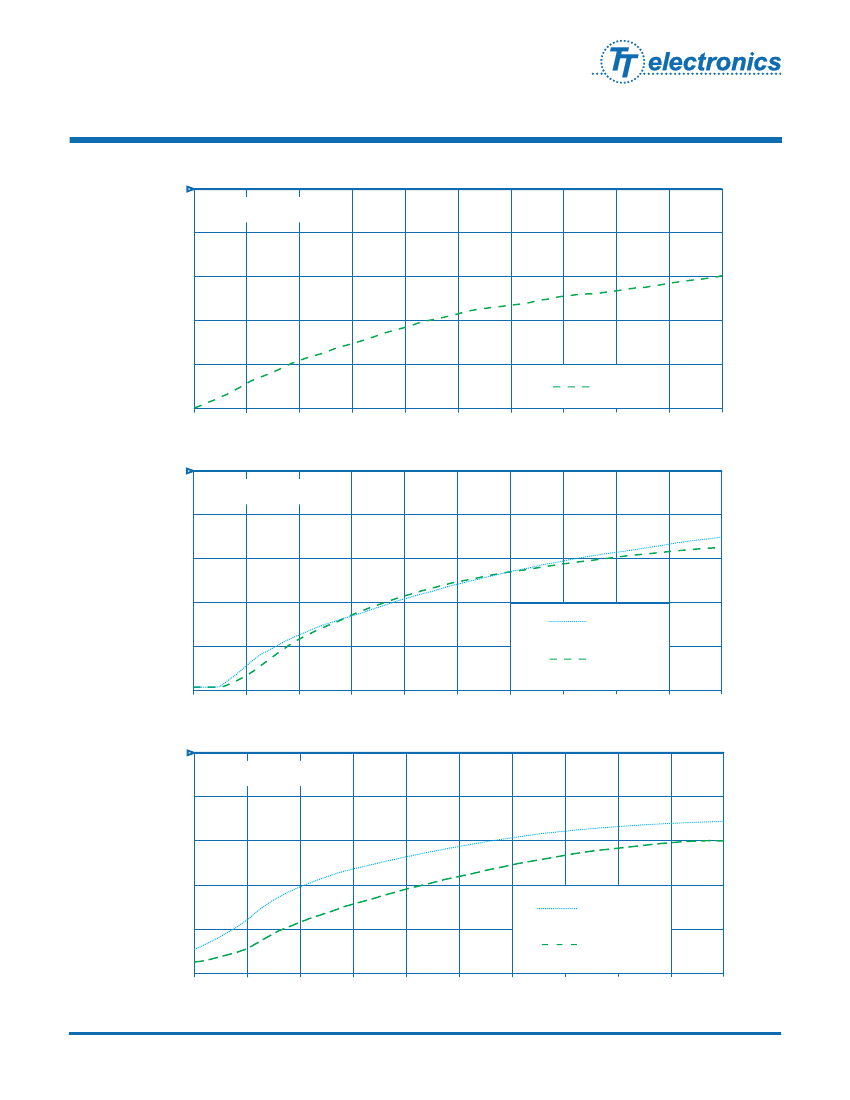

Frequency Performance Data
0
W0402HF
Return Loss (S11, S22)
Magnitude (dB)
IRC Advanced Film Division
-10
-20
-30
-40
50Ω
-50
30KHz
Frequency
6GHz
0
W0603HF
Return Loss (S11, S22)
Magnitude (dB)
-10
-20
-30
75
Ω
-40
-50
30KHz
Frequency
50
Ω
6GHz
0
W0805HF
Return Loss (S11, S22)
Magnitude (dB)
-10
-20
-30
75Ω
-40
-50
30KHz
Frequency
50Ω
6GHz
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
PFC HF Series Issue June 2008 Sheet 2 of 4
High Frequency Chip
Resistor Terminators
Frequency Performance Data
0
W1206HF
Return Loss (S11, S22)
Magnitude (dB)
IRC Advanced Film Division
-10
-20
-30
75
Ω
-40
-50
30KHz
Frequency
50
Ω
6GHz
Modeling Data for 50Ω Terminator
W0402HF
1.1nH
175fF
3.0nH
50R
W0603HF
1.65nH
350fF
1.75nH
50R
120fF
225fF
W0805HF
W1206HF
1.71nH
2nH
1.4nH
50R
485fF
1.4nH
50R
500fF
255fF
275fF
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
PFC HF Series Issue June 2008 Sheet 3 of 4
High Frequency Chip
Resistor Terminators
Physical Data
Top
W
Side
H
IRC Advanced Film Division
Bottom
b
L
a
Dimensions (mm)
L
W0402HF
W0603HF
W0805HF
W1206HF
0.040″ ± 0.002
0.063″ ± 0.004
0.081″ ± 0.005
0.126″ ± 0.006
W
0.021″ ± 0.002
0.031″ ± 0.004
0.050″ ± 0.005
0.063″ ± 0.005
H
0.012″ ± 0.003
0.020″ ± 0.004
0.020″ ± 0.006
0.024″ ± 0.004
a
0.008″ ± 0.002
0.012″ ± 0.005
0.016″ ± 0.008
0.025″ ± 0.010
b
0.010″ ± 0.002
0.015″ ± 0.005
0.016″ ± 0.008
0.025″ ± 0.010
Power Derating Curve
100
Ordering Data
Prefix
PFC - W0603
HF
- 01 -
50R0 - F
Model
W0402; W0603; W0805; W1206
% Of Rated Power
Termination
50
HF = 60/40 Sn/Pb plated solder
HFLF = 100% tin plated (Pb-free)
TCR Code
01 = ±100ppm/°C; 02 = ±50ppm/°C; 03 = ±25ppm/°C
Resistance Code
10
50R0 = 50Ω; 75R0 = 75Ω
25
70
150
Tolerance Code
K = ±10%; J = ±5%; G = ±2%; F = ±1%
Ambient Temperature (°C)
For additional information or to discuss your specific requirements, please contact
our Applications Team using the contact details below.
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
PFC HF Series Issue June 2008 Sheet 4 of 4
