HCT-1-152-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> HCT-1-152-15

HCT-1-152-15: DescriptionGeneral Purpose Inductor, 1.875uH, 20%, 1 Element, Ferrite-Core, RADIAL LEADED; CategoryPassive components inductor; File Size71KB，1 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric Compare View All

HCT-1-152-15 Overview

General Purpose Inductor, 1.875uH, 20%, 1 Element, Ferrite-Core, RADIAL LEADED

HCT-1-152-15 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	COILCRAFT
Reach Compliance Code	compliant
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.0021 Ω
Nominal inductance(L)	1.875 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Manufacturer's serial number	HCT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	15 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
special characteristics	INDUCTANCE MEASURED AT RATED CURRENT
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	RADIAL
Terminal shape	FLAT
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

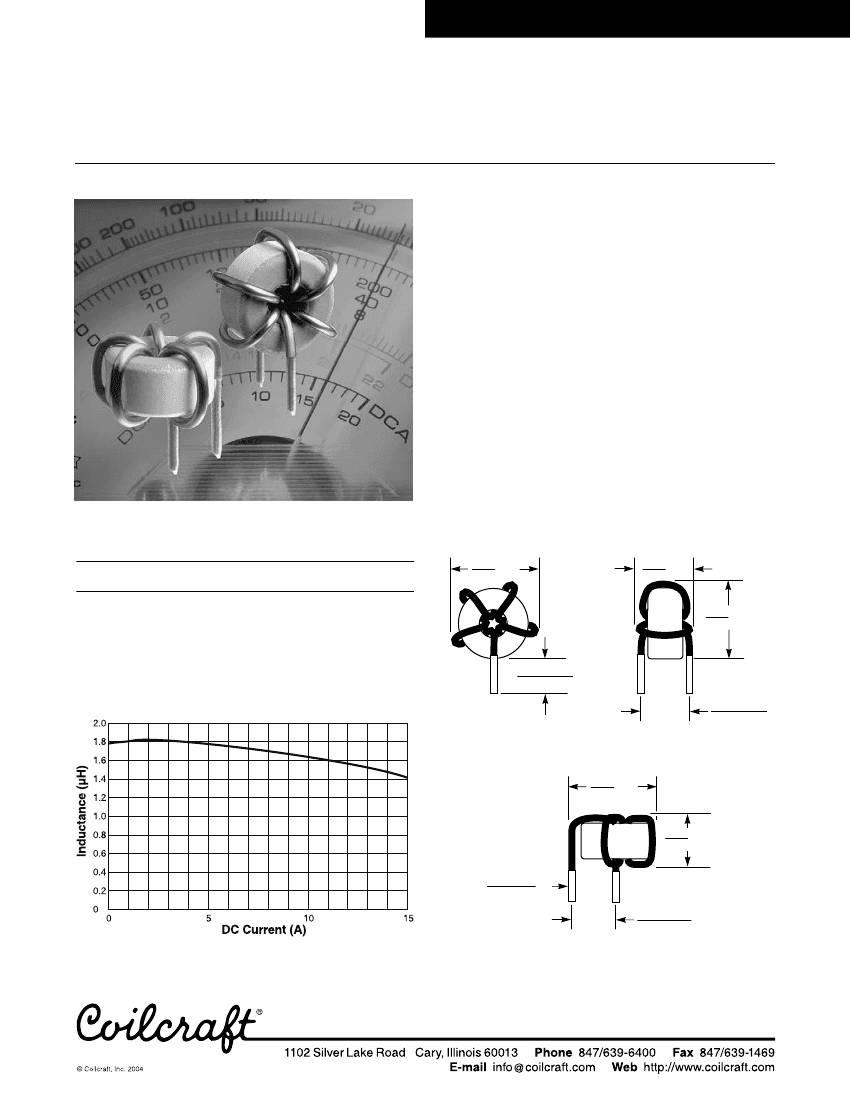

Document 206

Self Leaded Power Inductors – HCT Series

This low cost toroidal inductor is designed for high

current, low voltage applications, particularly the latest

generation of low voltage microprocessors.

The toroid core offers compact size with minimal exter-

nal magnetic fields.

This part can be provided in either vertical or horizontal

mounting style. Custom versions can be readily ob-

tained in addition to the standard parts shown

For free evaluation samples, please contact Coilcraft.

Part number

HCT-1-152-15

HCT-2-152-15

L at 0 A

L at 15 A

DCR

min

max

Irms

Mounting +20% / –10%

style

(µH)

(µH) (Ohms) (A)

Vertical

1.875

1.24 0.0021 15

Horizontal

1.875

1.24 0.0021 15

Dimensions - Vertical Style

0.670 max

17,02

0.440 max

11,18

Inductance tested at 0.1 Vrms, 100 kHz.

Average current for a 40°C rise above 25°C ambient.

Operating temperature -40°C to +85°C.

Specifications at 25°C.

0.250 ±0.030

6,35 ±0,76

0.560 max

14,24

Inductance vs Current

Dimensions - Horizontal Style

0.670 max

17,02

0.340 ±0.030

8,64 ±0,76

0.440 max

11,18

0.050/0.055

dia

1,27/1,40

0.300 ±0.030

7,62 ±0,76

Specifications subject to change without notice.

Please check our website for latest information.

Document 206

Revised 01/19/05

HCT-1-152-15 Related Products

	HCT-1-152-15	HCT-2-152-15
Description	General Purpose Inductor, 1.875uH, 20%, 1 Element, Ferrite-Core, RADIAL LEADED	General Purpose Inductor, 1.875uH, 20%, 1 Element, Ferrite-Core, RADIAL LEADED
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	COILCRAFT	COILCRAFT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
core material	FERRITE	FERRITE
DC Resistance	0.0021 Ω	0.0021 Ω
Nominal inductance(L)	1.875 µH	1.875 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0	e0
Manufacturer's serial number	HCT	HCT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum rated current	15 A	15 A
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	NO	NO
special characteristics	INDUCTANCE MEASURED AT RATED CURRENT	INDUCTANCE MEASURED AT RATED CURRENT
surface mount	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal location	RADIAL	RADIAL
Terminal shape	FLAT	FLAT
Test frequency	0.1 MHz	0.1 MHz
Tolerance	20%	20%
