IDT71124S20PH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> IDT71124S20PH

IDT71124S20PH: DescriptionStandard SRAM, 128KX8, 20ns, CMOS, PDSO32, 0.400 INCH, PLASTIC, TSOP2-32; Categorystorage storage; File Size120KB，7 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT71124S20PH Overview

Standard SRAM, 128KX8, 20ns, CMOS, PDSO32, 0.400 INCH, PLASTIC, TSOP2-32

IDT71124S20PH Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	TSOP2
package instruction	TSOP2, TSOP32,.46
Contacts	32
Reach Compliance Code	not_compliant
ECCN code	3A991.B.2.B
Maximum access time	20 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G32
JESD-609 code	e0
length	20.95 mm
memory density	1048576 bit
Memory IC Type	STANDARD SRAM
memory width	8
Humidity sensitivity level	3
Number of functions	1
Number of ports	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Encapsulate equivalent code	TSOP32,.46
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum standby current	0.00001 A
Minimum standby current	4.5 V
Maximum slew rate	0.14 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	10.16 mm

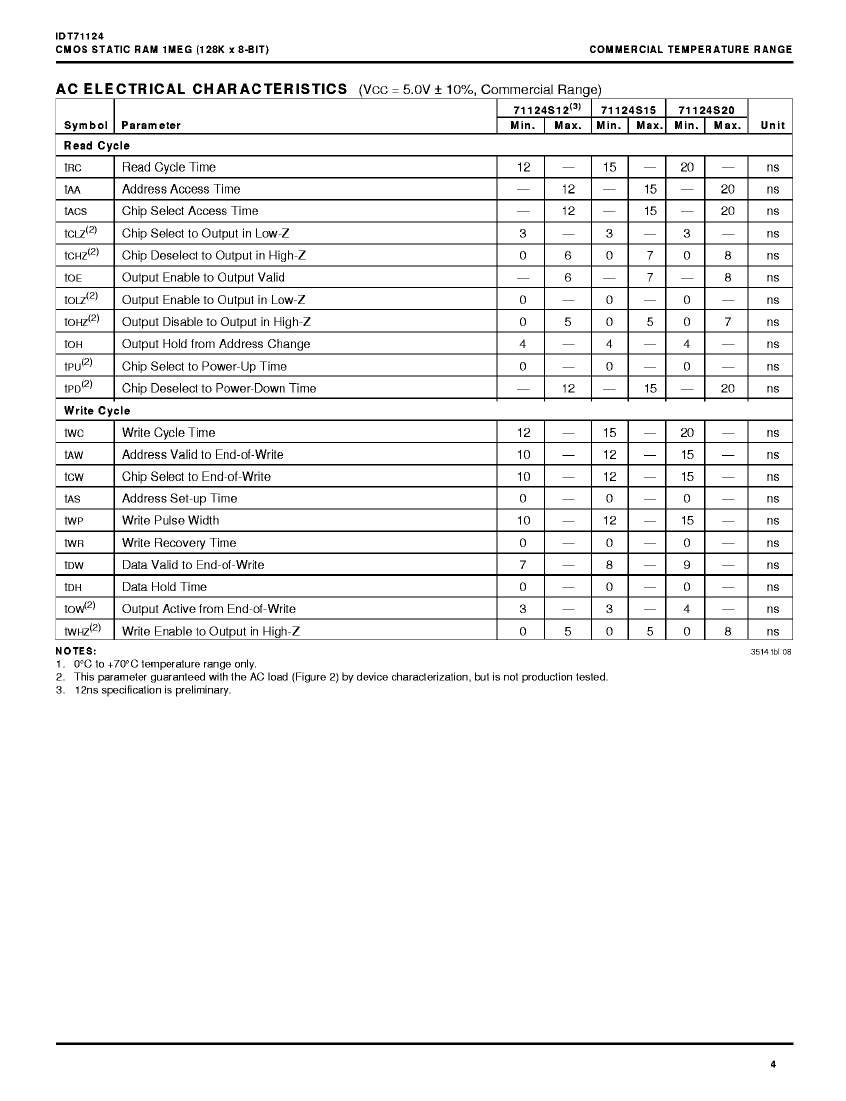

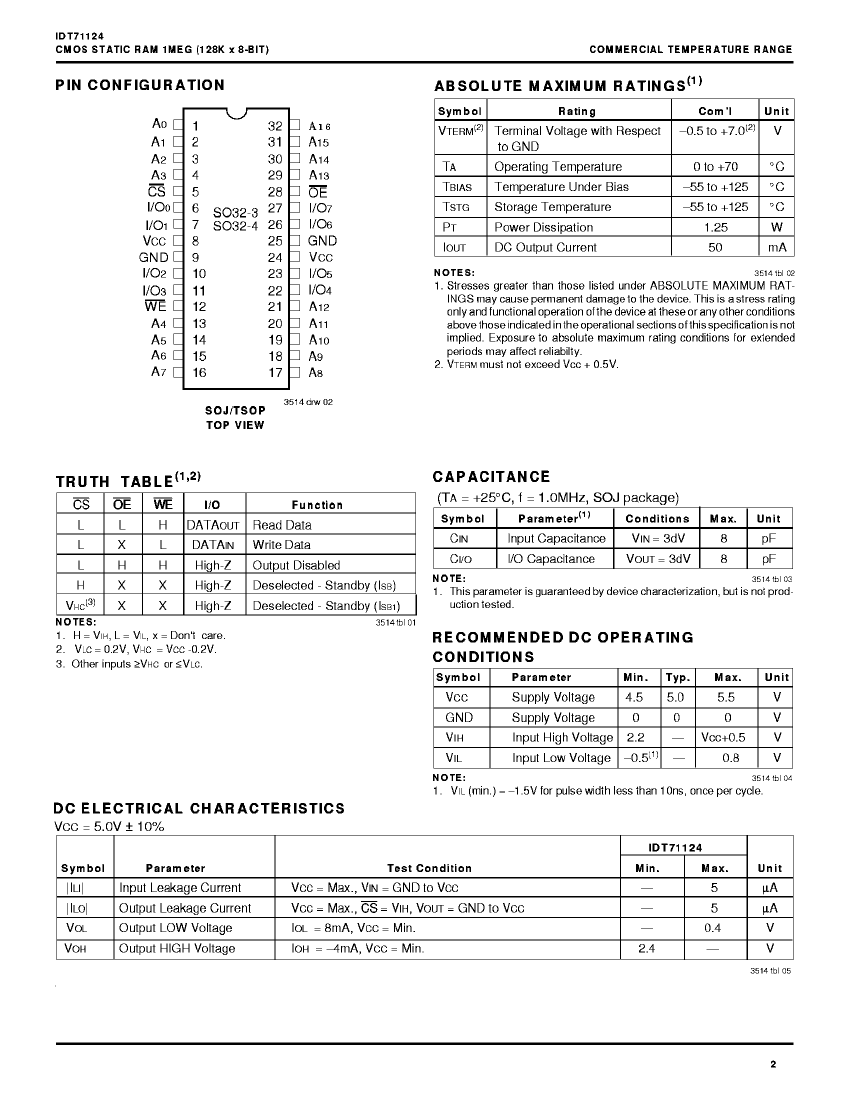

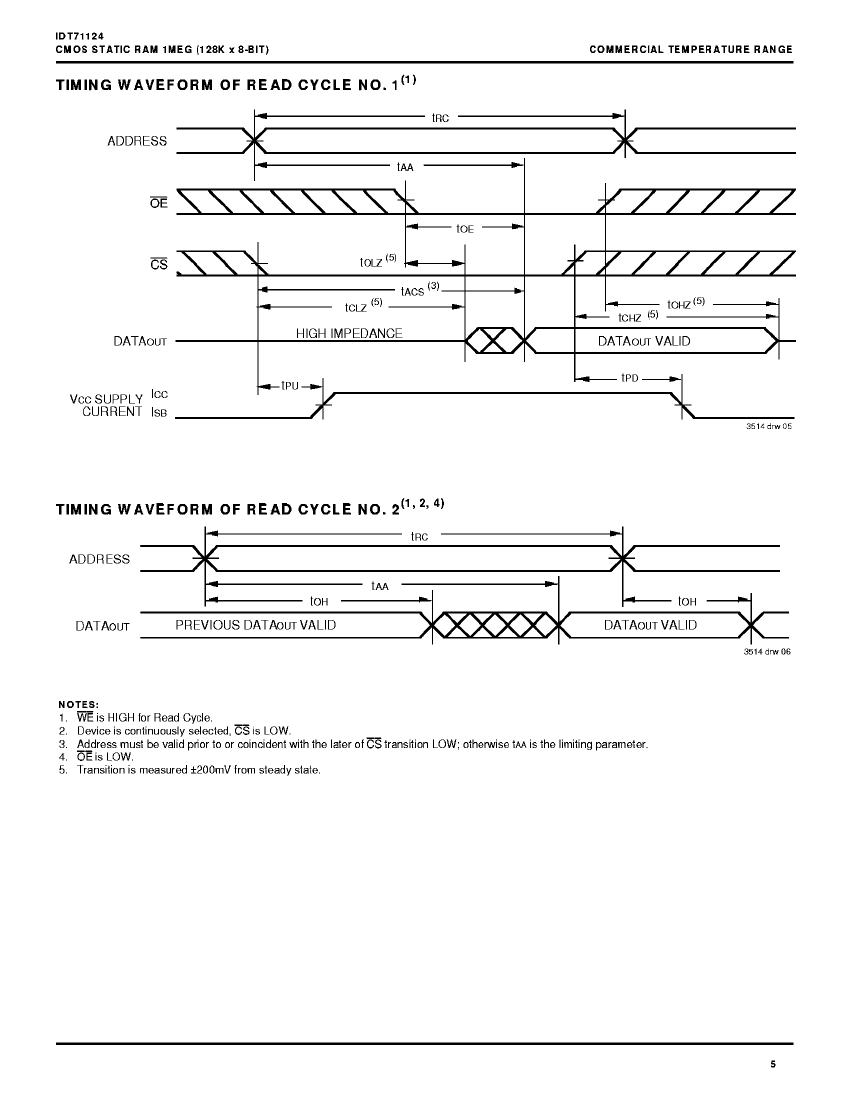

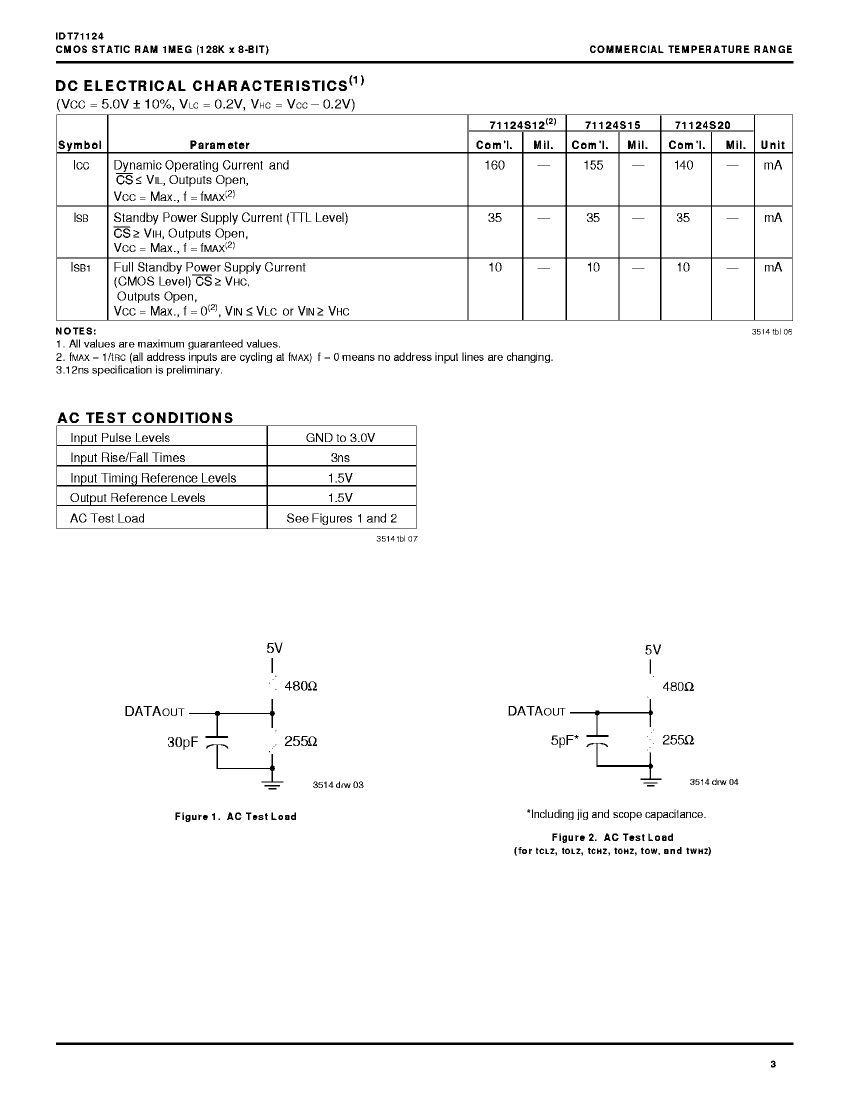

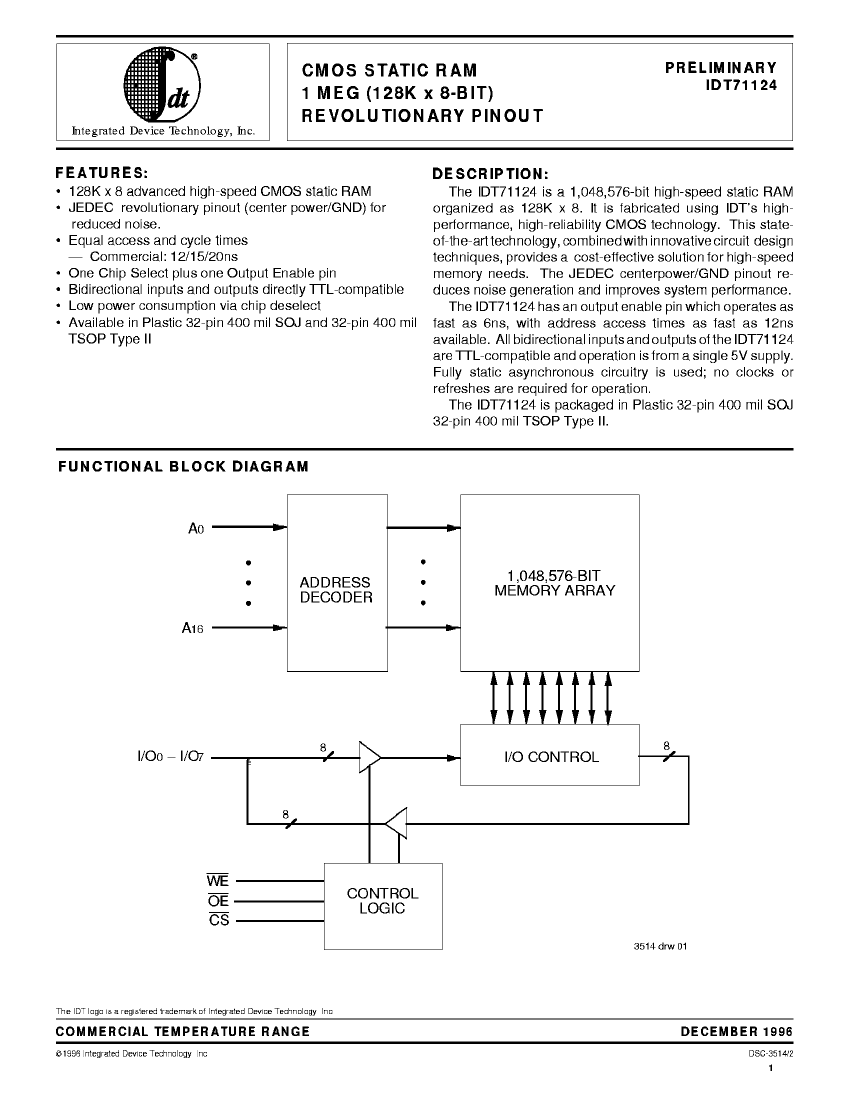

Preview

Download Datasheet

View All

IDT71124S20PH Related Products

	IDT71124S20PH	IDT71124S12PH	IDT71124S15PH
Description	Standard SRAM, 128KX8, 20ns, CMOS, PDSO32, 0.400 INCH, PLASTIC, TSOP2-32	Standard SRAM, 128KX8, 12ns, CMOS, PDSO32, 0.400 INCH, PLASTIC, TSOP2-32	Standard SRAM, 128KX8, 15ns, CMOS, PDSO32, 0.400 INCH, PLASTIC, TSOP2-32
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	TSOP2	TSOP2	TSOP2
package instruction	TSOP2, TSOP32,.46	TSOP2, TSOP32,.46	TSOP2, TSOP32,.46
Contacts	32	32	32
Reach Compliance Code	not_compliant	not_compliant	not_compliant
ECCN code	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B
Maximum access time	20 ns	12 ns	15 ns
I/O type	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32
JESD-609 code	e0	e0	e0
length	20.95 mm	20.95 mm	20.95 mm
memory density	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8
Humidity sensitivity level	3	3	3
Number of functions	1	1	1
Number of ports	1	1	1
Number of terminals	32	32	32
word count	131072 words	131072 words	131072 words
character code	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	128KX8	128KX8	128KX8
Output characteristics	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP2	TSOP2
Encapsulate equivalent code	TSOP32,.46	TSOP32,.46	TSOP32,.46
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	225	225	225
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm
Maximum standby current	0.00001 A	0.00001 A	0.00001 A
Minimum standby current	4.5 V	4.5 V	4.5 V
Maximum slew rate	0.14 mA	0.16 mA	0.155 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30
width	10.16 mm	10.16 mm	10.16 mm
