PAL20L8AJM datasheet, PDF - EEWORLD Datasheet

PAL20L8AJM: DescriptionOT PLD, 30ns, TTL, CDIP24, CERAMIC, DIP-24; CategoryProgrammable logic devices Programmable logic; File Size2MB，18 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

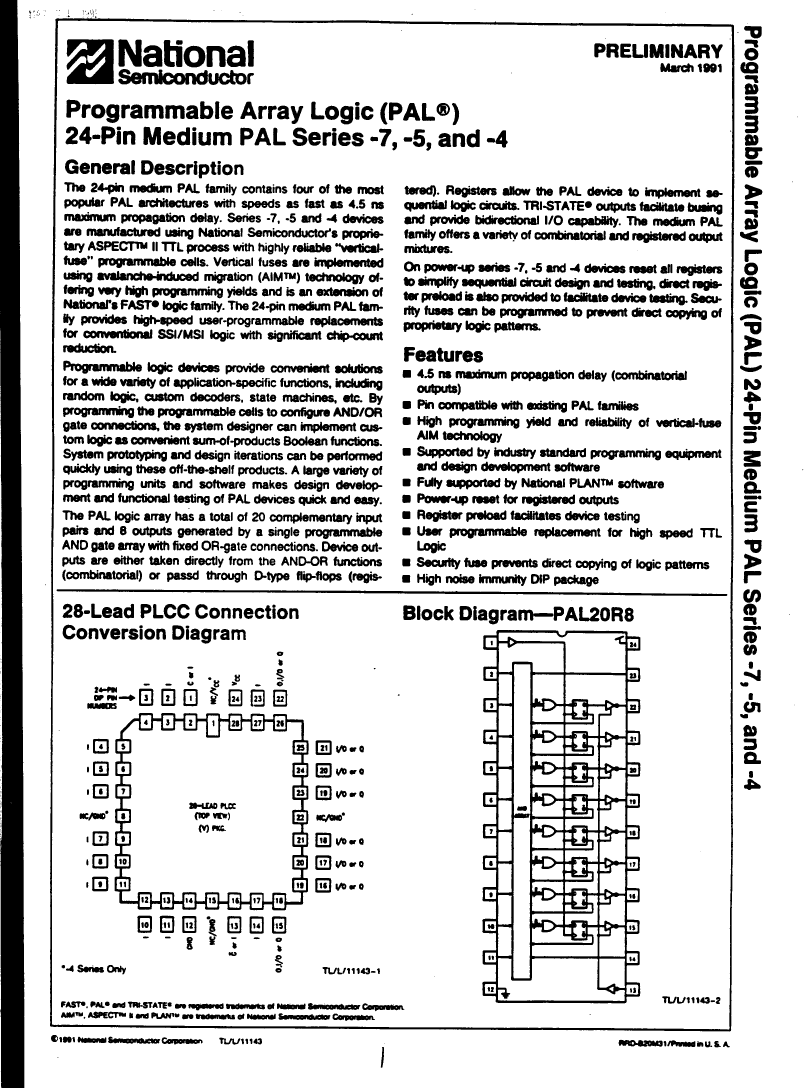

PAL20L8AJM Overview

OT PLD, 30ns, TTL, CDIP24, CERAMIC, DIP-24

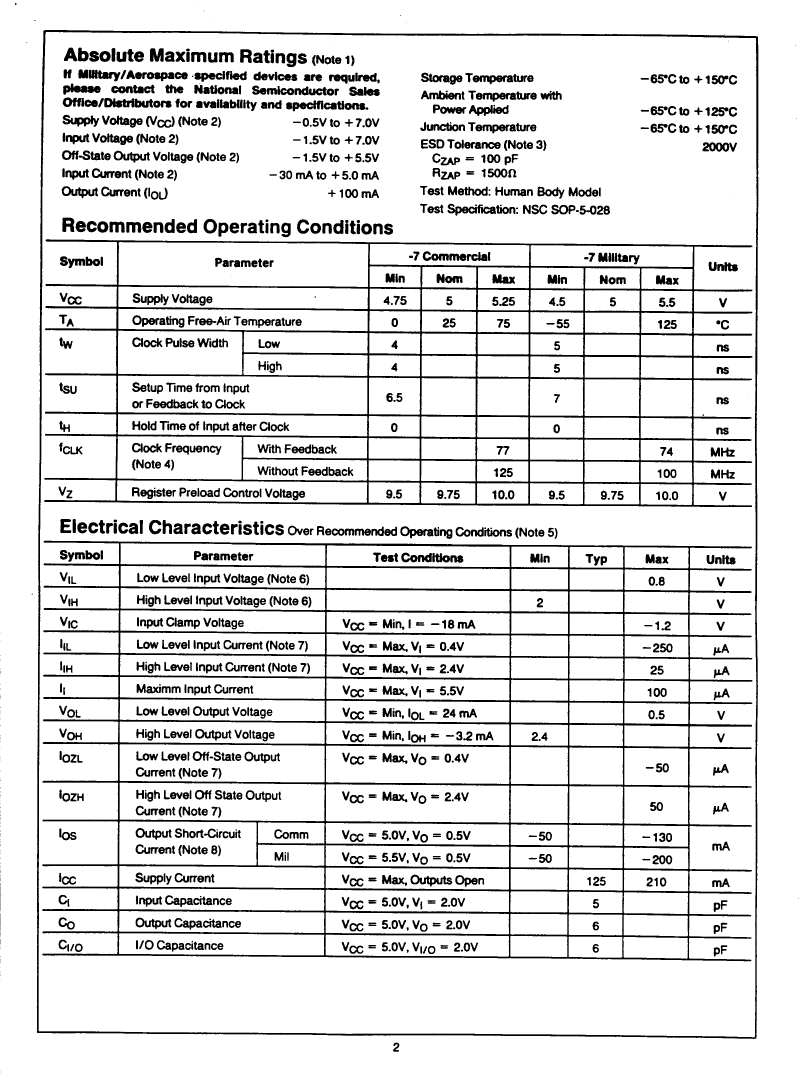

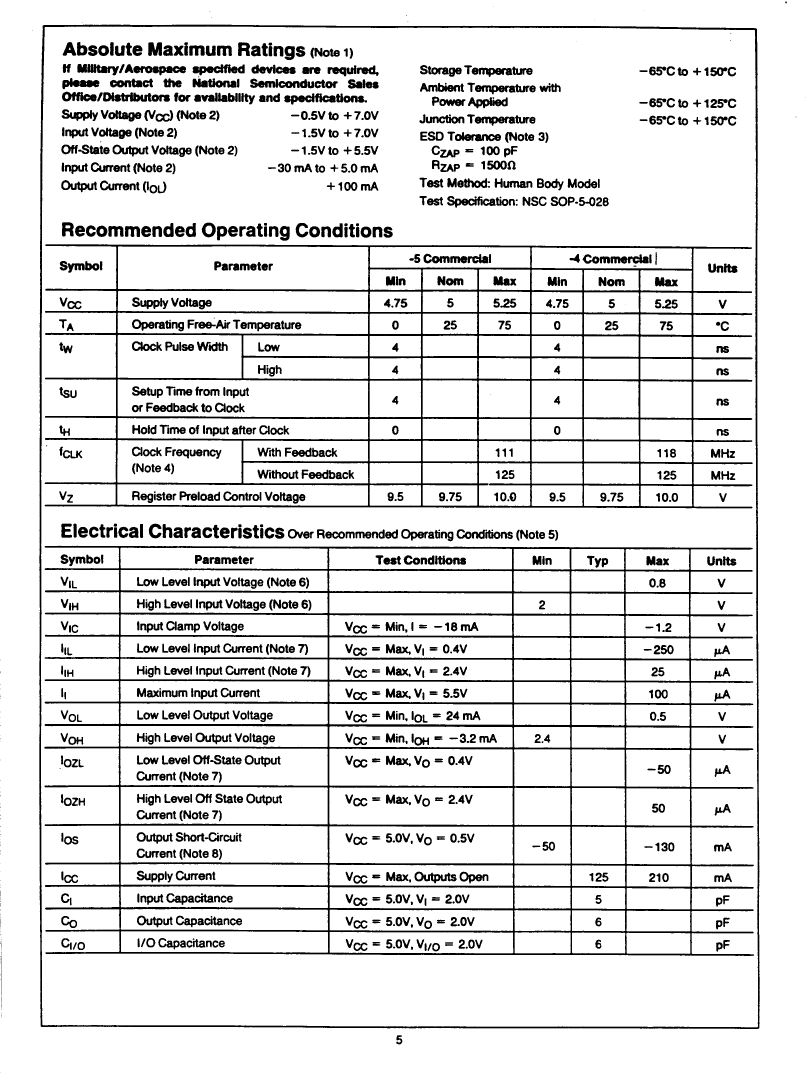

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	ACTIVE LOW OUTPUT
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
Dedicated input times	14
Number of I/O lines	6
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	14 DEDICATED INPUTS, 6 I/O
Output function	COMBINATORIAL
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Programmable logic type	OT PLD

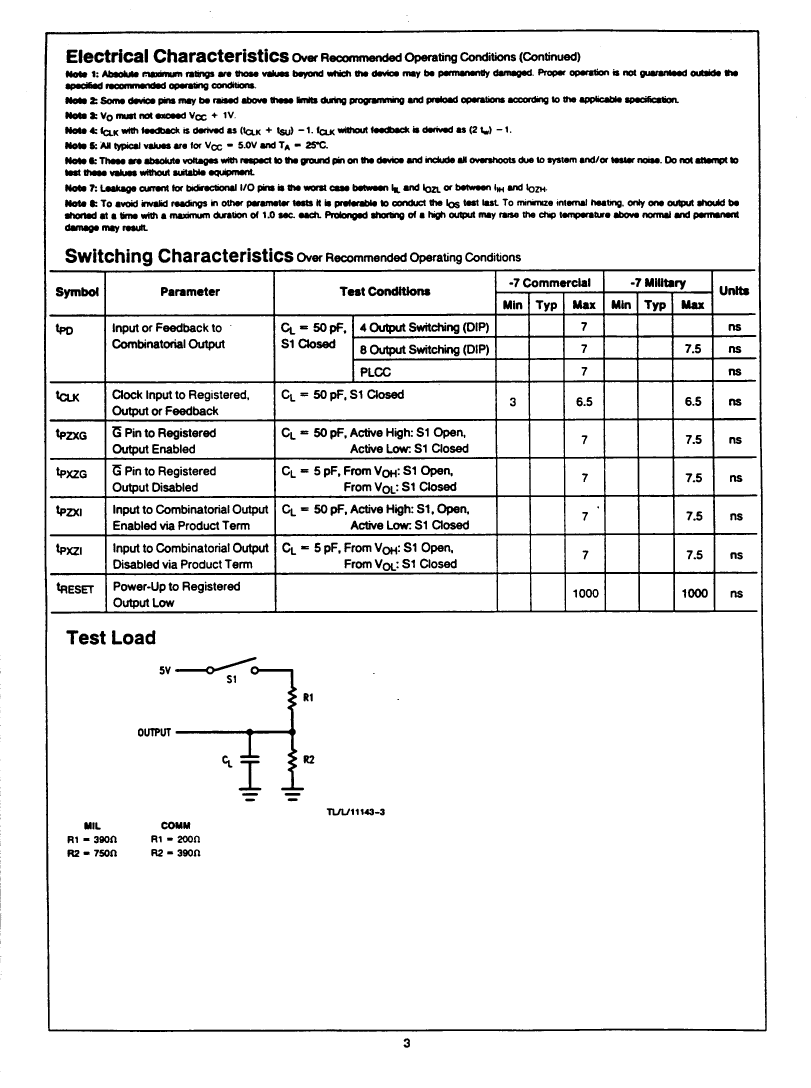

propagation delay	30 ns
Maximum seat height	5.715 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
