Twinax Contacts

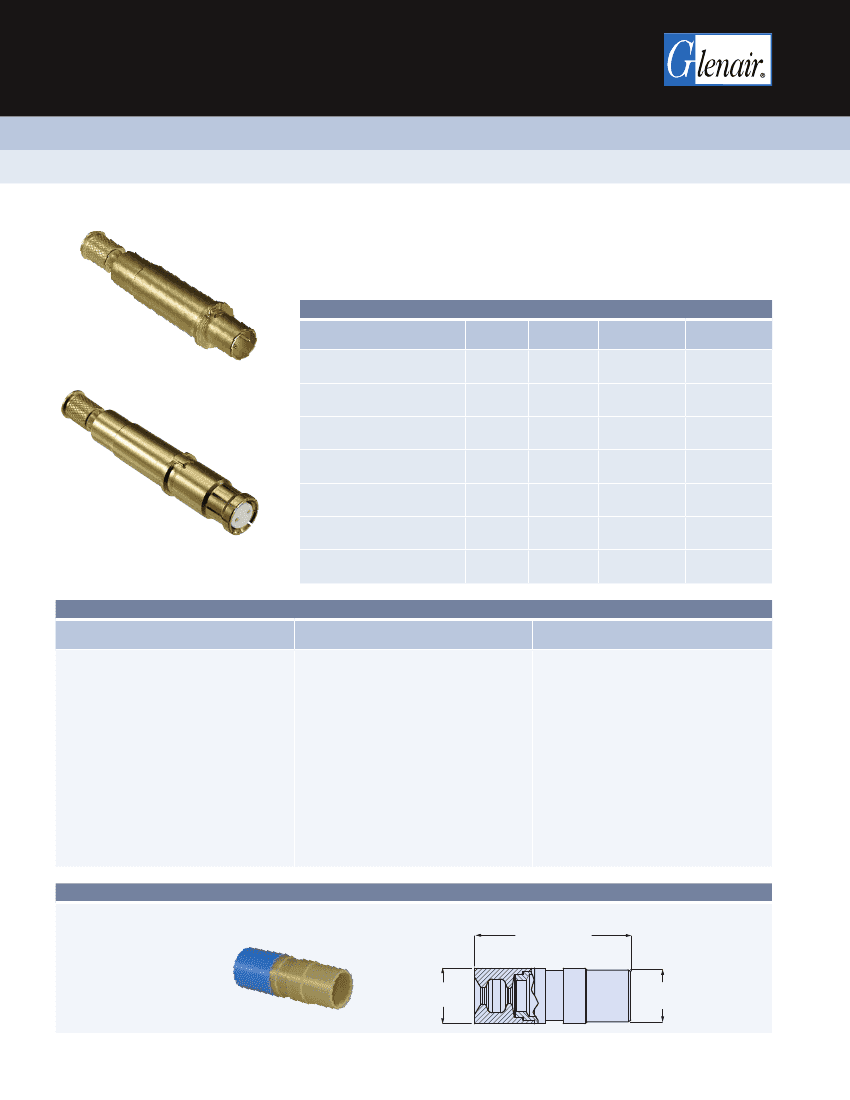

Size #8 Differential Twinax Contacts
Differential twinax contacts accept shielded twisted pair cable. These snap-in, rear-release
contacts fit Glenair Series 80 Mighty Mouse connectors and Glenair 233-217 MIL-DTL-38999
type connectors with keyed inserts. Crimp termination. 24 and 26 AWG versions. 68 ohm, 75
ohm, 77 ohm and 100 ohm impedance. Gold-plated copper alloy. Supplied unassembled
with sealing boot and instruction sheet.
Pin Contact
Size #8 Differential Twinax Contacts
Shielded Twisted Pair Cable
GSC-03-83971-00
(Gore)
0024A0024
(TE Raychem)
M17/176-00002
(MIL-DTL-17)
24443/52088X2
(Tensolite ref: 5M2022-003)
Wire Size
(AWG)
24
24
24
24
24
26
26
Impedance
(ohms)
100
100
77
75
68
100
77
Pin Contact
853-014-02F
853-014-04F
853-014-05F
853-014-05F
853-025-01F
853-014-09F
853-025-02F
Socket
Contact
853-013-02F
853-013-04F
853-013-05F
853-013-05F
853-024-01F
853-013-09F
853-024-02F
Socket Contact
ST5M1212-002
(McDonnell Douglas)
DXN2603
(Gore)
7726D0664
(TE Raychem)
Technical Data
Specifications
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Construction
Q
Q
Q
Q
Connector Compatibility
Q
Operating temperature: -65°C. to +175°C.
Operating frequency: 0 – 20 MHz
Dielectric withstanding voltage, inner
contact to inner contact: 1000 Vrms
Dielectric withstanding voltage, inner
contact to outer body: 500 Vrms
Insulation resistance: 5000 megohms min.
Contact resistance, inner contacts: 55
millivolt max. voltage drop @ 1 ampere
Contact resistance, outer body: 75 millivolt
max. voltage drop @ 12 amperes
Durability: 500 mating cycles
Shock: EIA-364-27 condition D
Vibration: EIA-364-28 condition VI, letter J
Inner contacts, outer body:
copper alloy,
50 microinches gold over nickel plating
Crimp ferrule:
copper alloy, 50
microinches gold over nickel plating
Insulators:
PPS
Sealing boot:
fluorosilicone rubber
grommet, glass-filled PEI follower
Q
Q
Differential twinax contacts have an
alignment key and are not for use in
standard MIL-DTL-38999 connectors
Glenair 233-217 MIL-DTL-38999 Series III
connectors with keyed inserts for contact
alignment.
Glenair Series 80 Mighty Mouse.
All standard Mighty Mouse connectors with
size #8 contacts have keyed contact cavities
for proper alignment of differential twinax,
quadrax, and octaxial contacts.
Sealing Boot
Sealing boots are supplied with contacts. To order contacts without sealing boots, delete the “F” suffix from the part number
.985 (25.02)
MAX
.326
(8.28)
.350
(8.89)
32
© 2016 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • High-Speed Contacts
Dimensions in Inches (millimeters) are subject to change without notice.
RF, Microwave and Datalink Contacts
for MIL-DTL-38999, SuperNine
®
, Mighty Mouse and
Micro-Crimp
®
Connectors
Twinax Contacts
Size #8 Differential Twinax Contacts

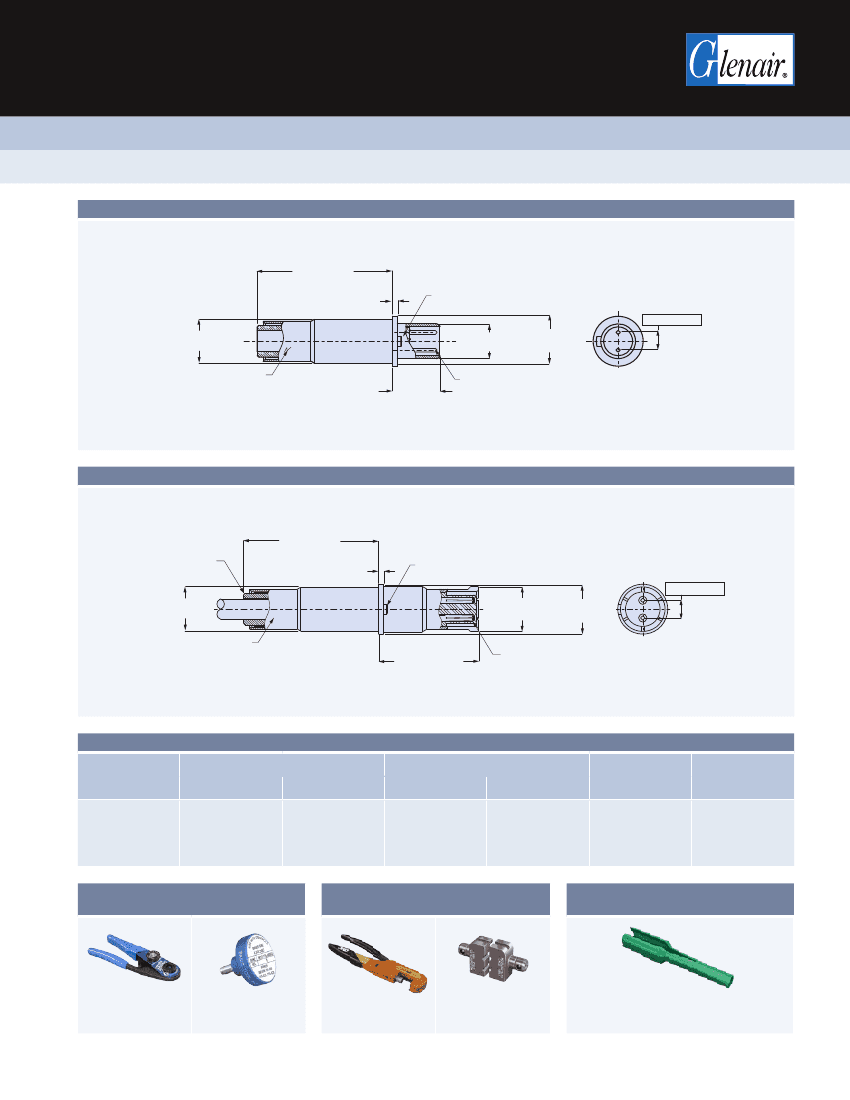

Pin Contact 853-014 and 853-025
.900/.840
(22.9/21.3)
.033/.029
(0.84/0.74)
Ø .276/.271
(7.01/6.88)
.218 (5.54)
HEX CRIMP
POLARIZATION KEY
Ø .219/.217 Ø .316/.313
(5.56/5.51) (8.03/7.95)
.305/.295
(7.75/7.49)
4 1
3 2
.111 (2.82)
ø .0250 ± .0005 (0.64 ± 0.013)
TWO PLACES
Socket Contact 853-013 and 853-024
INNER CRIMP
BUSHING
Ø .276/.271
(7.01/6.88)
.218 (5.54)
HEX CRIMP
.900/.840
(22.9/21.3)
.033/.029
(0.84/0.74)
POLARIZATION KEY
.111 (2.82)
Ø .288/.284 Ø .316/.313
(7.32/7.21) (8.03/7.95)
SKT TO ACCEPT .025 (0.64) PIN
2 PLACES
.631/.625
(16.02/15.88)
Crimp Tools, Removal Tool, Assembly Instruction Sheet
Contact Part
Number
853-013
853-014
853-024
853-025
Inner Contacts
Crimper
809-015
Positioner
809-240
Crimper
809-129
Outer Body
Hex Die
859-007
Removal Tool
Assembly
Instruction Sheet
(M22520/2-01)
(M22520/2-37)
(M22520/5-01)
(M22520/5-45)
(
M81969/14-12
)
859-049
AI85007
Inner Contact Crimp Tools
Outer Body Crimp Tools
Removal Tool
(
M22520/2-01
)
809-015
(
M22520/2-37
)
809-240
(
M22520/5-01
)
809-129
(
M22520/5-45
)
859-007
(
M81969/14-12
)
33
859-049
© 2016 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • High-Speed Contacts
Dimensions in Inches (millimeters) are subject to change without notice.
RF, Microwave and Datalink Contacts
for MIL-DTL-38999, SuperNine
®
, Mighty Mouse and
Micro-Crimp
®
Connectors
Twinax Contacts
Size #8 Differential Twinax Contacts

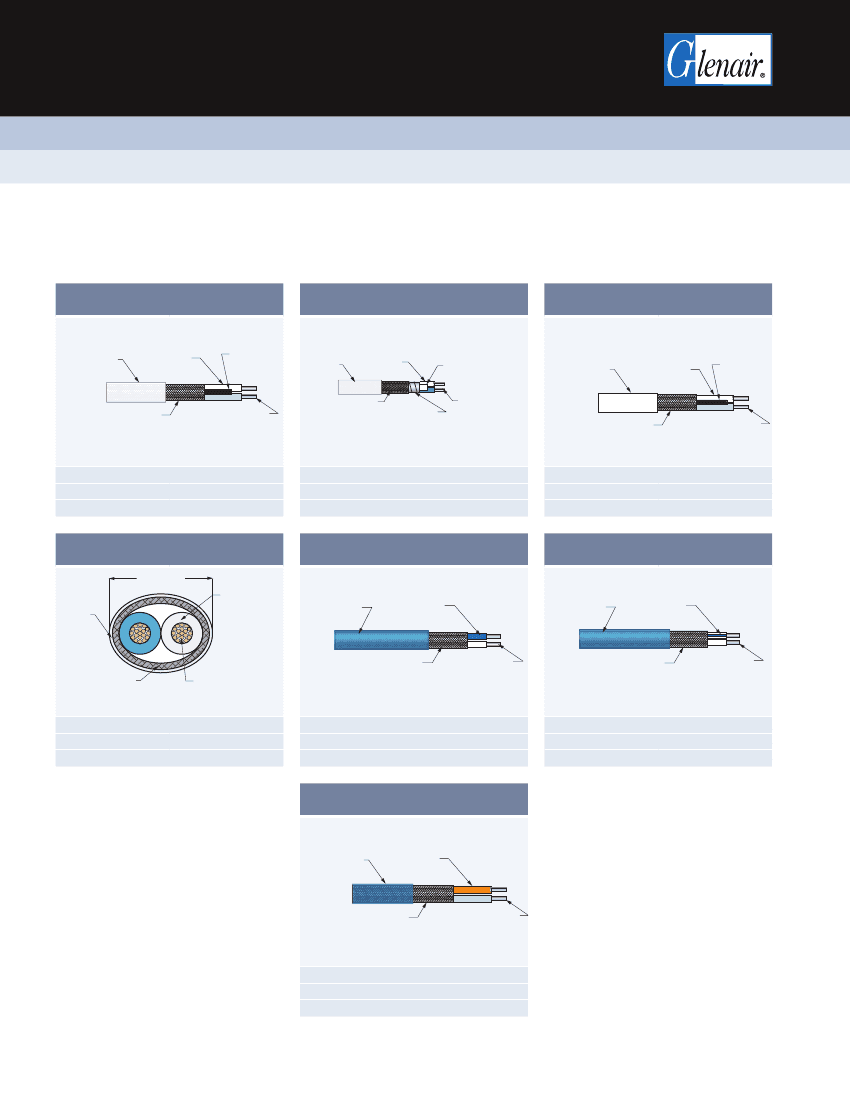

Shielded Twisted Pair Cables for Differential Twinax Contacts
