IPBT-108-H2-T-D-RA-USAS113: DescriptionRectangular Power Connector, 16 Contact(s), Female, Solder Terminal; CategoryThe connector The connector; File Size937KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

IPBT-108-H2-T-D-RA-USAS113 Overview

Rectangular Power Connector, 16 Contact(s), Female, Solder Terminal

IPBT-108-H2-T-D-RA-USAS113 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	IPBT
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	16

Preview

Download Datasheet

View All

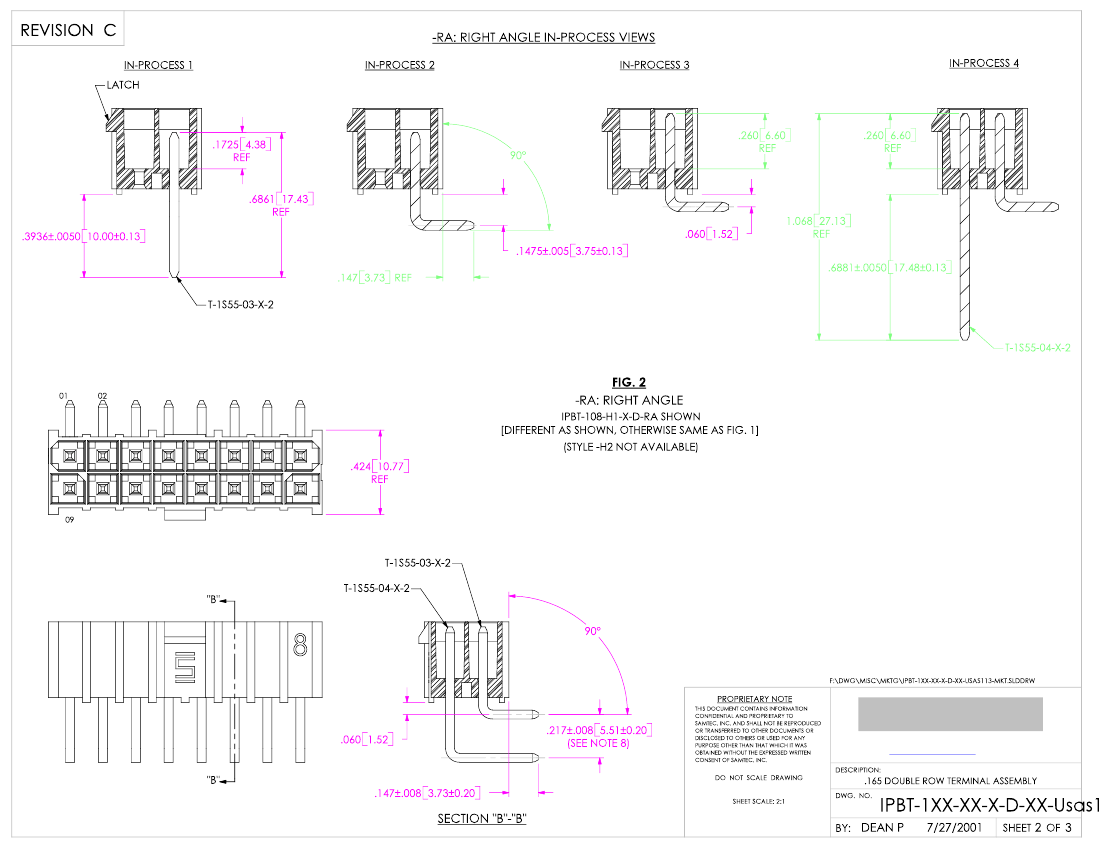

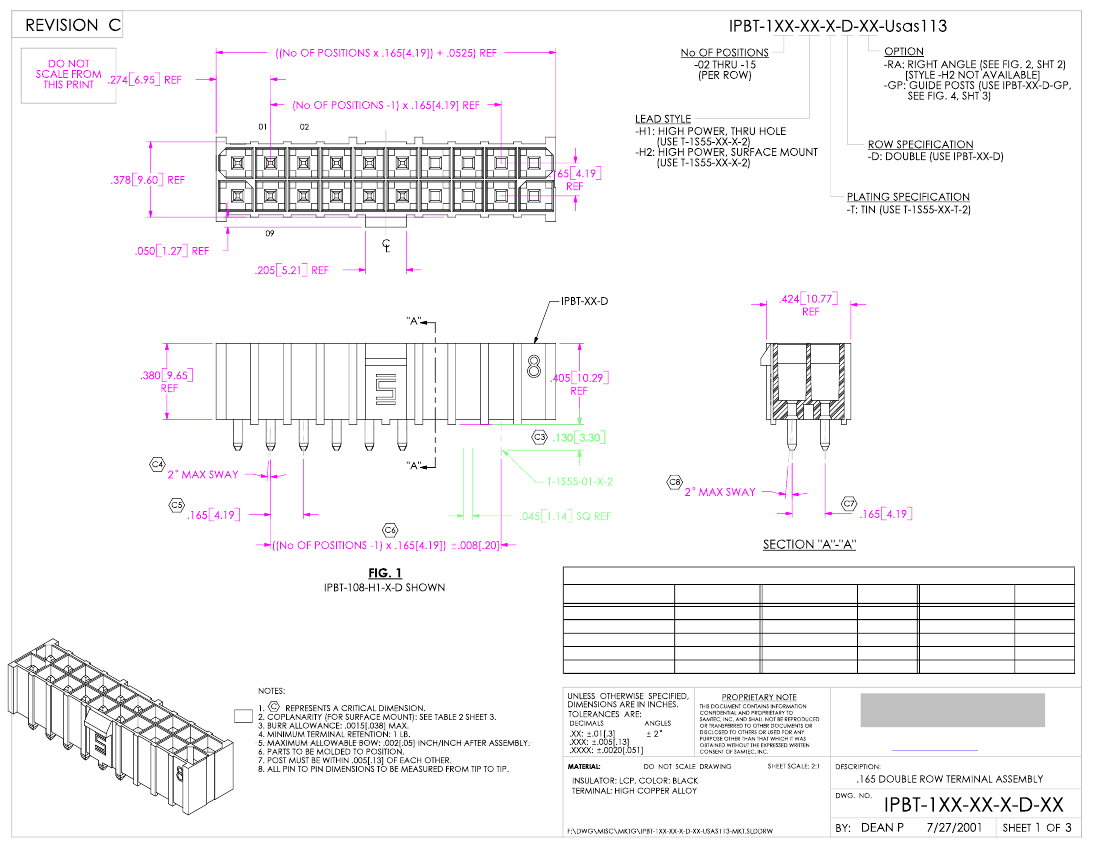

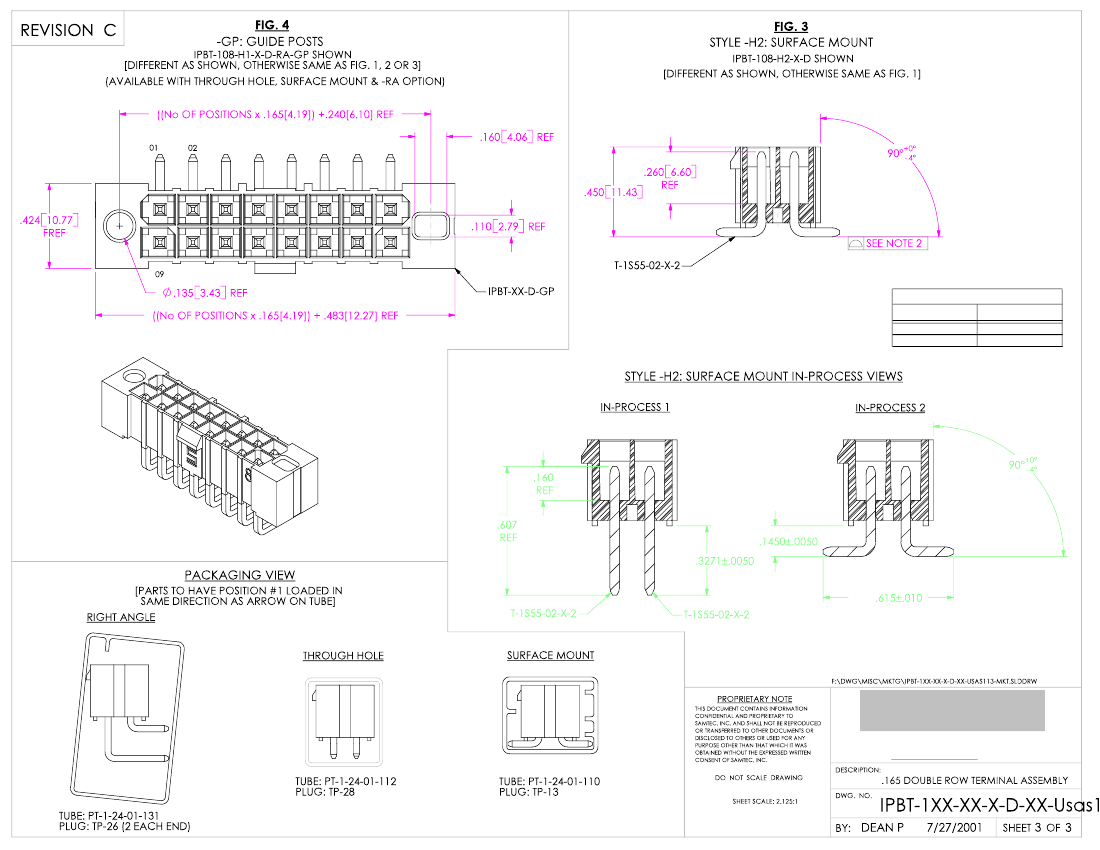

TABLE 1

LEAD STYLE

-H1

-H2

-H1-RA

-H1-RA-GP

-H1-GP

BODY

IPBT-XX-D

IPBT-XX-D-GP

TERMINAL 1

T-1S55-01-X-2

T-1S55-02-X-2

T-1S55-03-X-2

T-1S55-01-X-2

OAL REF

.5100

.6071

.6861

.5100

TERMINAL 2

N/A

T-1S55-04-X-2

N/A

OAL REF

N/A

1.0681

N/A

C

SAMTEC

e -M ail:

IN F O @ S A M T E C .C O M

5 2 0 P A R K E A S T B L V D , N E W A L B A N Y , IN 4 7 1 5 0

P H O N E : 8 1 2 .9 4 4 .6 7 3 3

F A X : 8 1 2 .9 4 8 .5 0 4 7

C O D E: 55322
