KN-59-294 datasheet, PDF - EEWORLD Datasheet

KN-59-294: DescriptionCONNECTOR, CABLE TERMINATED, MALE, N CONNECTOR, SOLDER, PLUG; CategoryThe connector The connector; File Size915KB，2 Pages; ManufacturerKings Electronics

Download Datasheet Parametric View All

KN-59-294 Overview

CONNECTOR, CABLE TERMINATED, MALE, N CONNECTOR, SOLDER, PLUG

Parameter Name	Attribute value
Maker	Kings Electronics
Reach Compliance Code	unknown
Other features	APPLICABLE CABLES: RG 6/U, RG 212/U, RG 222/U
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PTFE
MIL compliance	NO
Manufacturer's serial number	KN
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER

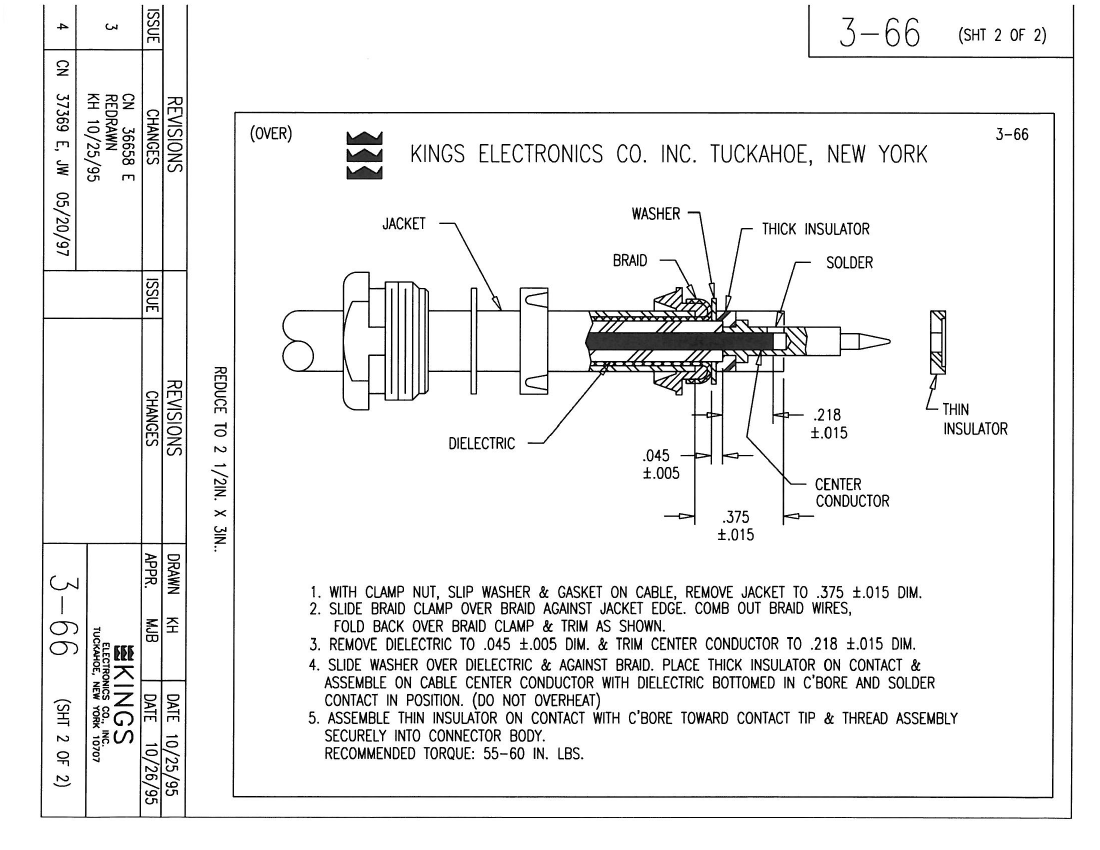

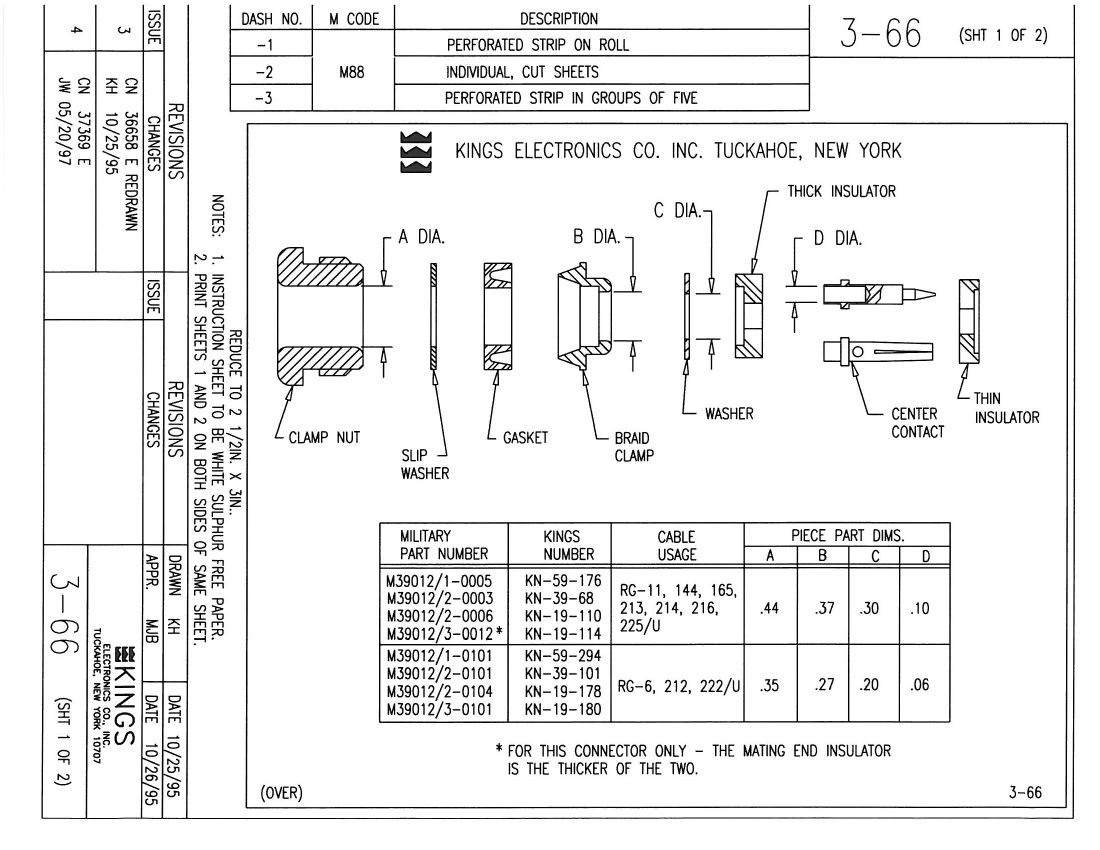

MAY 2007 THIS DRAWING BECAME THE PROPERTY OF PROPERTY OF

WINCHESTER ELECTRONICS CORPORATION, WALLINGFORD, CT 06492
