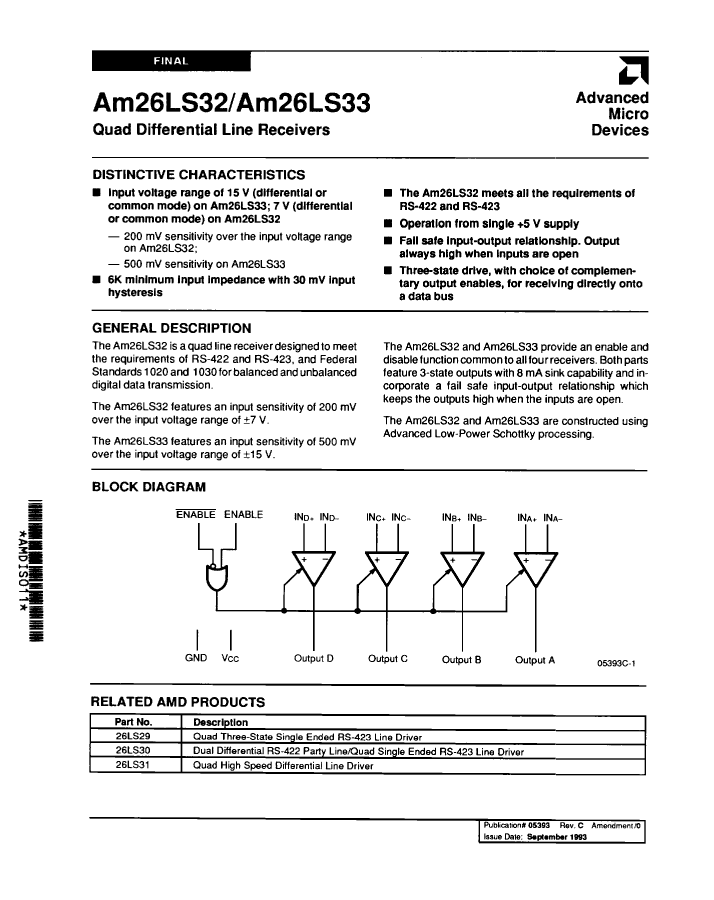

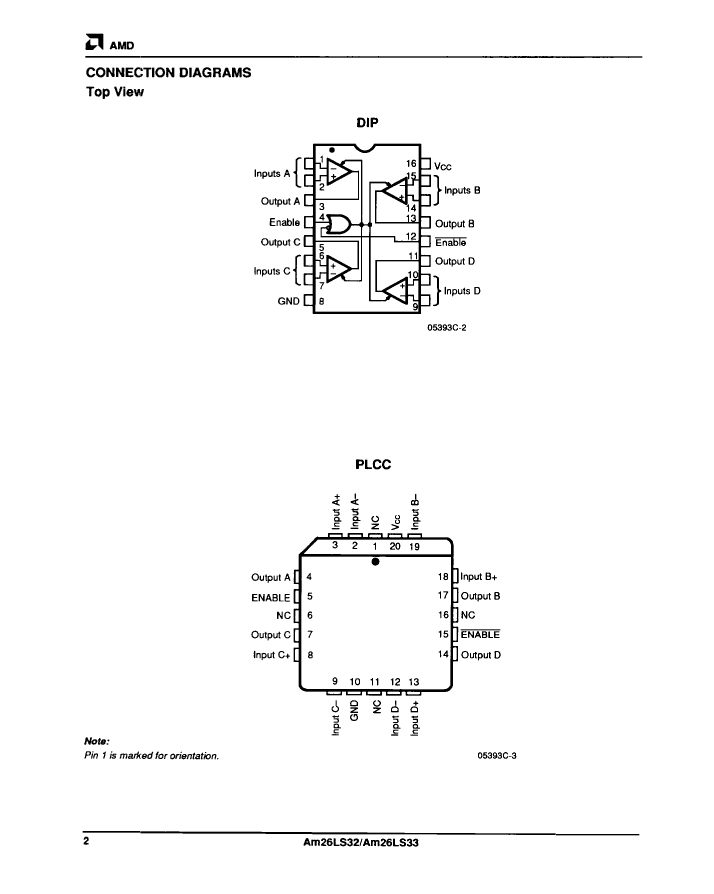

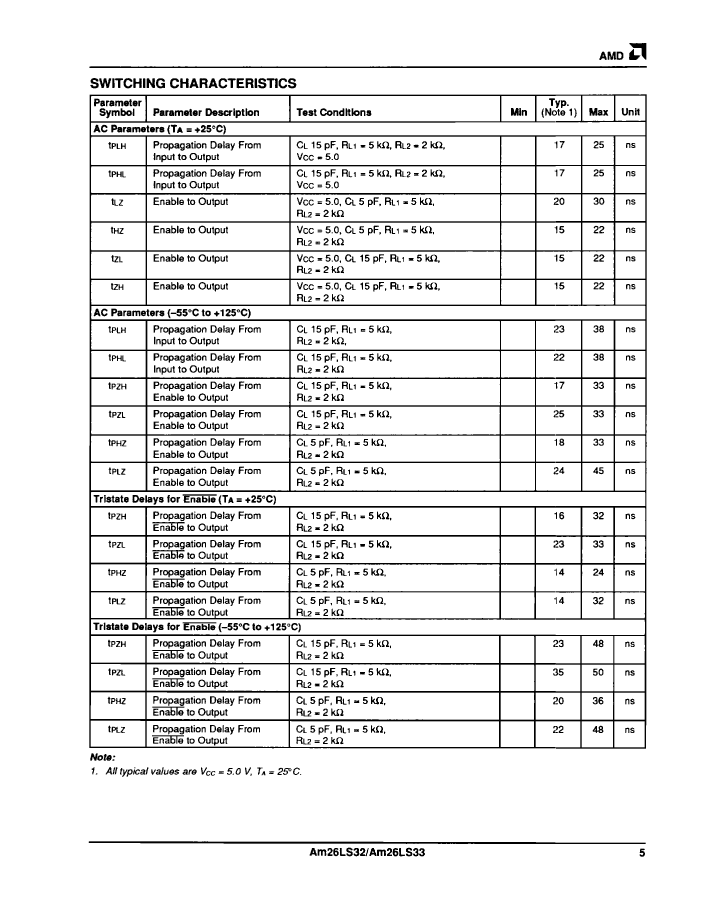

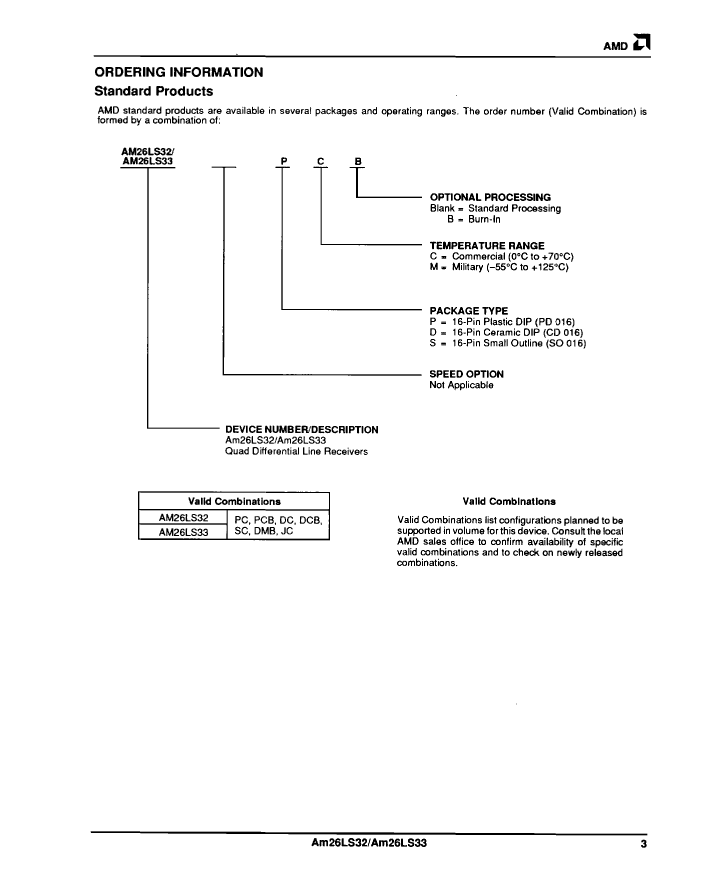

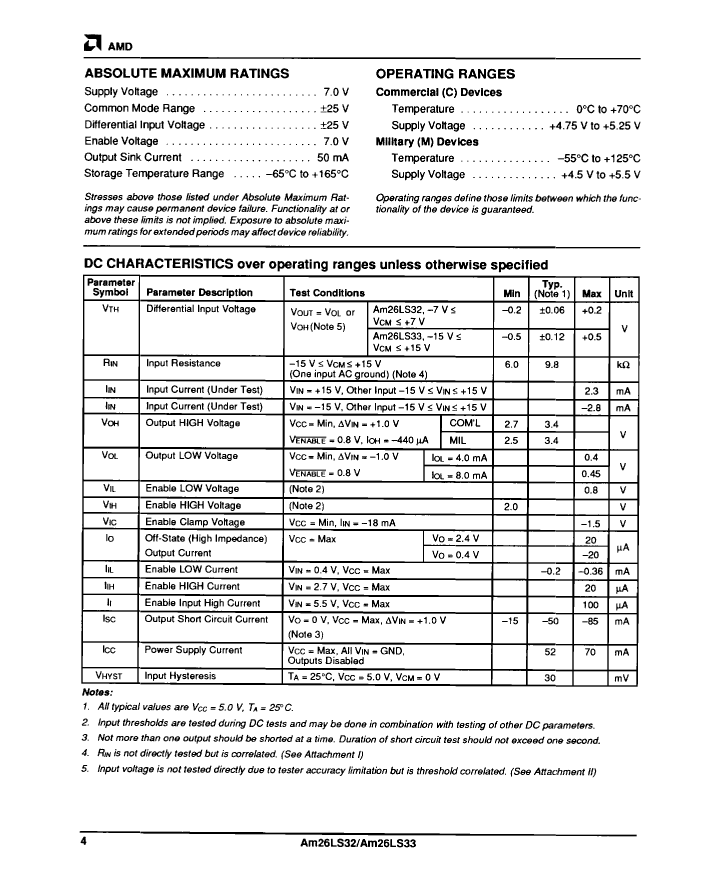

AM26LS33DMB: DescriptionLine Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, CERAMIC, DIP-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size332KB，13 Pages; ManufacturerAMD; Websitehttp://www.amd.com; Related ProductsFound16parts with similar functions to AM26LS33DMB

Download Datasheet Parametric Compare View All

AM26LS33DMB Overview

Line Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, CERAMIC, DIP-16

AM26LS33DMB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknow
ECCN code	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER
Interface standards	EIA-422; EIA-423; FED STD 1020; FED STD 1030
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.431 mm
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Maximum output low current	0.008 A
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum receive delay	38 ns
Number of receiver bits	4
Filter level	MIL-STD-883 Class B (Modified)
Maximum seat height	5.08 mm
Maximum slew rate	70 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

AM26LS33DMB Related Products

	AM26LS33DMB	AM26LS32DMB	AM26LS32JC	AM26LS32JCTR	AM26LS33JC
Description	Line Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, CERAMIC, DIP-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, CERAMIC, DIP-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, PQCC20, PLASTIC, LCC-20	Line Receiver, 4 Func, 4 Rcvr, BIPolar, PQCC20, PLASTIC, LCC-20	Line Receiver, 4 Func, 4 Rcvr, BIPolar, PQCC20, PLASTIC, LCC-20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	QLCC	QLCC	QLCC
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	QCCJ, LDCC20,.4SQ	QCCJ, LDCC20,.4SQ	QCCJ, LDCC20,.4SQ
Contacts	16	16	20	20	20
Reach Compliance Code	unknow	unknow	unknow	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER
Interface standards	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030
JESD-30 code	R-GDIP-T16	R-GDIP-T16	S-PQCC-J20	S-PQCC-J20	S-PQCC-J20
JESD-609 code	e0	e0	e0	e0	e0
length	19.431 mm	19.431 mm	8.9662 mm	8.9662 mm	8.9662 mm
Number of functions	4	4	4	4	4
Number of terminals	16	16	20	20	20
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Maximum output low current	0.008 A	0.008 A	0.008 A	0.008 A	0.008 A
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCJ	QCCJ	QCCJ
Encapsulate equivalent code	DIP16,.3	DIP16,.3	LDCC20,.4SQ	LDCC20,.4SQ	LDCC20,.4SQ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum receive delay	38 ns	38 ns	25 ns	25 ns	25 ns
Number of receiver bits	4	4	4	4	4
Maximum seat height	5.08 mm	5.08 mm	4.572 mm	4.572 mm	4.572 mm
Maximum slew rate	70 mA	70 mA	70 mA	70 mA	70 mA
Maximum supply voltage	5.5 V	5.5 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.5 V	4.5 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND	J BEND
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	8.9662 mm	8.9662 mm	8.9662 mm
Base Number Matches	1	1	1	1	-
