37F-4M500-KJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 37F-4M500-KJ

37F-4M500-KJ: DescriptionD Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, IDC Terminal, Locking, Plug,; CategoryThe connector The connector; File Size184KB，2 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

37F-4M500-KJ Overview

D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, IDC Terminal, Locking, Plug,

37F-4M500-KJ Parametric

Parameter Name	Attribute value
Maker	Kycon
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.594 inch
subject depth	0.569 inch
body length	3.27 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLUE
JESD-609 code	e3
Plug contact pitch	0.085 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Plating thickness	5u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Termination type	IDC
Total number of contacts	50
Maximum wire diameter	26 AWG
Minimum wire diameter	30 AWG

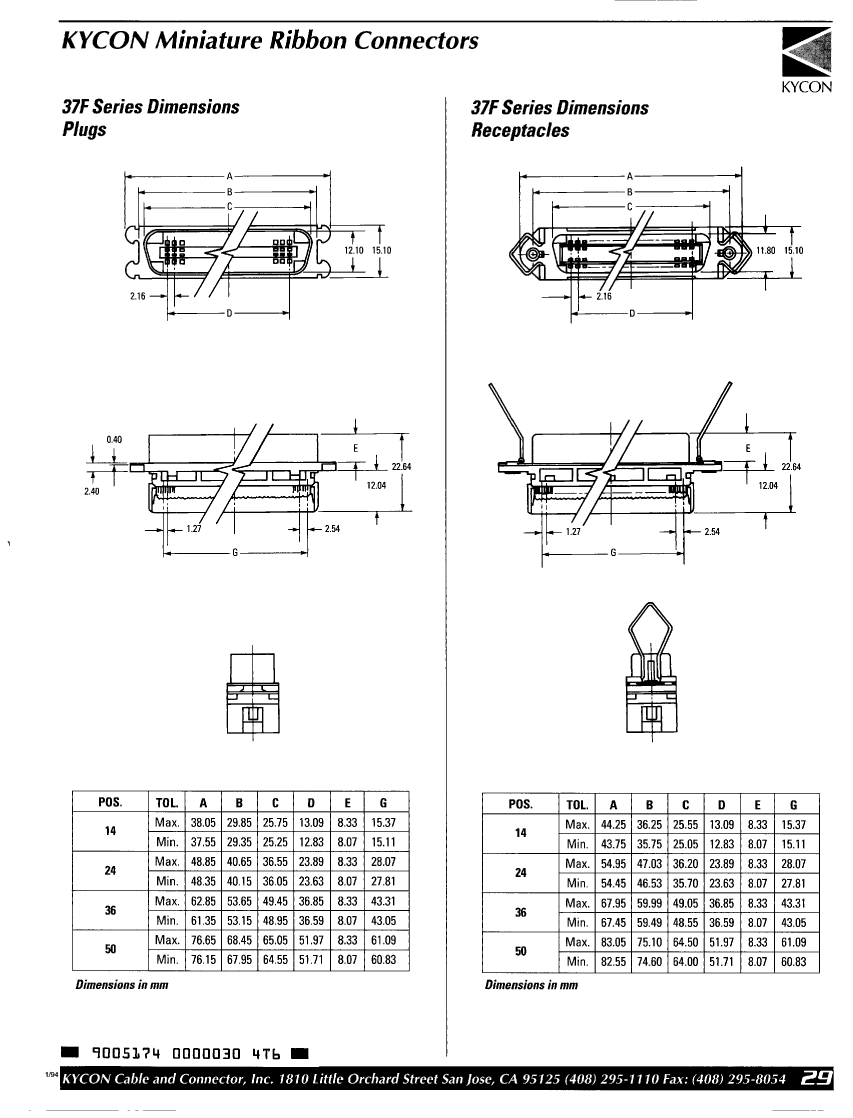

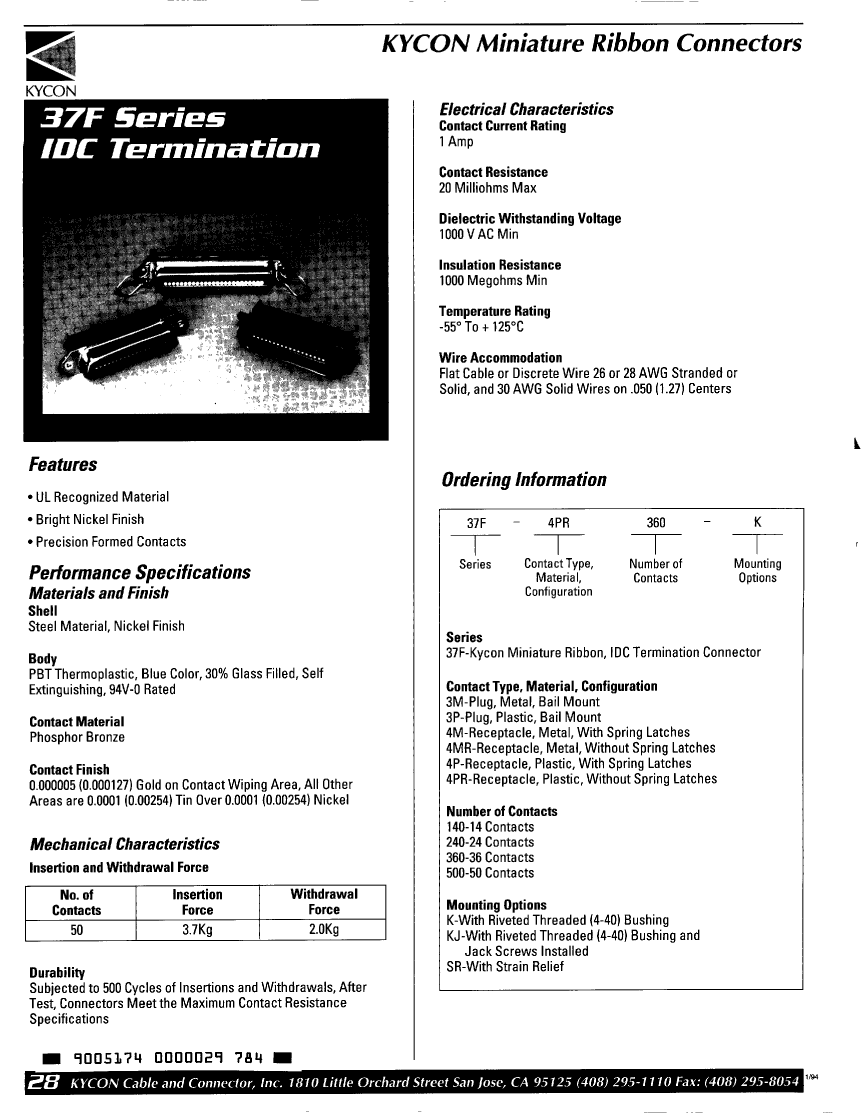

Preview

Download Datasheet

View All

37F-4M500-KJ Related Products

	37F-4M500-KJ	37F-3M500-SR	37F-3M500-KJ	37F-3M500-K	37F-4M500-SR	37F-4M500-K	37F-3M240-K
Description	D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, IDC Terminal, Locking, Plug,	D Type Connector, 50 Contact(s), Male, 0.085 inch Pitch, IDC Terminal, Locking, Receptacle,	D Type Connector, 50 Contact(s), Male, 0.085 inch Pitch, IDC Terminal, Locking, Receptacle,	D Type Connector, 50 Contact(s), Male, 0.085 inch Pitch, IDC Terminal, Locking, Receptacle,	D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, IDC Terminal, Locking, Plug,	D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, IDC Terminal, Locking, Plug,	D Type Connector, 24 Contact(s), Male, 0.085 inch Pitch, IDC Terminal, Locking, Receptacle,
Maker	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.594 inch	0.594 inch	0.594 inch	0.594 inch	0.594 inch	0.594 inch	0.594 inch
subject depth	0.569 inch	0.569 inch	0.569 inch	0.569 inch	0.569 inch	0.569 inch	0.569 inch
body length	3.27 inch	3.018 inch	3.018 inch	3.018 inch	3.27 inch	3.27 inch	1.923 inch
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	PLUG	RECEPTACLE
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	TIN OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	FEMALE	MALE	MALE	MALE	FEMALE	FEMALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Plug contact pitch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	5u inch	5u inch	5u inch	5u inch	5u inch	5u inch	5u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	50	50	50	50	50	50	24
Maximum wire diameter	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG
Minimum wire diameter	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG
