BAT54T(AT)(CT)(ST)
Technical Data
Data Sheet N1724, Rev. A
BAT54T/AT/CT/ST SCHOTTKY BARRIER DIODE
Features
Low Forward Voltage Drop
Fast Switching
PN Junction Guard Ring for Transient and
ESD Protection
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

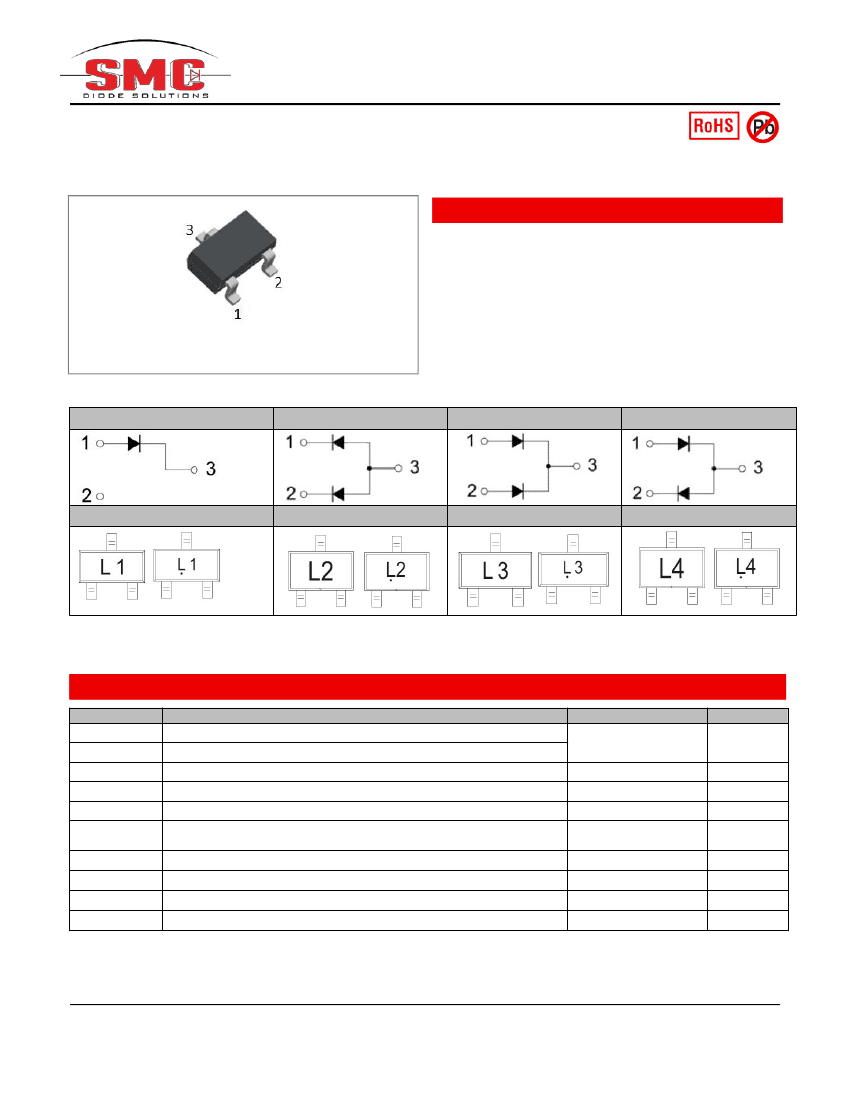

SOT-523
BAT54T
BAT54AT
BAT54CT
BAT54ST
MARKING:L1
MARKING:L2
MARKING:L3
MARKING:L4
Solid dot = Green molding compound device, if none, the normal device.
Maximum Ratings
@T
A
=25°C unless otherwise specified
Symbol
V
RRM
V
RWM
V
R(RMS)
I
O
I
FSM
I
FRM
P
D
R
ΘJA
T
j
T
stg
Parameter
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
RMS Reverse Voltage
Average Rectified Output Current
Non-repetitive Peak Forward Surge Current @ t=8.3ms
Repetitive Peak Forward Surge Current
@ t≤1s;δ≤0.5
Power Dissipation
Thermal Resistance from Junction to Ambient
Junction Temperature
Storage Temperature
Value
30
21
0.2
600
300
150
667
125
-55~+150
Units
V
V
A
mA
mA
mW
°C/W
°C
°C
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
BAT54T(AT)(CT)(ST)
Technical Data
Data Sheet N1724, Rev. A
Electrical Characteristic
s @T
A
=25°C unless otherwise specified
Parameter
Reverse voltage*
Reverse current*
Forward voltage*
Symbol
V
(BR)
I
R
V
F
I
R
=100μA
V
R
=25V
I
F
=1mA
I
F
=10mA
I
F
=30mA
I
F
=100mA
V
R
=1V,f=1MHz
I
F
= I
R
=10mA, Irr=0.1×IR, R
L
=100Ω
Test conditions
Min
30
-
-
-
-
-
-
-
Typ
-
-
-
-
-
-
-
-
Max
-
2
0.32
0.4
0.5
1
10
5
Units
V
μA
V
Total capacitance
Reverse recovery time
* Pulse width < 300 µs, duty cycle < 2%
C
tot
T
rr
pF
ns

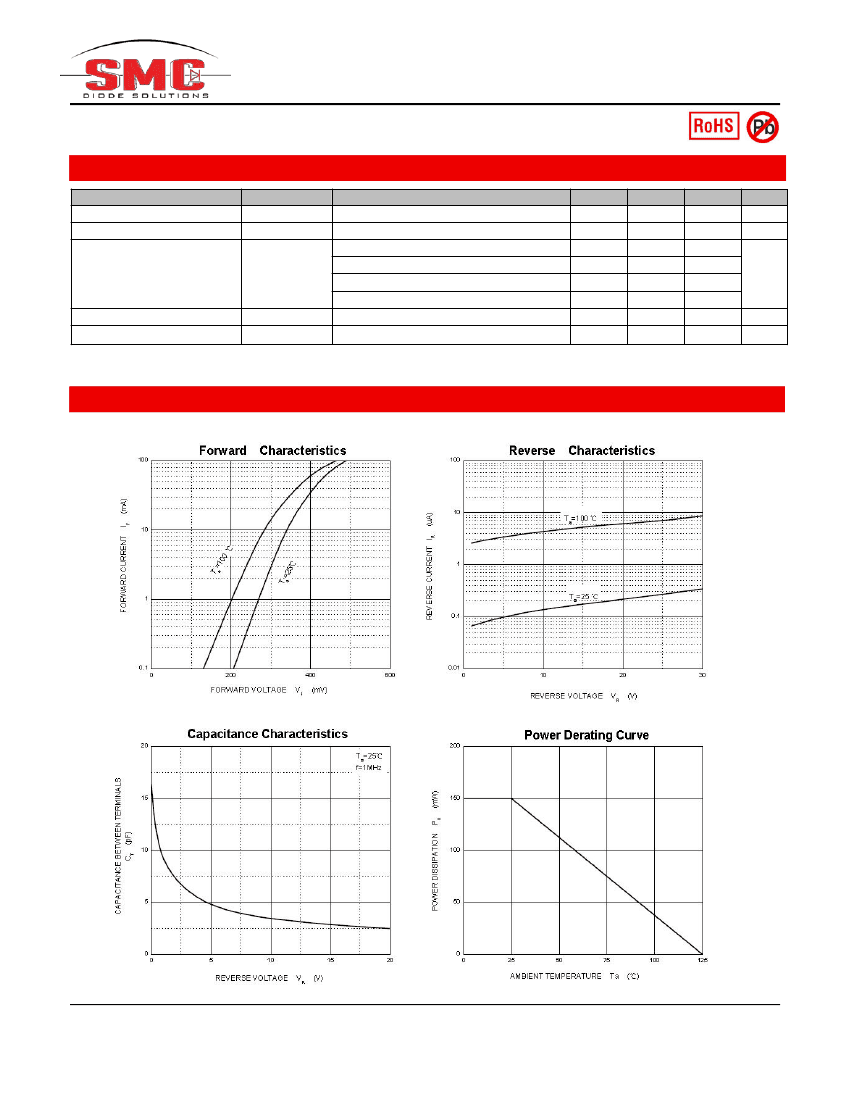

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
BAT54T(AT)(CT)(ST)
Technical Data
Data Sheet N1724, Rev. A
Ordering Information
Device
BAT54T/AT/CT/ST
Package
SOT-523(Pb-Free)
Shipping
3000pcs / reel
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our tape and reel
packaging specification.

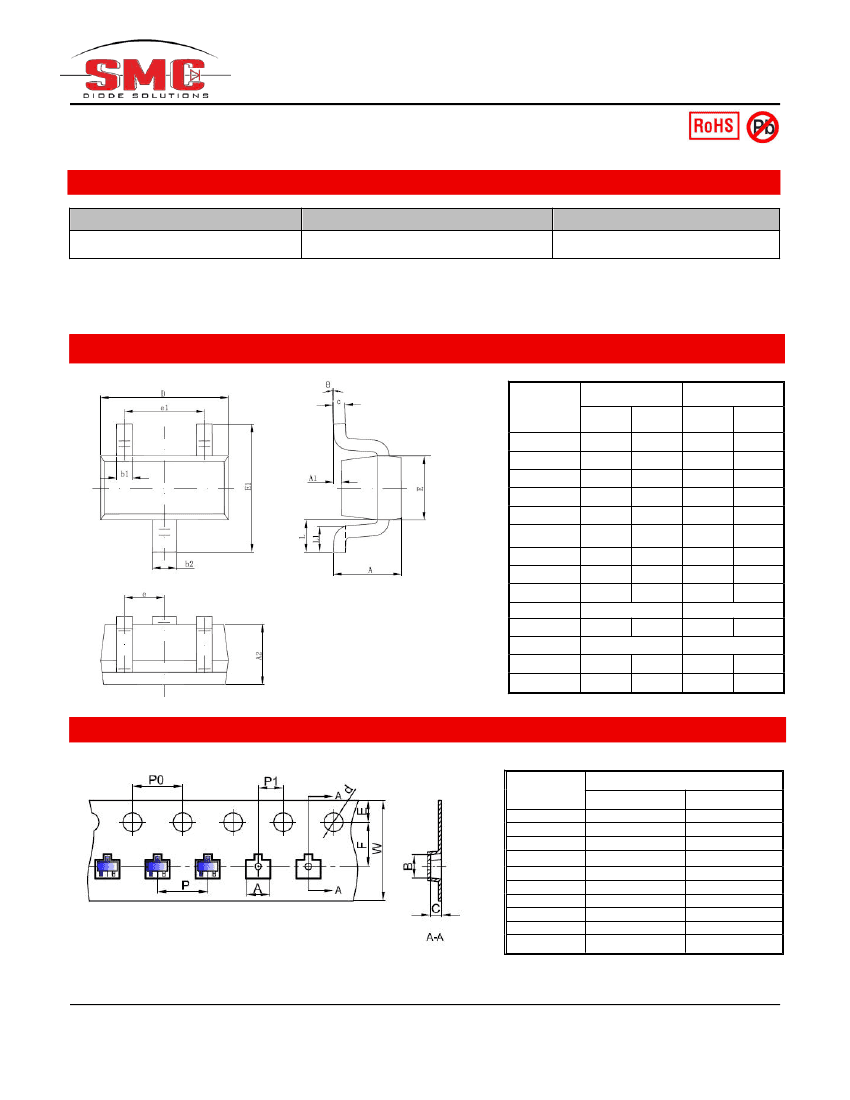

Mechanical Dimensions SOT-523
SYMBOL
A
A1
A2
b1
b2
c
D
E
E1
e
e1
L
L1
θ
Millimeters
MIN.
0.700
0.000
0.700
0.150
0.250
0.100
MAX.
0.900
0.100
0.800
0.250
0.350
0.200
Inches
MIN.
0.028
0.000
0.028
0.006
0.010
0.004
MAX.
0.035
0.004
0.031
0.010
0.014
0.008
1.500
1.700
0.700
0.900
1.450
1.750
0.500 TYP.
0.900
1.100
0.400 REF.
0.260
0.460
0°
8°
0.059
0.067
0.028
0.035
0.057
0.069
0.020 TYP.
0.035
0.043
0.016 REF.
0.010
0.018
0°
8°
Carrier Tape Specification SOT-523
SYMBOL
A
B
C
d
E
F
P
P0
P1
W
1.80
1.80
0.825
1.40
1.65
3.40
3.90
3.90
1.90
7.90
Millimeters
Min.
Max.
1.90
1.90
0.925
1.60
1.85
3.60
4.10
4.10
2.10
8.30
