BAS70DW-05 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS70DW-05

BAS70DW-05: DescriptionDiode; CategoryDiscrete semiconductor diode; File Size158KB，2 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BAS70DW-05 Overview

Diode

BAS70DW-05 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SECOS
package instruction	R-PDSO-G6
Reach Compliance Code	compliant
Configuration	2 BANKS, COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G6
Number of components	4
Number of terminals	6
Maximum output current	0.07 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.2 W
Maximum repetitive peak reverse voltage	70 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

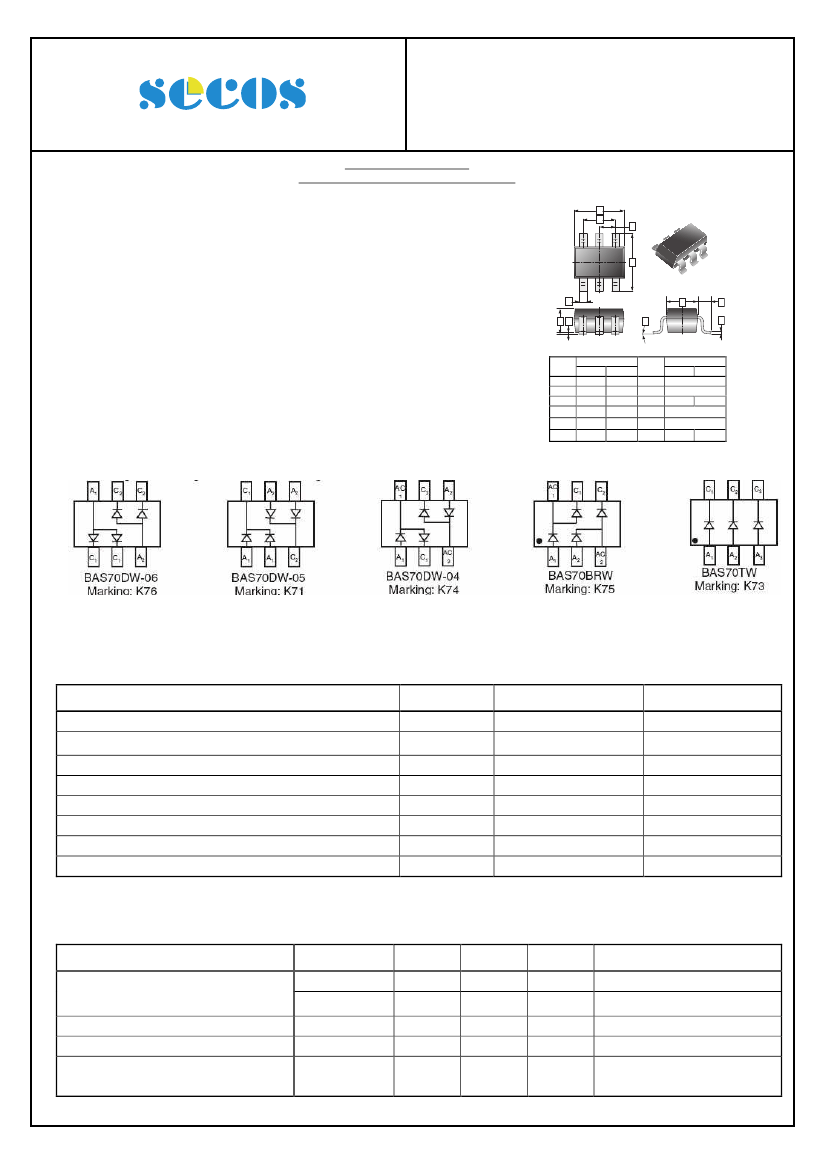

BAS70TW/DW-04/DW-05/

DW-06/BRW

Elektronische Bauelemente

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

VOLTAGE 70 V, 70 mA

Schottky Barrier Diode

SOT-363

FEATURES

♦

Low Forward Voltage Drop

Fast Switching

REF.

Millimeter

Min.

Max.

2.00

2.20

2.15

2.45

1.15

1.35

0.90

1.10

1.20

1.40

0.15

0.35

REF.

Millimeter

Min.

Max.

0.100 REF.

0.525 REF.

0.08

0.15

8°

0.650 TYP.

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating 25

C ambient temperature unless otherwise specified.

TYPE NUMBER

SYMBOL

Peak Repetitive Peak Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

Forward Continuous Current

Peak Forward Surge Current @<1.0s

Power Dissipation

Thermal Resistance Junction to Ambient Air

Storage Temperature

RRM

RWM

FSM

θJA

STG

VALUE

100

200

625

-55~150

UNIT

C/W

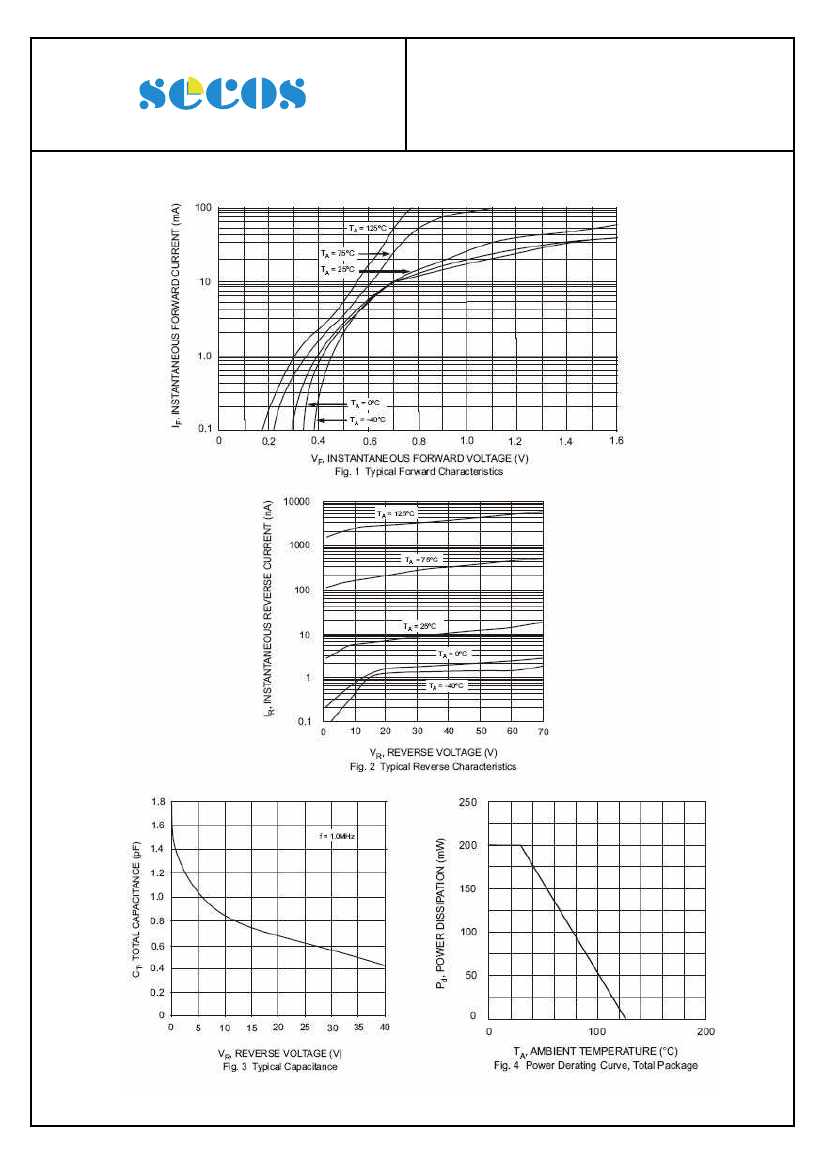

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating 25

C ambient temperature unless otherwise specified.

PARAMETER

SYMBOL

MIN

MAX

Forward Voltage

Reverse Current

Capacitance between Terminals

Reverse Recovery Time

http://www.SeCoSGmbH.com/

UNIT

TEST CONDITION

=1mA

=15mA

=50V

=0V, f=1MHz

= I

=10mA, I

=0.1XI

=100

0.41

100

Any changes of specification will not be informed individually.

17-Nov-2009 Rev. A

Page 1 of 2
