512 Megabit CMOS DDR SDRAM
DPDD128MX4WSAY5
DESCRIPTION:
The Memory Stack™ series is a family of interchangeable memory modules. The 512 Megabit Double Data Rate Synchronous
DRAM module is a member of this family which utilizes the space saving LP-Stack™ TSOP stacking technology. The devices are
constructed with two 64 Meg x 4 DDR SDRAMs.
This 256 Megabit based LP-Stack™ module,
DPDD128MX4WSAY5, has been designed to fit in the same
footprint as the 64 Meg x 4 DDR SDRAM TSOP monolithic.
This allows system upgrade without electrical or mechanical
redesign, providing an immediate and low cost memory solution.
FEATURES:
• Configuration Available:
128 Meg x 4 (2 Banks of 16 Meg x 4 Bits x 4 Banks)
• Clock Frequency:
100, 125, 133, 143, 167 MHz
• 2.5 Volt DQ Supply
• JEDEC Standard SSTL_2 Interface for all Inputs/Outputs
• Four Bank Operation
• Programmable Burst Type:
Burst Length and Read Latency
• Refresh: 8192 Cycles/64ms
• Refresh Types: Auto and Self
• JEDEC Approved Footprint and Pinout
• IPC-A-610 Manufacturing Standards
• Package: 66-Pin Leaded TSOP Stack
PIN-OUT DIAGRAM
VDD
N.C.
VDDQ
N.C.
DQ0
VSSQ
N.C.
N.C.
VDDQ
N.C.
DQ1
VSSQ
N.C.
N.C.
VDDQ
N.C.
N.C.
VDD
NU/QFC
N.C.
WE
CAS
RAS
CS0
CS1
BA0
BA1
A10/AP
A0
A1
A2
A3
VDD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
VSS
N.C.
VSSQ
N.C.
DQ3
VDDQ
N.C.
N.C.
VSSQ
N.C.
DQ2
VDDQ
N.C.
N.C.
VSSQ
DQS
N.C.
VREF
VSS
DM
CK
CK
CKE0
CKE1
A12
A11
A9
A8
A7
A6
A5
A4
VSS
1
(TOP VIEW)
PIN NAMES
A0-A12
BA0,BA1
A10/AP
DQ0-DQ3
CAS
CS0, CS1
RAS
WE
CK, CK
CKE0, CKE1
DQS
DM
QFC
V
DD
Vss
V
DDQ
Vss
Q
V
REF
N.C.
30A235-00
REV. D 2/02
Row Address:
A0-A12
Column Address: A0-A9, A11
Bank Select Address
Auto Precharge
Data In/Data Out
Column Address Strobe
Chip Selects
Row Address Strobe
Data Write Enable
Differential Clock Inputs
Clock Enables
Data Strobe
Data Mask
DQ FET Switch Control
Power Supply (+2.5V)
Ground
DQ Power Supply (+2.5V)
DQ Ground
Reference Voltage for inputs
No Connect
This document contains information on a product that is currently released to production at DPAC Technologies.
DPAC reserves the right to change products or specifications herein without prior notice.
FUNCTIONAL BLOCK DIAGRAM
CS1
CKE1
CS0
CKE0
RAS
CAS
WE
CK
CK
VREF
DQS
DM
A0-A12
BA0-BA1
(16 Meg x 4 Bits x 4 Banks)
256 Meg DDR SDRAM
(16 Meg x 4 Bits x 4 Banks)
DQ0-DQ3
1
512 Megabit CMOS DDR SDRAM
DPDD128MX4WSAY5

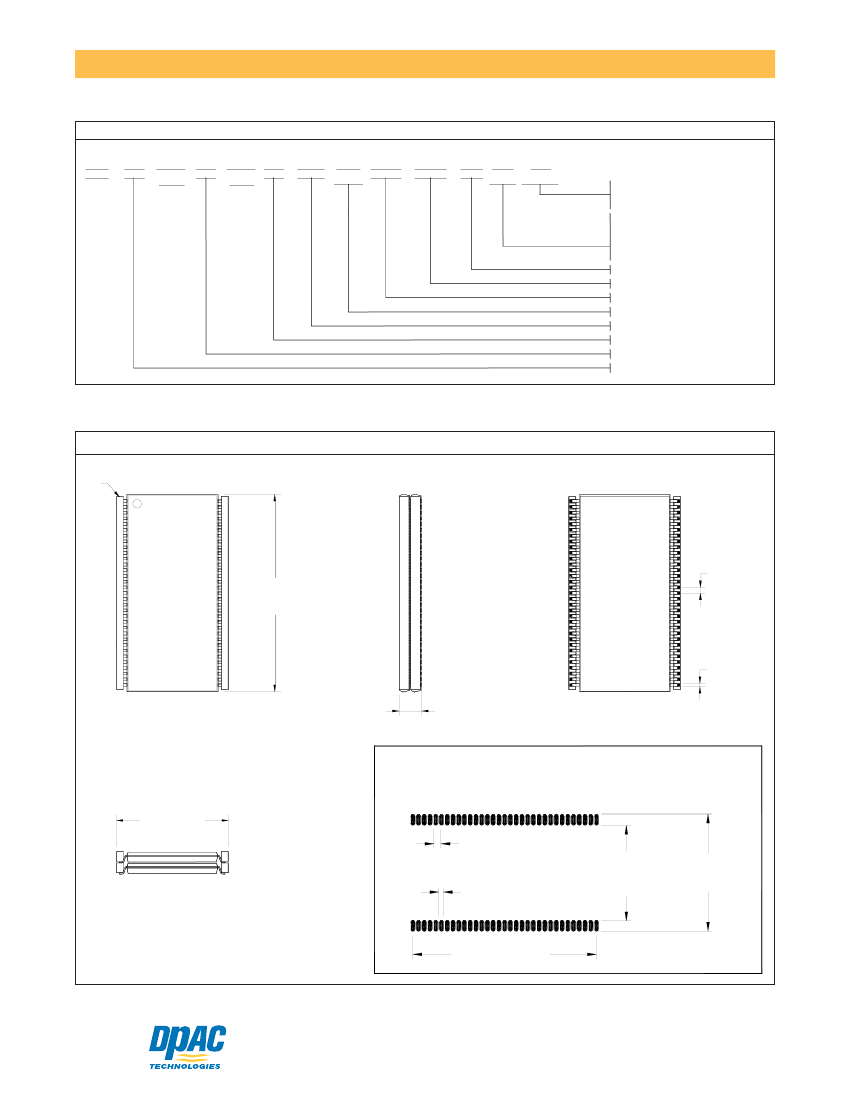

ORDERING INFORMATION
DP
PREFIX
DD
TYPE
128M
MEMORY
DEPTH
X
DESIG
4
MEMORY
WIDTH
W
DESIG
S
I/O TYPE
A
DEVICE
WIDTH
Y5
PACKAGE
- DP - XX
SUPPLIER
MFR ID
XX
CYCLE
TIME
XX
CAS
LATENCY
15
20
25
60
70
75
08
10
CAS LATENCY 1.5
CAS LATENCY 2.0
CAS LATENCY 2.5
6ns (167MHz)
7ns (143MHz)
7.5ns (133MHz)
8ns (125MHz)
10ns (100MHz)
MANUFACTURER CODE *
SUPPLIER CODE *
STACKABLE TSOP
x4 MEMORY BASED
SSTL INPUTS/OUTPUTS
256 MEGABIT BASED
MEMORY MODULE WITHOUT SUPPORT LOGIC
DOUBLE DATA RATE SYNCHRONOUS DRAM
* Contact your sales representative for supplier and manufacturer codes.
MECHANICAL DRAWING
PIN 1
INDEX
TOP VIEW
1
SIDE VIEW
BOTTOM VIEW
.885±.010
[22.48±.25]
.0256 [.65]
TYP
.015 [.18]
TYP
.102 MAX
[2.59 MAX]
Standard TSOP pad layout is acceptable, however, when possible, the
following pad layout is recommended for optimal manufacture and
inspection. See Application Note 53A001-00 for further information.
.502±.008
[12.75±.20]
.0256 [.65] BSC
.427 [10.85]
.417 [10.59]
.527 [13.39]
.517 [13.13]
END VIEW
.020 [.51]
.016 [.41]
.819 [20.80] BSC
30A235-00
REV. D 2/02
DPAC Technologies
Products & Services for the Integration Age
7321 Lincoln Way, Garden Grove, CA 92841
Tel
714 898 0007
Fax
714 897 1772
www.dpactech.com Nasdaq: DPAC
