BB620 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BB620

BB620: DescriptionDIODE VHF BAND, 30 V, SILICON, VARIABLE CAPACITANCE DIODE, Variable Capacitance Diode; CategoryDiscrete semiconductor diode; File Size38KB，1 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BB620 Overview

DIODE VHF BAND, 30 V, SILICON, VARIABLE CAPACITANCE DIODE, Variable Capacitance Diode

BB620 Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	R-PDSO-G2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	CAPACITANCE MATCHED TO 2.5% FOR ANY TWO DIODES
Minimum breakdown voltage	30 V
Configuration	SINGLE
Minimum diode capacitance ratio	19.5
Diode component materials	SILICON
Diode type	VARIABLE CAPACITANCE DIODE
frequency band	VERY HIGH FREQUENCY
JESD-30 code	R-PDSO-G2
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum reverse current	0.01 µA
Reverse test voltage	30 V
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL

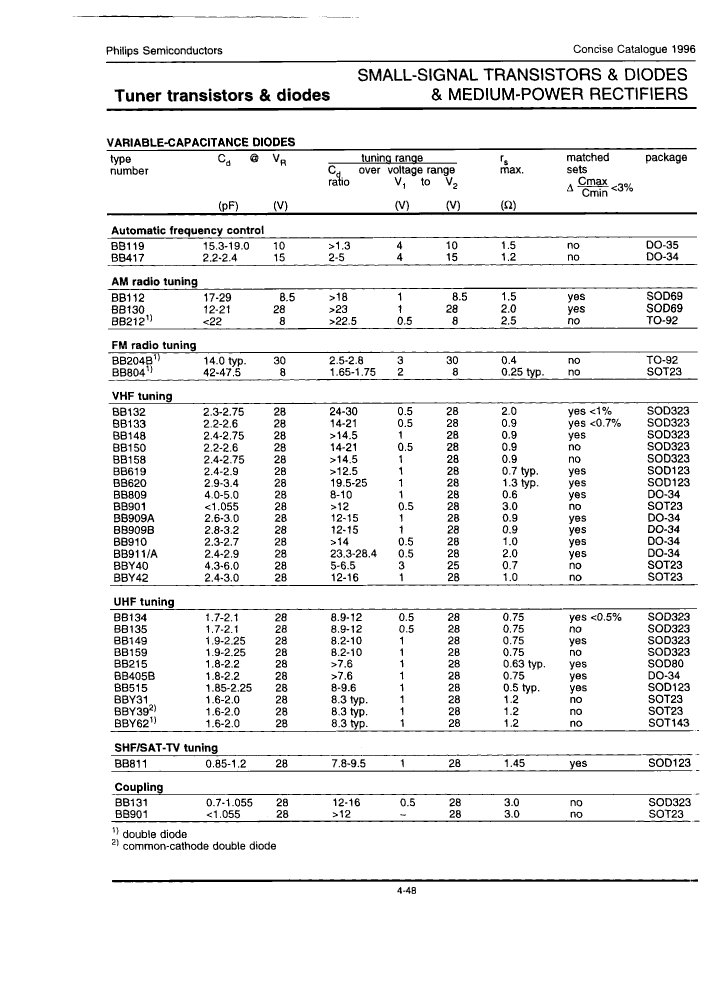

Preview

Download Datasheet

View All

BB620 Related Products

	BB620	BB134-T	BB150-T	BB911/AT/R	BB158-T	BB159-T	BB620-T	BB405BT/R	BB811	BB811-T
Description	DIODE VHF BAND, 30 V, SILICON, VARIABLE CAPACITANCE DIODE, Variable Capacitance Diode	DIODE UHF BAND, 17.5 pF, 30 V, SILICON, VARIABLE CAPACITANCE DIODE, Variable Capacitance Diode	DIODE VHF BAND, 42 pF, SILICON, VARIABLE CAPACITANCE DIODE, Variable Capacitance Diode	DIODE VHF BAND, SILICON, VARIABLE CAPACITANCE DIODE, DO-34, Variable Capacitance Diode	DIODE VHF-UHF BAND, 39.3 pF, 30 V, SILICON, VARIABLE CAPACITANCE DIODE, Variable Capacitance Diode	DIODE UHF BAND, 18.75 pF, SILICON, VARIABLE CAPACITANCE DIODE, Variable Capacitance Diode	DIODE VHF BAND, 30 V, SILICON, VARIABLE CAPACITANCE DIODE, Variable Capacitance Diode	DIODE UHF BAND, 11 pF, SILICON, VARIABLE CAPACITANCE DIODE, DO-34, Variable Capacitance Diode	DIODE UHF-L BAND, 30 V, SILICON, VARIABLE CAPACITANCE DIODE, Variable Capacitance Diode	DIODE UHF-L BAND, 30 V, SILICON, VARIABLE CAPACITANCE DIODE, Variable Capacitance Diode
Maker	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP
Reach Compliance Code	unknown	unknown	unknown	compliant	unknown	unknown	unknown	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum diode capacitance ratio	19.5	8.9	14	23.3	14.5	8.2	19.5	7.6	7.8	7.8
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE
frequency band	VERY HIGH FREQUENCY	ULTRA HIGH FREQUENCY	VERY HIGH FREQUENCY	VERY HIGH FREQUENCY	VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY	ULTRA HIGH FREQUENCY	VERY HIGH FREQUENCY	ULTRA HIGH FREQUENCY	ULTRA HIGH FREQUENCY TO L BAND	ULTRA HIGH FREQUENCY TO L BAND
JESD-30 code	R-PDSO-G2	R-PDSO-G2	R-PDSO-G2	O-LALF-W2	R-PDSO-G2	R-PDSO-G2	R-PDSO-G2	O-LALF-W2	R-PDSO-G2	R-PDSO-G2
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	GLASS	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	GLASS	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	LONG FORM	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	LONG FORM	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	NO	YES	YES	YES	NO	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	WIRE	GULL WING	GULL WING	GULL WING	WIRE	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	AXIAL	DUAL	DUAL	DUAL	AXIAL	DUAL	DUAL
package instruction	R-PDSO-G2	R-PDSO-G2	R-PDSO-G2	-	R-PDSO-G2	R-PDSO-G2	R-PDSO-G2	-	R-PDSO-G2	R-PDSO-G2
Other features	CAPACITANCE MATCHED TO 2.5% FOR ANY TWO DIODES	0.5% MATCHED SETS OF 4 DIODES AND 2% MATCHED SETS OF 15 DIODES ARE AVAILABLE	-	MATCHED TO 2.5%	-	-	CAPACITANCE MATCHED TO 2.5% FOR ANY TWO DIODES	MATCHED TO 3%	CAPACITANCE MATCHED TO 3% FOR ANY TWO DIODES	CAPACITANCE MATCHED TO 3% FOR ANY TWO DIODES
Minimum breakdown voltage	30 V	30 V	-	-	30 V	-	30 V	-	30 V	30 V
Maximum operating temperature	125 °C	125 °C	-	-	125 °C	-	125 °C	-	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-	-55 °C	-	-55 °C	-	-55 °C	-55 °C
Maximum reverse current	0.01 µA	0.01 µA	-	-	0.01 µA	-	0.01 µA	-	0.02 µA	0.02 µA
Reverse test voltage	30 V	30 V	-	-	30 V	-	30 V	-	30 V	30 V
Nominal diode capacitance	-	17.5 pF	42 pF	60 pF	39.3 pF	18.75 pF	-	11 pF	-	-
