BAT47B2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAT47B2

BAT47B2: Description0.35A, 20V, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size79KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

BAT47B2 Overview

0.35A, 20V, SILICON, SIGNAL DIODE

BAT47B2 Parametric

Parameter Name	Attribute value
Maker	STMicroelectronics
package instruction	O-LALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	O-LALF-W2
Maximum non-repetitive peak forward current	7.5 A
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Maximum output current	0.35 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	0.33 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	20 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.01 µs
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL

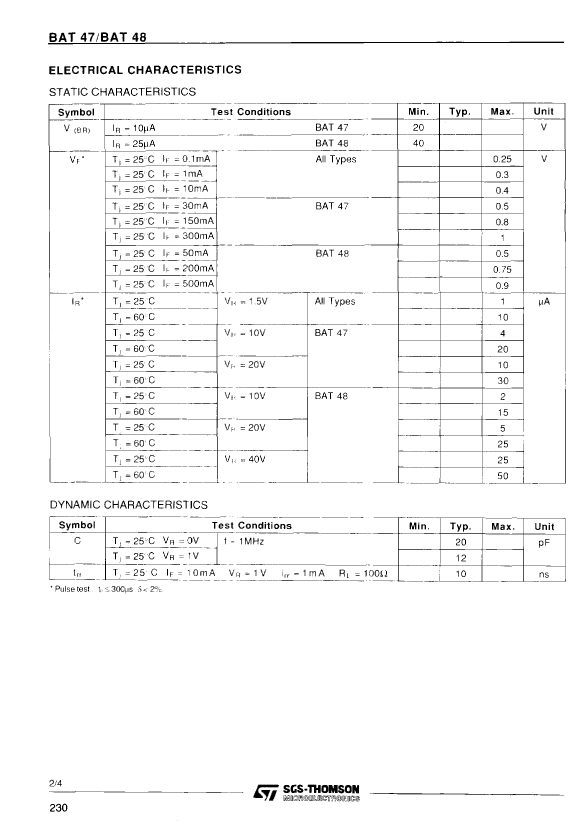

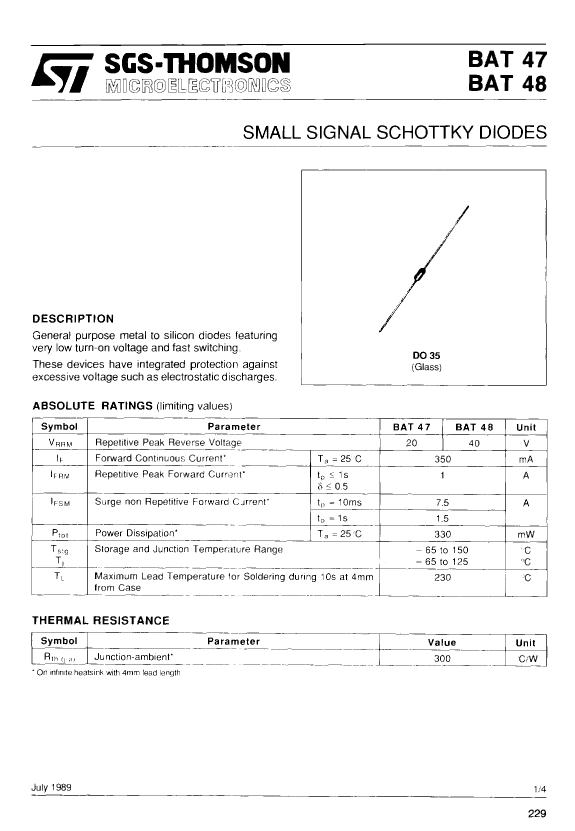

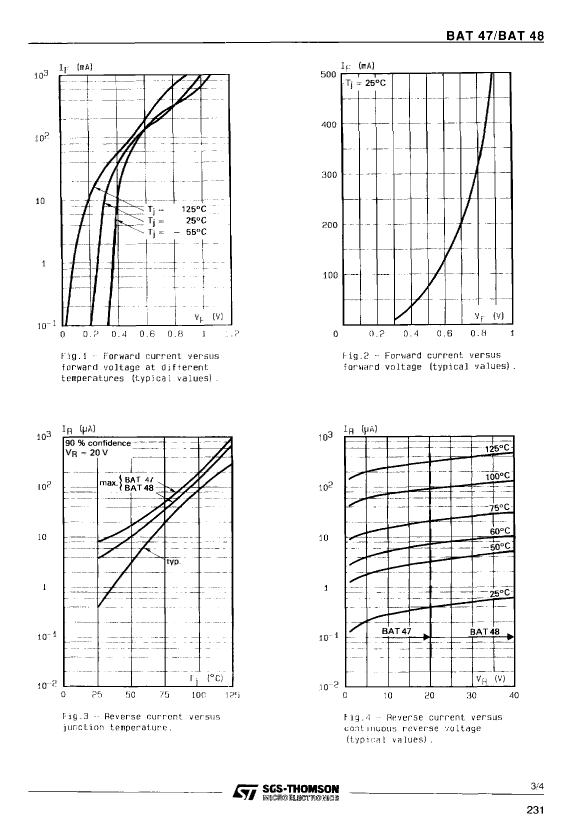

Preview

Download Datasheet

View All

BAT47B2 Related Products

	BAT47B2	BAT47AZ1	BAT48B2	BAT47AZ2	BAT47AR1	BAT47AR2	BAT48AZ1	BAT48AR2	BAT48AZ2	BAT48AR1
Description	0.35A, 20V, SILICON, SIGNAL DIODE	0.35A, 20V, SILICON, SIGNAL DIODE	0.35A, 40V, SILICON, SIGNAL DIODE	0.35A, 20V, SILICON, SIGNAL DIODE	0.35A, 20V, SILICON, SIGNAL DIODE	0.35A, 20V, SILICON, SIGNAL DIODE	0.35A, 40V, SILICON, SIGNAL DIODE	0.35A, 40V, SILICON, SIGNAL DIODE	0.35A, 40V, SILICON, SIGNAL DIODE	0.35A, 40V, SILICON, SIGNAL DIODE
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	0.9 V	1 V	1 V	1 V	0.9 V	0.9 V	0.9 V	0.9 V
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Maximum non-repetitive peak forward current	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	0.35 A	0.35 A	0.35 A	0.35 A	0.35 A	0.35 A	0.35 A	0.35 A	0.35 A	0.35 A
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum power dissipation	0.33 W	0.33 W	0.33 W	0.33 W	0.33 W	0.33 W	0.33 W	0.33 W	0.33 W	0.33 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	20 V	20 V	40 V	20 V	20 V	20 V	40 V	40 V	40 V	40 V
Maximum reverse current	10 µA	10 µA	25 µA	10 µA	10 µA	10 µA	25 µA	25 µA	25 µA	25 µA
Maximum reverse recovery time	0.01 µs	0.01 µs	0.01 µs	0.01 µs	0.01 µs	0.01 µs	0.01 µs	0.01 µs	0.01 µs	0.01 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maker	STMicroelectronics	STMicroelectronics	-	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
