HB56UW873E-7A: DescriptionEDO DRAM Module, 8MX8, 70ns, CMOS, DIMM-168; Categorystorage storage; File Size583KB，27 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HB56UW873E-7A Overview

EDO DRAM Module, 8MX8, 70ns, CMOS, DIMM-168

HB56UW873E-7A Parametric

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
Parts packaging code	DIMM
package instruction	DIMM, DIMM168
Contacts	168
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	SINGLE BANK PAGE BURST
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS REFRESH; WD-MAX; SEATED HGT-NOM
I/O type	COMMON
JESD-30 code	R-XDMA-N168
length	133.35 mm
memory density	67108864 bit
Memory IC Type	EDO DRAM MODULE
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	168
word count	8388608 words
character code	8000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8MX8
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM168
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	4096
Maximum seat height	25.4 mm
Maximum standby current	0.019 A
Maximum slew rate	1.315 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL
width	4 mm

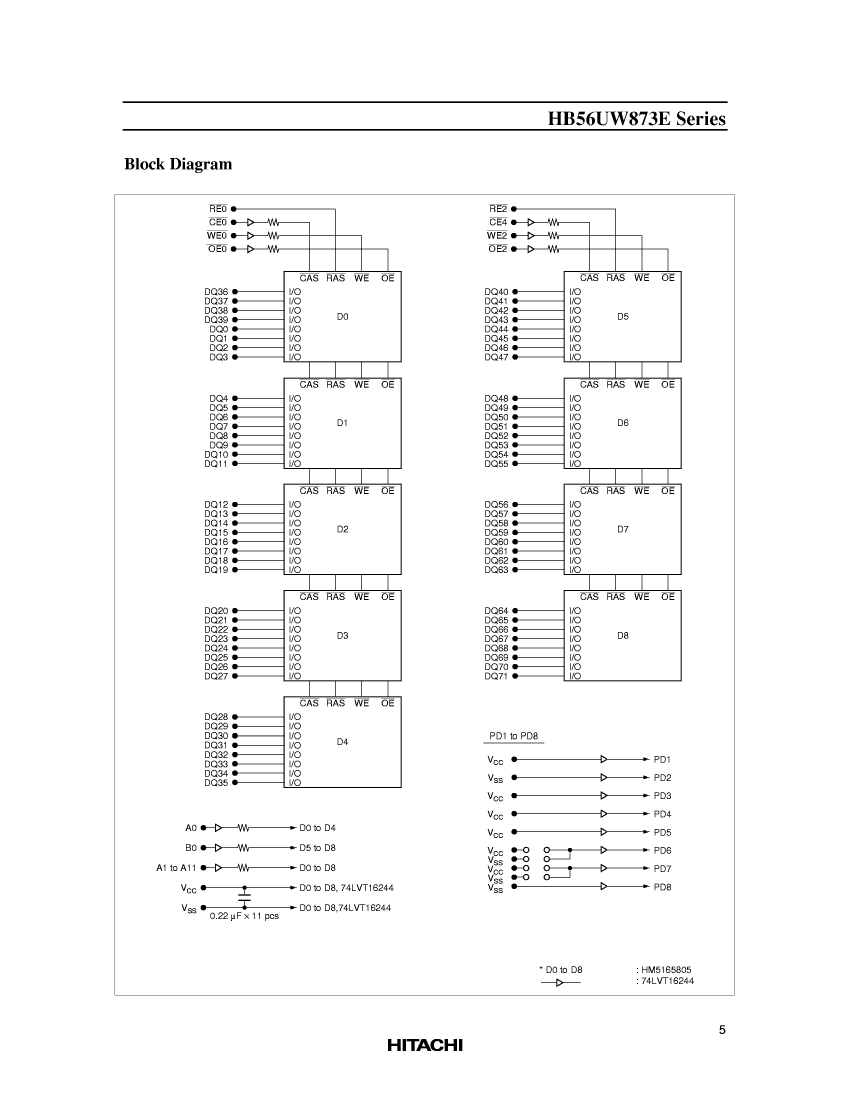

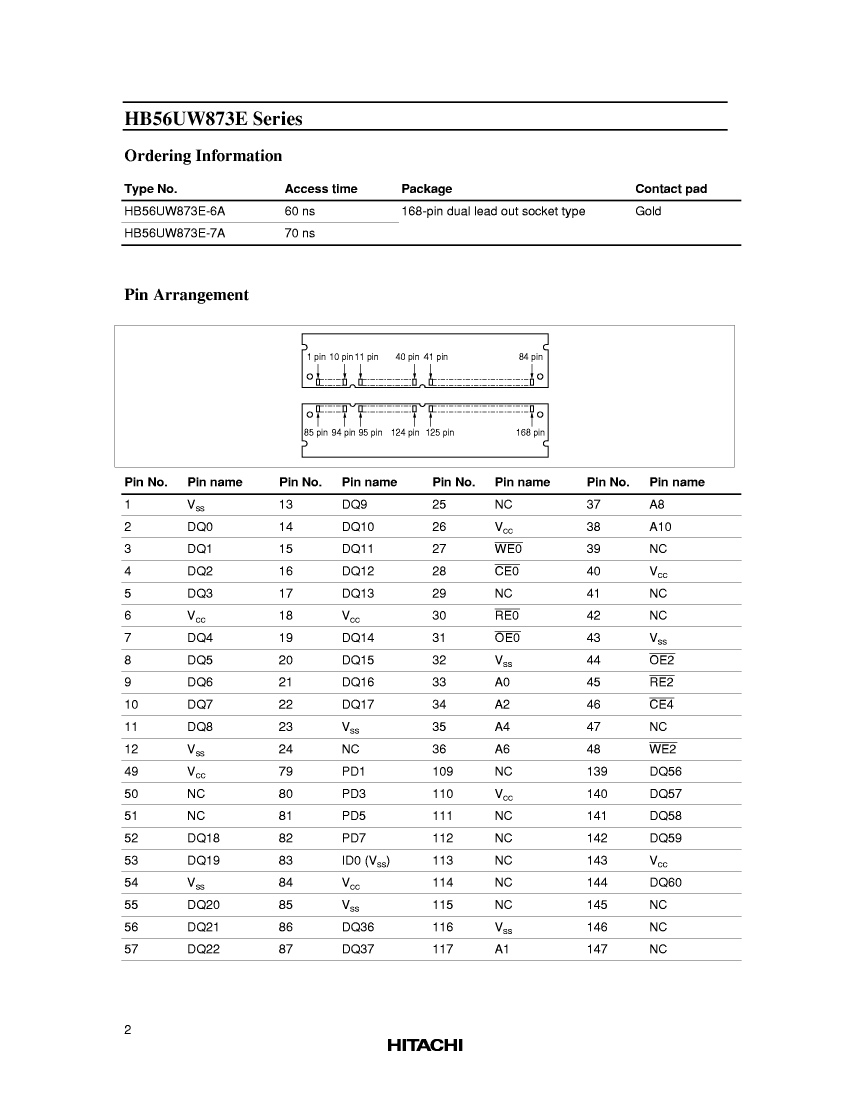

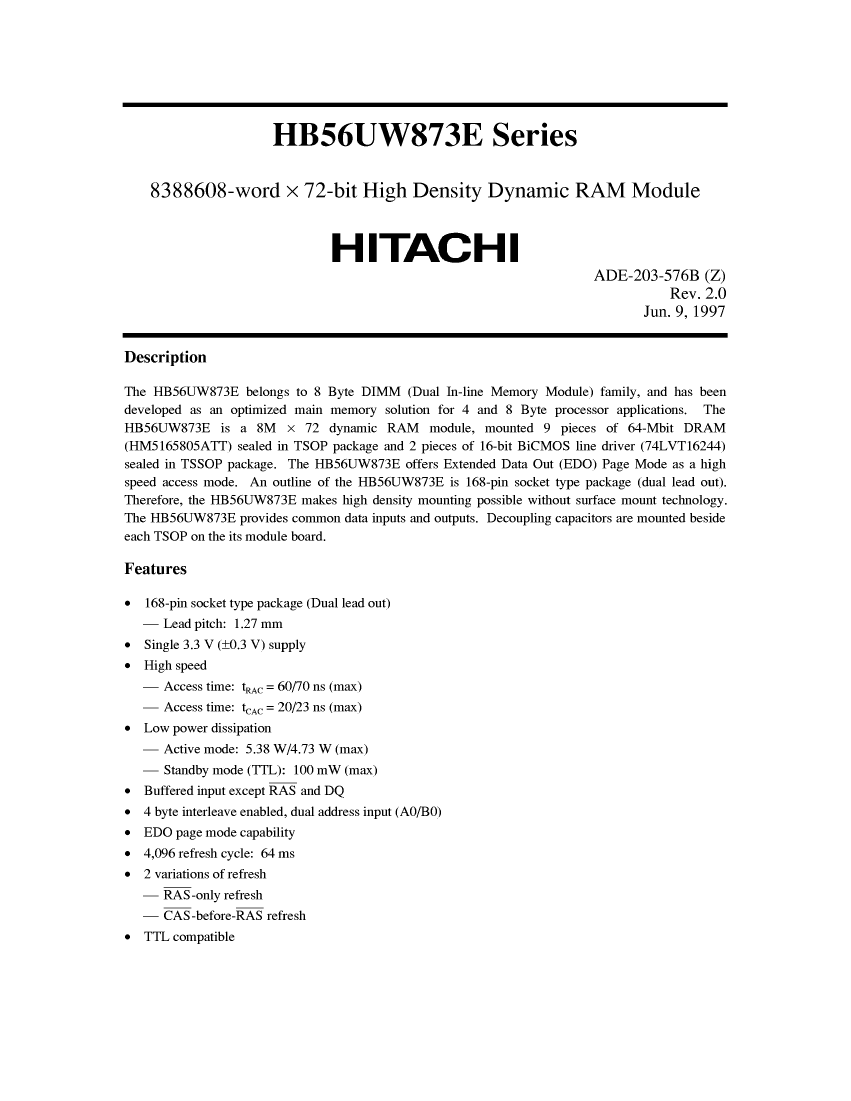

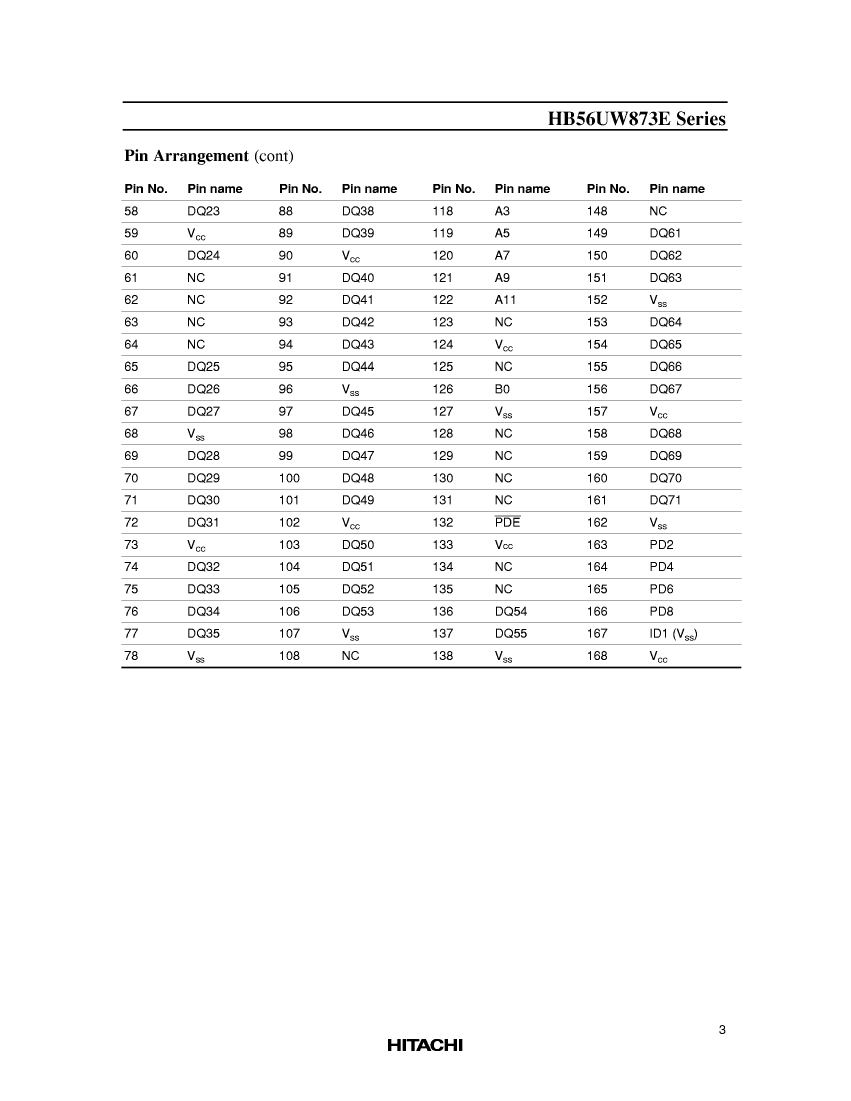

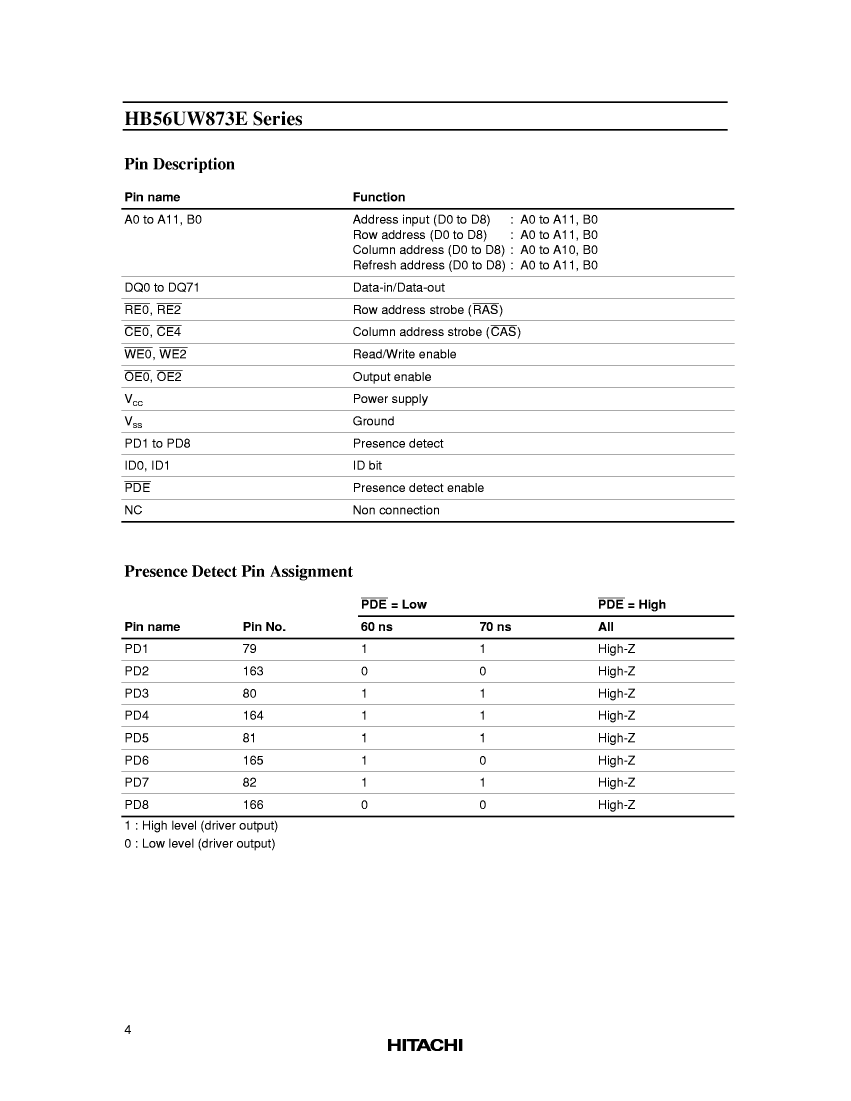

Preview

Download Datasheet

View All

HB56UW873E-7A Related Products

	HB56UW873E-7A	HB56UW873E-6A
Description	EDO DRAM Module, 8MX8, 70ns, CMOS, DIMM-168	EDO DRAM Module, 8MX8, 60ns, CMOS, DIMM-168
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）
Parts packaging code	DIMM	DIMM
package instruction	DIMM, DIMM168	DIMM, DIMM168
Contacts	168	168
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
access mode	SINGLE BANK PAGE BURST	SINGLE BANK PAGE BURST
Maximum access time	70 ns	60 ns
Other features	RAS ONLY/CAS BEFORE RAS REFRESH; WD-MAX; SEATED HGT-NOM	RAS ONLY/CAS BEFORE RAS REFRESH; WD-MAX; SEATED HGT-NOM
I/O type	COMMON	COMMON
JESD-30 code	R-XDMA-N168	R-XDMA-N168
length	133.35 mm	133.35 mm
memory density	67108864 bit	67108864 bit
Memory IC Type	EDO DRAM MODULE	EDO DRAM MODULE
memory width	8	8
Number of functions	1	1
Number of ports	1	1
Number of terminals	168	168
word count	8388608 words	8388608 words
character code	8000000	8000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	8MX8	8MX8
Output characteristics	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM
Encapsulate equivalent code	DIMM168	DIMM168
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified
refresh cycle	4096	4096
Maximum seat height	25.4 mm	25.4 mm
Maximum standby current	0.019 A	0.019 A
Maximum slew rate	1.315 mA	1.495 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	4 mm	4 mm
