LPR1251-0101

Description
Audio/RCA Connector, 6 Pole(s), Solid Lead Terminal, Jack,
CategoryThe connector    The connector
File Size351KB,4 Pages
ManufacturerSMK
Websitehttps://www.smk.co.jp/
Download Datasheet Parametric View All

LPR1251-0101 Overview

Audio/RCA Connector, 6 Pole(s), Solid Lead Terminal, Jack,

LPR1251-0101 Parametric

Parameter NameAttribute value
MakerSMK
Reach Compliance Codeunknown
Body/casing typeJACK
Configuration1X3 HORIZONTAL
Connector typeAUDIO/RCA CONNECTOR
DIN complianceNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberLPR1251
Installation typeBOARD
Number of poles6
Number of ports3
OptionsGENERAL PURPOSE
Termination typeSOLID LEAD

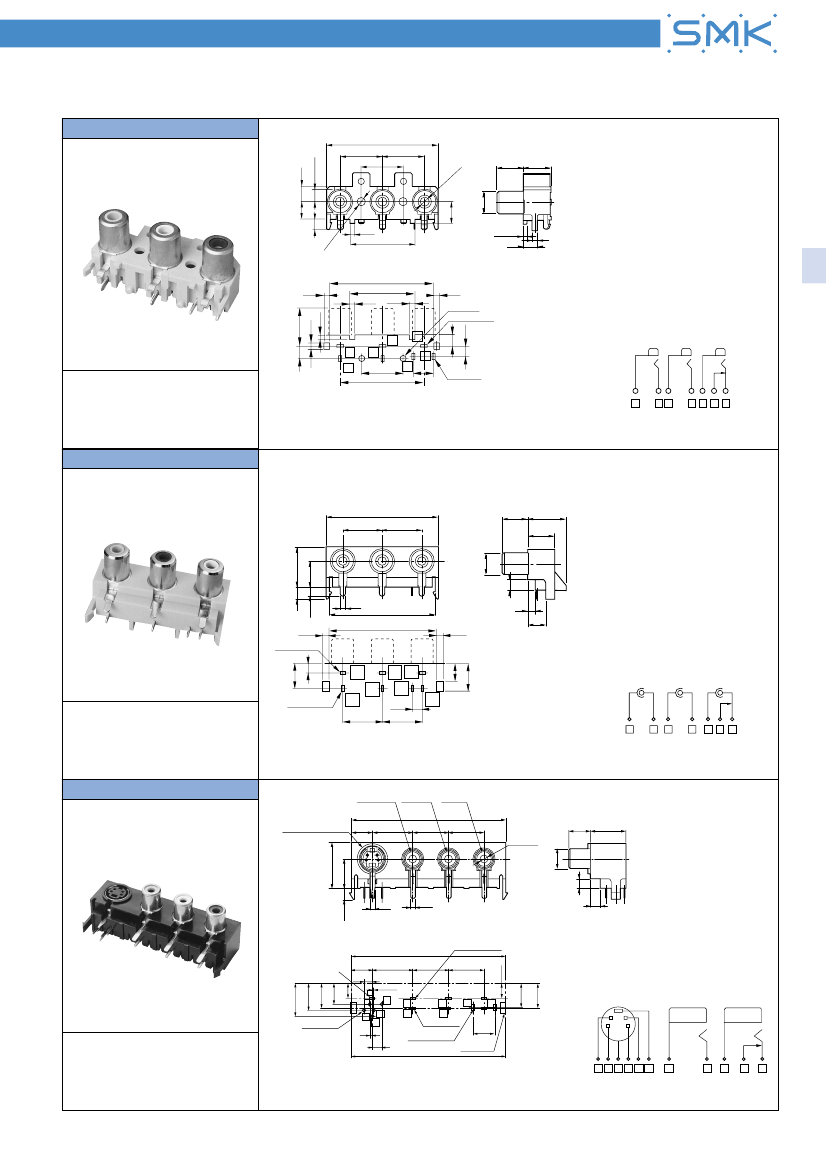

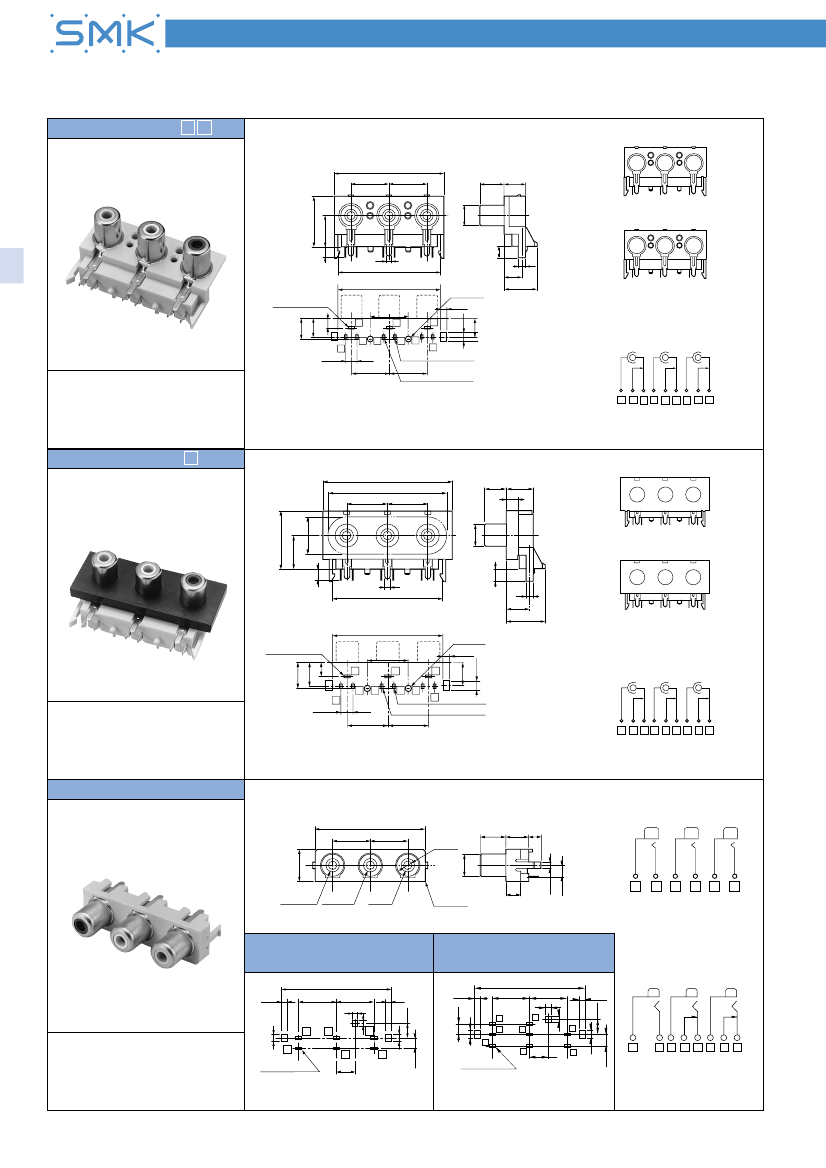

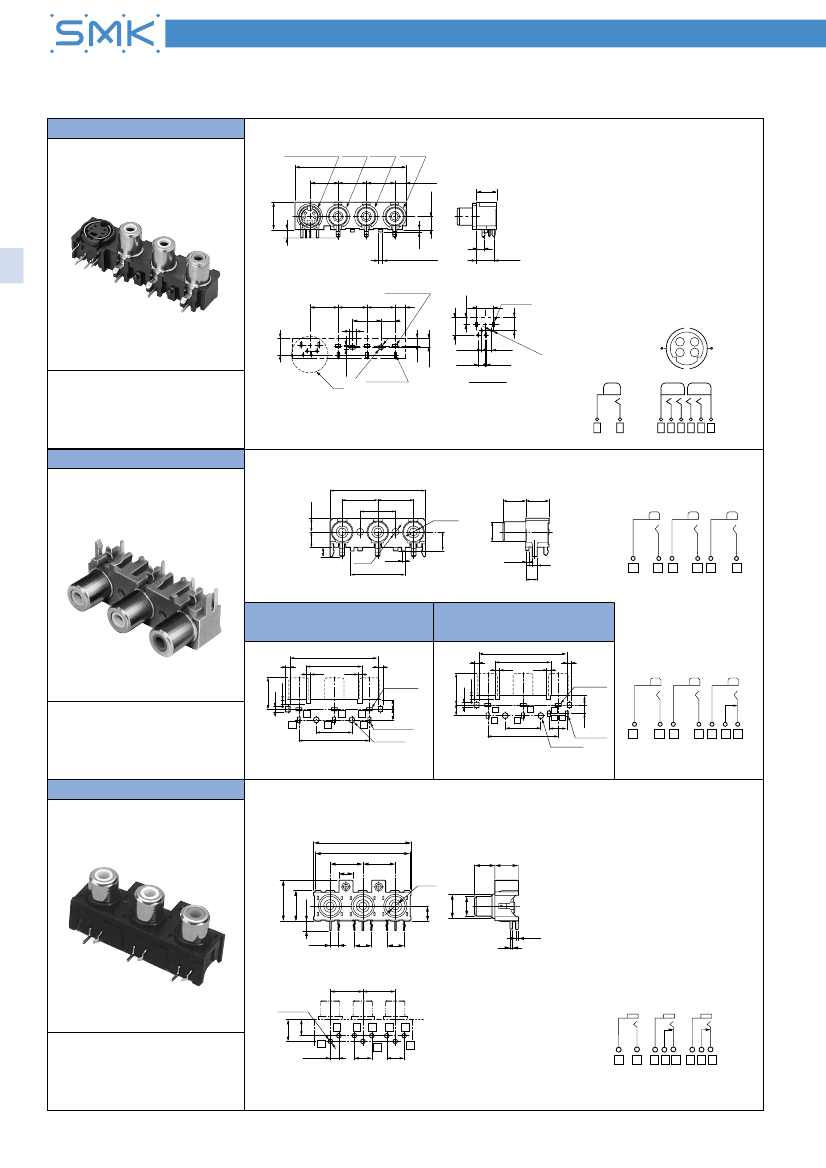

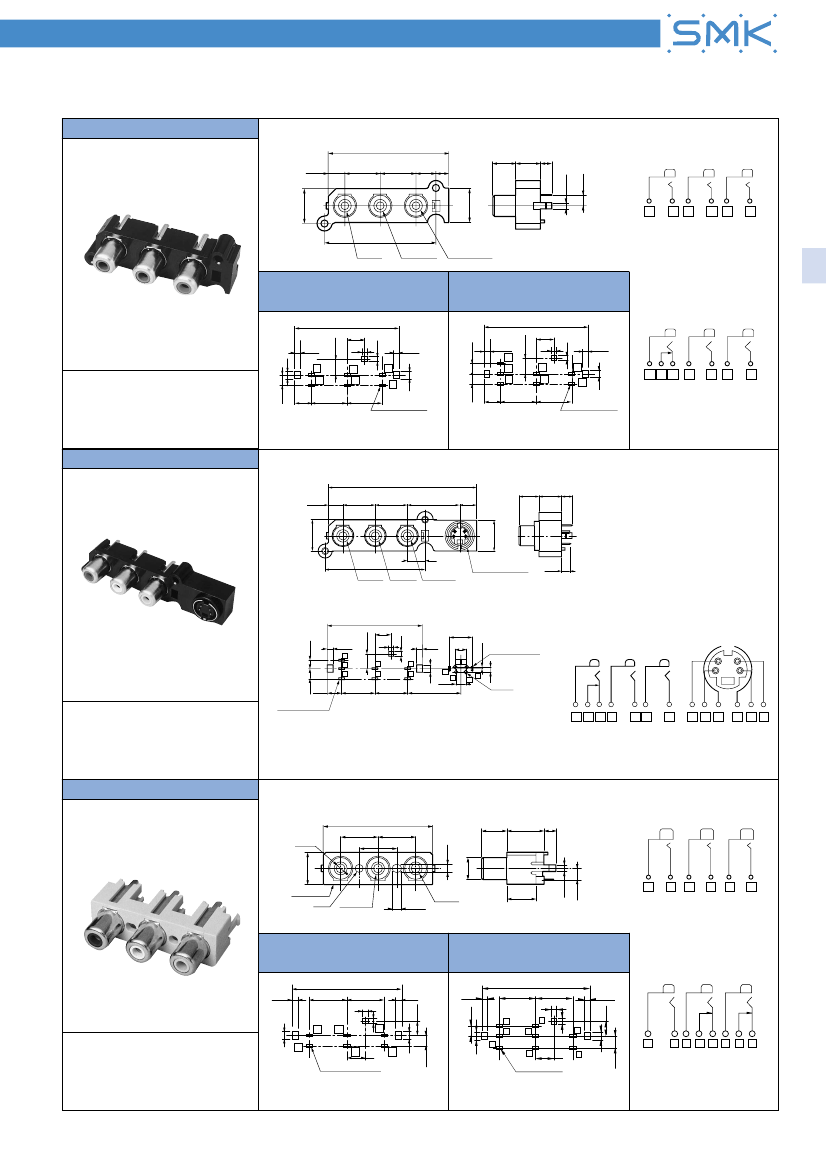

3P Pin Jack
LAP5100-2601F
H=6.5mm
(With S Terminal)
Y/C socket Yellow White Red
54.8
14 14
14
5.7
13.5
6.5
10
4
1.5
4
8.55
2–ø2
3–1.3x2.5
14
14
14 5
14
7
3
i j a1
a3
a2
f e
b1
b2
b3
h g
4
2.1
ø2
.1
A
3–2.2x1
4.6
PIN JACKS
<China>
Right Angle
LPR6520-6700
H=6.5mm
8.6 2–2x1
i j
f e
4–
h g
1.6
3.4
ø1.1
3.4
0.6
6.5
Detail A
Circuits
(Without Switch)
h
f
g
e
8.5
8.8
3.5
i
j
(Recommended P.W.Board Dimension)
(The Pattern Side)
a
b
i e f g h j
Pin Jack
Y/C (S-Video) Soket
Circuits
(Without Switch)
5.6
40
15
15
15
8
ø8.3
ø3.4
9.5 10
6.5
4
2-ø3 1.5
23
1.5
5
2
a
b c
d e
f
LPR6520-6700
(Without Switch)
2
1.9
13.5
2.4
1.7
37.6
23.4
1.9
2
LPR6529-1800
(With Switch)
2
13.5
2.4
1.7
37.6
23.4
1.9
1.9
2
3-1.3 x 2.5
4
(With Switch)
<Malaysia>
Right Angle
LPR6529-1400
H=6.5mm
3-1.3 x 2.5
4.5 4
4.5
a
b
d
c
e
f
a
b
d
c
15
30
3 - 1.2 x 2.2
2-ø2.2
15
30
7.5
3.7
e
g f
4 - 1 x 2.2
2-ø2.2
a
b
c
d
e
f
g
(Recommended P.W.Board Dimension)
(The Pattern Side)
(Recommended P.W.Board Dimension)
(The Pattern Side)
42
41
14
6
17.5
13
3.8
14
ø3.4
6.5
ø10
ø8.3
8.5 10
3.5
7
7
1.2
1
Circuits
(With Switch)
14
14
9.5
7
<Japan>
Right Angle
8-ø1.4
b
a
e
d
h
c
g
f
3.5
7
7
(Recommended P.W.Board Dimension)
(The Pattern Side)
a
b
c d e
f g h
