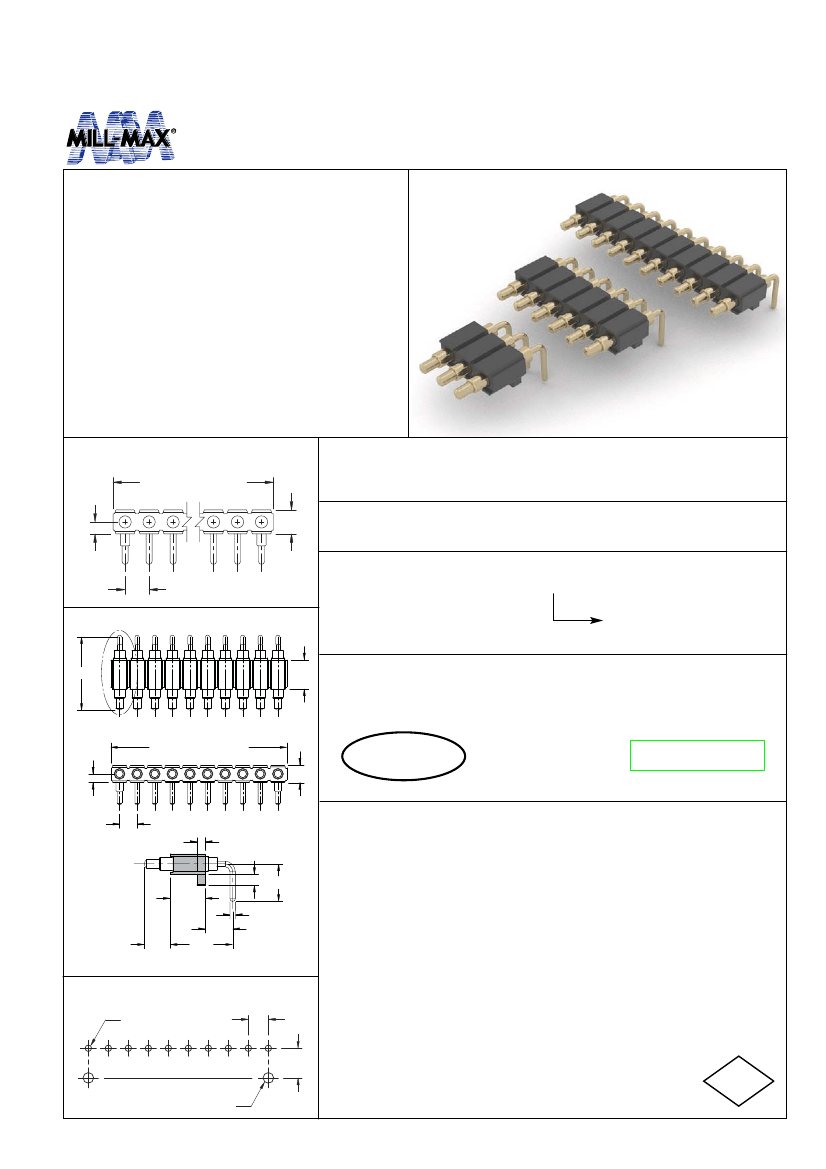

SPRING-LOADED CONNECTORS
Right Angle Mount
Single Row Strips
•
Modular contacts for use on .100” grid, available in
a height of .294”, supplied in single contact strips.
•
Precision-machined piston / base and gold plated
components assure a 1,000,000 min. cycle life.
•
Pistons have a .045” mid stroke and .090” max
stroke.
•
Low resistance, high current contacts are rated at
2 amps continuous, 3 amps peak.
•
High temperature thermoplastic insulators are suit-
able for wave and reflow soldering processes.
•
829 series contact strips are designed for manual
placement into Ø .032±.003” plated-thru-holes in
the circuit board prior to hand, wave or reflow
soldering.
Series 829...001101
Single Row Series 829
Number
of Pins x .100
Ordering Information
.100
.050
Series 829
Single Row Right Angle
829-22-0_ _-20-001101
.100
(TYP)
A
TOP VIEW
Specify # of pins
.165
02-10
.415
FRONT VIEW
Number of Pins X .100"
.050
.100
For Electrical,
Mechanical & Enviromental
Data, See pg. 4.1
For RoHS compliance
select
plating code.
.100
(TYP)
Technical Specifications
Materials:
Contact piston & Base: Machined copper alloy plated 20µ” gold
over 100µ” nickel.
Spring: Beryllium copper plated 10µ” gold
Insulator: High temp. thermoplastic rated UL94 V-0
Mechanical:
Spring force @ initial height: 25 grams
Spring force @ mid stroke: 60 grams
Durability: 1,000,000 cycles min.
Electrical:
Voltage rating: 100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per contact
Contact resistance: 20mΩ max.
Insulation resistance: 10,000MΩ min.
RoHS
Dielectric strength: 700Vrms min.
2002/95/EC
Capacitance: 1pF max.
.038 SQ.
.050
.165
.177
.025 DIA.
.129
.121
.294
DETAIL ‘A’
Suggested P.C.B Footprint
(TYP)
.032"
+ .003"
DIA. PTH
-
.100
.148
(2x) .057" MIN.
MOUNTING HOLE
