Z86L7708FSC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z86L7708FSC

Z86L7708FSC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PQFP44, PLASTIC, QFP-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，73 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z86L7708FSC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PQFP44, PLASTIC, QFP-44

Z86L7708FSC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	QFP
package instruction	PLASTIC, QFP-44
Contacts	44
Reach Compliance Code	unknown
Has ADC	NO
Other features	ROMLESS MODE OPTION
Address bus width	16
bit size	8
boundary scan	NO
CPU series	Z8
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G44
JESD-609 code	e0
low power mode	YES
Number of DMA channels
Number of external interrupt devices	3
Number of I/O lines	31
Number of serial I/Os
Number of terminals	44
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP44,.57SQ,32
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	240
power supply	2.2/3.6 V
Certification status	Not Qualified
RAM (bytes)	1024
RAM (number of words)	512
rom(word)	24576
ROM programmability	MROM
speed	8 MHz
Maximum slew rate	15 mA
Maximum supply voltage	3.9 V
Minimum supply voltage	2 V
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

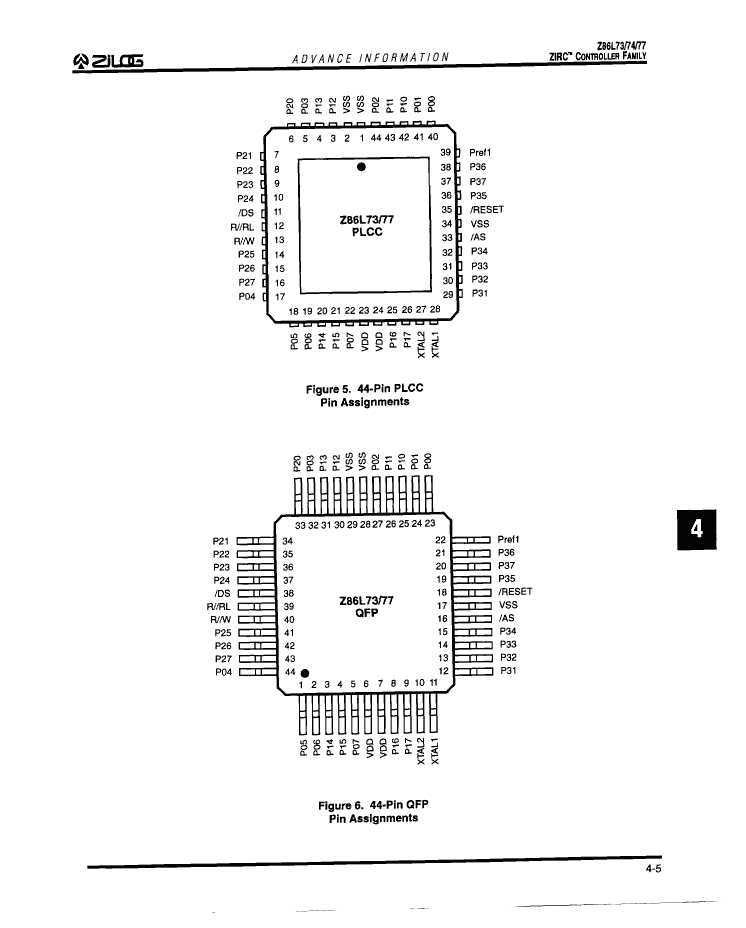

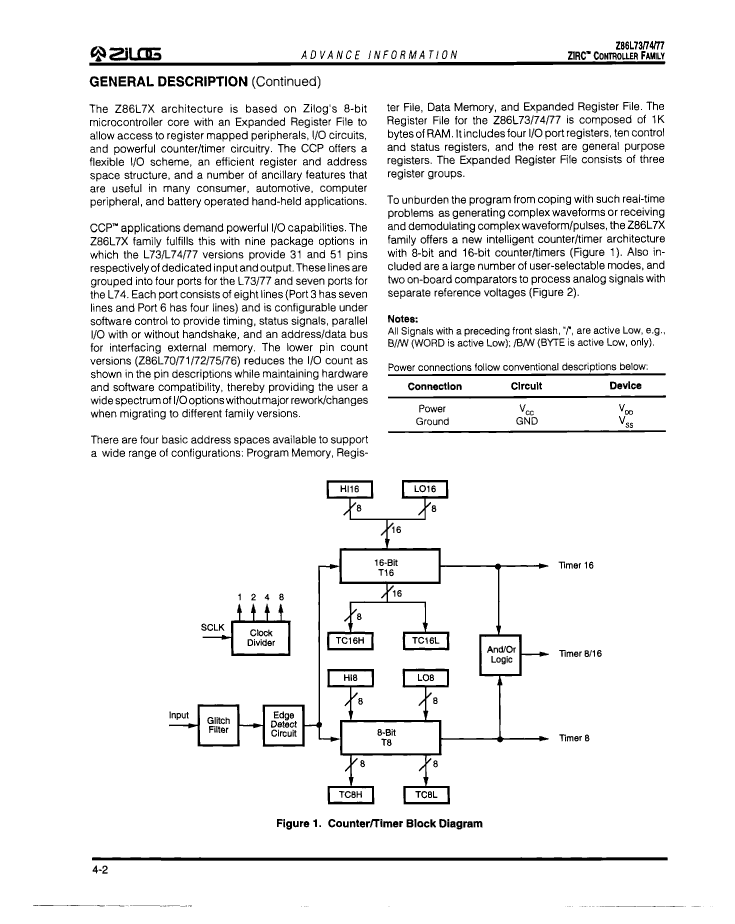

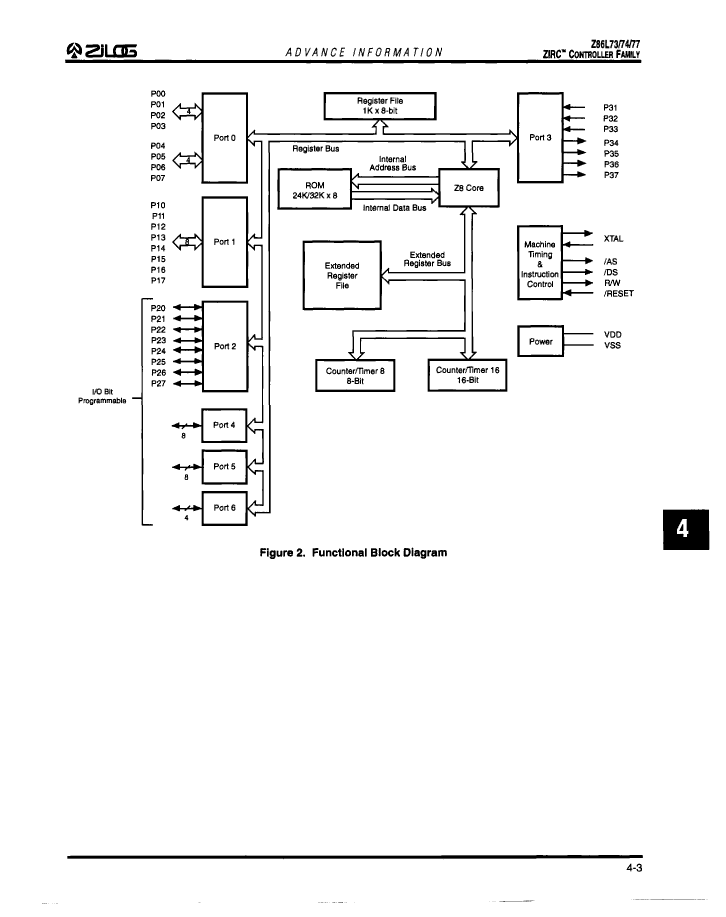

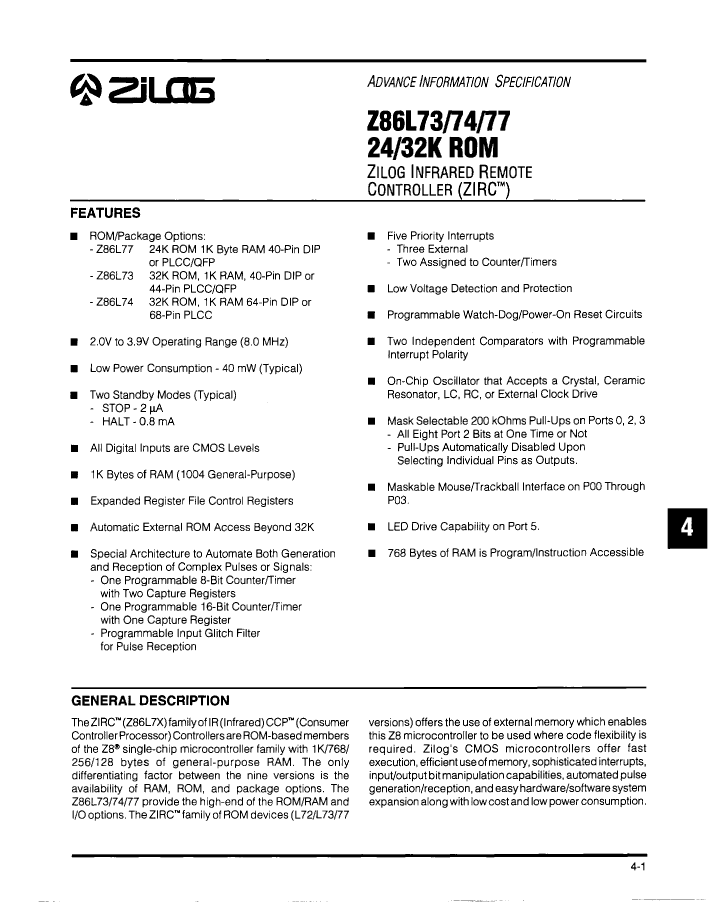

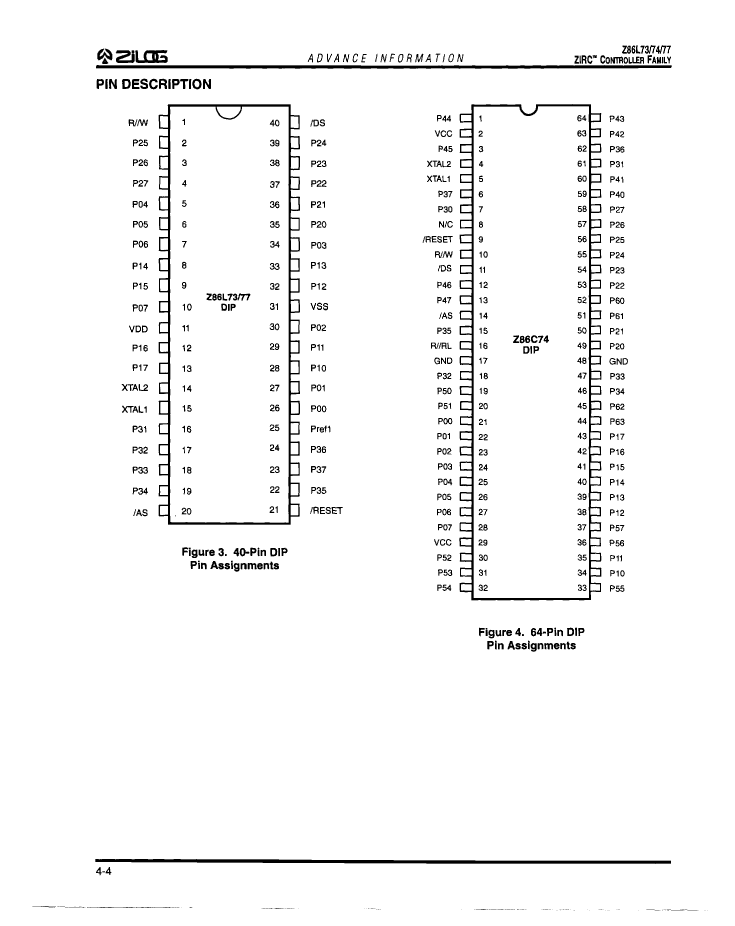

Preview

Download Datasheet

View All

Z86L7708FSC Related Products

	Z86L7708FSC	Z86L7708PSC	Z86L7708VSC
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PQFP44, PLASTIC, QFP-44	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PQCC44, PLASTIC, LCC-44
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
Parts packaging code	QFP	DIP	LCC
package instruction	PLASTIC, QFP-44	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ
Contacts	44	40	44
Reach Compliance Code	unknown	unknown	unknown
Has ADC	NO	NO	NO
Address bus width	16	16	16
bit size	8	8	8
boundary scan	NO	NO	NO
CPU series	Z8	Z8	Z8
maximum clock frequency	8 MHz	8 MHz	8 MHz
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
External data bus width	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO
JESD-30 code	S-PQFP-G44	R-PDIP-T40	S-PQCC-J44
JESD-609 code	e0	e0	e0
low power mode	YES	YES	YES
Number of external interrupt devices	3	3	3
Number of I/O lines	31	31	31
Number of terminals	44	40	44
Number of timers	2	2	2
On-chip data RAM width	8	8	8
On-chip program ROM width	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C
PWM channel	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	DIP	QCCJ
Encapsulate equivalent code	QFP44,.57SQ,32	DIP40,.6	LDCC44,.7SQ
Package shape	SQUARE	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	240	240	240
power supply	2.2/3.6 V	2.2/3.6 V	2.2/3.6 V
Certification status	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	1024	1024	1024
RAM (number of words)	512	512	512
rom(word)	24576	24576	24576
ROM programmability	MROM	MROM	MROM
speed	8 MHz	8 MHz	8 MHz
Maximum slew rate	15 mA	15 mA	15 mA
Maximum supply voltage	3.9 V	3.9 V	3.9 V
Minimum supply voltage	2 V	2 V	2 V
Nominal supply voltage	3 V	3 V	3 V
surface mount	YES	NO	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	J BEND
Terminal pitch	0.8 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Other features	ROMLESS MODE OPTION	-	ROMLESS MODE OPTION
