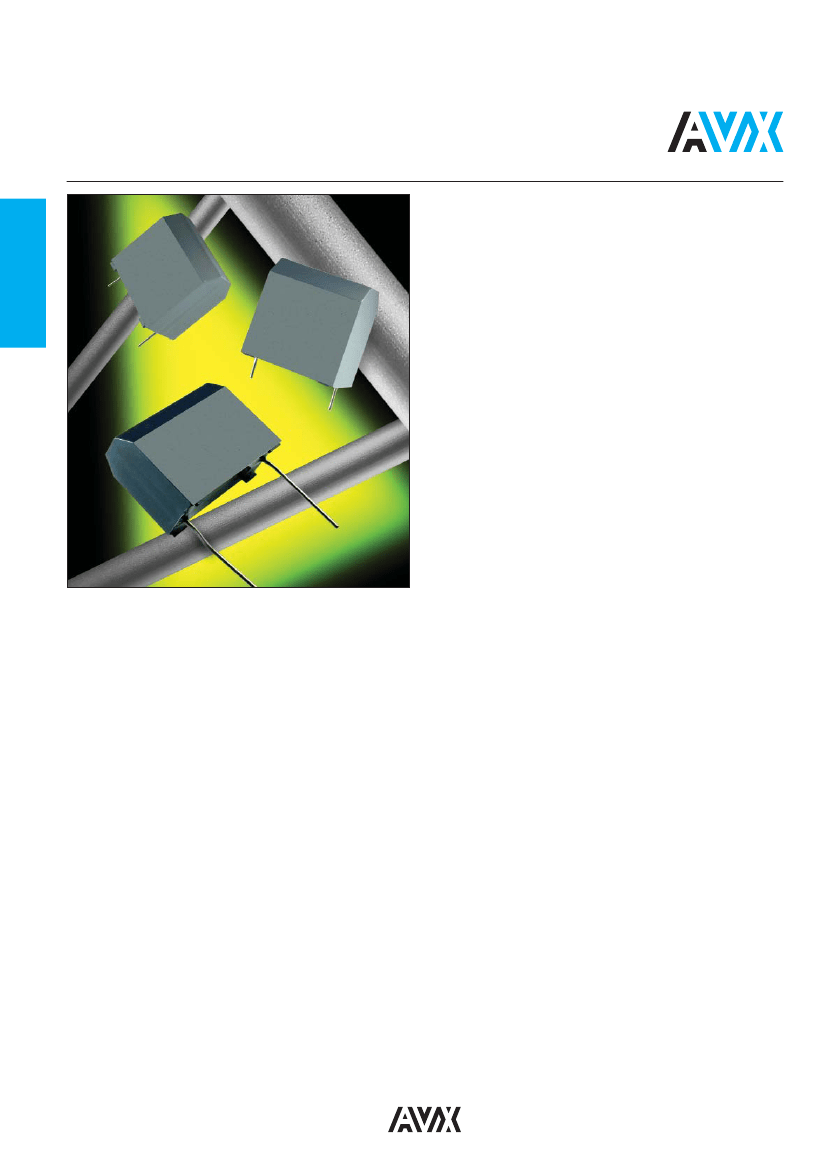

Medium Power Film Capacitors
FFB (RoHS Compliant)
The FFB series uses a non-impregnated metallized
polypropylene or polyester dielectric with the controlled
self-healing process, specially treated to have a very high
dielectric strength in operating conditions up to 105°C.
The FFB has been designed for printed circuit board mount-
ing. Furthermore, their performances allow to be a very inter-
esting alternative to electrolytic technology because they
can withstand much higher levels of surge voltage.
DC FILTERING
APPLICATIONS
The FFB capacitor is particularly designed for DC filtering,
low reactive power.
HOT SPOT CALCULATION
See Hot Spot Temperature, page 3.
θ
hot spot
=
θ
ambient
+ (P
d
+ P
t
) x R
th
with P
d
(Dielectric losses) = Q x tgδ
0
Q x tgδ
0
⇒
[
1
⁄
2
x C
n
x (V
peak
to
peak
)
2
x f ] x tgδ
0
tgδ
0
(tan delta)
For polypropylene, tgδ
0
= 2 x 10
-4
for frequencies
up to 1MHz and is independent of temperatures.
For polyester, tgδ
0
values are shown in graph 4
on page 3.
P
t
(Thermal losses) = R
s
x (I
rms
)
2
where
C
n
in Farad
I
rms
in Ampere
f in Hertz
θ
in °C
V in Volt
R
s
in Ohm
R
th
in °C/W
PACKAGING MATERIAL
Self-extinguishing plastic case (V0 = in accordance with UL 94)
filled thermosetting resin.
Self-extinguishing thermosetting resin (V0 = in accordance with
UL 94; I3F2 = in accordance with NF F 16-101).
WORKING TEMPERATURE
(according to the power to be dissipated) -55°C to +105°C
LIFETIME EXPECTANCY
One unique feature of this technology (as opposed to elec-
trolytics) is how the capacitor reacts at the end of its lifetime.
Unlike aluminum, electrolytics film capacitors do not have a
catastrophic failure mode. Film capacitors simply experience
a parametric loss of capacitance of about 2%, with no risk of
short circuit.
Please note that this is theoretical, however, as the capacitor
continues to be functional even after this 2% decrease.
STANDARDS
IEC 61071-1, IEC 61071-2: Power electronic capacitors
IEC 60384-16: Fixed metallized polypropylene
film dielectric DC capacitors
IEC 60384-16-1: Fixed metallized polypropylene
film dielectric DC capacitors
Assessment level E
IEC 60384-17: Fixed metallized polypropylene
film dielectric AC and pulse
capacitors
IEC 60384-17-1: Fixed metallized polypropylene
film dielectric AC and pulse
capacitors
Assessment level E
IEC 60384-2: Fixed metallized polyester
capacitors
4
Medium Power Film Capacitors
FFB (RoHS Compliant) – Polyester Dielectric
POLYESTER DIELECTRIC FOR LOW VOLTAGE DC FILTERING
DC FILTERING
ELECTRICAL CHARACTERISTICS
– POLYESTER DIELECTRIC
Climatic category
Test voltage between terminals @ 25°C
Capacitance range C
n
Tolerance on C
n
Rated DC voltage V
n
dc
Dielectric
Max Stray Inductance
55/105/56 (IEC 60068)
1.5 x V
n
dc
6.2μF to 110μF
±10%
75 to 400 V
polyester
20nH
LIFETIME EXPECTANCY vs VOLTAGE
AND HOT SPOT TEMPERATURE
– POLYESTER DIELECTRIC
1.2
1.1
1.0
0.9
V
w
/V
n
dc
85°C
0.8
0.7
0.6
0.5
0.4
0.3
100
1000
10000
Lifetime Expectancy (hours)
100000
105°C
95°C
60°C
70°C
50°C
Vw = Permanent working or operating DC voltage.
RATINGS AND PART NUMBER REFERENCE – POLYESTER DIELECTRIC
Part Number
Capacitance
(μF)
33
47
68
82
110
110
20
27
39
47
68
68
7.5
11
16
18
27
27
6.2
7.5
12
15
20
20
Case Style
I
rms
max.
(A)
3
4.3
6.2
7.4
10
10
2.6
3.5
5
6
9
9
2.4
3.6
5.2
6
9
9
2.5
3.1
5
6.2
8.2
8.2
R
S
(m )
R
th
(°C/W)
40.7
33.3
29.9
26.7
22.9
22.9
40.5
33.3
29.8
26.6
22.8
22.8
40.7
33.5
29.9
27.1
22.9
22.9
40.5
33.5
29.9
26.4
22.8
22.8
Typical
Weight (g)
15
20
25
32
40
40
15
20
25
32
40
40
15
20
25
32
40
40
15
20
25
32
40
40
V
n
dc 75V
FFB14D0336K--
FFB24D0476K--
FFB34D0686K--
FFB44D0826K--
FFB54D0117K--
FFB54D0117KJC
FFB14E0206K--
FFB24E0276K--
FFB34E0396K--
FFB44E0476K--
FFB54E0686K--
FFB54E0686KJC
FFB14H0755K--
FFB24H0116K--
FFB34H0166K--
FFB44H0186K--
FFB54H0276K--
FFB54H0276KJC
FFB14I0625K--
FFB24I0755K--
FFB34I0126K--
FFB44I0156K--
FFB54I0206K--
FFB54I0206KJC
Vrms max.: 45 volts
Voltage Code: D
3
2
1.7
1.6
1.4
1.4
PO
18
19
26
R68
(2 terminals)
R68
(4 terminals)
V
n
dc 100V
Vrms max.: 60 volts
Voltage Code: E
3
2.5
2
1.7
1.4
1.4
PO
18
19
26
R68
(2 terminals)
R68
(4 terminals)
V
n
dc 300V
Vrms max.: 90 volts
Voltage Code: H
16
11
8
7
5
5
PO
18
19
26
R68
(2 terminals)
R68
(4 terminals)
V
n
dc 400V
Vrms max.: 105 volts
Voltage Code: I
17
14
9
7
5.5
5.5
PO
18
19
26
R68
(2 terminals)
R68
(4 terminals)
6
Medium Power Film Capacitors
FFB (RoHS Compliant) – Polypropylene Dielectric
POLYPROPYLENE DIELECTRIC FOR INDUSTRIAL DC FILTERING
These capacitors have been designed principally for high and medium power DC filtering applications.
ELECTRICAL CHARACTERISTICS
– POLYPROPYLENE DIELECTRIC
Climatic category
Test voltage between terminals @ 25°C
Capacitance range C
n
Tolerance on C
n
Rated DC voltage V
n
dc
Dielectric
55/105/56 (IEC 60068)
1.5 x V
n
dc
1.5μF to 13μF
±10%
525 to 1100 V
polypropylene
LIFETIME EXPECTANCY vs VOLTAGE
AND HOT SPOT TEMPERATURE
– POLYPROPYLENE DIELECTRIC
1.2
60°C
50°C
1.1
70°C
80°C
V
w
/V
n
dc
1.0
85°C
0.9
95°C
0.8
105°C
0.7
100
1000
10000
Lifetime Expectancy (hours)
100000
Vw = Working DC Voltage • Vn = Rated DC Voltage
RATINGS AND PART NUMBER REFERENCE – POLYESTER DIELECTRIC
Part Number
Capacitance
(μF)
3.9
5.6
8.2
10
13
13
3.3
4.3
6.2
7.5
10
10
2
2.7
3.9
5.1
6.8
6.8
1.5
1.8
2.4
3
4.7
4.7
Case Style
I
rms
max.
(A)
5.1
7.4
10.9
12
12
16.7
5.0
6.5
9.4
11.4
12
15.2
3.6
4.9
7.2
9.3
12
12.5
3.3
3.9
5.3
6.6
10.3
10.3
R
S
(m )
R
th
(°C/W)
45.7
36.4
32.6
29.8
24.3
24.3
45.0
36.2
32.7
29.9
24.2
24.2
45.7
36.6
32.9
29.7
24.1
24.1
45.2
36.5
33.4
30.2
24.1
24.1
Typical
Weight (g)
15
20
25
32
40
40
15
20
25
32
40
40
15
20
25
32
40
40
15
20
25
32
40
40
V
n
dc 525V
FFB16J0395K--
FFB26J0565K--
FFB36J0825K--
FFB46J0106K--
FFB56J0136K--
FFB56J0136KJC
FFB16A0335K--
FFB26A0435K--
FFB36A0625K--
FFB46A0755K--
FFB56A0106K--
FFB56A0106KJC
FFB16C0205K--
FFB26C0275K--
FFB36C0395K--
FFB46C0515K--
FFB56C0685K--
FFB56C0685KJC
FFB16L0155K--
FFB26L0185K--
FFB36L0245K--
FFB46L0305K--
FFB56L0475K--
FFB56L0475KJC
Vrms max.: 105 volts
Voltage Code: J
30
21
15
12
9
9
PO
18
19
26
R68
(2 terminals)
R68
(4 terminals)
V
n
dc 720V
Vrms max.: 120 volts
Voltage Code: A
31
24
17
14
11
11
PO
18
19
26
R68
(2 terminals)
R68
(4 terminals)
V
n
dc 900V
Vrms max.: 150 volts
Voltage Code: C
41
30
21
16
12
12
PO
18
19
26
R68
(2 terminals)
R68
(4 terminals)
V
n
dc 1100V
Vrms max.: 180 volts
Voltage Code: L
45
40
28
23
15
15
PO
18
19
26
R68
(2 terminals)
R68
(4 terminals)
7
DC FILTERING
