10.92mm (0.43INCH) SINGLE DIGIT NUMERIC
DISPLAY
Part Number: SA43-13SEKWA
Super Bright Orange
Features
0.43 inch digit height.
Low current operation.
Excellent character appearance.
Easy mounting on P.C. boards or sockets.
Mechanically rugged.
Standard : gray face, white segment.
RoHS compliant.
Description
The Super Bright Orange device is made with AlGaInP (on
GaAs substrate) light emitting diode chip.

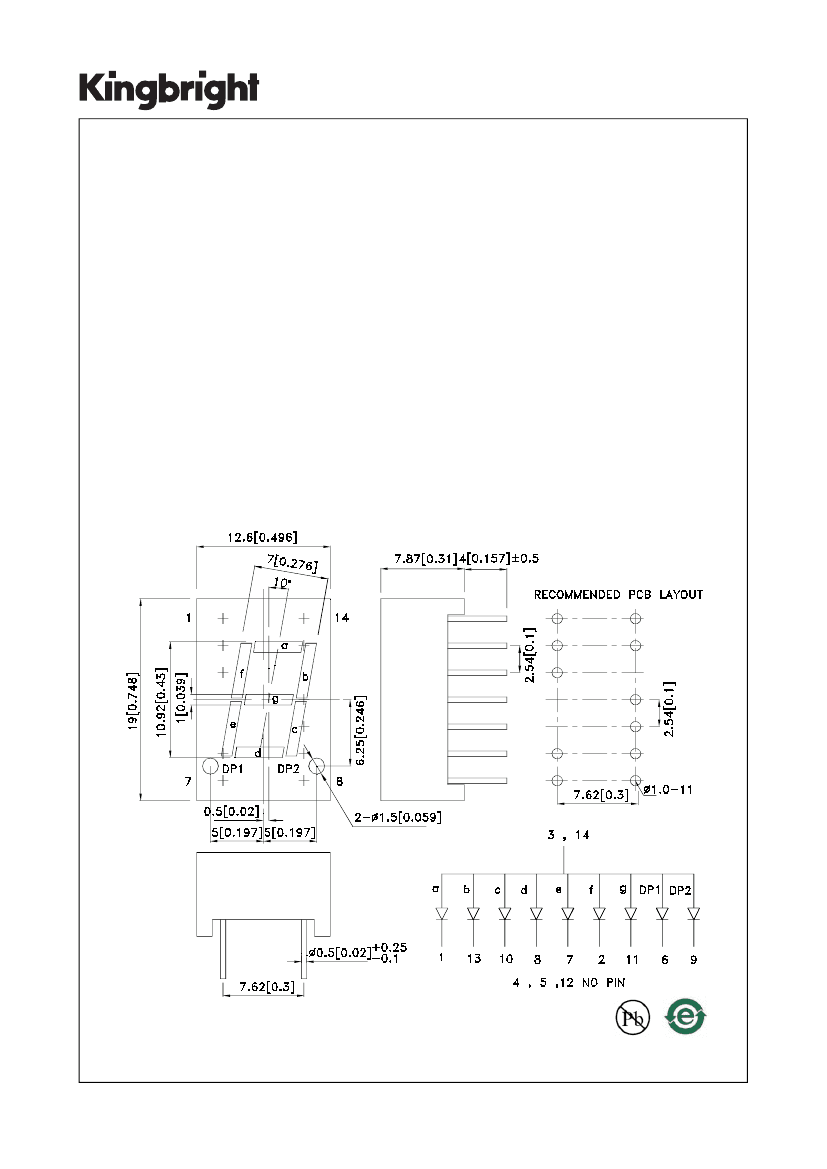

Package Dimensions& Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAK2701
APPROVED: WYNEC
REV NO: V.4A
CHECKED: Joe Lee
DATE: APR/17/2013
DRAWN: F.Cui
PAGE: 1 OF 6
ERP: 1301003085
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd) [1]
@ 10mA
Min.
88000
SA43-13SEKWA
Super Bright Orange (AlGaInP)
White Diffused
*31000
Notes:
1. Luminous intensity/ luminous Flux: +/-15%.
*Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Description
Typ.
220000
*70000
Common Anode, Rt.
&Lt. Hand Decimal.
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Super Bright Orange
Super Bright Orange
Super Bright Orange
Super Bright Orange
Super Bright Orange
Super Bright Orange
Typ.
610
601
29
15
2.1
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to the CIE127-2007 compliant national standards.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Lead Solder Temperature[2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Super Bright Orange
75
30
195
5
-40°C To +85°C
260°C For 3-5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAK2701
APPROVED: WYNEC
REV NO: V.4A
CHECKED: Joe Lee
DATE: APR/17/2013
DRAWN: F.Cui
PAGE: 2 OF 6
ERP: 1301003085
Super Bright Orange
SA43-13SEKWA
SPEC NO: DSAK2701
APPROVED: WYNEC
REV NO: V.4A
CHECKED: Joe Lee
DATE: APR/17/2013
DRAWN: F.Cui
PAGE: 3 OF 6
ERP: 1301003085

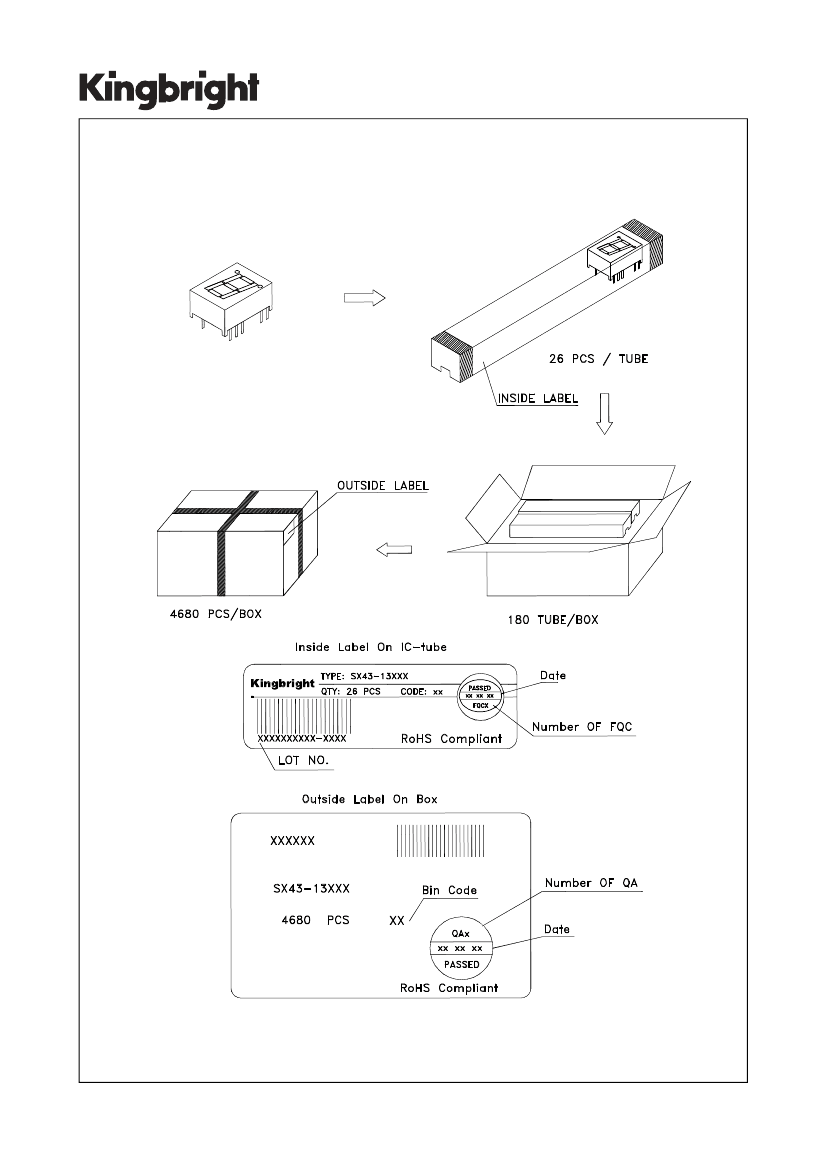

PACKING & LABEL SPECIFICATIONS
SA43-13SEKWA
SPEC NO: DSAK2701
APPROVED: WYNEC
REV NO: V.4A
CHECKED: Joe Lee
DATE: APR/17/2013
DRAWN: F.Cui
PAGE: 4 OF 6
ERP: 1301003085

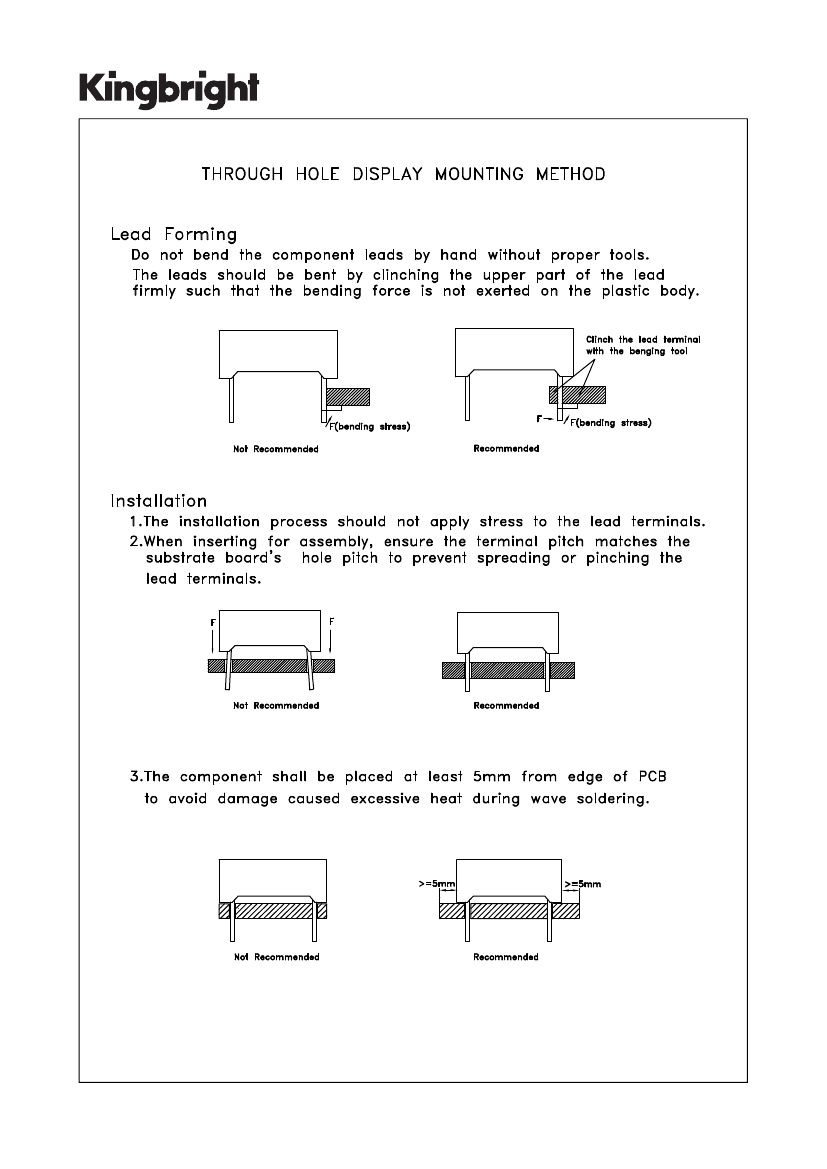

SPEC NO: DSAK2701
APPROVED: WYNEC
REV NO: V.4A
CHECKED: Joe Lee
DATE: APR/17/2013
DRAWN: F.Cui
PAGE: 5 OF 6
ERP: 1301003085
