P4KE6.8(C)A THRU P4KE440(C)A
Breakdown
Voltage - 6.8 to 440 Volts
TRANSIENT VOLTAGE SUPPRESSOR
Peak Pulse Power - 400 Watt
FEATURES
Glass Passivated Die Construction
●
Uni- and Bi-Directional Versions Available
●
Excellent Clamping Capability
●
Fast Response Time
●
Plastic Case Material has UL Flammability
Classification Rating 94V-O
●
DO-41
1.0 (25.4)
MIN.
0.107(2.7)
0.080(2.0)
DIA.
MECHANICAL DATA
●
●
●
●
●
0.205(5.2)
0.166(4.2)
Case:
JEDEC DO-41 molded Plastic
Terminals:
Axial Leads, Solderable
per MIL-STD-750, Method 2026
Polarity: Cathode Band Except Bi-Directional
Marking:
Any
Weight:
0.33grams(approx)
1.0 (25.4)
MIN.
0.034(0.9)
0.028(0.7)
DIA.
Dimensions in inches and (millimeters)
“C” Suffix Designates Bi-directional Devices
“A” Suffix Designates 5% Tolerance Devices
No Suffix Designates 10% Tolerance Devices
Maximum Ratings and Electrical Characteristics
Characteristic
Peak Pulse Power Dissipation at T
A
= 25°C (Note 1, 2, 5) Figure 3
Peak Forward Surge Current (Note 3)
Peak Pulse Current on 10/1000µS Waveform (Note 1) Figure 1
Steady State Power Dissipation (Note 2, 4)
Operating and Storage Temperature Range
@T
A
=25°C unless otherwise specified
Symbol
P
PPM
I
FSM
I
PPM
P
M(AV)
T
j
, T
STG
Value
400 Minimum
40
See Table 1
1.0
-65 to +175
Unit
W
A
A
W
°C
Note: 1. Non-repetitive current pulse, per Figure 1 and derated above T
A
= 25°C per Figure 4.
2. Mounted on 40mm
2
copper pad.
3. 8.3ms single half sine-wave duty cycle = 4 pulses per minutes maximum.
4. Lead temperature at 75°C = T
L .
5. Peak pulse power waveform is 10/1000µS.
P4KE6.8(C)A THRU P4KE440(C)A
Breakdown
Voltage - 6.8 to 440 Volts
TRANSIENT VOLTAGE SUPPRESSOR
Peak Pulse Power - 400 Watt
Electronics Characteristics
Type
Number
(UNI)
P4KE6.8
P4KE6.8A
P4KE7.5
P4KE7.5A
P4KE8.2
P4KE8.2A
P4KE9.1
P4KE9.1A
P4KE10
P4KE10A
P4KE11
P4KE11A
P4KE12
P4KE12A
P4KE13
P4KE13A
P4KE15
P4KE15A
P4KE16
P4KE16A
P4KE18
P4KE18A
P4KE20
P4KE20A
P4KE22
P4KE22A
P4KE24
P4KE24A
P4KE27
P4KE27A
P4KE30
P4KE30A
P4KE33
P4KE33A
P4KE36
P4KE36A
P4KE39
P4KE39A
P4KE43
P4KE43A
Type
Number
(BI)
P4KE6.8C
P4KE6.8CA
P4KE7.5C
P4KE7.5CA
P4KE8.2C
P4KE8.2CA
P4KE9.1C
P4KE9.1CA
P4KE10C
P4KE10CA
P4KE11C
P4KE11CA
P4KE12C
P4KE12CA
P4KE13C
P4KE13CA
P4KE15C
P4KE15CA
P4KE16C
P4KE16CA
P4KE18C
P4KE18CA
P4KE20C
P4KE20CA
P4KE22C
P4KE22CA
P4KE24C
P4KE24CA
P4KE27C
P4KE27CA
P4KE30C
P4KE30CA
P4KE33C
P4KE33CA
P4KE36C
P4KE36CA
P4KE39C
P4KE39CA
P4KE43C
P4KE43CA
Reverse
Standoff
Voltage
V
RWM
(V)
5.50
5.80
6.05
6.40
6.63
7.02
7.37
7.78
8.10
8.55
8.92
9.40
9.72
10.20
10.50
11.10
12.10
12.80
12.90
13.60
14.50
15.30
16.20
17.10
17.80
18.80
19.40
20.50
21.80
23.10
24.30
25.60
26.80
28.20
29.10
30.80
31.60
33.30
34.80
36.80
Breakdown Voltage
V
BR
@ I
T
Min (V)
6.12
6.45
6.75
7.13
7.38
7.79
8.19
8.65
9.00
9.50
9.90
10.50
10.80
11.40
11.70
12.40
13.50
14.30
14.40
15.20
16.20
17.10
18.00
19.00
19.80
20.90
21.60
22.80
24.30
25.70
27.00
28.50
29.70
31.40
32.40
34.20
35.10
37.10
38.70
40.90
Max (V)
7.48
7.14
8.25
7.88
9.02
8.61
10.00
9.50
11.00
10.50
12.10
11.60
13.20
12.60
14.30
13.70
16.50
15.80
17.60
16.80
19.80
18.90
22.00
21.00
24.20
23.10
26.40
25.20
29.70
28.40
33.00
31.50
36.30
34.70
39.60
37.80
42.90
41.00
47.30
45.20
Test
Current
I
T
(mA)
10
10
10
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Max Reverse
Leakage
@ V
R
I
R
A)
1000
1000
500
500
200
200
50
50
10
10
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
Max
Clamping
Voltage
@ I
pp
V
C
(V)
10.8
10.5
11.7
11.3
12.5
12.1
13.8
13.4
15.0
14.5
16.2
15.6
17.3
16.7
19.0
18.2
22.0
21.2
23.5
22.5
26.5
25.2
29.1
27.7
31.9
30.6
34.7
33.2
39.1
37.5
43.5
41.4
47.7
45.7
52.0
49.9
56.4
53.9
61.9
59.3
Max Peak
Pulse
Current
I
PP
(A)
38.0
40.0
36.0
37.0
33.0
35.0
30.0
31.0
28.0
29.0
26.0
27.0
24.0
25.0
22.0
23.0
19.0
20.0
18.0
19.0
16.0
17.0
14.0
15.0
13.0
14.0
12.0
13.0
11.0
11.2
10.0
10.0
9.0
9.0
8.0
8.4
7.4
7.8
6.8
7.1
P4KE6.8(C)A THRU P4KE440(C)A
Breakdown
Voltage - 6.8 to 440 Volts
TRANSIENT VOLTAGE SUPPRESSOR
Peak Pulse Power - 400 Watt
Electronics Characteristics
Type
Number
(UNI)
P4KE47
P4KE47A
P4KE51
P4KE51A
P4KE56
P4KE56A
P4KE62
P4KE62A
P4KE68
P4KE68A
P4KE75
P4KE75A
P4KE82
P4KE82A
P4KE91
P4KE91A
P4KE100
P4KE100A
P4KE110
P4KE110A
P4KE120
P4KE120A
P4KE130
P4KE130A
P4KE150
P4KE150A
P4KE160
P4KE160A
P4KE170
P4KE170A
P4KE180
P4KE180A
P4KE200
P4KE200A
P4KE220
P4KE220A
P4KE250
P4KE250A
P4KE300
P4KE300A
P4KE350
P4KE350A
P4KE400
P4KE400A
Type
Number
(BI)
P4KE47C
P4KE47CA
P4KE51C
P4KE51CA
P4KE56C
P4KE56CA
P4KE62C
P4KE62CA
P4KE68C
P4KE68CA
P4KE75C
P4KE75CA
P4KE82C
P4KE82CA
P4KE91C
P4KE91CA
P4KE100C
P4KE100CA
P4KE110C
P4KE110CA
P4KE120C
P4KE120CA
P4KE130C
P4KE130CA
P4KE150C
P4KE150CA
P4KE160C
P4KE160CA
P4KE170C
P4KE170CA
P4KE180C
P4KE180CA
P4KE200C
P4KE200CA
P4KE220C
P4KE220CA
P4KE250C
P4KE250CA
P4KE300C
P4KE300CA
P4KE350C
P4KE350CA
P4KE400C
P4KE400CA
Reverse
Standoff
Voltage
V
RWM
(V)
38.10
40.20
41.30
43.60
45.60
47.80
50.20
53.00
55.10
58.10
60.70
64.10
66.40
70.10
73.70
77.80
81.00
85.50
89.20
94.00
97.20
102.00
105.00
111.00
121.00
128.00
130.00
136.00
138.00
145.00
146.00
154.00
162.00
171.00
175.00
185.00
202.00
214.00
243.00
256.00
284.00
300.00
324.00
342.00
Breakdown Voltage
V
BR
@ I
T
Min (V)
42.30
44.70
45.90
48.50
50.40
53.20
55.80
58.90
61.20
64.60
67.50
71.30
73.80
77.90
81.90
86.50
90.00
95.00
99.00
105.00
108.00
114.00
117.00
124.00
135.00
143.00
144.00
152.00
153.00
162.00
162.00
171.00
180.00
190.00
198.00
209.00
225.00
237.00
270.00
285.00
315.00
332.00
360.00
380.00
Max (V)
51.70
49.40
56.10
53.60
61.60
58.80
68.20
65.10
74.80
71.40
82.50
78.80
90.20
86.10
100.00
95.50
110.00
105.00
121.00
116.00
132.00
126.00
143.00
137.00
165.00
158.00
176.00
168.00
187.00
179.00
198.00
189.00
220.00
210.00
242.00
231.00
275.00
263.00
330.00
315.00
385.00
368.00
440.00
420.00
Test
Current
I
T
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Max Reverse
Leakage
@ V
R
I
R
A)
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
Max
Clamping
Voltage
@ I
pp
V
C
(V)
67.8
64.8
73.5
70.1
80.5
77.0
89.0
85.0
98.0
92.0
108.0
103.0
118.0
113.0
131.0
125.0
144.0
137.0
158.0
152.0
173.0
165.0
187.0
179.0
215.0
207.0
230.0
219.0
244.0
234.0
258.0
246.0
287.0
274.0
344.0
328.0
360.0
344.0
430.0
414.0
504.0
482.0
574.0
548.0
Max Peak
Pulse
Current
I
PP
(A)
6.2
5.0
5.7
6.0
5.2
5.5
4.7
5.0
4.3
4.6
3.9
4.1
3.6
3.7
3.2
3.4
2.9
3.1
2.7
2.8
2.4
2.5
2.2
2.3
2.0
2.0
1.8
1.9
1.7
1.8
1.6
1.7
1.5
1.53
1.16
1.22
1.1
1.16
0.93
0.97
0.79
0.83
0.70
0.73
P4KE6.8(C)A THRU P4KE440(C)A

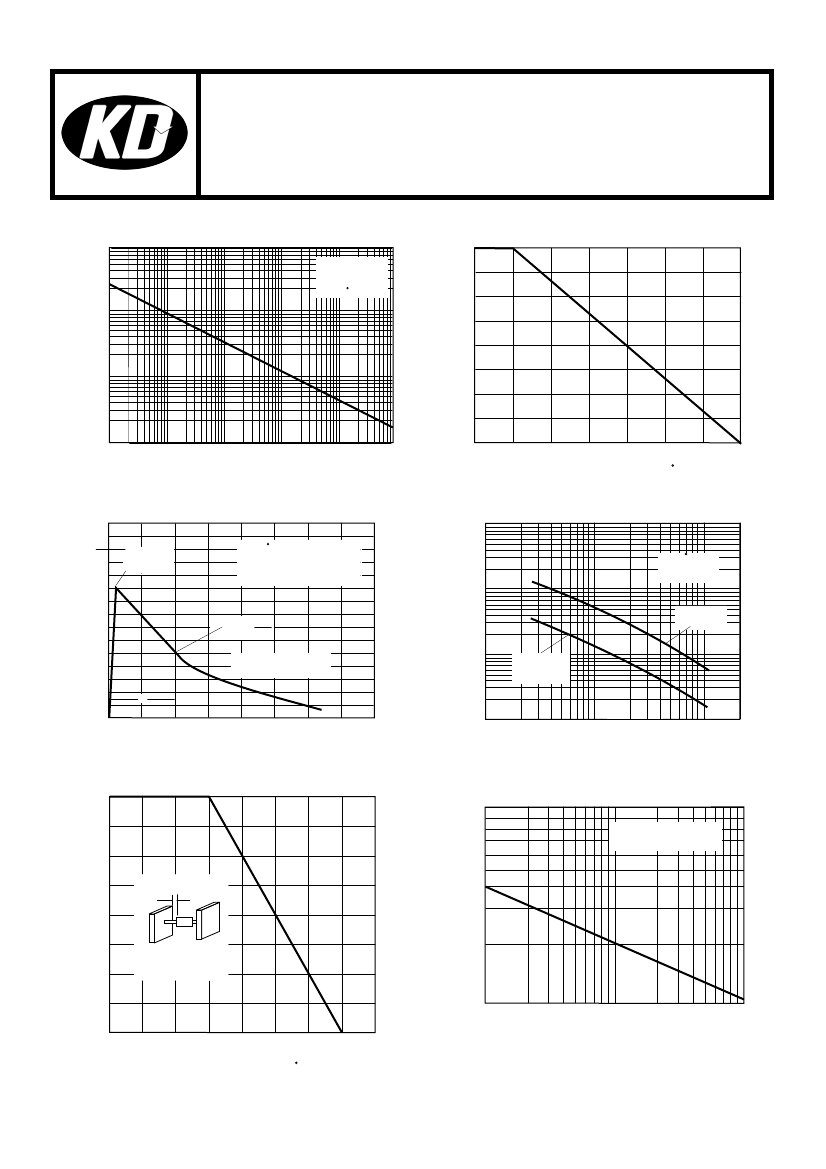

RATINGS AND CHARACTERISTIC CURVES
FIG.1-PEAK PULSE POWER DERATING CURVE
Non-Repetitive
Pulse Waveform
Shown in Fig. 3
T
A
=25 C
10
PEAK PULSE POWER(P
PP
) OR CURRENT(I
PP
)
DERATING IN PERCENTAGE
100
100
FIG.2-PULSE DERATING CURVE
P
PPM
, PEAK PULSE POWER, KW
75
50
1.0
25
0.1
0.1
µ
s
1.0
µ
s
10
µ
s
100
µ
s
1.0ms
10ms
0
0
25
50
75
100
125
150
175
td, PULSE WIDTH, sec.
T
A
, AMBIENT TEMPERATURE ( C)
FIG.3-PULSE WAVE FORM
150
I
PPM
, PEAK PULSE CURRENT, %
tf=10
µ
s
Peak Value
I
PPM
T
A
=25 C
Pulse Width (td) is defined
as the point where the Peak
Current Deacys to 50% of Ipp
100,000
FIG.4-TYPICAL JUNCTION CAPACITANCE
100
Half Value-I
PPM
2
C
J
, CAPACITANCE, pF
T
J
=25 C
f=1.0MHz
Vsig=50mVp-p
10,000
Measued at
Zero Bias
1,000
50
10/1000
µ
sec Waveform
as Defined by R.E.A.
Measured at
Stand-Off
Voltage(V
MW
)
td
0
0
1.0
2.0
e-kt
3.0
4.0
100
1.0
2.0
5.0
10
20
50
100
200
t, TIME, ms
V(BR), BREAKDOWN VOLTAGE, VOLTS
FIG.5-STEADY STATE POWER DERATING CURVE
Pm(
AV
), STEADY STATE POWER DISSIPATION, WATTS
1.00
FIG.6-MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT, UNIDIRECTIONAL
100
80
T
J
=T
J
max
8.3ms Single Half Sine-wave
JEDEC Method
I
FSM
, PEAK FORWARD SURGE
CURRENT, AMPERES
0.75
L=.375"(9.5mm)
60
40
0.50
0.25
40mm x 40mm x 1mm
Copper Heat Sink
(1.6" x 1.6" x .040")
20
10
0
1
5
10
20
50
100
NUMBER OF CYCLES AT 60Hz
0
25
50
75
100
125
150
175
200
T
L
, LEAD TEMPERATURE ( C)
京公网安备 11010802033920号
EEWORLD
