Model: FVXO-HC73 SERIES
HCMOS 7 x 5mm 3.3V VCXO
Features
X
TREMELY
Low Jitter
Low Cost
X
PRESS
Delivery
Frequency Resolution to six decimal places
Absolute Pull Range (APR) of ±50ppm
-20 to +70°C or -40 to +85°C operating temperatures
Tri-State Enable / Disable Feature
Industry Standard Package, Footprint & Pin-Out
Fully RoHS compliant
Gold over Nickel Termination Finish
Serial ID with Comprehensive Traceability
V
DD
Enable / Disable
Freq: 0.75 MHz to 250MHz
Rev. 11/28/2007
Applications
•
•
•
•
•
•
•
•
•
ANY application requiring an oscillator
SONET
Ethernet
Storage Area Network
Broadband Access
Microprocessors / DSP / FPGA
Industrial Controllers
Test and Measurement Equipment
Fiber Channel
X
PRESS
O
ASICs
GND
FOX
OUTPUT
For more information -- Click on the drawing
Contents
page
Description
The Fox X
PRESS
O Crystal Oscillator is a
breakthrough in configurable Frequency Control
Solutions. X
PRESS
O utilizes a family of
proprietary ASICs, designed and developed by
Fox, with a key focus on noise reduction
technologies.
The 3
rd
order Delta Sigma Modulator reduces
noise to the levels that are comparable to
traditional Bulk Quartz and SAW oscillators.
The ASICs family has ability to select the output
type, input voltages, and temperature
performance features.
With the X
PRESS
lead-time, low cost, low noise,
wide frequency range, excellent ambient
performance, XpressO is an excellent choice
over the conventional technologies.
Finished X
PRESS
O parts are 100% final tested.
Model Selection & Part Number Guide
2
Electrical Characteristic
3
Absolute Maximums
4
Output Wave Characteristics
4
Phase Noise
5
Jitter
5
Pin Assignment
6
Recommended Circuit
6
Reflow
6
Mechanical Drawing and Pad Layout
7
Tape and Reel Specification
8
Label
8
Traceability – LOT Number & Serial Identification 9
RoHS Material Declaration
10
SGS Report
11 & 12
Mechanical Test
13
Burn-In Test
13
MTTF / FITS calculations
14
15
Other X
PRESS
O Links
Fox Contact Information
15
Page 1 of 15
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554 http://www.foxonline.com
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282
Taiwan
Tel: +886.2.22073427 Fax +886.2.22073486 |
Japan
Tel: +81.3.3374.2079 Fax: +81.3.3374.5221
© 2008 FOX ELECTRONICS | ISO9001:2000 Certified
FVXO-HC73
Series
Model Selection Guide & Fox Part Number
STEP #1:
Customer selects the Model Description and provides to Fox Customer Service
Model Description
FVXO – H C 7 3 B R – 35.328
Frequency (in MHz)
Resolutions to 6 places
past the decimal point
C
= Ceramic
H
= HCMOS
Q
= Quartz
L
= LVDS
P
= LVPECL
X
= HCMOS
(comp 2
nd
Output)
5
= 5 x 3.2mm
7
= 7 x 5mm
3
= 3.3 V
2
= 2.5 V
R
= -40°C to +85°C
B
= ±50ppm Absolute Pull Range
blank
= -20°C to +70°C
STEP #2:
The Fox Customer Service team provides a customer specific Part Number
for use on their Bill Of Materials (BOM).
Fox Part Number
The 1
st
Field
Product Code #
793 = FVXO–HC5
792 = FVXO–HC7
797 = FVXO–LC5
794 = FVXO–LC7
795 = FVXO–PC5
796 = FVXO–PC7
(The assigned Fox Part Number must be on the BOM – not the above Model Description)
(This will ensure receipt of the proper part)
792–
35.328
–19
The 3
rd
Field
Fox Internally Generated Number
nd
The 2
Field
The Customer’s Frequency
(If any specification changes,
the last digits change)
(The same specs for a different customer
also changes the last digits)
This example,
FVXO-HC73BR-35.328
= Voltage Controlled, HCMOS Output, Ceramic, 7 x 5mm Package, 3.3V,
±50 PPM Absolute Pull Range, -40 to +85°C Temperature Range, at 35.328 MHz
Absolute Maximum Ratings
(Useful life may be impaired.
Parameters
Input Voltage
Operating Temperature
Storage Temperature
Junction Temperature
ESD Sensitivity
For user guidelines only, not tested)
Symbol
V
DD
T
AMAX
T
STG
HBM
Condition
Maximum Value
(unless otherwise noted)
Human Body Model
–0.5V to +5.0V
–55°C to +105°C
–55°C to +125°C
150°C
1 kV
Page
2 of 15
© 2008 FOX ELECTRONICS | ISO9001:2000 Certified
FVXO-HC73
Series

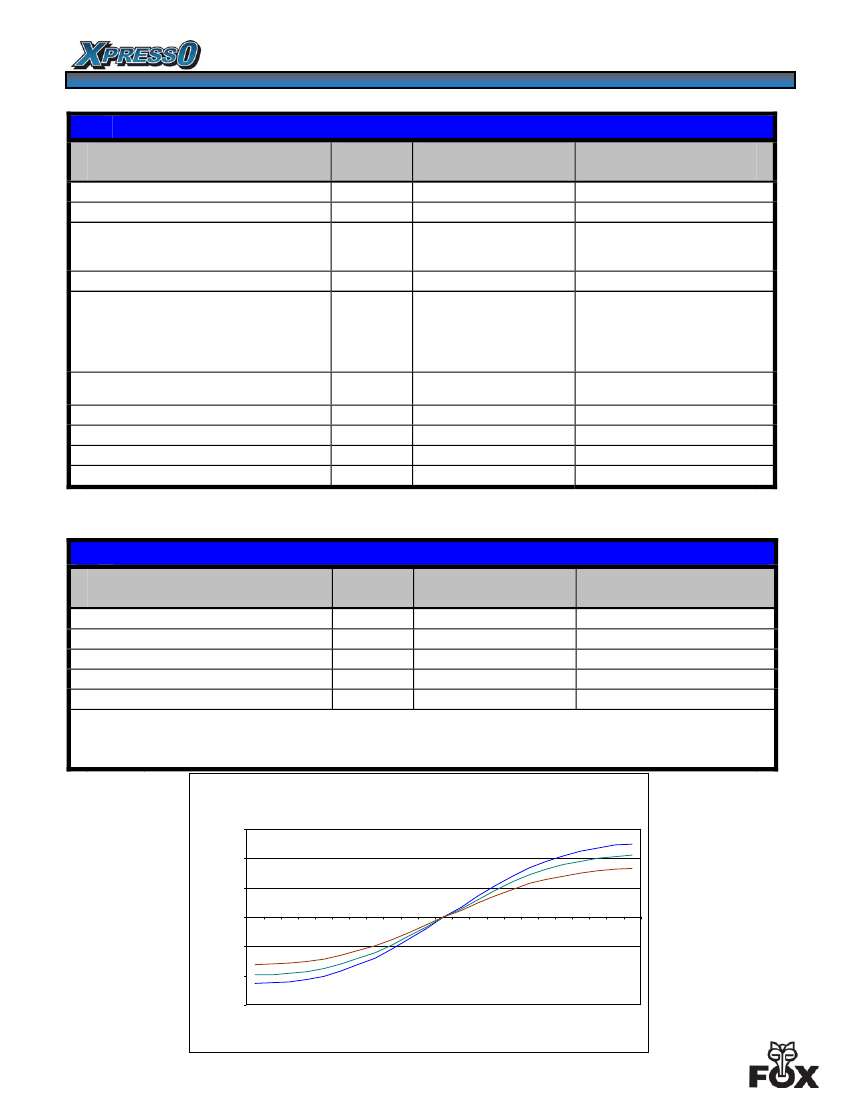

Electrical Characteristics
Parameters
Frequency Range
Absolute Pull Range
Note 1
Temperature Range
Supply Voltage
T
STG
V
DD
Symbol
F
O
APR
T
O
Condition
Maximum Value
(unless otherwise noted)
Input Current
(@ 15pF LOAD)
I
DD
Output Load
Start-Up Time
Output Enable / Disable Time
Moisture Sensitivity Level
Termination Finish
HCMOS
T
S
MSL
Standard operating
Optional operating
Storage
Standard
0.75 ~ 20 MHz
20+ ~ 50 MHz
50+ ~ 130 MHz
130+ ~ 200 MHz
200+ ~ 250 MHz
Standard
Operational To 125MHz
JEDEC J-STD-20
0.750 to 250.000 MHz
± 50 ppm MIN
-20°C to +70°C
-40°C to +85°C
-55°C to +125°C
3.3 V ± 5%
32 mA
35 mA
47 mA
55 mA
60 mA
15 pF
30 pF
10 mS
100 nS
1
Au
Note 1 – Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change, aging, shock and vibration.
Frequency Control (V
C
) Input
--
Parameters
Control Voltage Tuning Slope
2
Control Voltage Linearity
Control Voltage Tuning Range
Modulation Bandwidth
Nominal Control Voltage
1
pin # 1
Symbol
L
VC
V
C
BW
V
CNOM
Condition
0V to V
DD
Maximum Value
(unless otherwise noted)
@ f
0
40 ~ 75 ppm/V Typ
± 10%
0V ~ 3.3V
10 kHz
1.65V
2
NOTES:
1
2
Actual slope is affected by frequency and accuracy settings.
For an example of linearity, see the graph below.
(The middle line represents the default Fox factory setting)
FVXO Oscillator Pull
@ 25°C --
(range of typical responses)
150.0
100.0
Pull From Vc=1.65V (PPM)
50.0
0.0
-50.0
-100.0
-150.0
0.00
0.30
0.60
0.90
1.20
1.50
1.80
2.10
2.40
2.70
3.00
3.30
Vc
=
Voltage Applied to Pin # 1
Page
3 of 15
© 2008 FOX ELECTRONICS | ISO9001:2000 Certified
FVXO-HC73
Series

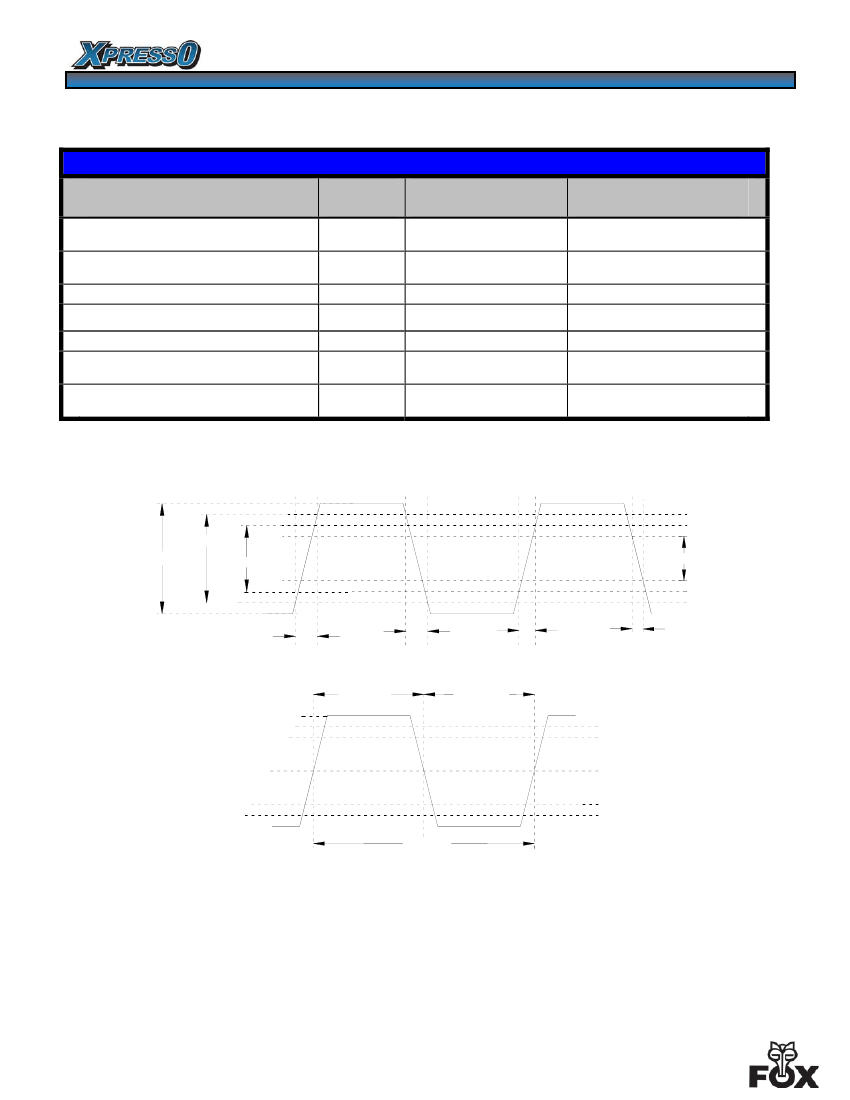

Output Wave Characteristics
Parameters
Output LOW Voltage
Output HIGH Voltage
Output Symmetry
(See Drawing Below)
Output Enable
(PIN # 2)
Voltage
Output Disable
(PIN # 2)
Voltage
Cycle Rise Time
(See Drawing Below)
Cycle Fall Time
(See Drawing Below)
V
IH
V
IL
T
R
T
F
0.75 to 150 MHz
150+ to 250 MHz
0.75 to 150 MHz
150+ to 250 MHz
Symbol
V
OL
V
OH
Condition
0.75 to 150 MHz
150+ to 250 MHz
0.75 to 150 MHz
150+ to 250 MHz
@ 50% V
DD
Level
Maximum Value
(unless otherwise noted)
10% V
DD
20% V
DD
90% V
DD
MIN
80% V
DD
MIN
45% ~ 55%
> 70% V
DD
< 30% V
DD
3 nS
(10%~90%)
3 nS
(20%~80%)
3 nS
(90%~10%)
3 nS
(80%~20%)
If 30% to 70% times are used, Rise and Fall times change to 1.5 nS from 0.75 to 250MHz
If 20% to 80% times are used, Rise and Fall times change to 2 nS from 0.75 to 150MHz
Rise Time / Fall Time Measurements
10% to 90%
0V to V
DD
20% to 80%
30% to 70%
10% - 90%
Rise Time
90% - 10%
Fall Time
80 - 20
Times
70 - 30
Times
Oscillator Symmetry
On Time
1/2 Period
Off Time
1/2 Period
50% V
DD
Period
Ideally, Symmetry should be 50/50 -- Other expressions are 45/55 or 55/45
Page
4 of 15
© 2008 FOX ELECTRONICS | ISO9001:2000 Certified
FVXO-HC73
Series

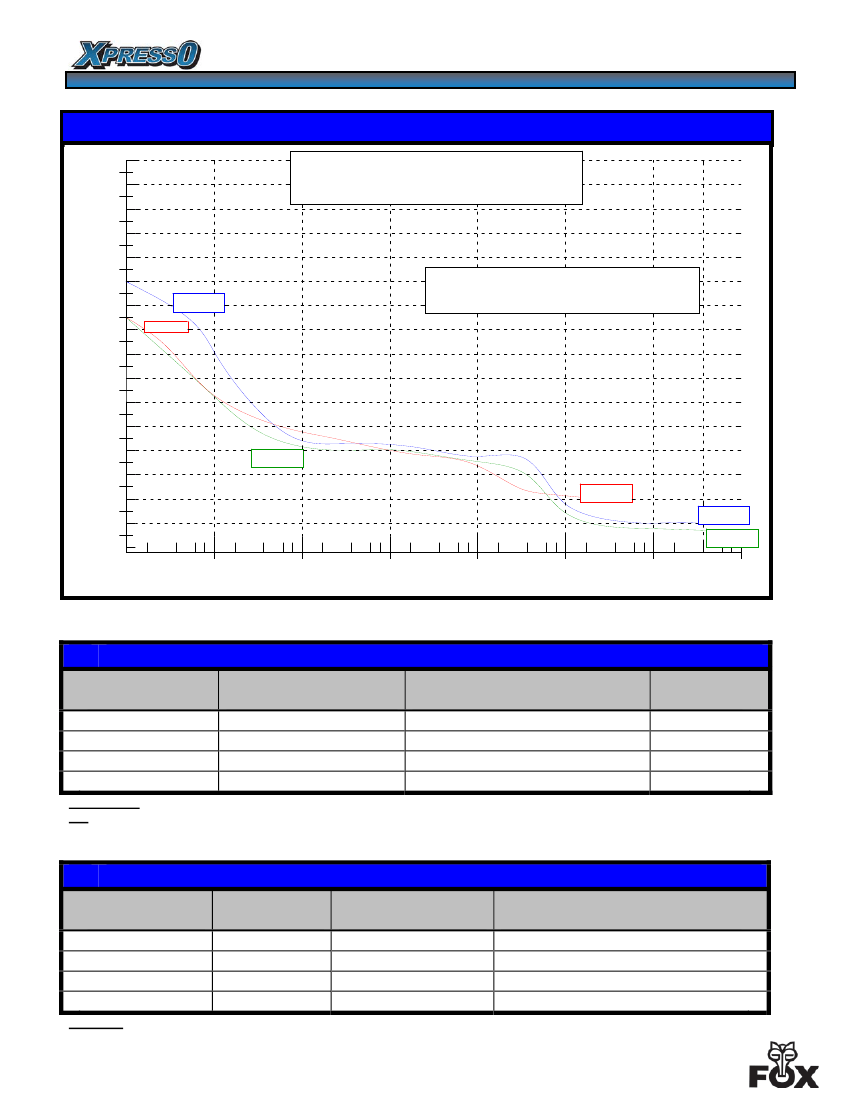

Phase Noise
0 dBc
-10dBc
-20dBc
-30dBc
-40dBc
-50dBc
-60dBc
-70dBc
-80dBc
-90dBc
-100dBc
-110dBc
-120dBc
-130dBc
-140dBc
-150dBc
-160dBc
62.5 MHz
156.25MHz
106.25 MHz
106.25 MHz
156.25MHz
62.5 MHz
Phase Noise Graph
(dBc / Hz) vs. offset frequency
Data Collected using HP 3048A
Three Frequencies from Jitter Tables
10
100
1k
10k
100k
1M
10M
40M
Offset Frequency
(10Hz to 40MHz)
Jitter is frequency dependent. Below are typical values at select frequencies.
Phase Jitter & Time Interval Error (TIE)
Frequency
62.5 MHz
106.25 MHz
125 MHz
156.25 MHz
Phase Jitter
(12kHz to 20MHz)
TIE
(Sigma of Jitter Distribution)
Units
pS RMS
pS RMS
pS RMS
pS RMS
0.93
0.86
0.75
0.77
2.8
3.2
2.7
3.3
Phase Jitter
is integrated from HP3048 Phase Noise Measurement System; measured directly into 50 ohm input; V
DD
= 3.3V.
TIE
was measured on LeCroy LC684 Digital Storage Scope, directly into 50 ohm input, with Amherst M1 software; V
DD
= 3.3V.
Per
MJSQ
spec (Methodologies for Jitter and Signal Quality specifications)
Random & Deterministic Jitter Composition
Frequency
62.5 MHz
106.25 MHz
125 MHz
156.25 MHz
Random (Rj)
(pS RMS)
Deterministic (Dj)
(pS P-P)
Total Jitter (Tj)
(14 x Rj) + Dj
25.1 pS
26.6 pS
25.2 pS
26.6 pS
1.28
1.28
1.20
1.27
6.8
8.4
8.0
8.6
Rj and Dj
, measured on LeCroy LC684 Digital Storage Scope, directly into 50 ohm input, with Amherst M1 software.
Per
MJSQ
spec (Methodologies for Jitter and Signal Quality specifications)
Page
5 of 15
© 2008 FOX ELECTRONICS | ISO9001:2000 Certified
