KV1400AAMFREQ datasheet, PDF - EEWORLD Datasheet

KV1400AAMFREQ: DescriptionSine Output Oscillator, 70MHz Min, 200MHz Max; CategoryPassive components oscillator; File Size64KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric Compare View All

KV1400AAMFREQ Overview

Sine Output Oscillator, 70MHz Min, 200MHz Max

Parameter Name	Attribute value
Maker	MtronPTI
Reach Compliance Code	unknown
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	150 ppm
frequency stability	40%
linearity	10%
Manufacturer's serial number	FV1400AA
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	200 MHz
Minimum operating frequency	70 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	SINE
Output impedance	50 Ω
physical size	20.83mm x 13.21mm x 7.62mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO

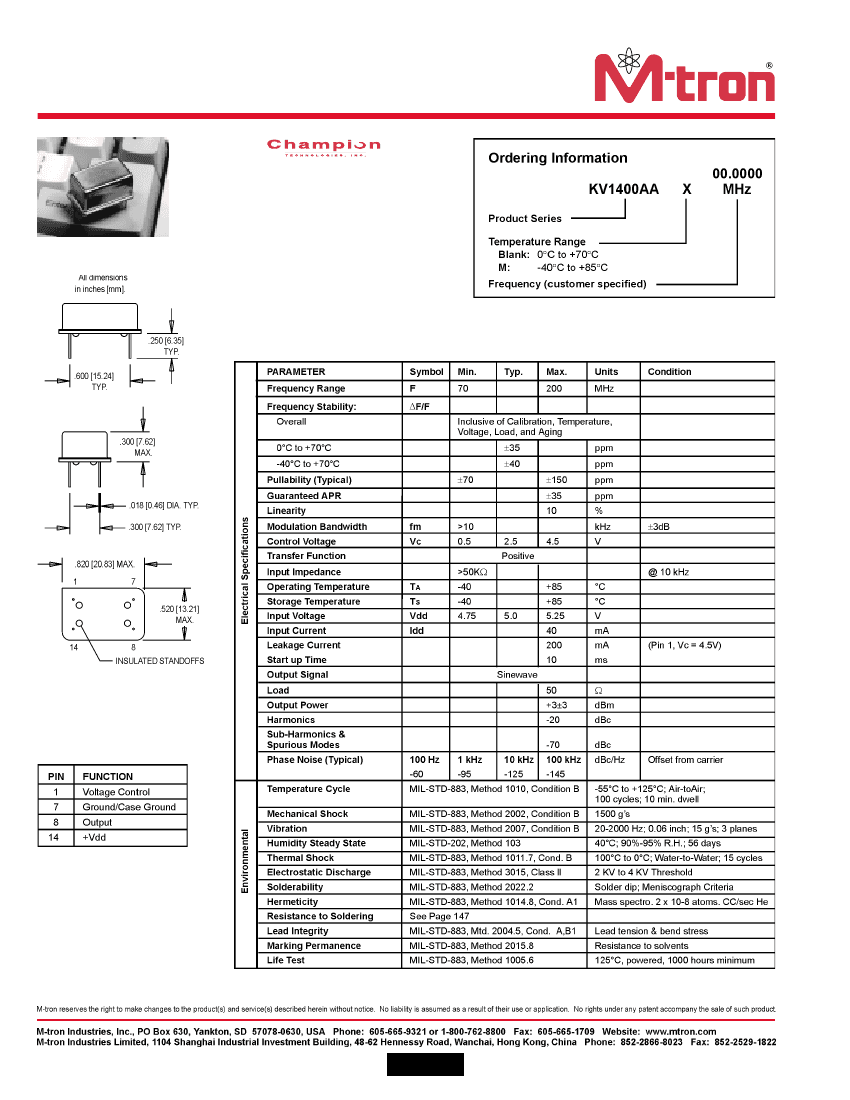

KV1400AA Series

14 DIP, 5.0 Volt, Sinewave, VCXO

•

Former

Product

•

Phase Locked Loops (PLL’s) & Clock

Recovery where phase noise integrity is

critical

Pin Connections

34

	KV1400AAMFREQ	KV1400AAFREQ
Description	Sine Output Oscillator, 70MHz Min, 200MHz Max	Sine Output Oscillator, 70MHz Min, 200MHz Max
Maker	MtronPTI	MtronPTI
Reach Compliance Code	unknown	unknown
Maximum control voltage	4.5 V	4.5 V
Minimum control voltage	0.5 V	0.5 V
Frequency Adjustment - Mechanical	NO	NO
Frequency offset/pull rate	150 ppm	150 ppm
frequency stability	40%	35%
linearity	10%	10%
Manufacturer's serial number	FV1400AA	FV1400AA
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating frequency	200 MHz	200 MHz
Minimum operating frequency	70 MHz	70 MHz
Maximum operating temperature	85 °C	70 °C
Oscillator type	SINE	SINE
Output impedance	50 Ω	50 Ω
physical size	20.83mm x 13.21mm x 7.62mm	20.83mm x 13.21mm x 7.62mm
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
