HIGH
POWER
FYLP 1W-
FYLP-1W-UBS
Features:
Long operating life.
Highest flux.
Available in Blue.
Lambertian radiation pattern.
More energy efficient than incandescent and
most halogen lamps.
Low voltage DC operated.
Cool beam, safe to the touch.
Instant light (less than 100ns).
Fully dimmable.
No UV.
Superior ESD protection
Lower Rth
ROHS compliant

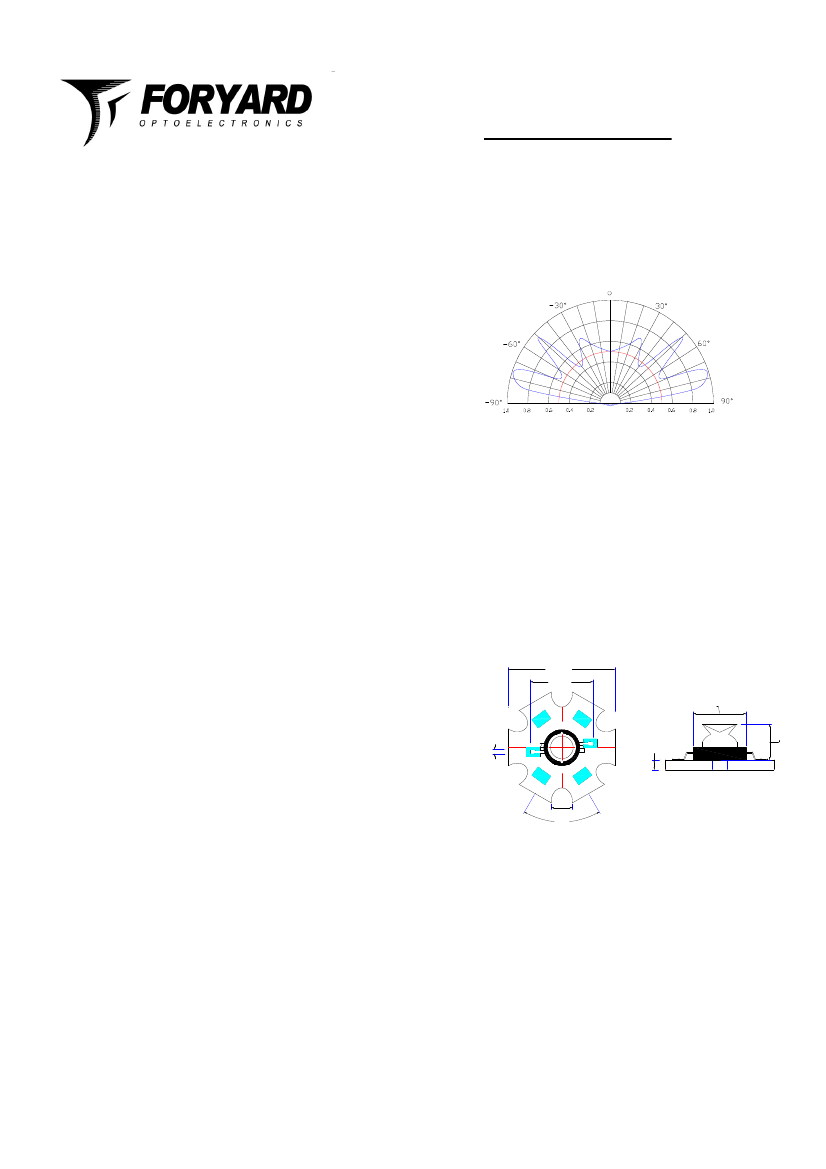

Radiation Pattern
R e l a t i v e L u m i o n o u s
I n t e n s i t y
L O P
@ m a x = 1 )
Package Dimensions
Applications
Reading lights(car,bus,aircraft)
LCD Backlights /light Guides
Fiber optic alternative/Decorative/Entertainment
Mini-accent/Up lighters/Down lighters/ Orientation
Indoor/Outdoor commerclal and Residentlal Architectural
Cove/Under shelf /Task
Bollards/Security/Garden
Portable(flashlight,bicycle)
Edge-lit signs (Exit, point of sale)
Automotive Exit (stop –tail-Turn ,CHMSL,Mirror Side Repeat)
Trafficsignaling /Beacons/rail Crossing and Wayside
20(.787)
6(.236)±0.1(.004)
15(.59)
（
8(.315)±0.1(.004)
1.3(.05)±0.1(.004)
-
-
+
-
2(.0787)
+
+
4(.157)
60°
HIGH
Typical Optical/Electrical Characteristics@TJ=25℃
POWER
Item
Forward Voltage
Reverse Current
50% Power Angle
Luminous Intensity
Recommend Forward Current
Wave length
Thermal Resistance,Junction to Case
symbol Condition
VF
IR
2θ
1/2
Фv
IF
λd
Rjp
IF=350mA
IF=350mA
IF=350mA
VR=5V
IF=350mA
IF=350mA
Min
3.0
Typ
-
175
Max
3.6
50
Unit
V
uA
deg
LM
mA
5
460
7
350
-
10
470
nm
℃/W
Notes: 1. Tolerance of measurement of forward voltage±0.1v
2.
Tolerance of measurement of peak Wavelength
±2.0nm
3.
Tolerance of measurement of luminous intensity
±15%.
Absolute Maximum Rating
Item
Forward Current
Peak Forward Current*
Reverse Voltage
Power Dissipation
Electrostatic discharge
Operation Temperature
Storage Temperature
Lead Soldering Temperature*
symbol
IF
IFD
VR
PD
ESD
T
OPR
T
STG
T
SOL
Absolute Maximum Rating
350
500
5
1000
4500
-30℃ to +80℃
-40℃ to +100℃
260℃ for 3 Seconds Max
Unit
mA
mA
V
mW
V
IFP Conditions :Pulse Width≤10
msec duty≤1/10
All high Power emitter LED products mounted on aluminum metal-core printed circuit board, can be lighted
directly ,but we do not recommend lighting the high power products for more than 5 seconds without a
directly,but we do not recommend lighting the high powe products for more than 5 seconds without a
appropriate heat dissipation equipment.
Re-flow, wave peak and soak-stannum soldering etc. is not suitable for this products.
Suggest to solder it by professional high power LED soldering machine.
Can use invariable –temperature searing-iron with soldering condition:
≤260 degreen less than 3 seconds.
HIGH
POWER
Typical optical/Electrical Characteristics Curves (Tj=25℃ Unless Otherwise Noted)
Spectral Reduance
Normalized Response
Peak@460nm /Blue
Wave Length(nm)
Forward Current Vs
Forward Voltage
600
R e l a t i v e L u m i n o u s i n t e n s i t y
v s F o r w a r d c u r r e n t
6 . 0
Forward Current(mA)
R e l a t i v e I n t e n s i t y
( L o p @ 2 0 m A = 1 )
500
5.0
4.0
3.0
2.0
1.0
0
400
300
200
0
1.6
2.2
2.8
3.4
4.0
4.6
0
350
F o r w a r d
400
C u r r e n t
500
I F ( m A
600
)
Forward Voltage(V)
L u m i n o u s I n t e n s i t y V s .
A m b i e n t T e m p e r a t u r e
Forward Current Derating Curve
6 0 0
5 0 0
4 0 0
3 0 0
2 0 0
1 0 0
0
0
4 0
8 0
1 2 0
1 6 0
2 0 0
Relative Luminous Intensity
250
200
150
100
50
0
-20
0
20
40
60
80
100
Forward Current(mA)
Ambient Temperature TA(
C
)
Ambient Temperature TA( C )
