2.0x1.25mm SMD CHIP LED LAMP
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
P/N: KPT-2012QBC-C
BLUE
Features
2.0mmx1.25mm SMT LED,0.75mm THICKNESS.
LOW POWER CONSUMPTION.
WIDE VIEWING ANGLE.
IDEAL FOR BACKLIGHT AND INDICATOR.
VARIOUS COLORS AND LENS TYPES AVAILABLE.
PACKAGE : 2000PCS / REEL.
RoHS COMPLIANT.
Description
The Blue source color devices are made with GaN on
Sapphire Light Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or
anti-electrostatic glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.1(0.004")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAA3795
APPROVED: J. Lu
REV NO: V.10
CHECKED: Allen Liu
DATE: NOV/10/2005
DRAWN: Y.L.LI
PAGE: 1 OF 4

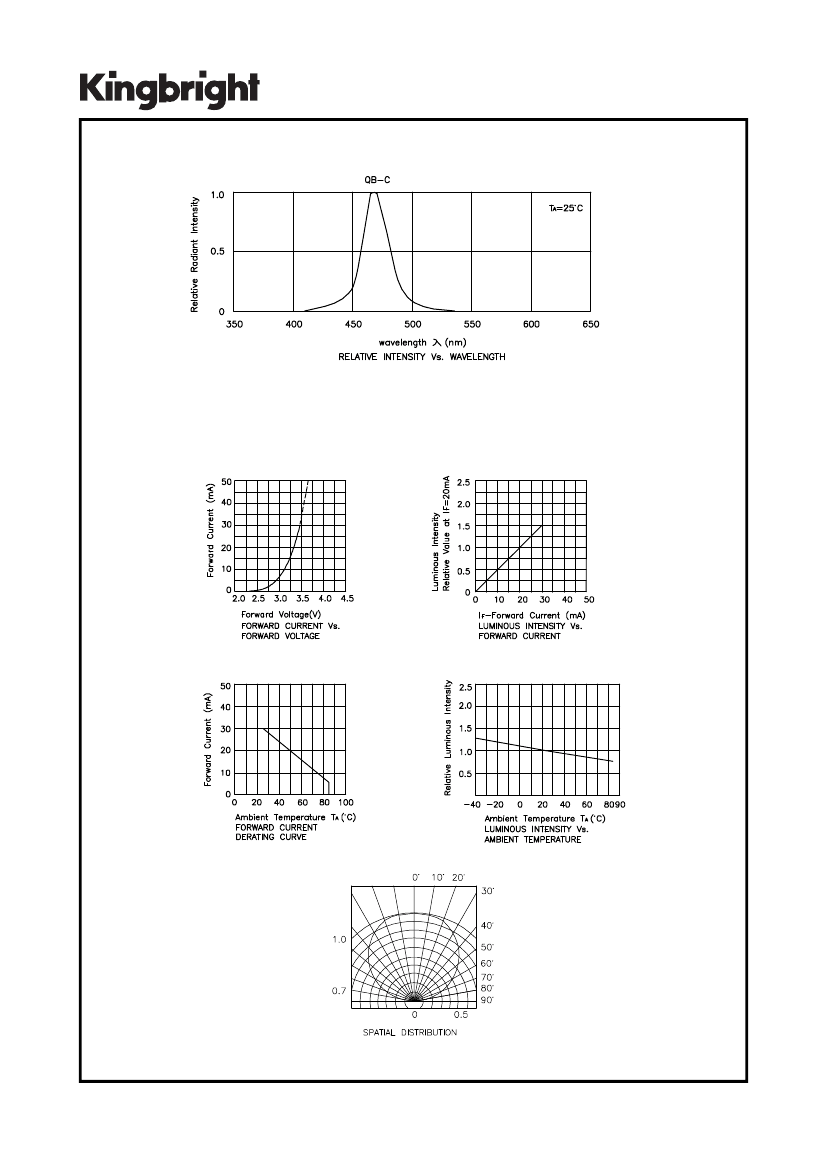

Selection Guide
Part No.
Dice
Lens Type
Iv (mcd)
@ 20mA
Min.
KPT-2012QBC-C
BLUE (GaN)
WATER CLEAR
36
Typ.
60
Viewing
Angle
θ
2θ1/2
120
°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Blue
Blue
Blue
Blue
Blue
Blue
Device
Typ.
470
470
25
105
3.3
4.0
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Blue
105
30
150
5
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAA3795
APPROVED: J. Lu
REV NO: V.10
CHECKED: Allen Liu
DATE: NOV/10/2005
DRAWN: Y.L.LI
PAGE: 2 OF 4
KPT-2012QBC-C

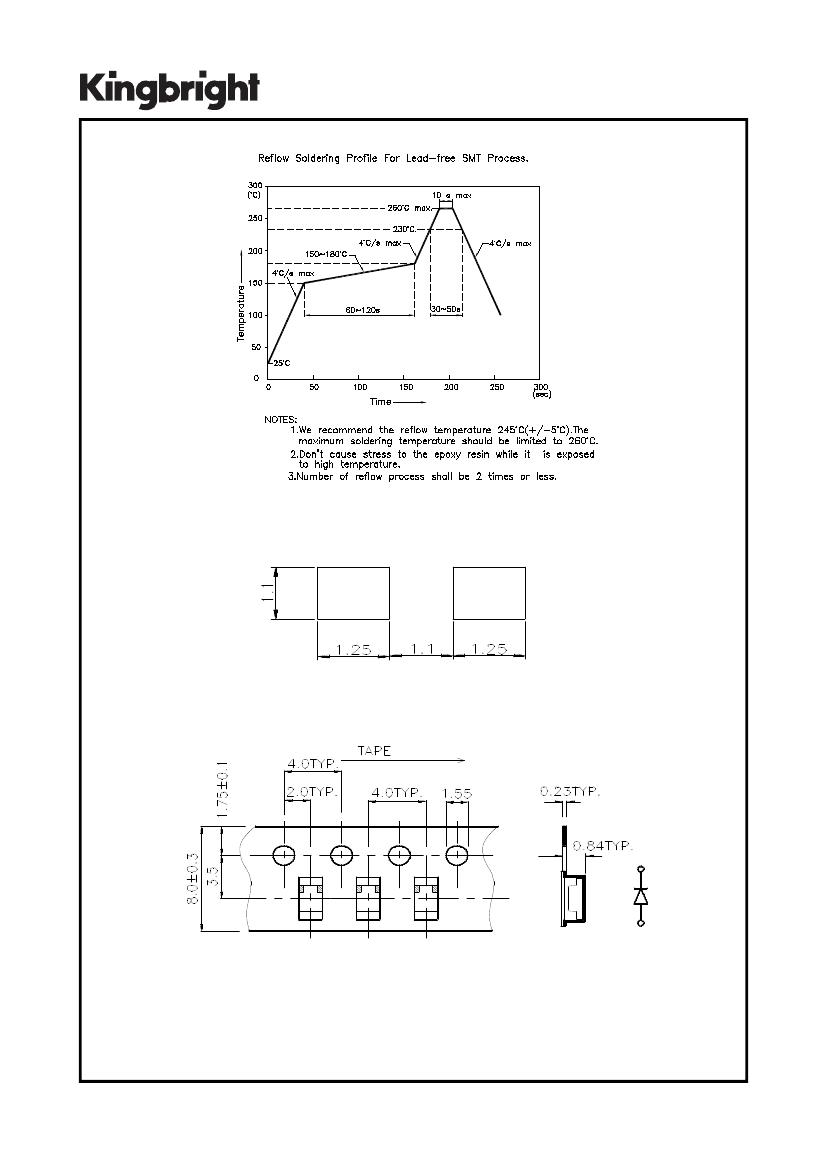

Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity/ luminous flux or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity/ Luminous Flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAA3795
APPROVED: J. Lu
REV NO: V.10
CHECKED: Allen Liu
DATE: NOV/10/2005
DRAWN: Y.L.LI
PAGE: 4 OF 4
Talking
